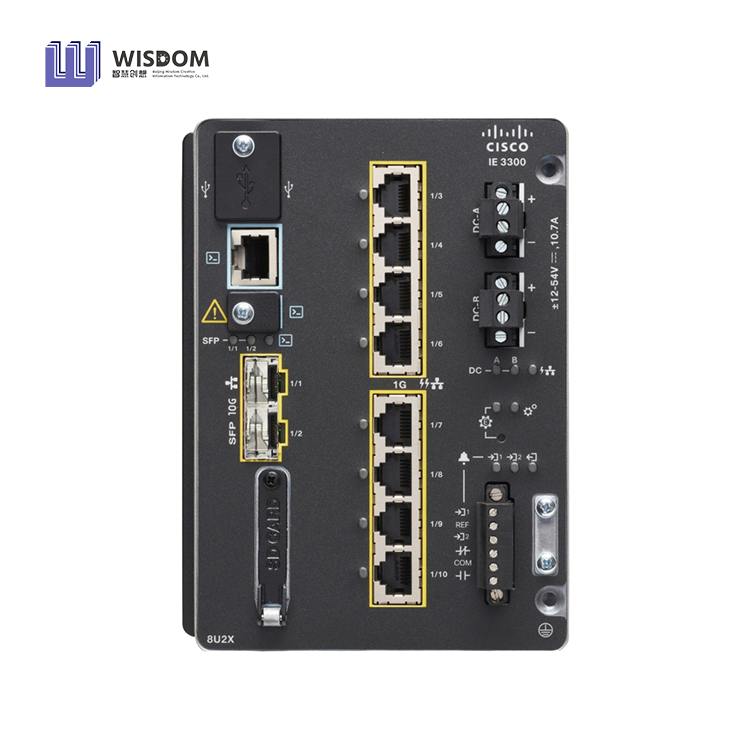

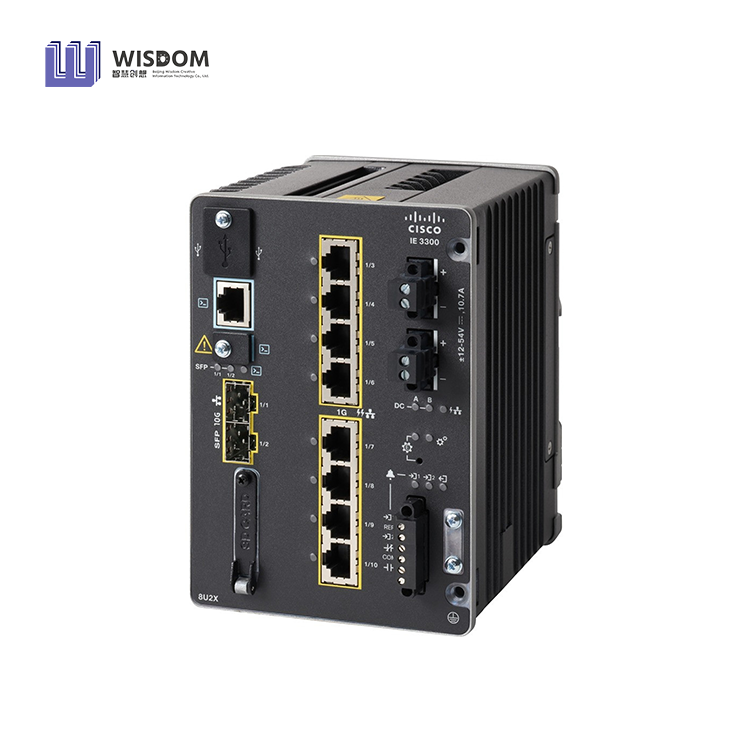

Cisco Catalyst IE3300 Rugged Series Switch

● Built for harsh environments and temperature ranges (-40°C to +75°C)
● Fanless, convection-cooled with no moving parts for extended durability
● Hardened for vibration, shock and surge, and electrical noise immunity
● Complies with multi-industry specifications for automation, ITS, and substation environments
● Improves uptime, performance, and safety of industrial systems and equipment
● Covers a wide range of Power over Ethernet (PoE) (up to IEEE ® 802.3bt type 4) application requirements
● Alarm I/O for monitoring and signaling to external equipment

● Provides secure access for new high-speed applications in the industrial space
● There are two base system port configurations available: 2 ports of 1GE uplinks or 2 ports of 10G uplinks:
◦ Packs up to 10 ports - 2x 10G Small Form-Factor Pluggable (SFP+) uplinks plus 8x 1GE copper RJ45 downlink ports (with IEEE®
802.3bt PoE or non-PoE) in a small form-factor base system
◦ Packs up to 10 ports of GE - 2x 1GE Small Form-Factor Pluggable (SFP) uplinks plus 8x 1GE copper RJ45 downlink ports (with PoE+
or non PoE) in a small form-factor base system

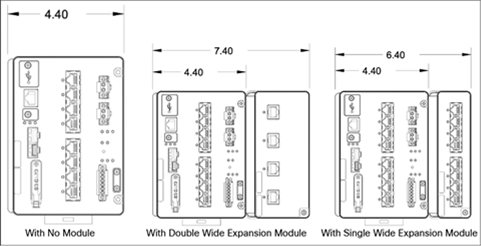

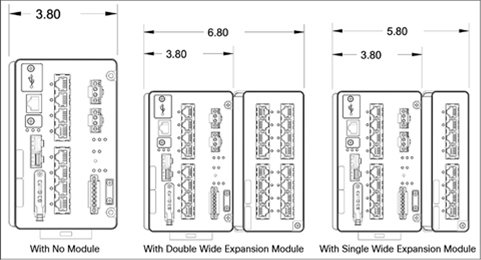

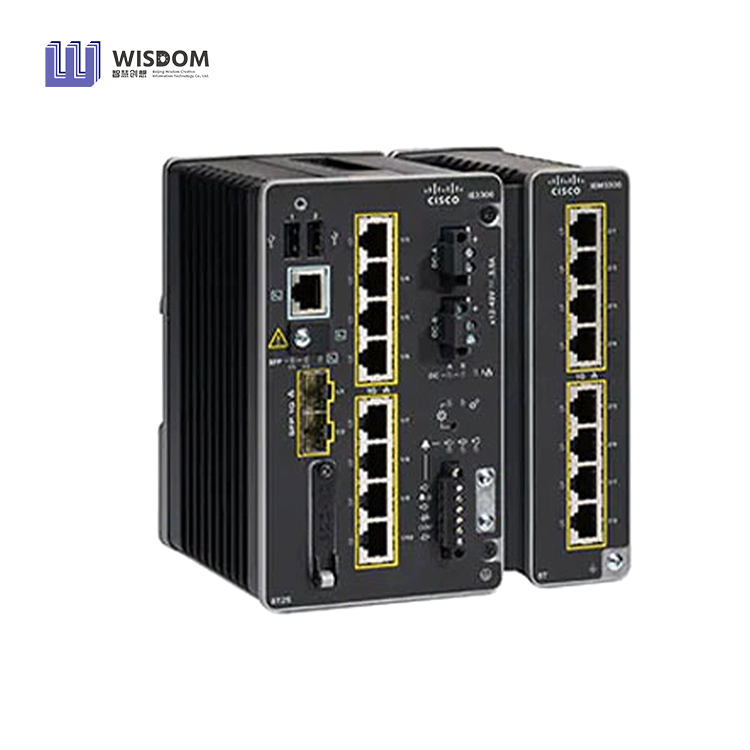

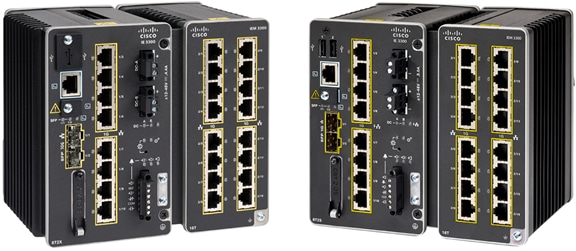

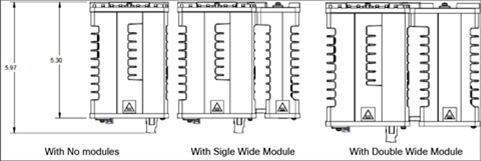

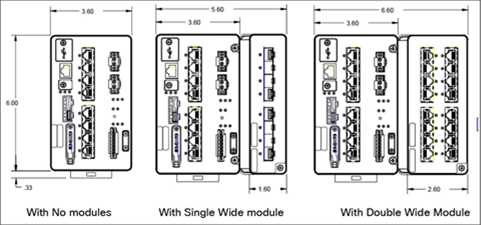

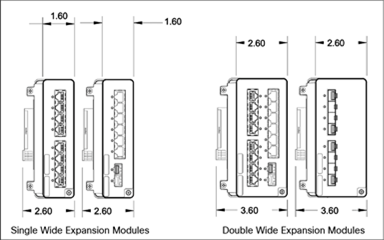

● Expandable

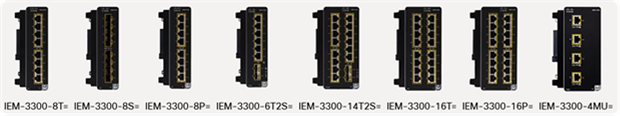

◦ to up to 26 ports of GE by attaching one of 8 compatible modules (copper, PoE, fiber and 2.5G with IEEE® 802.3bt type 4 options)
◦ to up to 24 ports of GE plus 2 ports of 10G by attaching one of the 8 compatible modules (copper, PoE, fiber and 2.5G with IEEE®
802.3bt type 4 options)
● Connects high-speed wireless access points (802.11n, 802.11ac, 802.11ac WAVE 2, 802.11ax)
● Enables Ultra High-Definition (UHD), PTZ IP cameras, Programmable Logic Controllers (PLC) and Wi-Fi 6 Access Points
● Delivers multiple rings and redundant ring topologies for new network configurations
● Extends geographical scalability where longer-distance connectivity is required

● Supports
◦ up to 24x PoE/PoE+ ports or 4x 802.3bt type 4 ports (with 2.5G expansion module) with the all GE PoE enabled base [Power budget
- 360W]
◦ up to 24x PoE/PoE+ ports or 8x "802.3bt type 3" ports or 4x "802.3bt type 4" ports with the 10G, PoE enabled system [Power
budget – 480Watts]
● Controls costs by limiting wiring, distribution panels, and circuit breakers
● Reduces equipment needs, thus requiring less space and reducing heat dissipation
● Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points

● Allows for easy configuration and monitoring
● Eliminates the need for more complex, terminal emulation programs
● Reduces the cost of deployment

● True zero-configuration and simple switch replacement in the event of a failure
● No networking expertise required
● Helps ensure fast recovery

● Provides enhanced flow and threat visibility
● Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security
incident detection

● IPv6 Ready Logo Certified
