Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches
Cisco Industrial Ethernet 4010 Series Switches

Cisco Industrial Ethernet 4010 Series Switches

Product overview

Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces, are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The IE 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, Intelligent Transportation Systems (ITS), and city surveillance programs. The IE 4010 has built-in SW image verification to ensure authenticity of the Cisco Software. The IE 4010 complements the existing Cisco IE 3100, IE 3200, IE 3300 and IE 3400 Series Switch families.

The IE 4010 Series can also be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways etc. using powerful enterprise-grade intent-based network management platform such as Cisco Catalyst Center.

The IE 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.

Get a Quote Contact us
  • Description
  • Product specifications
cisco industrial ethernet 4010 series switches-2

+86-18600585382
[email protected]
Inquiry

Product overview

Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces, are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The IE 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, Intelligent Transportation Systems (ITS), and city surveillance programs. The IE 4010 has built-in SW image verification to ensure authenticity of the Cisco Software. The IE 4010 complements the existing Cisco IE 3100, IE 3200, IE 3300 and IE 3400 Series Switch families.

The IE 4010 Series can also be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses,distribution centers, roadways etc. using powerful enterprise-grade intent-based network management platform such as Cisco Catalyst Center.

The IE 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
Features and benefits
Table 1 lists the features and benefits of Cisco IE 4010 Series Switches.

Table 1. Features and benefits of Cisco IE 4010 Series Switches
Feature
Benefit
Robust industrial design
● A utility grade, fully managed 1 RU rack mount Ethernet access switch with PoE capabilities.
● Fanless, convection cooled with no moving parts.
● Extended operational temperature range (-40 to 75C).
● Hardened for vibration, shock, surge, and electrical noise immunity.
● Complies with multi-industry specifications for industrial automation, ITS, and electrical substation environments.
● Improves uptime, performance, and safety of industrial systems and equipment.
● IEEE 1588v2 Precision Time Protocol (PTP - both power profile for utility and default profile for manufacturing are supported).
● Alarm I/O for monitoring and signaling to external equipment.
User-friendly GUI device manager
● Allows easy configuration and monitoring via a web browser.
● Eliminates the need for terminal emulation programs.
● Multiple Language Support - English, Chinese (Traditional), Chinese (Simplified), French, German, Japanese, Spanish (LATAM)
Swap drive: “zero-config” replacement
● True zero-configuration replacement for easy middle-of-the-night or middle-of-nowhere failure recovery.
● Simple switch replacement in case of a failure.
● No networking expertise required.
● Helps ensure fast recovery.
High-density industrial Power over Ethernet (PoE/PoE+)
● Supports up to 24 total PoE/PoE+ ports with power budget up to 385W available with two power supplies.
● Enables ready-to-use PoE devices, such as High Definition (HD) IP cameras, wireless access points, and IP phones.
Complete Gigabit Ethernet switch
● Total of 28 Gigabit Ethernet ports provide multiple resilient design options.
● Connects new wireless access points
● Enables new HD IP cameras and future proof Gigabit speed automation devices.
● Allows IP-based Supervisory Control And Data Acquisition (SCADA) connectivity.
● Supports delay-sensitive applications and time-sensitive networks.
● Delivers multiple rings; redundant ring topology for new network configurations.
● Extends geographical scalability where longer distance connectivity is required.
Cisco Industrial Ethernet (IE) 4010 Series Switches offer:

● Bandwidth and capacity to grow with your networking needs: high performance nonblocking switching capacity with 28 Gigabit Ethernet ports per switch
● High-density Power over Ethernet - 24 ports of PoE of 12 ports of PoE+ capable ports to connect IP cameras, IP phones, badge readers, wireless access points, etc.
● Cisco IOS Software features for easy IT integration and management consistency
● Cisco Catalyst Center management and support for software-defined access extension for IoT
● Robust resiliency enabled by dual ring design through 4x Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP),Parallel Redundancy Protocol (PRP), PROFINET - Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel and Flexlink support, integrated and redundant power supplies, dying gasp, etc.
● True zero-touch replacement for middle-of-night or middle-of-nowhere failure
● Line-rate, low-latency forwarding with advanced hardware assist features (such as NAT, IEEE1588)
● Simplified software upgrade path with universal images
● Support of Industrial automation protocols EtherNet/IP (CIP) and Profinet

Figure 1 shows switch models, Table 2 shows all the available 4010 models, Table 3 lists the power supplies and Table 4 shows the available power budget for PoE/PoE+ for Cisco IE 4010 Series Switches

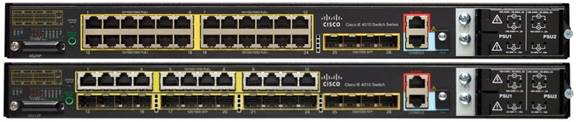

Cisco IE4010 Switch (1).jpg
Figure 1. Cisco IE 4010 series model

Table 2. Cisco IE 4010 Series switch models
Product number
Total ports
SFP Uplinks
SFP fiber ports (S)
Copper PoE/PoE+ Ports2(P)
Default software
IE-4010-16S12P
28
4 FE/GE
12 FE/GE
12 FE/GE
LAN Base1
IE-4010-4S24P
28
4 FE/GE
24 FE/GE
LAN Base1
1Can be upgraded to IP Services license with the license product number in Table 15
2All copper Gigabit Ethernet interfaces support speed negotiation to 10/100/1000 Mbps and duplex negotiation

Table 3. Power supplies for Cisco IE 4010 Series Switches1
Product number
Wattage
Rated nominal input operating range
Supported input voltage operating range
PoE/PoE+ support
Use case scenario
PWR-RGD-AC-DC-H
150W
AC 100-240V/2.0A 50-60Hz
or
DC 100-250V/2.0A
AC 85-264V
or
DC 88-300V
Yes
High voltage AC or DC power source, for hazardous locations
PoE power application
PWR-RGD-LOW-DC-H
150W
DC 24-60V/10A
DC 18-75V
Yes
Low voltage DC power source, for hazardous locations
PoE power application
PWR-RGD-AC-DC-250
250W
AC 100-240V 3.3A 50-60Hz
or
DC 100-250V 3.3A
AC 85-264V
or
DC 88-300V
Yes
High voltage AC or DC power source, for hazardous locations
PoE power application
1All power supplies have their power output galvanically isolated from the power input

Table 4. Available power budget for PoE/PoE+ with different power supply wattage
Product number
150W
150W (dual)
250W
250W + 150W
250W (dual)
IE-4010-16S12P
80
200
180
285
360
IE-4010-4S24P
80
200
180
285
385
Table 5 lists specifications, Table 6 lists information about switch’s physical specifications, Table 7 lists information about switch performance and scalability, Tables 8 and 9 list important software license features. Tables 10-11 list the Cisco Catalyst Center DNA Essentials and DNA Advantage license features. Table 12 lists compliance specifications, and Table 13 lists information about management and standards and Table 14 lists the supported SFPs on Cisco IE 4010 Series Switches.
Table 5. Product specifications
Description
Specification
Hardware
● 1 GB DRAM
● 128 MB onboard flash memory
● 1-GB removable SD flash memory card (Included)
● Mini-USB and traditional RJ-45 console connector
Alarm
Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
Accessories
● SD-IE-1GB= - Spare SD card
● L-IE4000-RTU= - Electronic RTU IP services software license for 4010 switches
● 21–in. and 23–in. ETSI rack mount brackets

Table 6. Physical specifications

Description
IE-4010-4S24P
IE-4010-16S12P
Dimensions, (H x W x D)
● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H
● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250
System Weight
Without power supply: 12.1 lb (5.46 kg)
Without power supply: 12.7 lb (5.78 kg)
Power Supply Weight
● PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg)
● PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg)
● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
Power consumption
Maximum of 70W not including PoE consumption
Table 7. Switch performance and scalability
Description
Specification
Forwarding bandwidth
28 Gbps (line rate/non-blocking)
Switching bandwidth
56 Gbps(Switching bandwidth is full-duplex capacity)
Forwarding rate
41.67 mpps with 64 byte packets (line rate for all ports and packet sizes)
Number of queues
4 egress
Unicast MAC addresses
16,000
IGMP multicast groups
1000
Number of VLANs
1000
IPv4 MAC security ACEs
1000 with default TCAM template
NAT translation
Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly

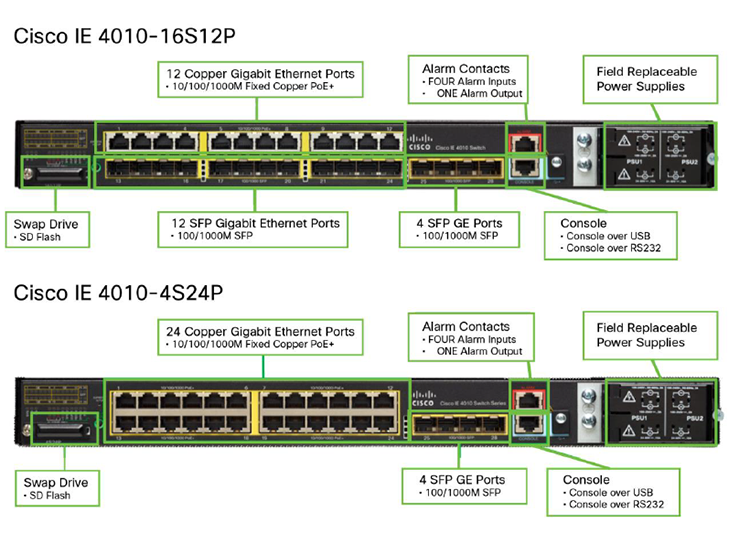

Cisco IE4010 Switch (5).png
