Description

Product overview

The Cisco Nexus® 3064-X, 3064-T, and 3064-32T Switches are high-performance, high-density Ethernet switches that are part of the Cisco Nexus 3000 Series Switches portfolio. These compact one-Rack-Unit (1RU) form-factor 10 Gigabit Ethernet switches provide line-rate Layer 2 and 3 switching. They run the industry-leading Cisco® NX‑OS Software operating system, providing customers with comprehensive features and functions that are widely deployed globally. They support both forward and reverse airflow schemes with AC and DC power inputs. The Cisco Nexus 3064 switches are well suited for data centers that require cost-effective,power-efficient, line-rate Layer 2 and 3 Top-of-Rack (ToR) switches.
Three Cisco Nexus 3064 switches are available:
● Cisco Nexus 3064-X (Figure 1): This 10-Gbps Enhanced Small Form-Factor Pluggable (SFP+)-based top‑of-rack switch has 48 SFP+ ports and 4 Quad SFP+ (QSFP+) ports. Each SFP+ port can operate in 100-Mbps, 1-Gbps, or 10-Gbps mode, and each QSFP+ port can operate in native 40-Gbps or 4 x 10-Gbps mode. This switch is a true phy-less switch that is optimized for low latency and low power consumption.
● Cisco Nexus 3064-T (Figure 2): This 10GBASE-T switch has 48 10GBASE-T RJ-45 ports and 4 QSFP+ ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.
● Cisco Nexus 3064-32T (Figure 2): This switch is the Cisco Nexus 3064-T with 32 10GBASE-T ports and 4 QSFP+ ports enabled. The ports are enabled through software licensing. This switch provides a cost-effective solution for customers who require up to 32 10GBASE-T ports per rack. This switch comes with a 32-10GBASE-T port license preinstalled. To enable the remaining 16 10GBASE-T ports, the customer installs the 16-port upgrade license.

Figure 1.

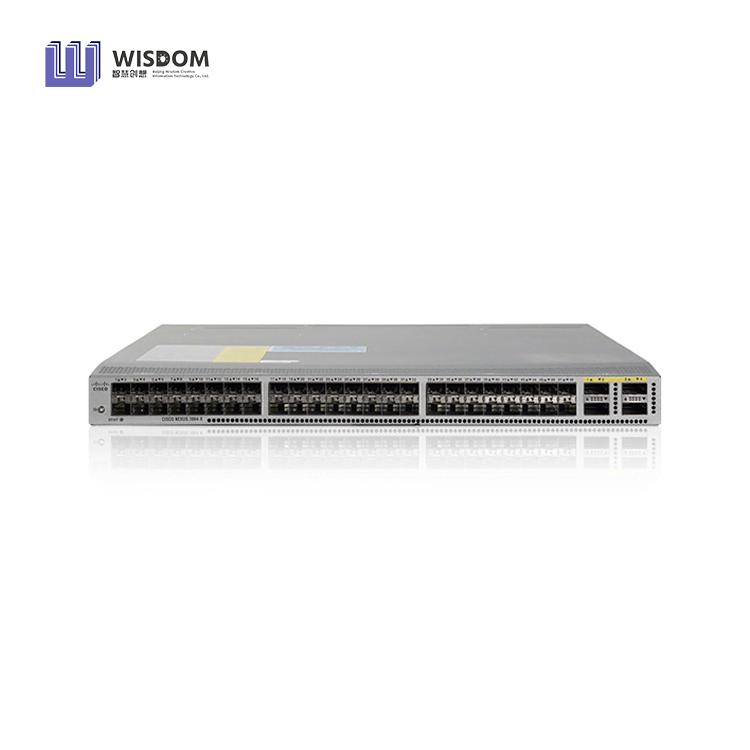

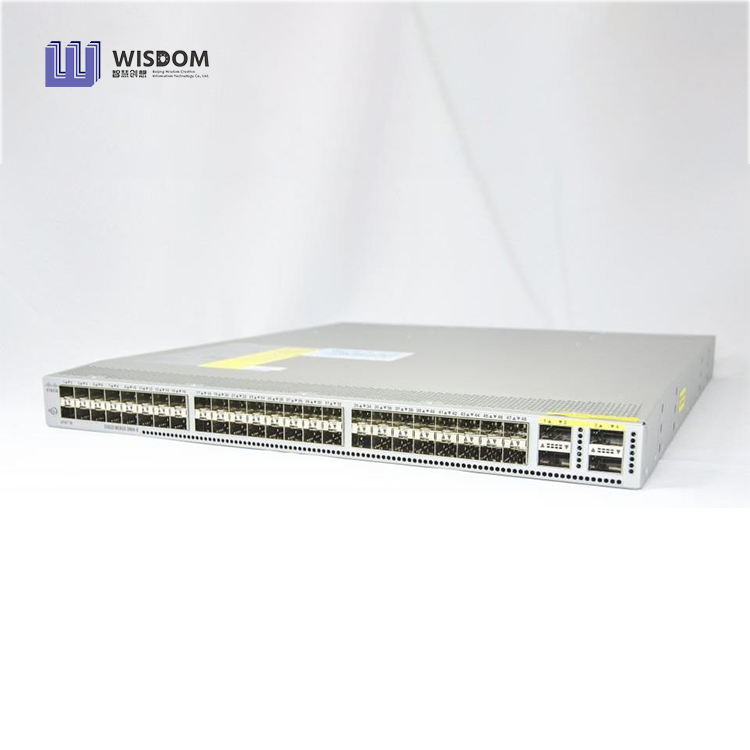

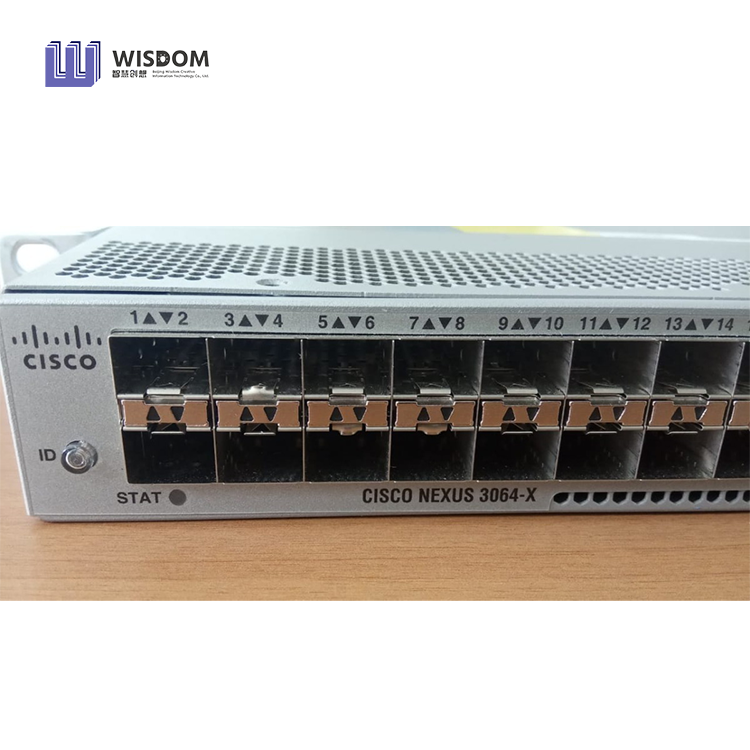

Cisco Nexus 3064-X Switch
Figure 2.

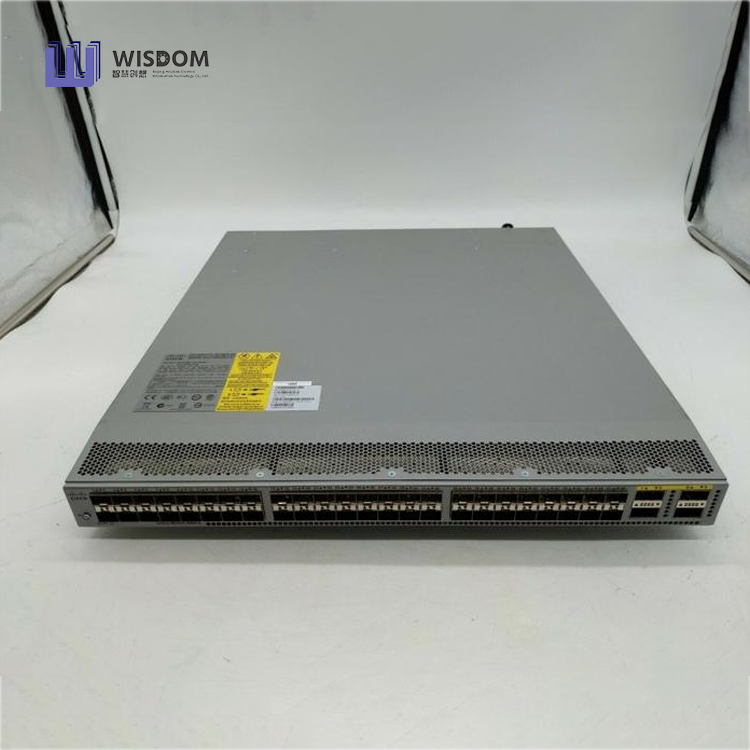

Cisco Nexus 3064-T and 3064-32T Switch
Main benefits
The Cisco Nexus 3064 switches provide the following main benefits:
● Wire-rate Layer 2 and 3 switching on all ports
◦ The Cisco Nexus 3064 switches provide Layer 2 and 3 switching of up to 1.2 Terabits per second (Tbps) and more than 950 million packets per second (mpps) in a compact 1RU form factor.
● Ultra-low latency
◦ The Cisco Nexus 3064 switches deliver ultra-low nominal latency that allows customers to implement high‑performance infrastructure for High-Frequency Trading (HFT) workloads.
● Purpose-built on Cisco NX-OS operating system with comprehensive, proven innovations
◦ Virtual PortChannel (vPC) provides Layer 2 multipathing through the elimination of Spanning Tree Protocol and enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.
◦ PowerOn Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.
◦ Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.
◦ Advanced buffer monitoring reports real-time buffer use per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.
◦ The 64-way Equal-Cost Multipath (ECMP) routing enables Layer 3 fat tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
◦ Ethanalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.
◦ Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.
◦ Full Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast sparse mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).
● Network traffic monitoring with Cisco Nexus Data Broker
◦ Build simple, scalable and cost-effective network tap or Cisco Switched Port Analyzer (SPAN) aggregation for network traffic monitoring and analysis.

Product specifications

Table 6 lists the specifications for the Cisco Nexus 3064 switches, Table 7 lists software features, and Table 8 lists management standards and support.

Table 6. Specifications

Description	Specification
Physical	● 1RU fixed form factor ● Cisco Nexus 3064-X: 64 10 Gigabit Ethernet ports (48 SFP+ and 4 QSFP+) ◦ 48 SFP ports support 1 and 10 Gigabit Ethernet ◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each ● Cisco Nexus 3064-T: 64 x 10 Gigabit Ethernet ports (48 10GBASE-T and 4 QSFP+) ◦ 48 RJ-45 ports support 100 Mbps and 1 and 10 Gigabit Ethernet ◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each ● Cisco Nexus 3064-32T: 48 x 10 Gigabit Ethernet ports (32 10GBASE-T and 4 QSFP+) ◦ 32 RJ-45 ports support 100 Mbps and 1 and 10 Gigabit Ethernet ◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each ● 2 redundant power supplies ● 1 fan tray with redundant fans ● 1 I/O module with management, console, and USB flash memory ports
Performance	● 1.28-Tbps switching capacity ● Forwarding rate of 950 mpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports ● Configurable Maximum Transmission Units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability	MAC addresses	128,000
	Number of VLANS	4096
	Spanning-tree instances	● Rapid Spanning Tree Protocol (RSTP): 512 ● Multiple Spanning Tree (MST) Protocol: 64
	ACL entries	● 2000 ingress ● 1000 egress
	Routing table	● 16,000 prefixes and 16,000 host entries ● 8000 multicast routes
	Number of EtherChannels	64 (with vPC)
	Number of ports per EtherChannel	32
	Buffers	9 MB shared
	Boot flash memory	2 GB
Power	Number of power supplies	2 ● Cisco Nexus 3064-X: Redundant for AC and DC power ● Cisco 3064-T and 3064-32T: Redundant for AC power
	Power supply types	● AC (forward and reversed airflow) ● DC (forward and reversed airflow)
	Typical operating power	● Cisco Nexus 3064-X ◦ 143 watts (W; 64p with Twinax at 100% load; 2 power supply units [PSUs]) ◦ 177W (64p with SR optics at 100% load; 2 PSUs) ● Cisco Nexus 3064-T ◦ 362W (48p with 3m cables; 4 SR4 at 100% load)
	Maximum power	● Cisco Nexus 3064-X: 199W ● Cisco Nexus 3064-T
	AC PSUs ● Input voltage ● Frequency ● Efficiency	● 100 to 240 VAC ● 50 to 60 Hz ● 89 to 91% at 220V
	DC PSUs ● Input voltage ● Maximum current ● Efficiency	● -40 to -72 VDC ● 33A ● 85 to 88%
	Typical heat dissipation	● Cisco Nexus 3064-X ◦ 488 BTU/hr (64p with Twinax at 100% load; 2 PSUs) ◦ 605 BTU/hr (64p with SR optics at 100% load; 2 PSUs) ● Cisco Nexus 3064-T ◦ 1235 BTU/hr (48p with 3m cables; 4 SR4 at 100% load)
	Maximum heat dissipation	● Cisco Nexus 3064-X: 683 BTU/hr ● Cisco Nexus 3064-T: 1553 BTU/hr
Cooling	Forward and reversed airflow schemes: ● Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) ● Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies) Single fan tray with redundant fans Hot swappable (must swap within 1 min)
Sound	Measured sound power (maximum) ● Fan speed: 40% duty cycle ● Fan speed: 60% duty cycle ● Fan speed: 100% duty cycle	● 59.7 dBA ● 66.4 dBA ● 71.0 dBA
Environment	Dimensions (height x width x depth)	● Cisco Nexus 3064-X: 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) ● Cisco Nexus 3064-T and 3064-32T: 1.72 x 17.3 x 22.45 in.(4.4 x 43.9 x 57.0 cm)
	Weight	● Cisco Nexus 3064-X: 20.5 lb (9.3 kg) ● Cisco Nexus 3064-T and 3064-32T: 20.8 lb (9.5 kg)
	Operating temperature	32 to 104°F (0 to 40°C)
	Storage temperature	-40 to 158°F (-40 to 70°C)
	Operating relative humidity	● 10 to 85% noncondensing ● Up to 5 days at maximum (85%) humidity ● Recommend ASHRAE data center environment
	Storage relative humidity	5 to 95% noncondensing
	Altitude	0 to 10,000 ft (0 to 3000m)
