Dell PowerEdge R260 1u Rack Server

Description

R260 is the newly-designed short-depth rack server with filter bezel for Near Edge customers. Featuring the latest Intel® Xeon®6300 series or Intel® Xeon® E-2400 series processor, DDR5 memory, NVMe BOSS, and Energy Star 4.0 PSU, the R260 is ready to support customers growing businesses.

• Mailing and Messaging

• Near-Edge Applications

• Collaboration and Sharing

Product Parameters

Processor	One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/G7400T processor with 2 cores
Memory	• 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s • Supports unregistered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt • Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs • External HBAs (non-RAID): HBA355e Adpt • Software Controller: S160

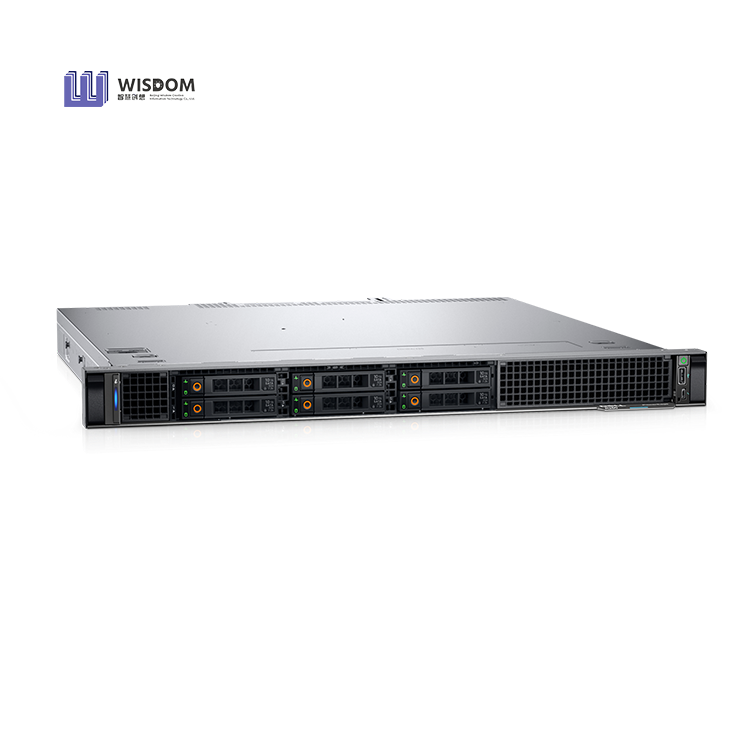

Drive bays	Front bays: • Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB • Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB
Power Supplies	• 450 W Platinum 100 — 240 VAC, non redundant • 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant
Cooling Options	Air cooling
Fans	Up to six cabled fans
Dimensions	• Height – 42.8 mm (1.68 inches) • Width – 482.0 mm (18.97 inches) • Depth – 461.14 mm (18.15 inches) without bezel • Depth –496.8 mm (19.55 inches) with bezel • Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel
Form Factor	1U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Manual
Bezel	Security bezel or optional Filter bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center

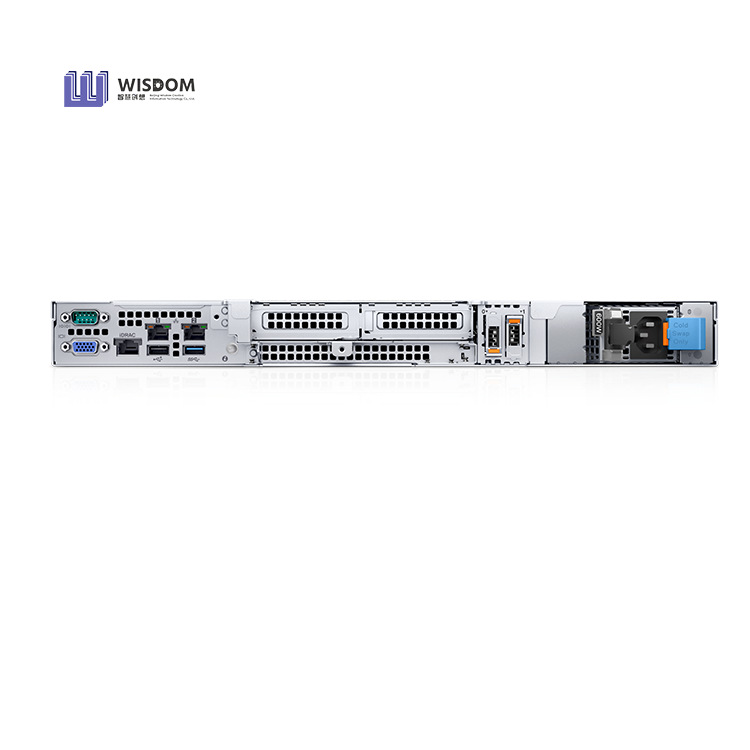

Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.2 Gen1 • 1 x VGA • 1 x Serial Internal Port • 1 x USB 3.2 Gen1
PCIe	Up to two PCIe Gen4 slots on the Gen4 Riser • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile

Product Features

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Your innovation engine

The Dell PowerEdge R260 is a 1U, single-socket short-depth server designed to address entry-level compute demands of Near-Edge,Remote Office / Branch Office (ROBO) and SMB.

R260 (2).png

Short, yet mighty

Space-saving design tailored for Near-Edge and SMB customers

* Short-depth chassis and office friendly acoustic performance
* Easy-to-manage Filter Bezels shield from dust and grease
* Enterprise-level server features and capabilities with optimal price and flexible upgrade options

Product Application

Systems management and security solutions

OpenManage systems management
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.

Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
