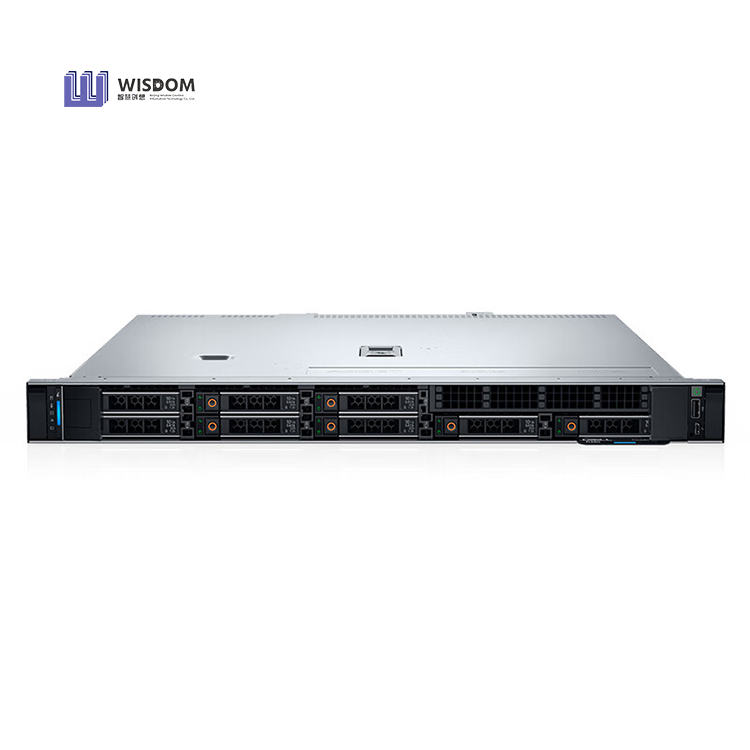

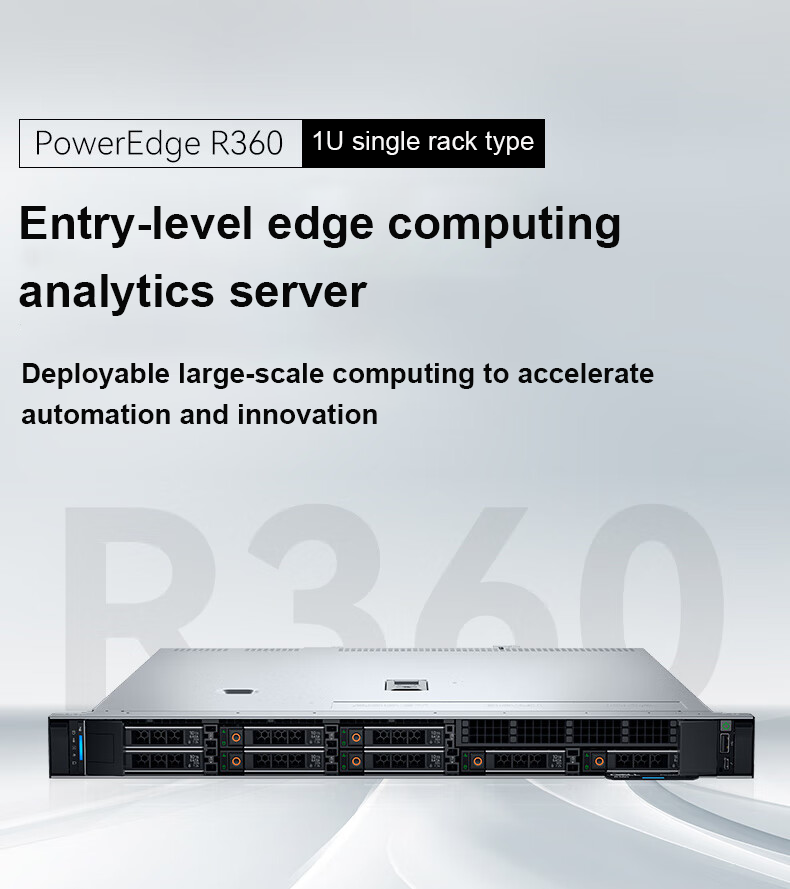

The Dell PowerEdge R360 offers streamlined productivity, high-speed memory and capacity, and powerful compute to address common business applications, with filter bezel option to protect the servers from dusts and greases. Ideal for inside or outside of the data center.
The Dell PowerEdge R360 offers streamlined productivity, high-speed memory and capacity, and powerful compute to address common business applications, with filter bezel option to protect the servers from dusts and greases. Ideal for inside or outside of the data center:
• Small to mid-sized businesses
• ROBO / Near-edge
• Collaboration and sharing
• Database support and management
|
Processor |
One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/G7400T processor with 2 cores |
|
Memory |
• 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s • Supports unregistered ECC DDR5 DIMMs only |
|
Storage controllers |

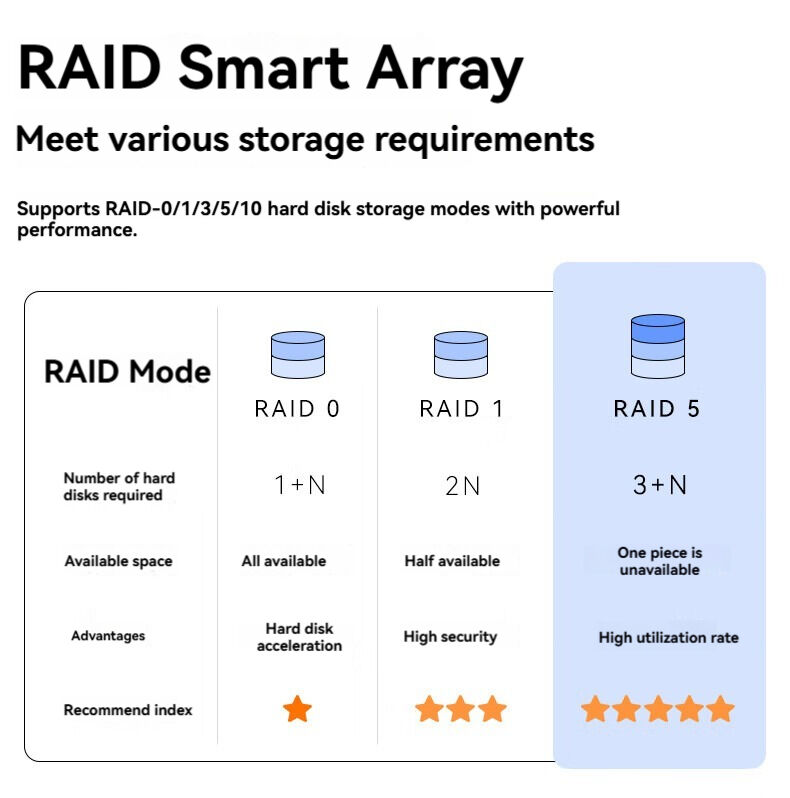

• Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front • Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs, USB • External HBAs (non-RAID): HBA355e Adpt • Software Controller: S160 |
|
Drive Bays |

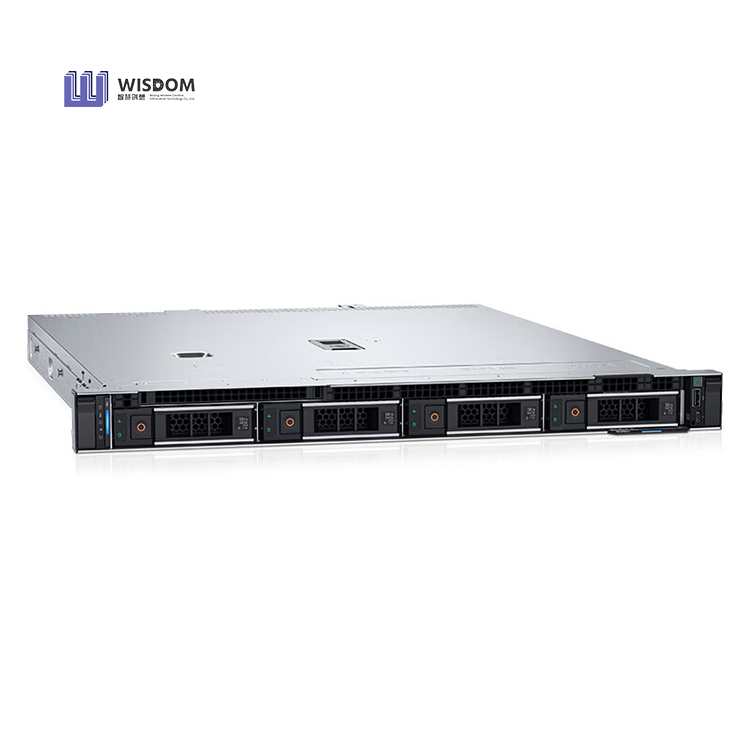

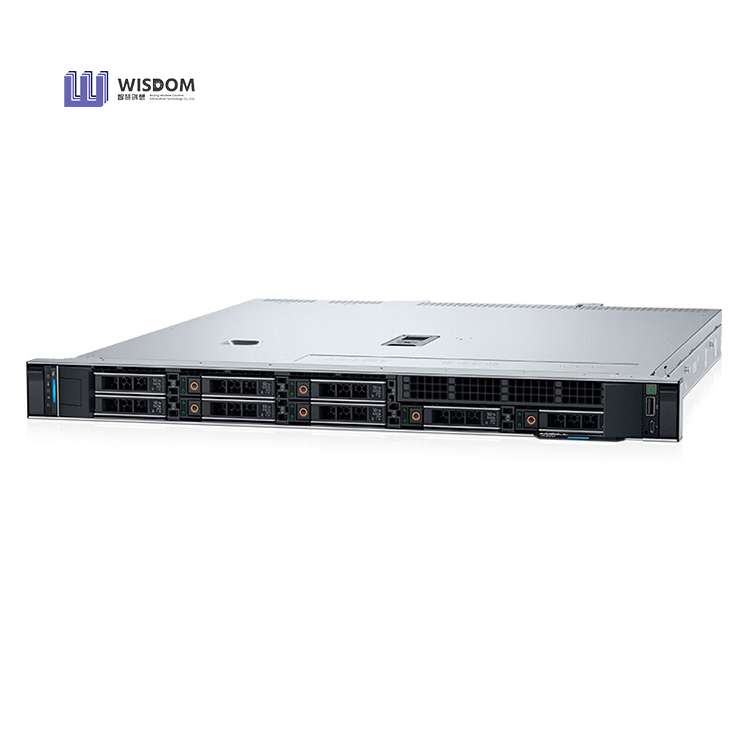

Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB |
|
Power Supplies |
• 600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant • 700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant |
|
Cooling Options |
Air cooling |
|
Fans |
• Up to 4 fans |
|
Dimensions |

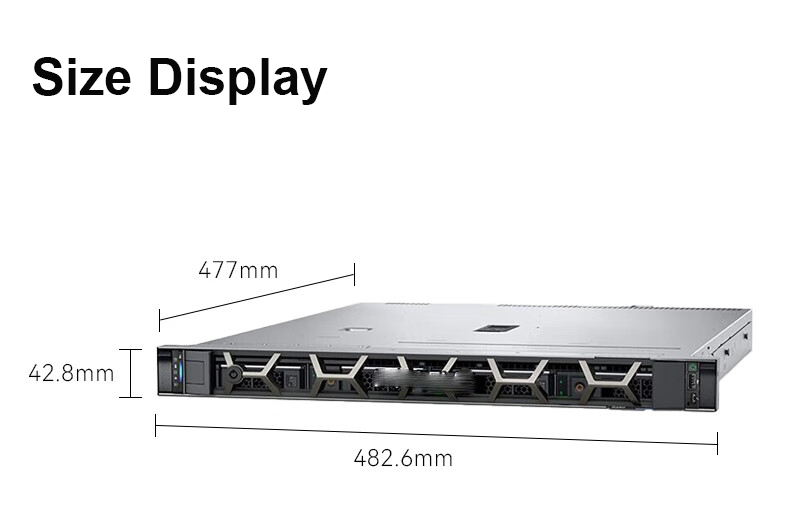

• Height – 42.8 mm (1.68 inches) • Width – 482.0 mm (18.97 inches) • Depth – 585.3 mm (23.04 inches) without bezel • Depth — 598.9 mm (23.57 inches) with bezel |
|
Form Factor |
1U rack server |
|
Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Manual |
|
Bezel |
Security bezel or Optional Filter bezel |
|
OpenManage Software |
• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
|
Mobility |
OpenManage Mobile |
|
OpenManage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Secured-core server • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC |
2 x 1 GbE LOM |
|
GPU Options |
1 x 60 W single-width GPU |
|
Ports |

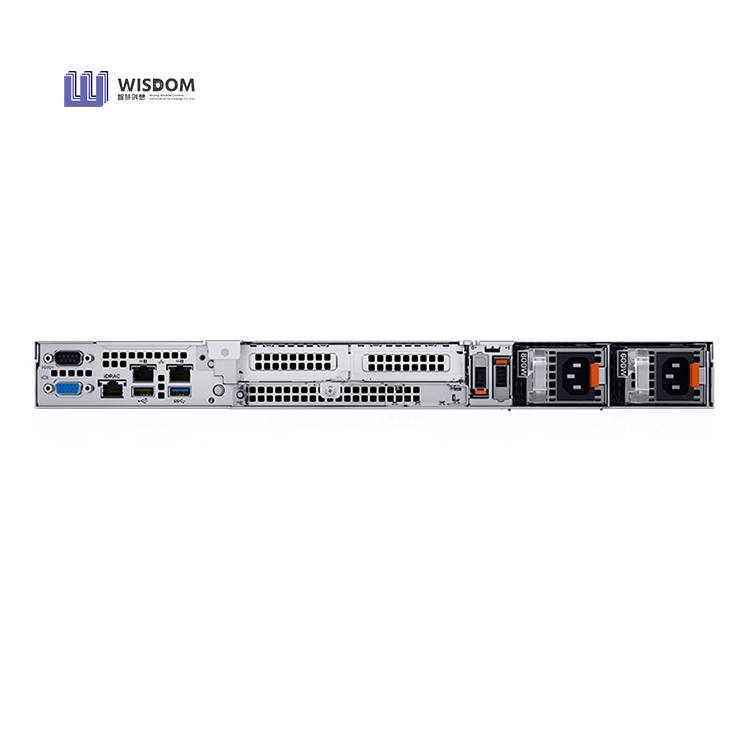

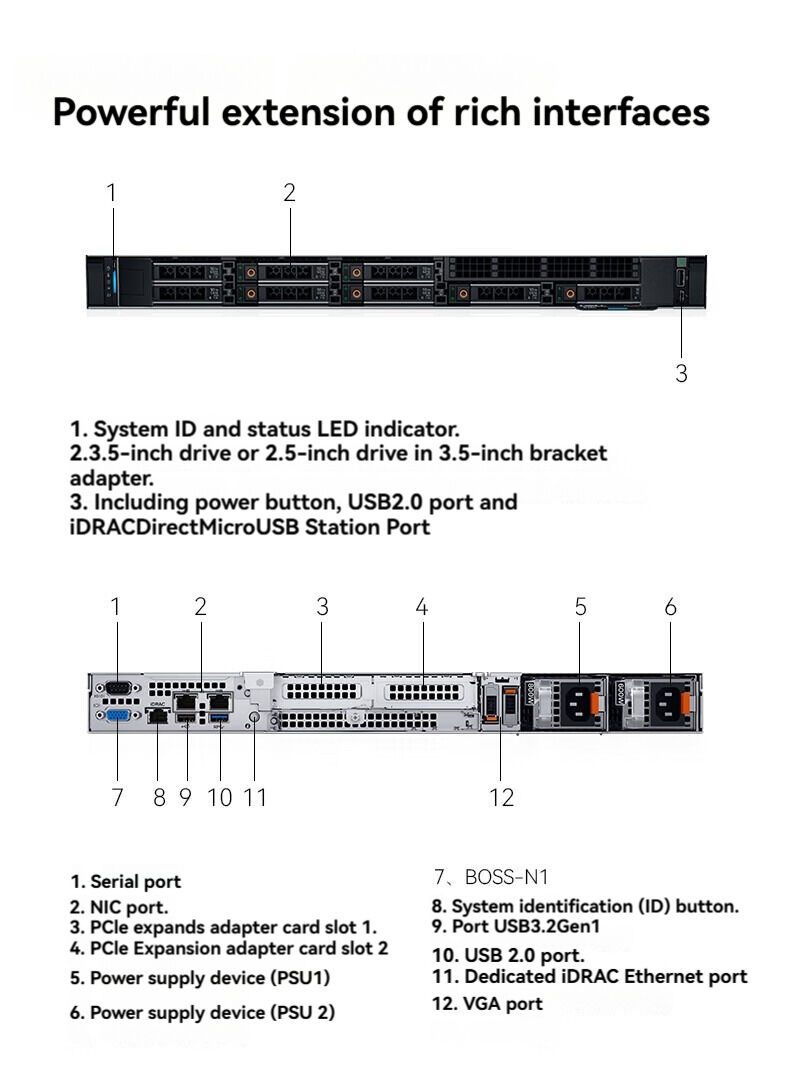

Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.2 Gen1 • 1 x VGA • 1 x Serial Internal Ports • 1 x USB 3.2 Gen1 |
|
PCIe |
Up to two PCIe Gen4 slots on the Gen4 Riser • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile • One dedicated PCIe x8 slot on the system board for internal PERC |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
