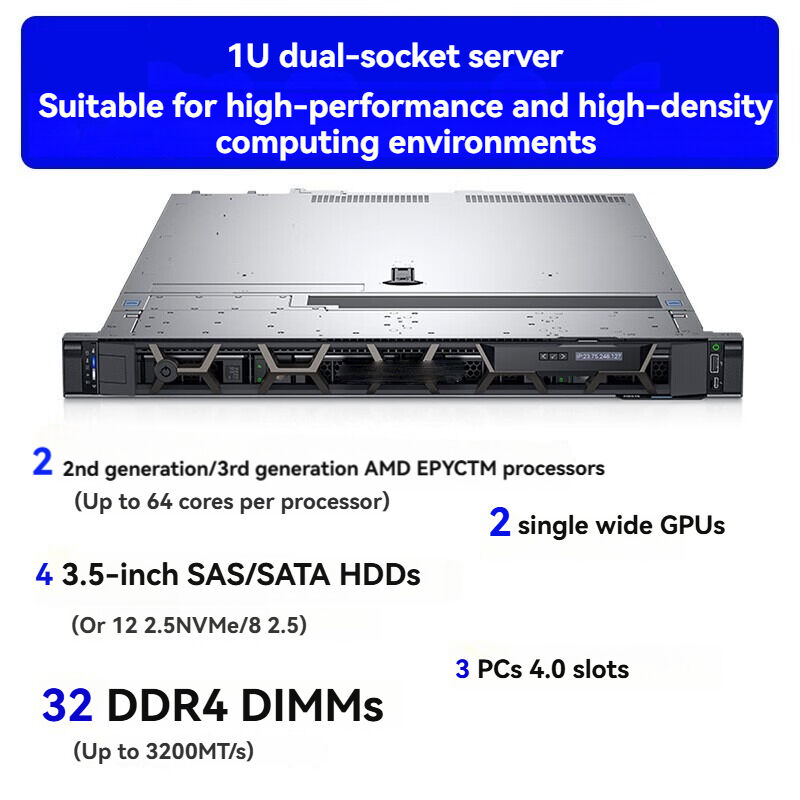

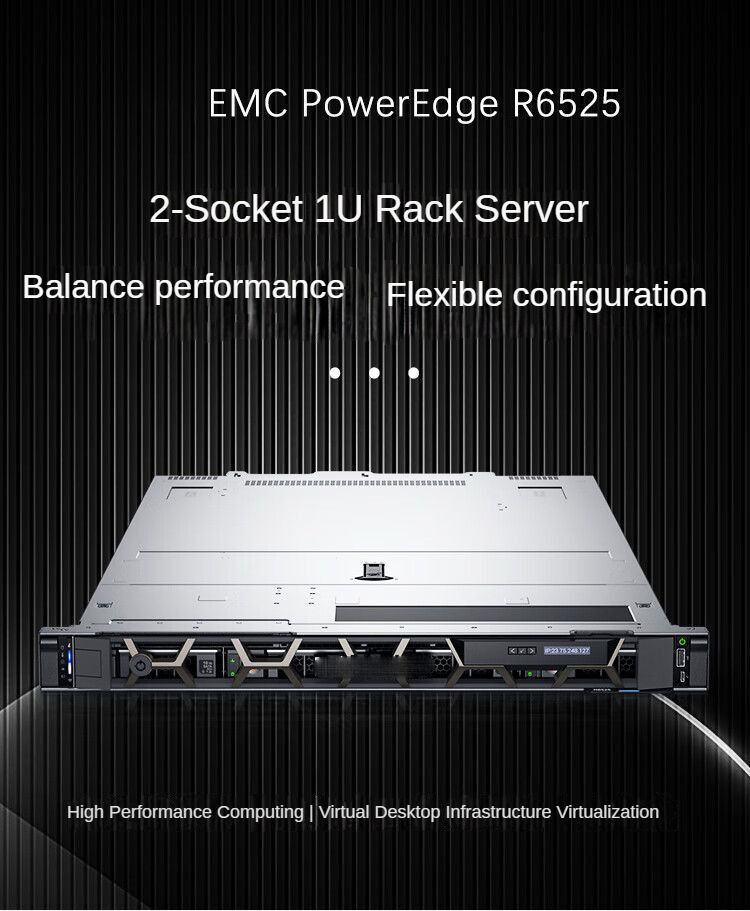

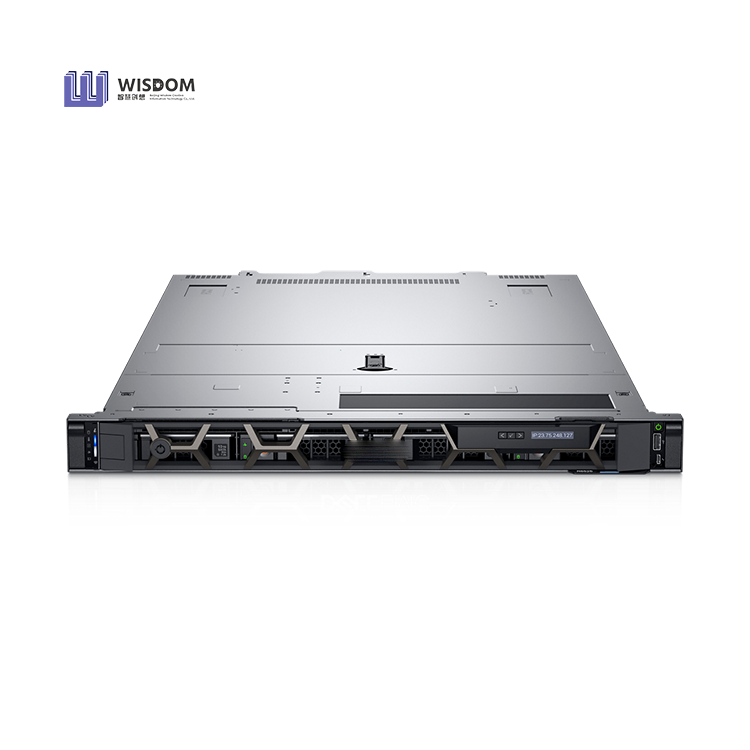

The EMC PowerEdge R6525 Rack Server is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovations for dense compute environments to address traditional and emerging workloads and applications.
The EMC PowerEdge R6525 Rack Server is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovations for dense compute environments to address traditional and emerging workloads and applications.
•Deliver breakthrough performance, innovation and density for traditional and emerging workloads
•Increase efficiency and accelerate operations with an automated infrastructure
•Fortify your data center with integrated security
|
MODEL |
PowerEdge R6525 rack server |
|
Processor |

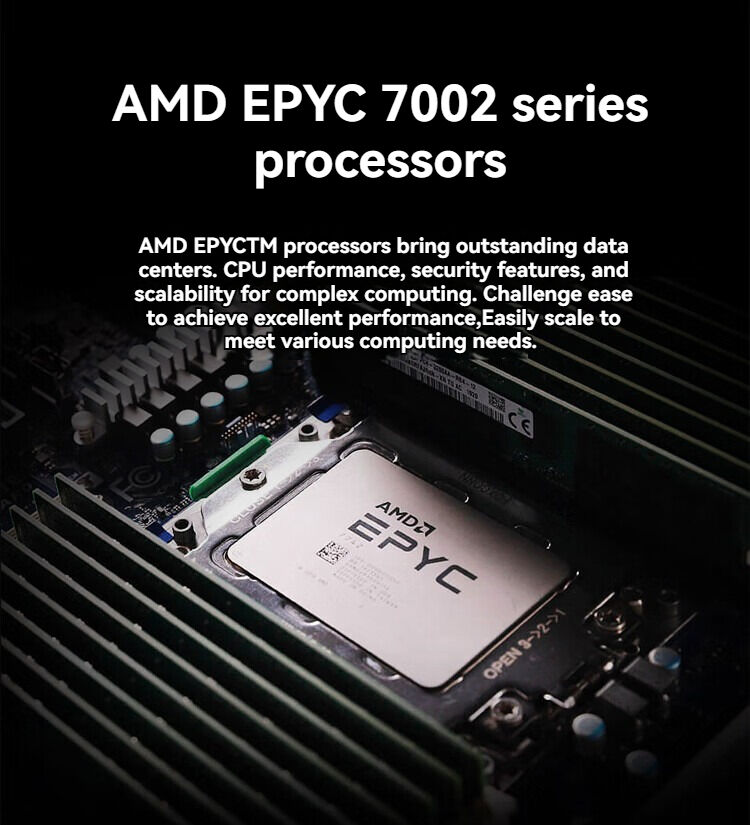

Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor |
|
Memory |
Up to 32 x DDR4 Maximum RAM RDIMM 2 TB LRDIMM 4TB Max Bandwidth up to 3200 MT/S |
|
Availability |
Hot plug redundant Hard drives, Fans, PSUs |
|
Controllers |

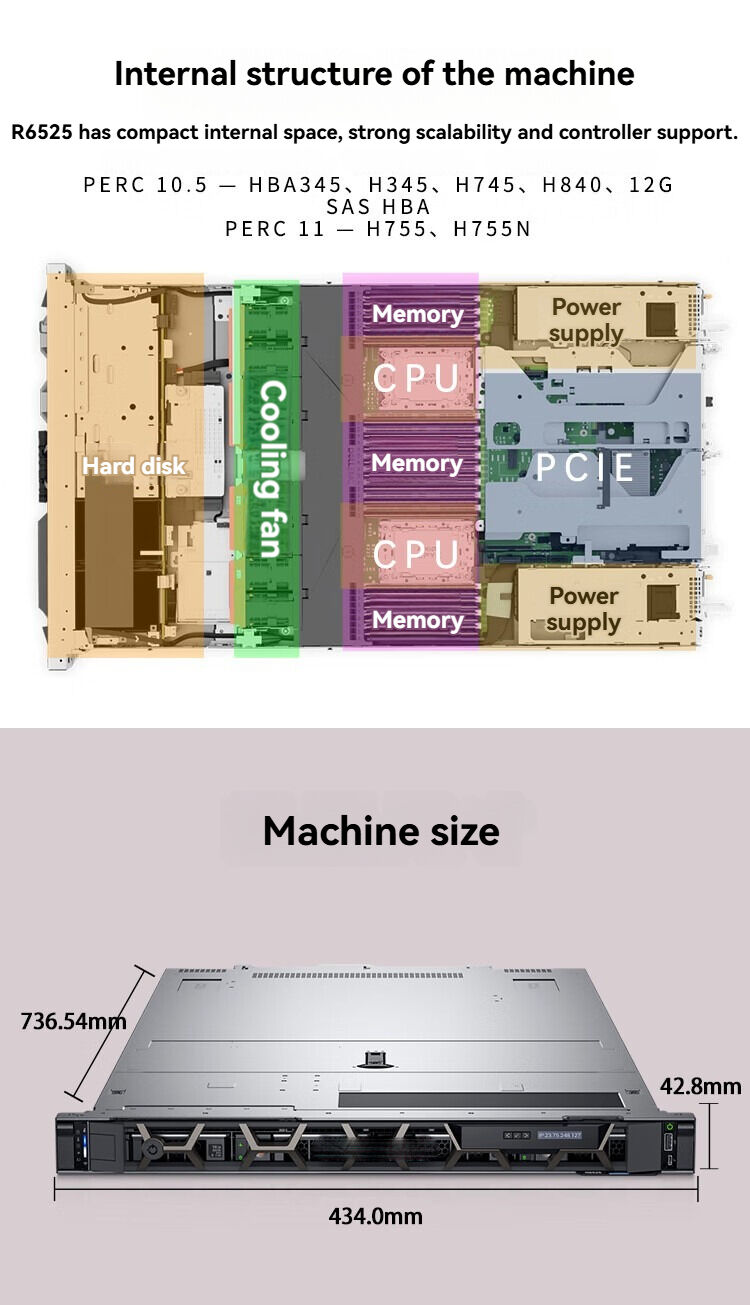

PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA PERC 11 – H755, H755N Chipset SATA/SW RAID (S150): Yes |
|
|
Front Bays Up to 4 x 3.5” hot plug SAS/SATA (HDD) Up to 8 x 2.5” hot plug SAS/SATA (HDD) Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe Optional Internal: 2 x M.2 (BOSS) Optional Rear: 2 x M.2 (BOSS-S2) |
|
Power Supplies |
800W Platinum 1400W Platinum 1100W Titanium |
|
Fans |
Hot plug Fans |
|
Dimensions |
Height: 42.8mm (1.7”) Width: 434.0mm (17.1”) Depth: 736.54mm (29”) Weight: 21.8kg (48.06lbs) |
|
Rack Units |
1U Rack Server |
|
Embedded Management |
iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
|
Bezel |
Optional LCD bezel or security bezel |
|
OpenManage Software |
OpenManage Enterprise OpenManage Enterprise Power Manager OpenManage Mobile |
|
Integrations & Connections |
OpenManage Integrations BMC Truesight Microsoft® System Center Redhat® Ansible® Modules VMware® vCenter™ OpenManage Connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® XI |
|
Security |
Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional |
|
Embedded NIC |
2 x 1GbE LOM ports |
|
Networking Options (NOC) |
OCP x16 Mezz 3.0 + 2 x 1GE LOM |
|
GPU Options |
Up to 2 Single-Wide GPU |
|
Ports |

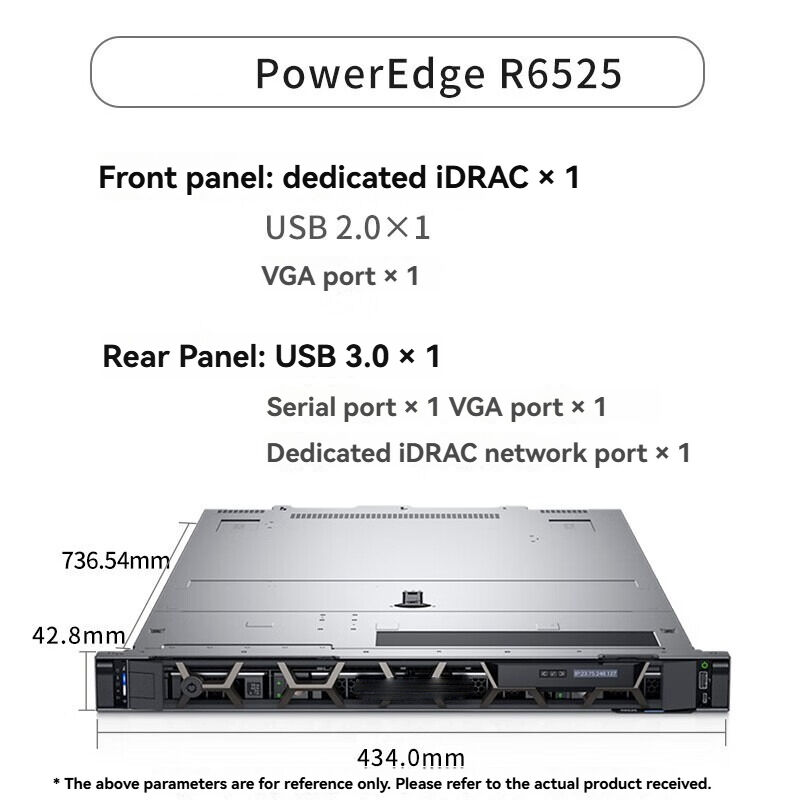

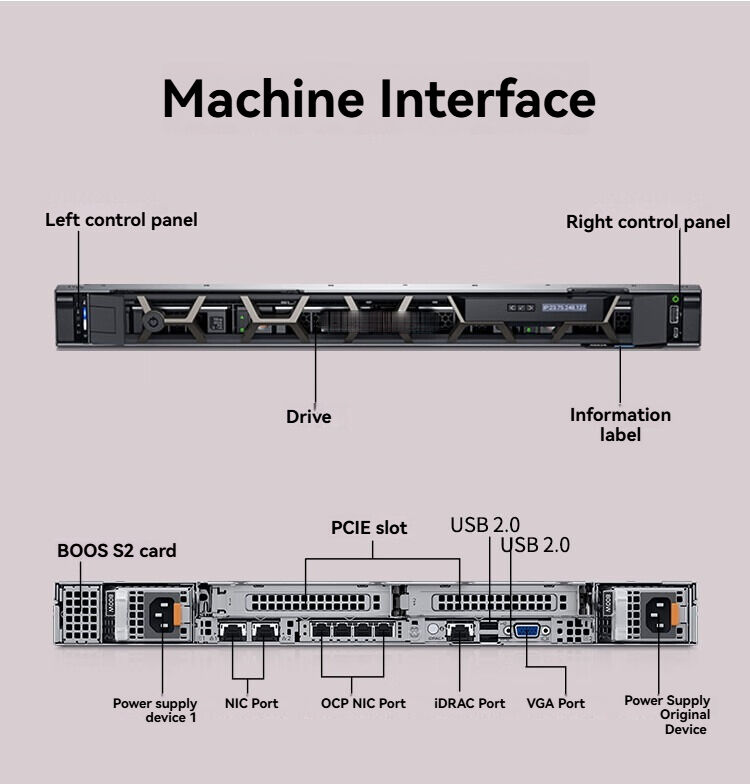

Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x VGA Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial (optional) 1 x USB 3.0 1 x VGA |
|
PCIe |
3 x Gen4 slots (x16) at 16GT/s |
|
Operating System and Hypervisors |
Canonical® Ubuntu® Server LTS Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
