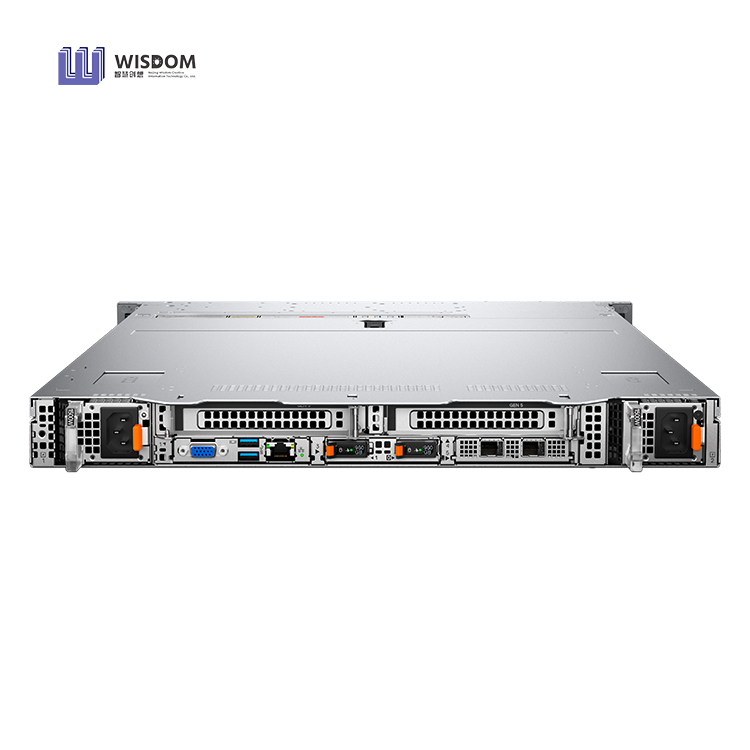

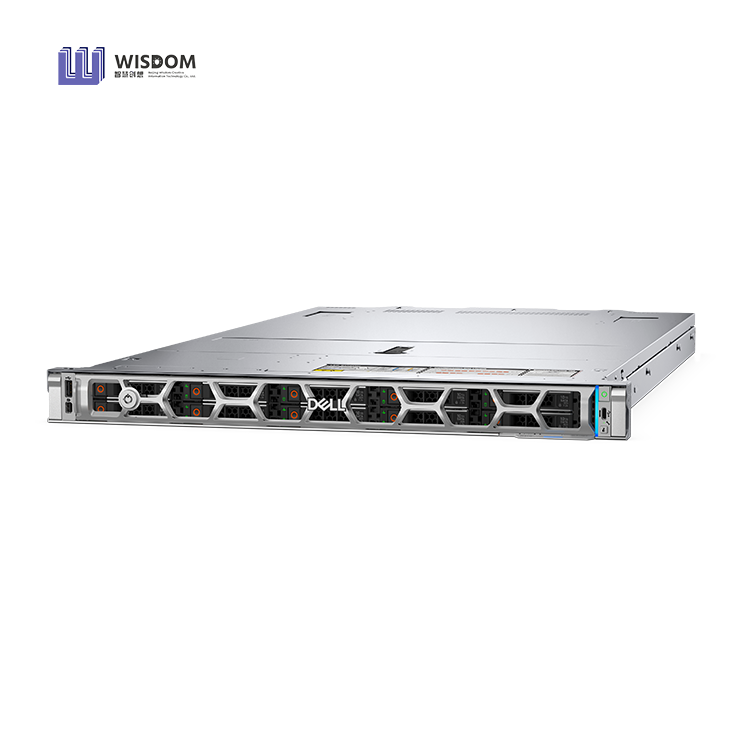

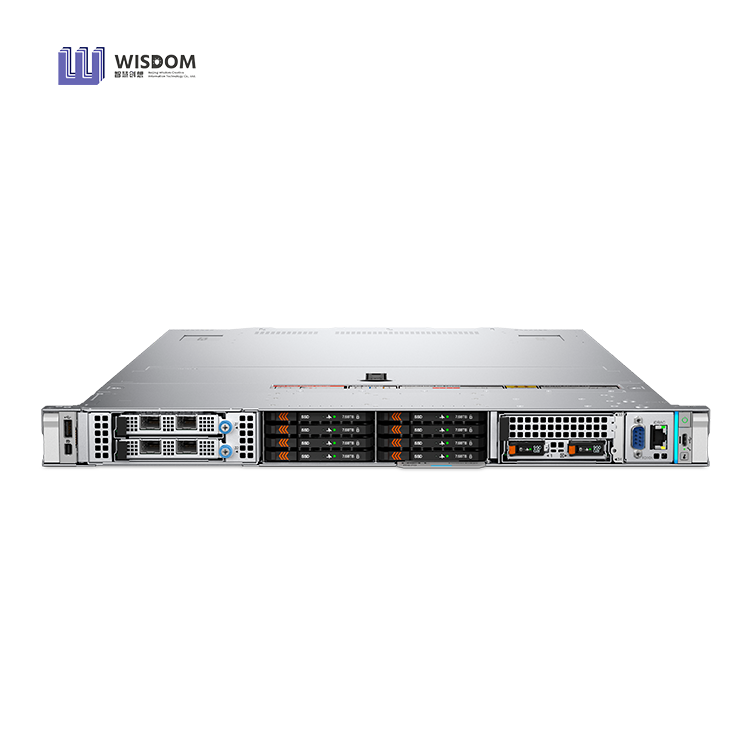

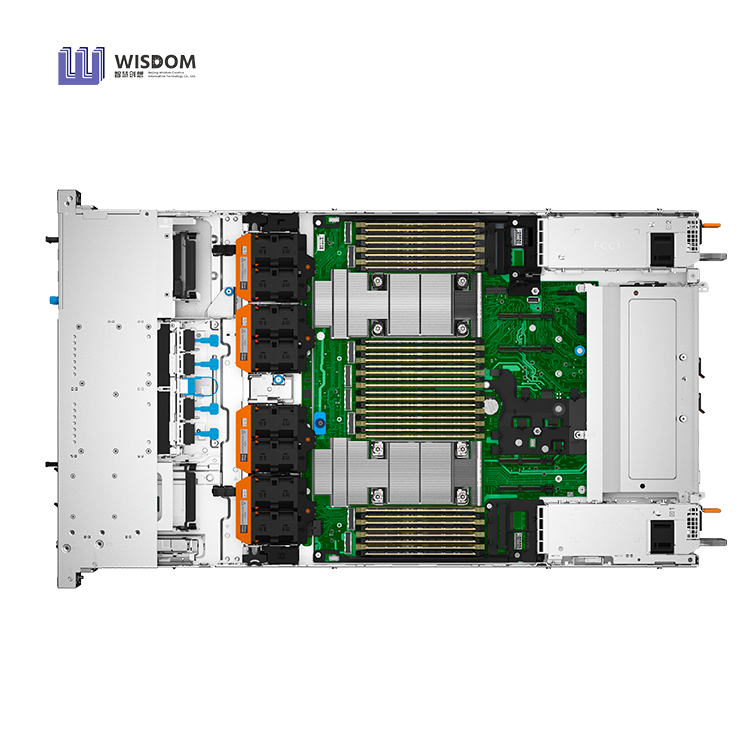

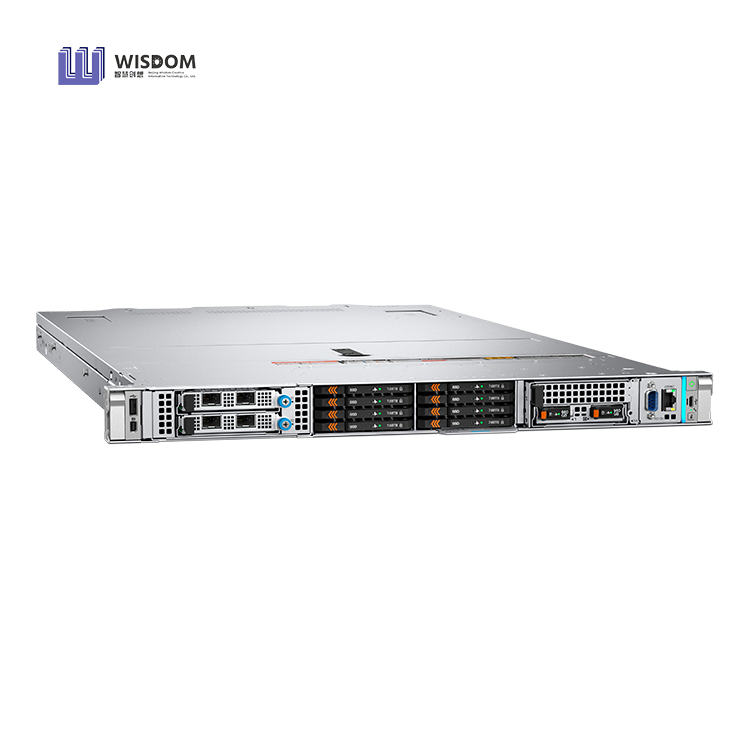

The Dell PowerEdge R670 is powered by Intel Xeon 6 Processors, DDR5 Memory, NVMe BOSS, Energy Star compliant and advanced cooling.
Maximum performance and flexibility to tackle traditional and demanding data center workloads
The Dells PowerEdge R670 rack server accelerates your outcomes efficiently with purpose built, intelligent servers designed with maximum performance and flexibility in design.
● Powered by Intel® Xeon® 6 processors designed to meet diverse performance and efficiency requirements and offered with advanced GPU support.
● Enhanced I/O flexibility with optional front I/O configuration for seamless cold aisle serviceability.
● Dell SmartFlow and Cooling solutions allow you to choose air cooled or DLC solutions to fit your IT and data center requirements.
● Configurable to suit diverse needs with industry standard open designs (DC - MHS) compliance.
|
Processor |
Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor |
|
Memory |
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS):2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i*, Front PERC H365i |
|
Front Bays |
• No Backplane configuration • Up to 8 x EDSFF E3.S NVMe (SSD) max 122.88 TB also with FIO configuration Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB* • Up to 20 x EDSFF E3.S Gen5 NVMe (SSD) max 307.2 TB* • Up to 8 x 2.5 inch SAS/SATA/NVMe Direct/NVMe Raid (SSD) max 122.88 TB • 8 x 2.5-inch Universal 245.6 TB* • Up to 10 x 2.5 inch SAS/SATA (SSD) max 38.4 TB* • Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) in the rear max 30.72 TB* |
|
Hot swap Power Supplies |
• 1500 W Titanium 100—240 VAC or 240 VDC • 1100 W Titanium 100—240 VAC or 240 VDC* • 800 W Titanium 100—240 VAC or 240 VDC* •1800 W HLAC Titanium 200—240 VAC or 240 VDC* • 1100 W Platinum 100—240 VAC or 240 VDC • 800 W Platinum 100—240 VAC or 240 VDC •1500 W 277 VAC or 336 VDC* • 1400 W LVDC -48 — -60 VDC* |
|
Cooling Options |
Air cooling and Direct Liquid Cooling |
|
Fans |
• High performance Silver (HPR SLVR) or Standard (STD) fans • Up to 4 sets (dual fan module) hot swappable fans |
|
Dimensions |
Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Weight – 20.42 kg (45.02 pounds) Depth (for rear I/O configuration) • 816.92 mm (32.20 inches) with bezel • 815.14 mm (32.09 inches) without bezel Depth (for front I/O configuration) • 829.44 mm (32.66 inches) without bezel Note: The front I/O configuration does not support the bezel. |
|
Form Factor |
1U rack server |
|
Embedded Management |
• iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) • NativeEdge Endpoint •NativeEdge Orchestrator |
|
Bezel |
Optional security bezel |
|
Security |
• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown • Data at Rest Encryption (SEDs with local or external key mgmt) • Secured Component Verification (Hardware integrity check) • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
|
Network options |
4 x OCP NIC 3.0 cards (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE* Slot 31 1 x 16 OCP 3.0 on front riser Slot 32 1 x16 OCP 3.0 on front riser Slot 2 1 x 16 OCP 3.0 Slot 5 1 x 8 Gen5 OCP 3.0 or 1 x 16 Gen5 OCP 3.0 |
|
GPU Options |
Up to 3 x 75 W SW |
|
Ports |
Front Ports • 1 x USB 2.0 Type C port • 1 x USB 2.0 Type A port (optional) • 1 x Mini-DisplayPort (optional) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated ethernet port for iDRAC management Rear Ports • 1 x Dedicated ethernet port for iDRAC management • 1 x VGA • 2 x USB 3.1 Type A ports Internal Port • 1 x USB 3.1 Type A por |
|
PCIe |
• Up to 2 x 16 Gen5 PCIe slots • Slot 31 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front • Slot 32 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser • Up to 3 x 16 or 2x 8 Gen5 PCIe slots • Slot 1 1 x 16 Full Height - Half Length or Full Height - Full Length or 3 x 16 or 1 x 8 Low Profile - Half Length • Slot 2 1 x 16 or 1 x 8 Low Profile - Half Length or 1 x 16 OCP 3.0 • Slot 4 1 x 16 Full Height - Half Length or 1 x 16 Low Profile - Half Length |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V (P-Core only) • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
Systems management and security solutions
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC,
OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
