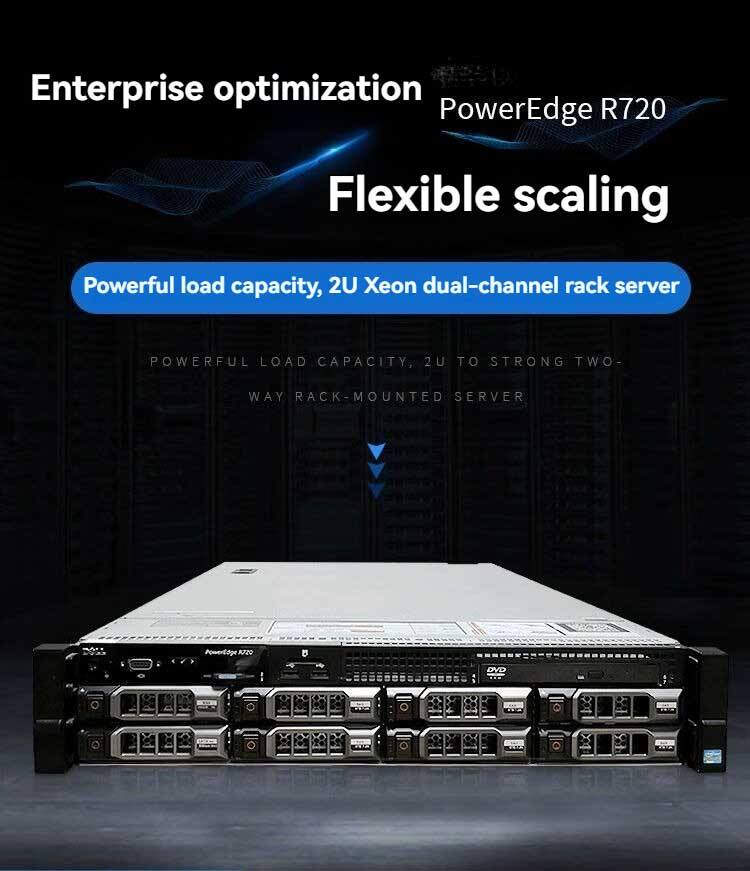

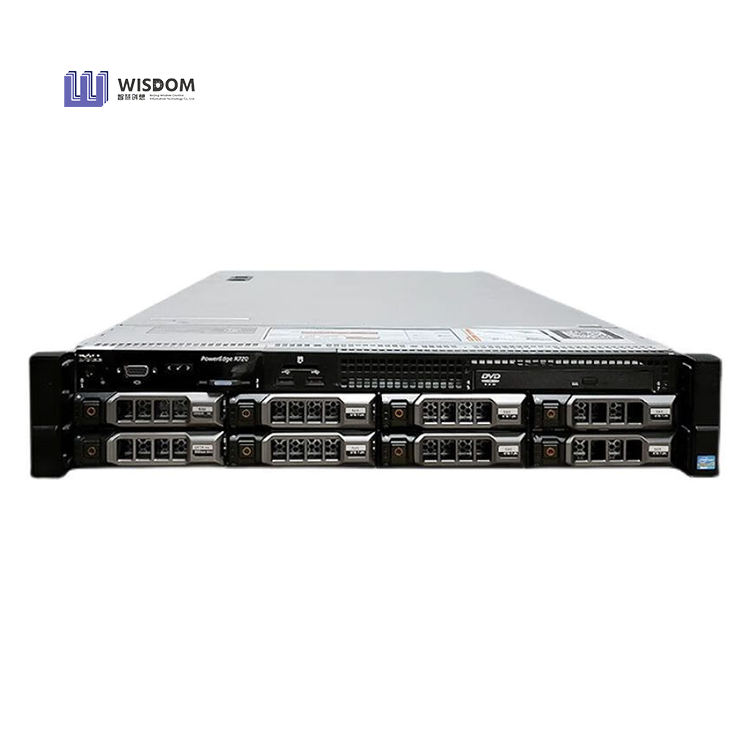

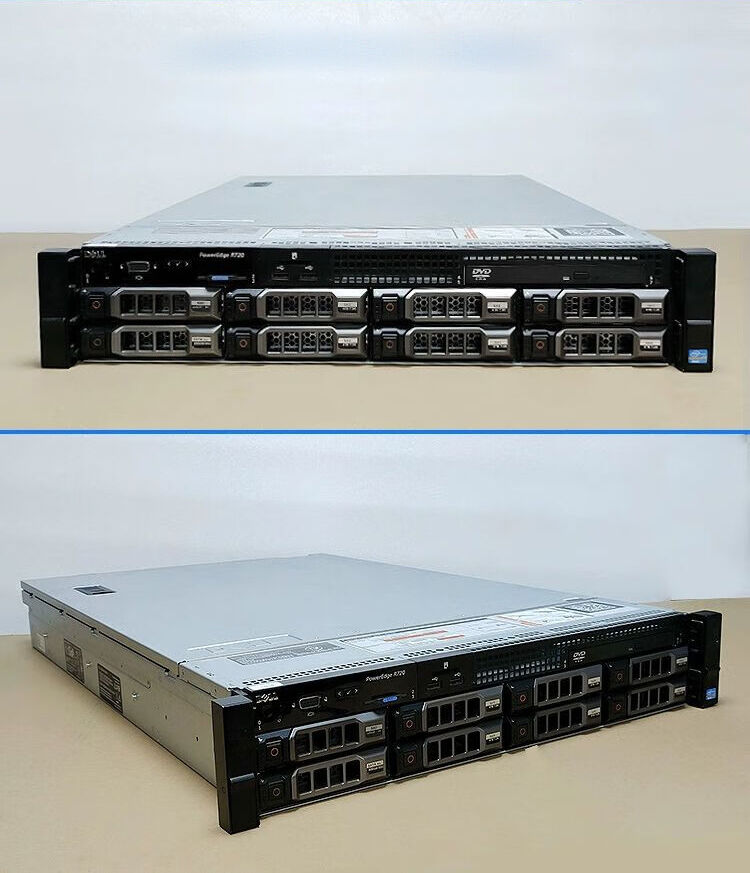

Dell PowerEdge R720 2U Rack Server

Feature

PowerEdge R720 technical specification

Form factor

2U rack

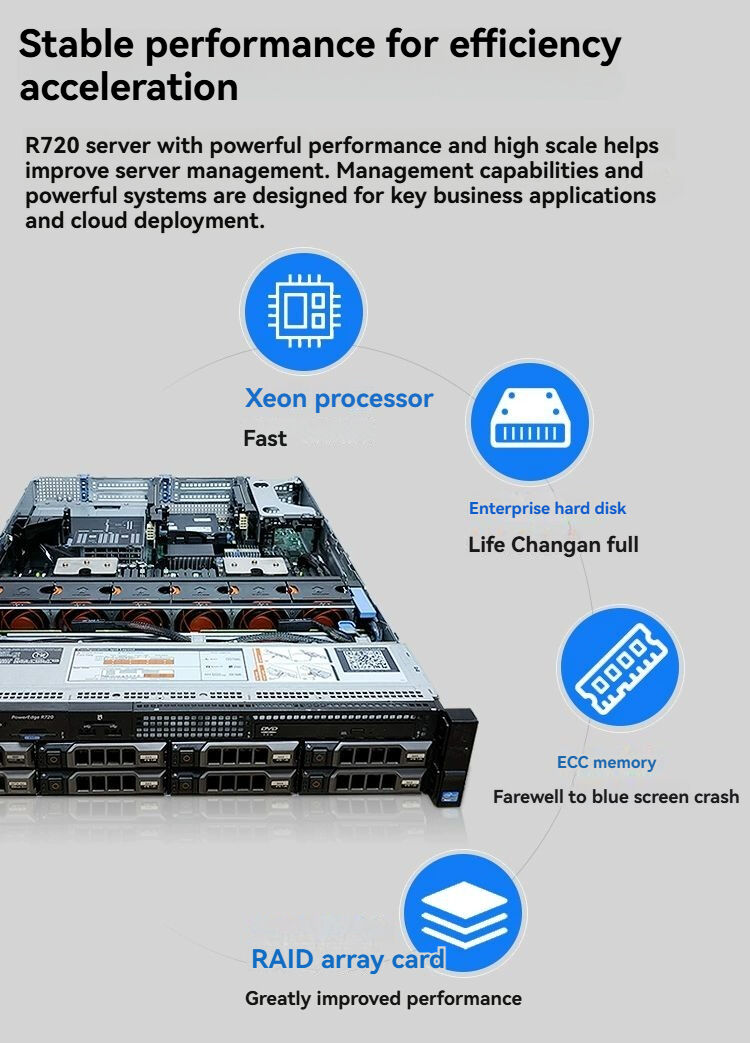

Processors

Intel® Xeon® processor E5-2600 or E5-2600 v2 product families

Processor sockets

2

Internal interconnect

2 x Intel QuickPath Interconnect (QPI) links; 6.4GT/s; 7.2GT/s; 8.0GT/s

Cache

2.5MB per core; core options: 4, 6, 8, 10, 12

Chipset

Intel C602

Memory

Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1866MT/s

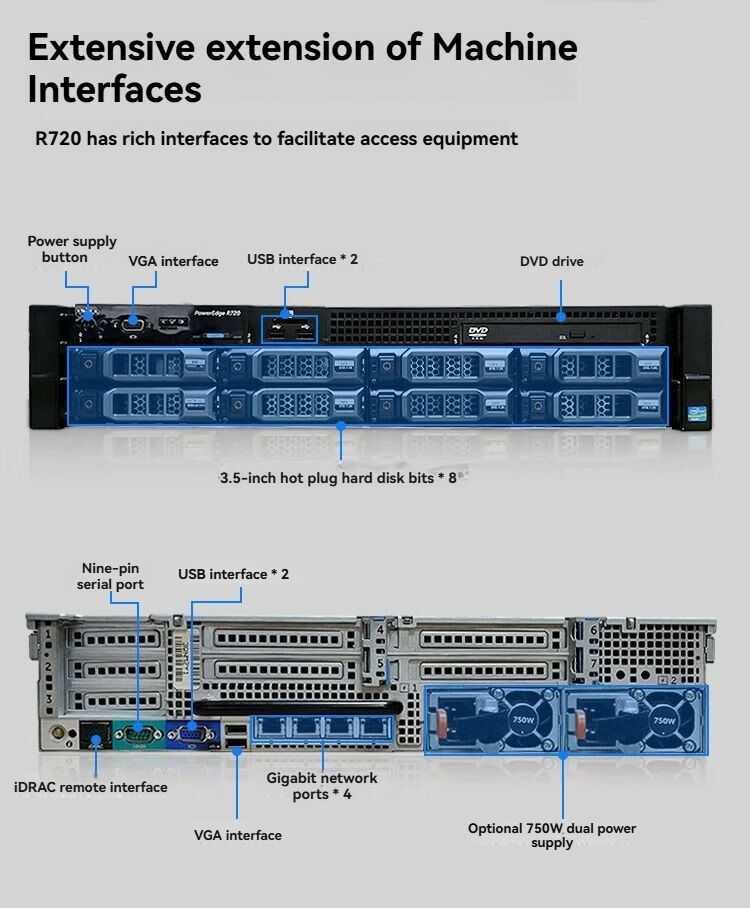

I/O slots

6 PCIe slots:

• 1 x16 full-length, full-height

• 3 x8 full-length, full-height

• 3 x8 half-length, half-height

• 1 x16 full-length, full-height (optional)

RAID controller

Internal controllers:

PERC S110 (SW RAID)

PERC H310

PERC H710

PERC H710P

External HBAs (RAID):

PERC H810

External HBAs (non-RAID):

6Gbps SAS HBA

LSI 9207-8i HBA

Drive bays

Up to eight 3.5” drives or up to sixteen 2.5” drives

Maximum internal storage

32TB

Hard drives

Hot-plug hard drive options: 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K); Self-encrypting drives available

Embedded NIC

Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload) Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM) Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload) Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)

Power supplies

Titanium efficiency, hot-plug redundant 750W AC power supply (200-240VAC only); auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply (-48VDC)

Availability

High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support;

hot-plug, redundant fan; optional bezel; information tag; ECC memory, interactive LCD screen; extended thermal support; ENERGY STAR® compliant; switch independent partitioning

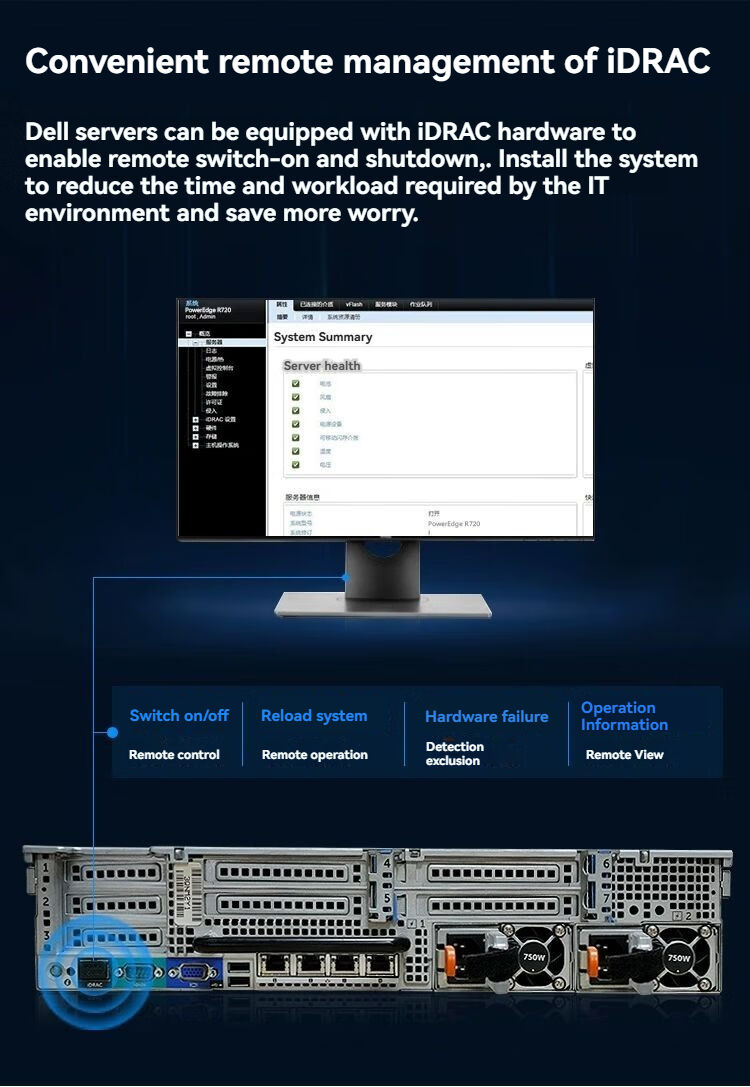

Remote management

iDRAC7 with Lifecycle Controller Express (default), iDRAC7 Enterprise (upgrade option) 8GB vFlash media (upgrade option), 16GB vFlash media (upgrade optional)

Systems management

IPMI 2.0 compliant

Dell OpenManage Essentials

Dell OpenManage Mobile

Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft® System Center

• Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

• Dell OpenManage Plug-in for Oracle Database Manager

Rack support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks.

Operating systems

Microsoft® Windows Server® 2012 R2 (includes Hyper-V®) Microsoft Windows Server 2012 (includes Hyper-V) Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V) Microsoft Windows Small Business Server 2011 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®

Virtualization options:

Citrix® XenServer®

VMware vSphere® ESXi™

Red Hat Enterprise Virtualization®
