The scalable business architecture of the R740 can scale up to three 300W or six 150W GPUs, or up to three double-width or four single-width FPGAs. With up to 16 2.5” drives or 8 3.5” drives the R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.
The scalable business architecture of the R740 can scale up to three 300W or six 150W GPUs, or up to three double-width or four single-width FPGAs. With up to 16 2.5” drives or 8 3.5” drives the R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.
• Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements.







|
MODEL |

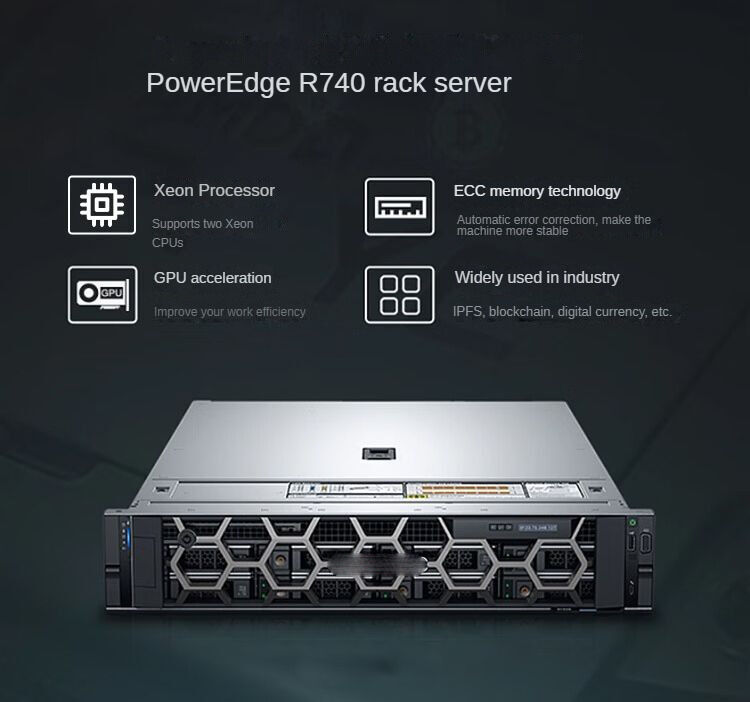

Poweredge R740 server |
|
Processor |
two 2nd Generation Xeon Intel® Xeon®4210R |
|
|
24 DDR4 DIMM slots, Maxim 3TB |
|
Drive bays |
16 x 2.5” hot-plug SAS/SATA (HDD) or 8 /12x 3.5” hot-plug SAS/SATA (HDD) |
|
Storage controllers |
internal Controllers: PERC H330, H730P, H740P |
|
Power supplies |
495W Platinum750W Platinum |
|
Dimensions |
2U Rack Server |
|
Height X Width X Depth |

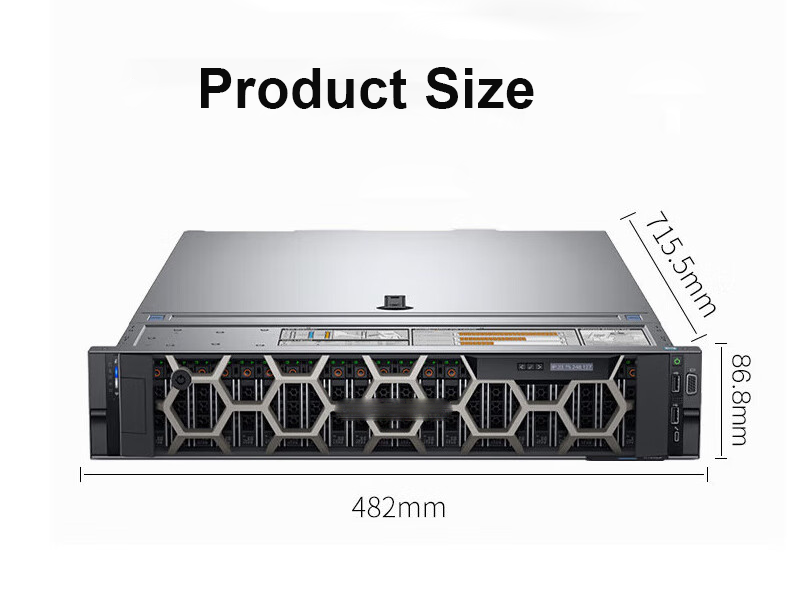

86.8mm X 434.0mm X 737.5mm |
|
Embedded management |
iDRAC9 |
|

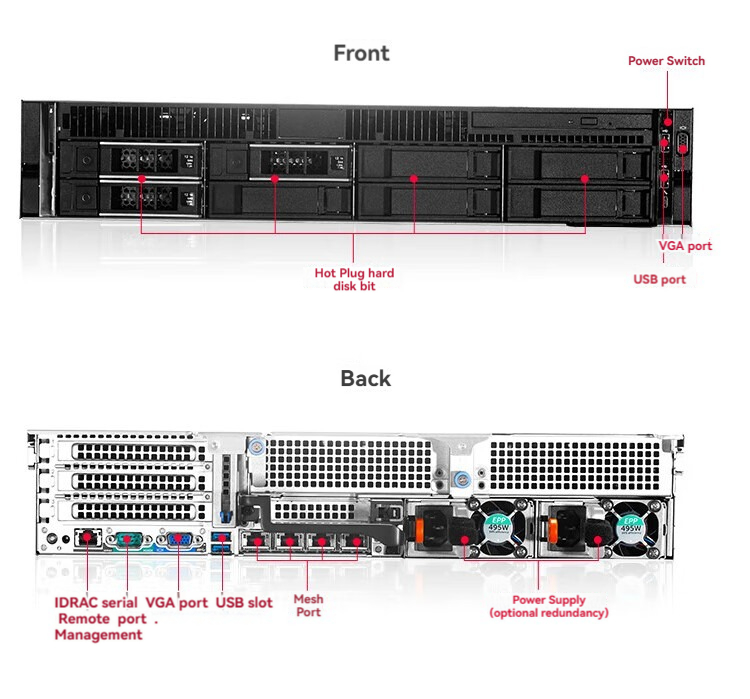

I/O & Ports |
4 x 1GbE +2 x 10GbE + 2 x 1GbE+4 x 10GbE +2 x 25GbE |
|
Size |
86.8*434*737.5 mm |
|
|
Microsoft® Windows Server® with Hyper-VRed Hat® Enterprise Linux |
|
Warranty |
3 years |
