Dell PowerEdge R750

General purpose server optimized to address the most demanding workloads The Dell PowerEdge R750, is a full-featured enterprise server, delivering outstanding performance for the most demanding workloads.

  • Description
  • Product Features
  • Product parameters

General purpose server optimized to address the most demanding workloads</br>
The Dell PowerEdge R750, is a full-featured enterprise server, delivering outstanding performance for the most demanding workloads.

Innovate at scale with challenging and emerging workloads

The Dell PowerEdge R750, powered by the 3rd Generation Intel® Xeon® Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R750 supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R750 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, High performance computing (HPC), Traditional corporate IT, Virtual Desktop Infrastructure, and AI/ML environments that require performance, extensive storage and GPU support.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management

• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity

• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation

• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell PowerEdge R750 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

• Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust

• Maintain server firmware safety with digitally signed firmware packages • Prevent unauthorized configuration or firmware change with system lockdown

• Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Processor Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory

• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

• Supports registered ECC DDR4 DIMMs only

Storage controllers

• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N

• Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• External PERC (RAID): PERC H840, HBA355E

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB

• Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power Supplies

• 700 W Titanium HLAC/240 mixed mode

• 800 W Platinum AC/240 mixed mode

• 1100 W Titanium AC/240 mixed mode

• 1100 W DC -48 - -60 V

• 1400 W Platinum AC/240 mixed mode

• 1800 W Titanium HLAC/240 mixed mode

• 2400 W Platinum AC/240 mixed mode

• 2800 W Titanium HLAC/240 mixed mode

Cooling Options Air cooling, optional processor liquid cooling
Fans

• Standard fan/High performance SLVR fan/High performance GOLD fan

• Up to six hot plug fans

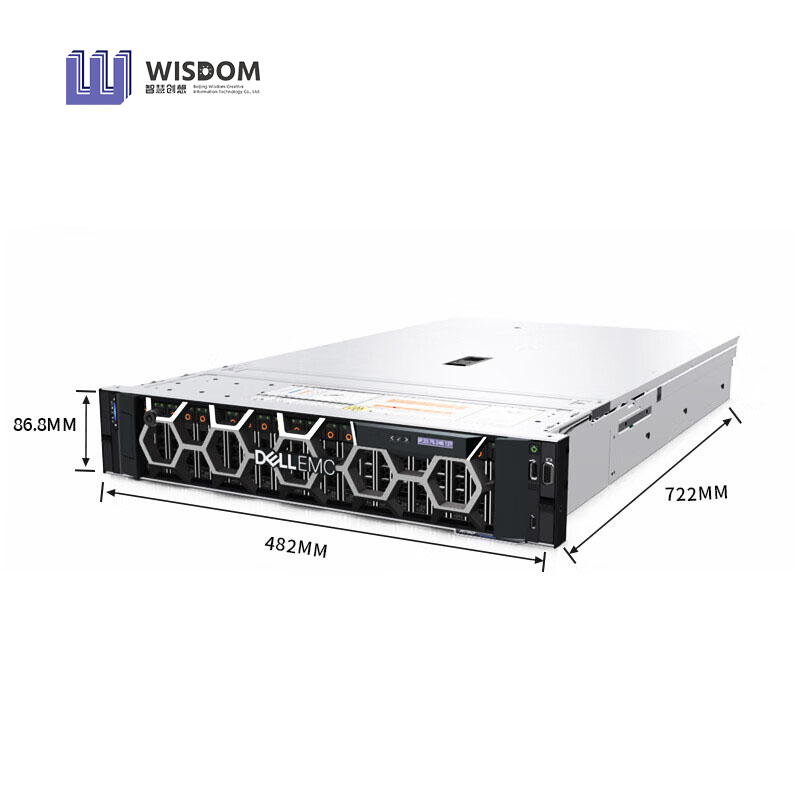

Dimensions

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 758.3 mm (29.85 inches) - without bezel

772.14 mm (30.39 inches) - with bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9

• iDRAC Service Module

• iDRAC Direct

• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• OpenManage Enterprise

• OpenManage Power Manager plugin

• OpenManage SupportAssist plugin

• OpenManage Update Manager plugin

Mobility

OpenManage Mobile

Integrations and Connections

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• Red Hat Ansible Modules

• VMware vCenter and vRealize Operations Manager

OpenManage Connections

• IBM Tivoli Netcool/OMNIbus

• IBM Tivoli Network Manager IP Edition

• Micro Focus Operations Manager

• Nagios Core

• Nagios XI

Security

• Cryptographically signed firmware

• Secure Boot

• Secure Erase

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

Network Options

1 x OCP 3.0 (x8 PCIe lanes)

GPU Options

Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators

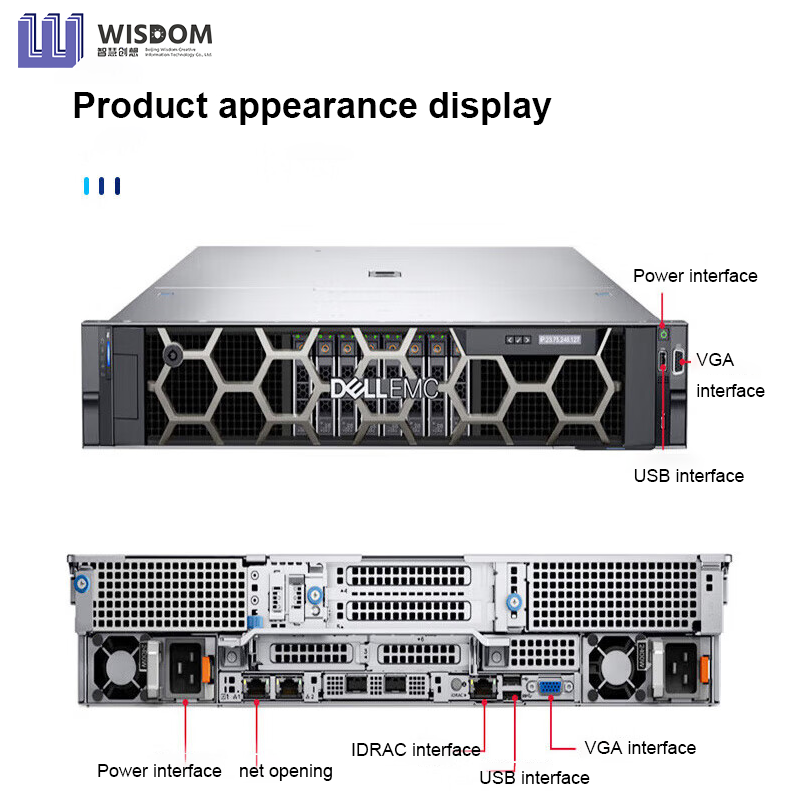

Ports

Front Ports

• 1 x Dedicated iDRAC Direct micro-USB

• 1 x USB 2.0

• 1 x VGA

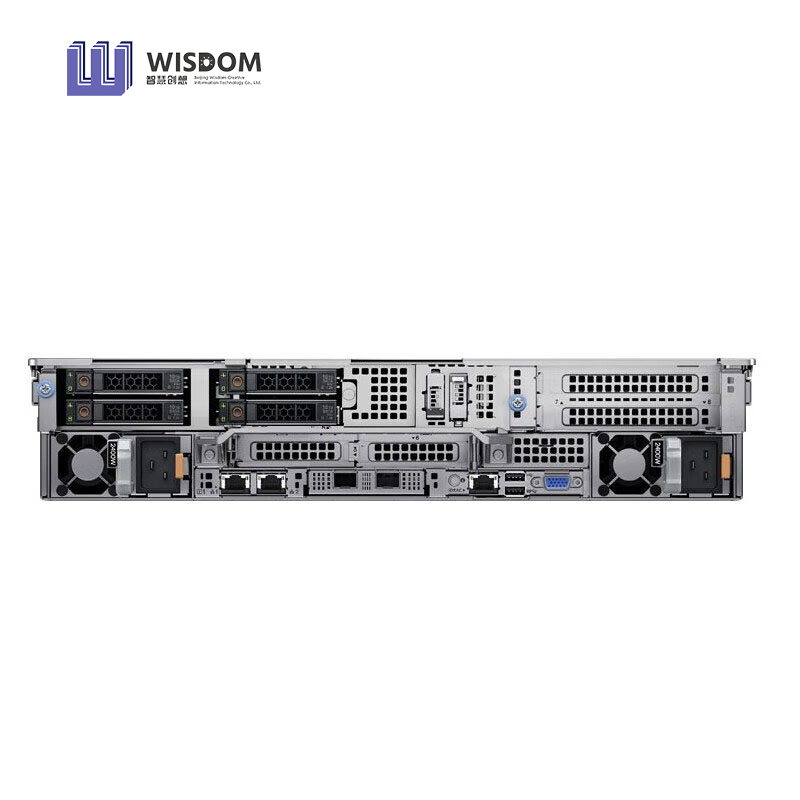

Rear Ports

• 1 x USB 2.0

• 1 x Serial (optional)

• 1 x USB 3.0

• 2 x RJ-45

• 1 x VGA (optional for liquid cooling configuration)

Internal Ports

• 1 x USB 3.0

PCIe

Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Citrix Hypervisor

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi
