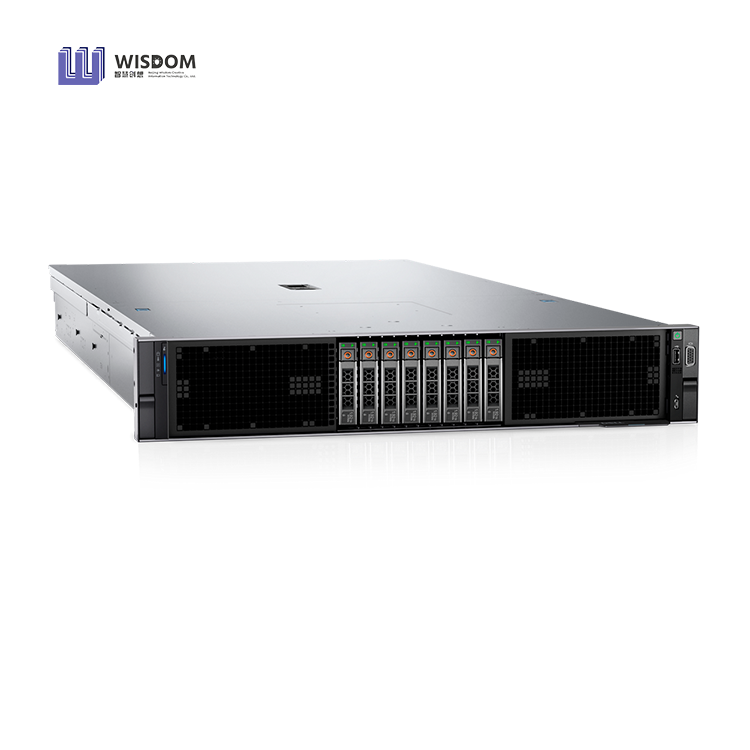

The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.
The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.
Accelerate your business by optimizing a diverse set of applications, from AI training and inferencing to analytics, virtualization and performance rendering applications. The R760xa features an air - cooled two - socket 2U design optimized for PCIe GPUs, with exceptional performance from Intel® CPUs and optional GPU accelerators from AMD, Intel® and NVI DIA®.
Harness the power of two 5thgeneration Intel® Xeon® processors and up to four double - wide PCIe Gen5accelerators or up to 12 single - wide PCIeaccelerators
Scale up for the task at hand with up to32 DDR5 memory DIMM slots, up to eightdrives and PCIe Gen 5 expansion slots
Slim 2U form factor enables fastdeployments and high - density in air -cooled environments
Deploy and run the most demandinggraphical applications alongside dense AI inferencing applications across your business.
Choice of the accelerator that best fits your needs
Air-cooled design with front-facing geometry for more efficient operation,supports higher TDP accelerators (up to 350W)
Experience responsive performance in modeling, simulation, 3-D worlddevelopment and other applications from accelerator
partners
|
Processor |
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology
Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist Technology |
|
Memory |
• 32 DDR5 DIMM slot, supports RDIMM 8 TB max • Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor • Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB • External HBA (non-RAID): HBA355e, HBA465e, H965e • Software RAID: S160 |
|
Drive Bays |
Front bays: • Up to 6 x E3.S Gen5 NVMe, max 46.08 TB • Up to 6 x 2.5-inch NVMe, max 92.16 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe,max 122.88 TB |
|
Power Supplies |
• 3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant • 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant •2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant |
|
Cooling Options |
• Air cooling • Optional Direct Liquid Cooling (DLC) |
|
Fans |
• Standard (STD) fan • Up to six hot plug fans |
|
Dimensions |
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 946.73 mm (37.27 inches) - without bezel 932.89 mm(36.73 inches) - with bezel |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
Network Options |
1 x OCP 3.0 (x8 PCIe lanes) |
|
Bezel |

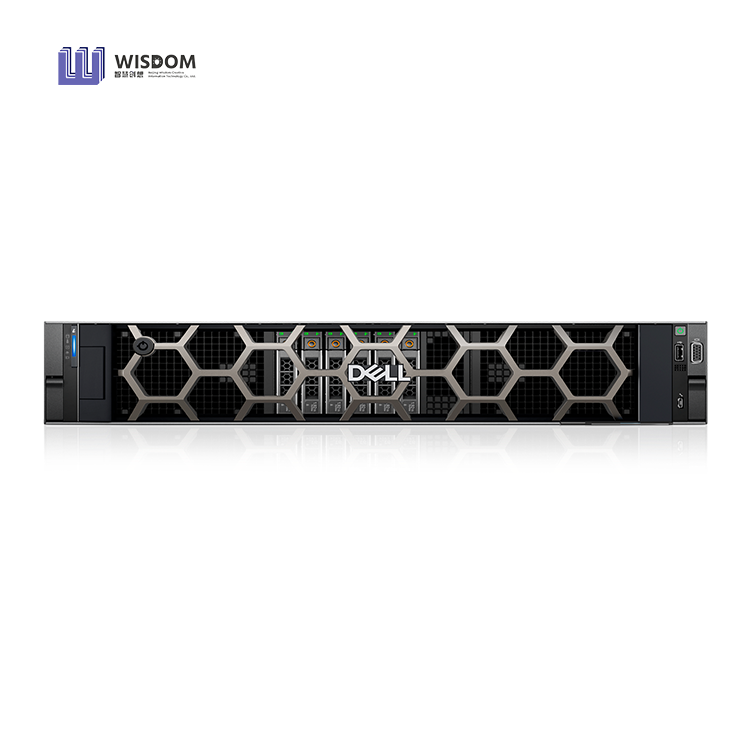

Optional LCD bezel or security bezel |
|
OpenManage Software |
• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
|
Mobility |
OpenManage Mobile |
|
OpenManage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC |
2 x 1GbE LOM card (optional) |
|
Network Options |
1 x OCP card 3.0 (optional) |
|
GPU Options |
Up to 4 x 400 W DW PCIe x16 GPU cards Up to 12 x 75 W SW PCIe x8 GPU cards |
|
Ports |

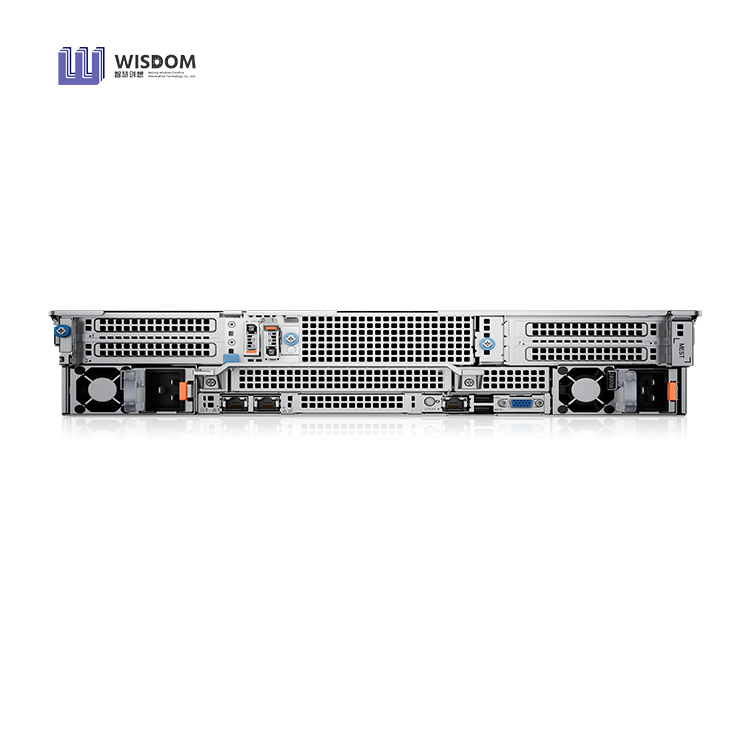

Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports • 1 x USB 3.0 (optional) |
|
PCIe |
Up to twelve PCIe slots (x16 connector) • 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW • 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server •VMware ESXi |
Systems management and security solutions
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC,
OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
