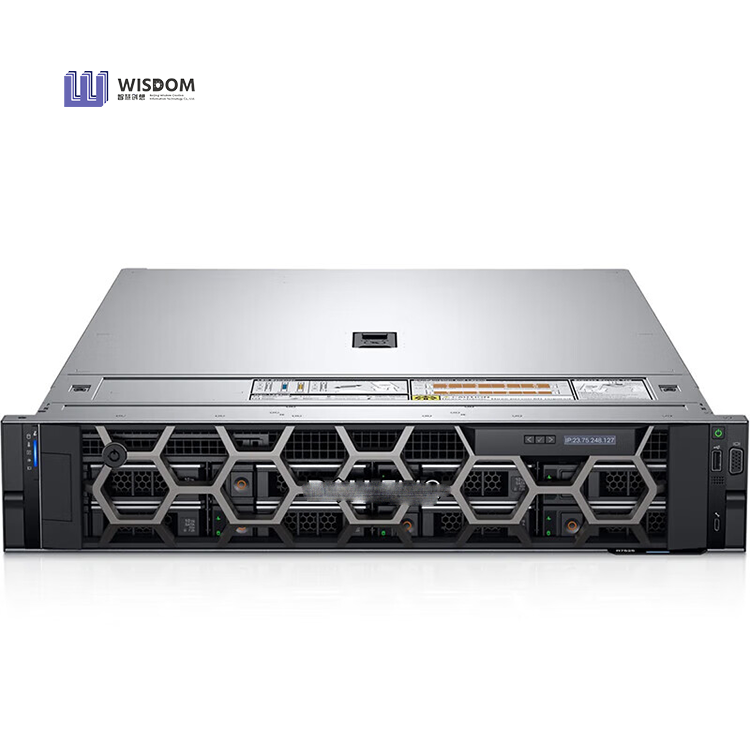

The new PowerEdge R7615 is a 2U, single-socket rack server. Designed to be the best investment per dollar for your data center, this server provides performance and flexible, low-latency storage options in an air or Direct Liquid Cooling (DLC) configuration.
The new PowerEdge R7615 is a 2U, single-socket rack server. Designed to be the best investment per dollar for your data center, this server provides performance and flexible, low-latency storage options in an air or Direct Liquid Cooling (DLC) configuration.
•Stay ahead of the curve
•Invest wisely in a platform that grows with your business
•Experience more virtual machine density to support the most demanding applications
•Expect increased expandability by storing more data in one server, saving space in your datacenter
•Cyber Resilient Architecture for Zero Trust IT environment & operations
•Increase efficiency and accelerate operations with autonomous collaboration
•Sustainability
•Rest easier with Technologies Services
|
MODEL |
PowerEdge R7615 rack server |
|
Processor |
One 4th Generation AMD EPYC 9004 Series processor with up to 128 cores per processor |
|
Memory |
• 12 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
|
|

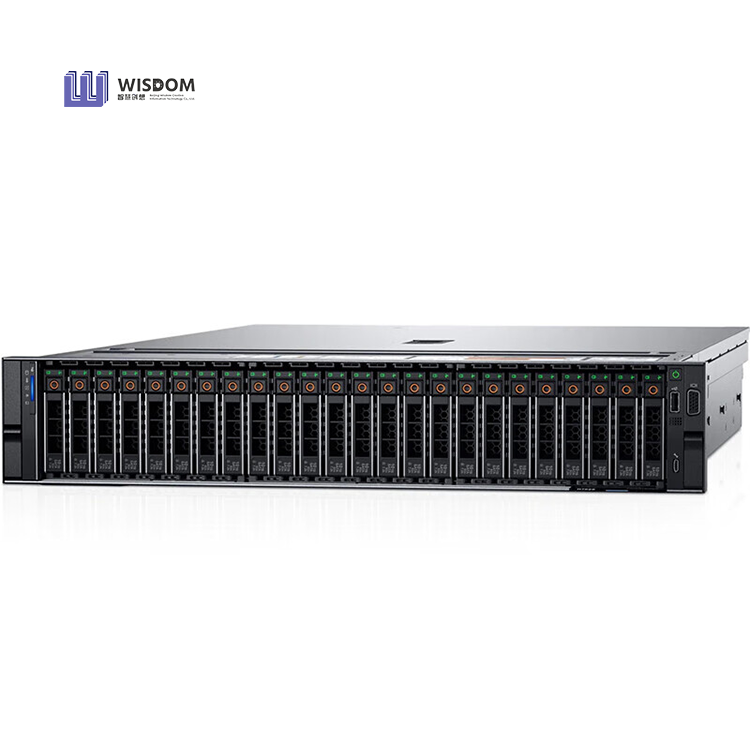

Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD)max 122.88 TB • Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB |
|
Power Supplies |
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant •1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
|
Cooling Options |
• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
|
Fans |
• High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans |
|
Dimensions |

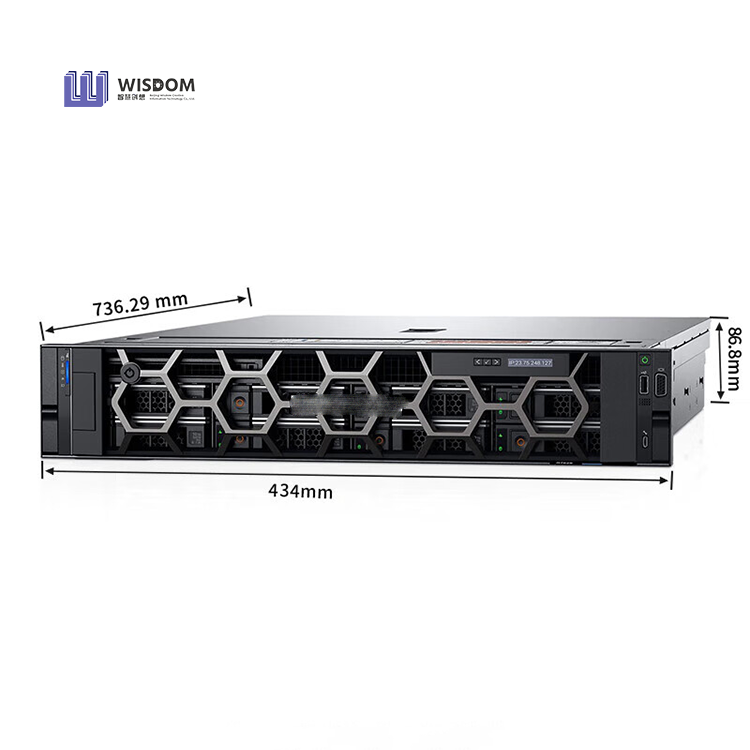

• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
Bezel |
Optional LCD bezel or security bezel |
|
OpenManage Software |
• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin •OpenManage Service plugin • OpenManage Update Manager plugin |
|
Mobility |
OpenManage Mobile |
|
OpenManage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
Security |
• AMD Secure Memory Encryption (SME) • AMD Secure Encrypted Virtualization (SEV) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC |
2 x 1GbE LOM card (optional) |
|
Networking Options |
1x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
GPU Options |
Up to 3 x 300 W DW or 6x75 W SW |
|
Ports |

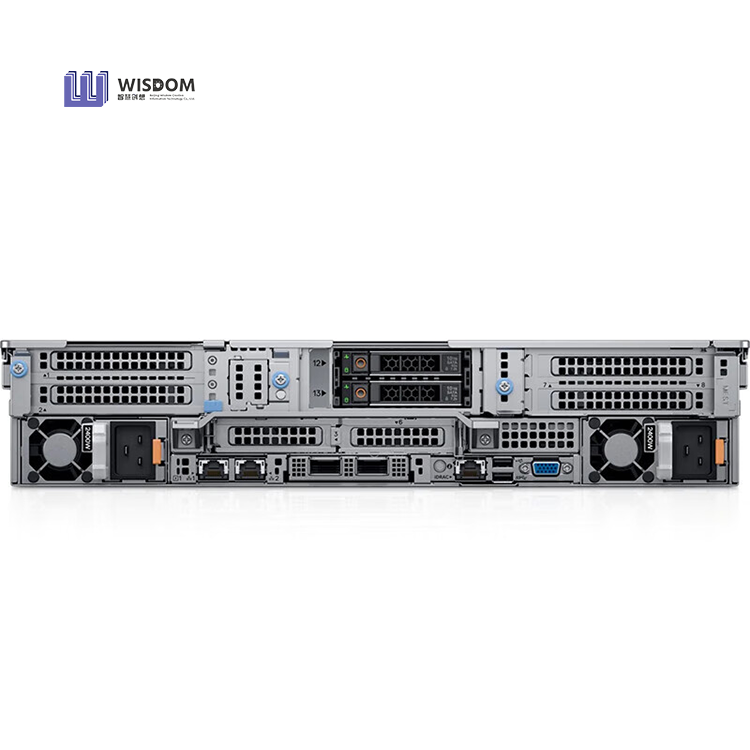

Front Ports: 1 x iDRAC direct (micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports: 1 x Dedicated iDRAC Ethernet port 1 x USB2.0 1 x USB 3.0 1 x VGA 1xSerial(optional) 1xVGA(optional for Direct Liquid Cooling configuration) |
|
PCIe |
Up to eight PCIe slots: • Slot 1: 1 x8 Gen5 Full height, Half length •Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, half length Operating System and Hypervisors • Slot 5: 1 x8/1 x16 Gen4 Full height,Half length or 1 x16 Gen4 Full height, Full length • Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 8: 1 x8/1 x16 Gen5 Full height, Half length |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server •VMware ESXi |
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.
Break new ground
The PowerEdge R7615 is ready for software-designed workloads with up to two 4th generation AMD EPYC™ processors, up to 8x PCIe Gen5 slots and DDR5 memory.
Great memory. Flexible storage.
Flexible, powerful performance per investment dollar in a 2U single-socket server. Delivering breakthrough innovation for traditional and emerging workloads, including software-defined storage, data analytics, and virtualization using the latest performance and density with optional acceleration.
* AMD EPYC™ 4th generation processor delivers up to 50% more core count per single socket platform in an innovative air-cooled chassis
* Deliver more memory density with DDR5 (up to 6TB of RAM) memory capacity
* Improve responsiveness or reduce app load time for power users with up to 6x single-wide full-length GPUs or 3 x double-wide full-length GPUs
Systems management and security solutions
OpenManage systems management
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
