FusionServer 2288 V7 2U Rack Server

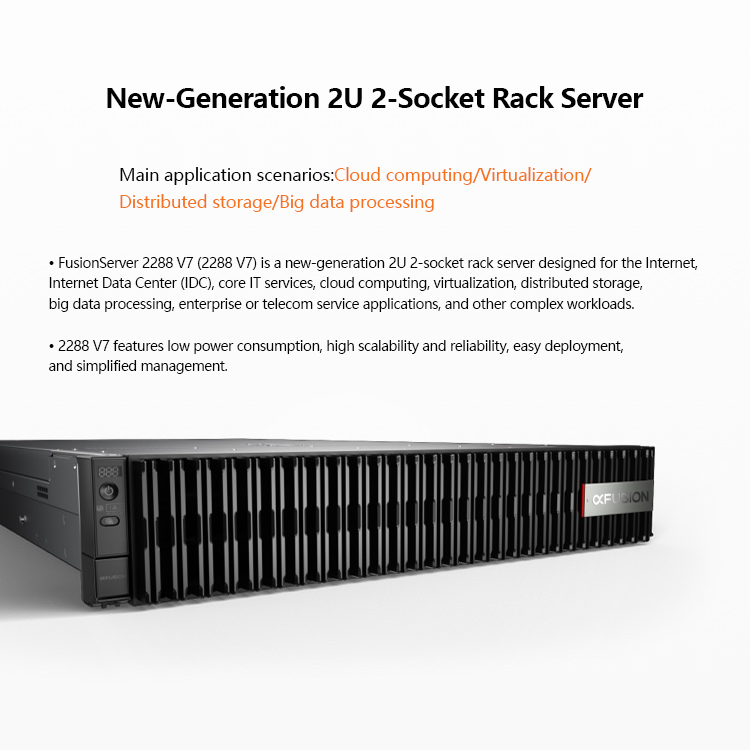

• FusionServer 2288 V7 (2288 V7) is a new-generation 2U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.

• 2288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Description
Product Parameters

+86-18600585382

[email protected]

Description

Flexible Computing

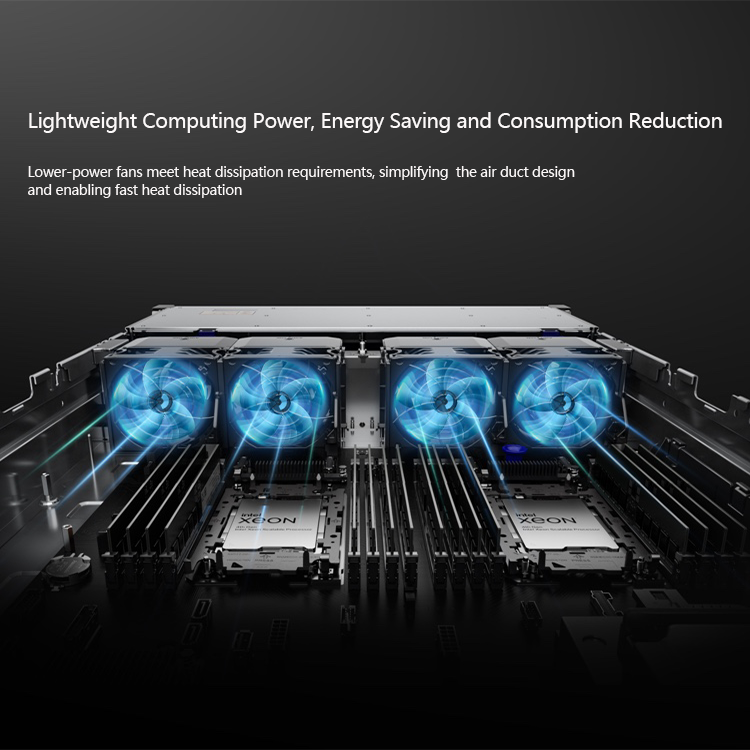

Lightweight Computing Power, Energy Saving and Consumption Reduction

Lower-power fans meet heat dissipation requirements, simplifying the air duct design and enabling fast heat dissipation

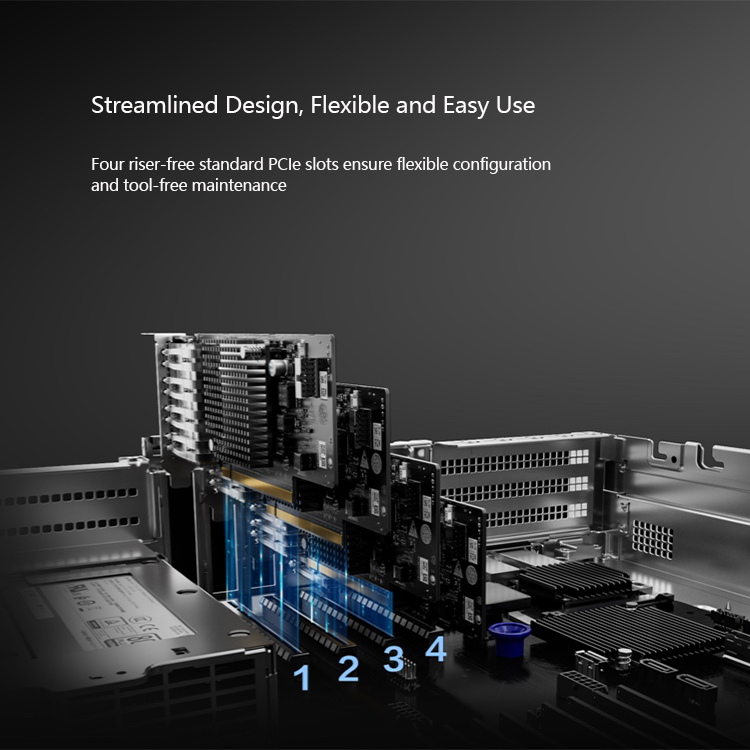

Streamlined Design, Flexible and Easy Use

Four riser-free standard PCIe slots ensure flexible configuration and tool-free maintenance

High Reliability and Security

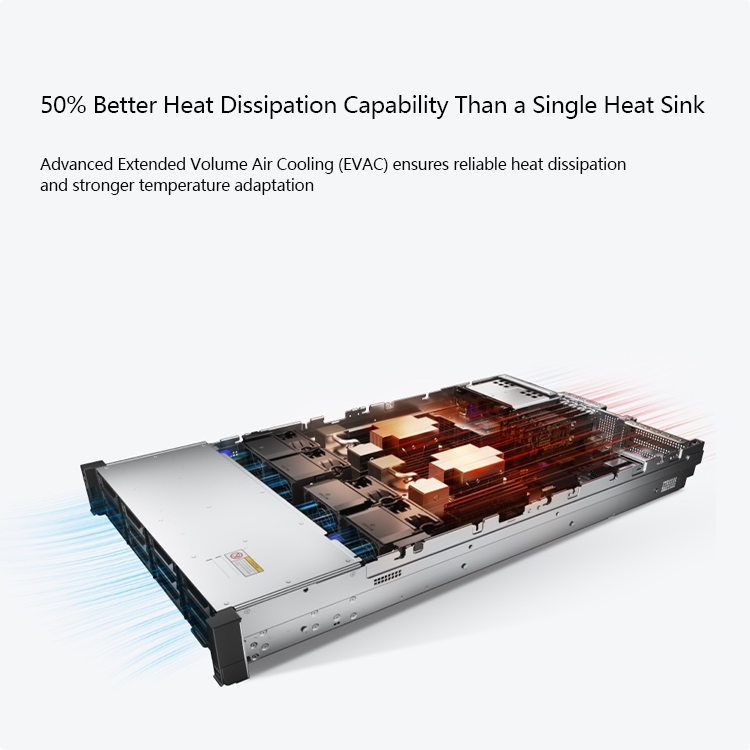

50% Better Heat Dissipation Capability Than a Single Heat Sink

Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation

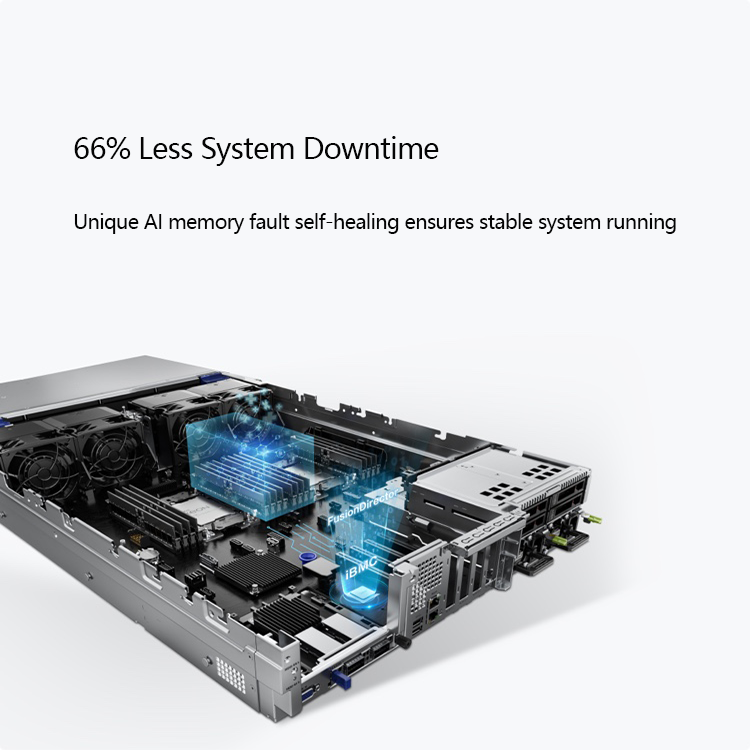

66% Less System Downtime

Unique AI memory fault self-healing ensures stable system running

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Intelligent Service Awareness, Dynamic Load Adjustment

The CPU working frequency is dynamically adjusted based on the actual service load

Product Parameters

Form factor	2U rack server
Processors	1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 225 W per processor
Chipset	Emmitsburg PCH
Memory	16 x DDR5 DIMMs, with up to 4800 MT/s speed
Local Storage	Supports hot-swappable drives in the following configuration options: • 8 to 31 x 2.5ʺ SAS/SATA/SSD drives • 10 to 14 x 3.5ʺ SAS/SATA drives • 4 x NVMe SSDs • Up to 31 x 2.5ʺ drives Supports flash storage: • 2 x M.2 SSDs
RAID support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability for multiple types of networks Supports OCP 3.0 NICs. One FlexIO card slot supports one OCP 3.0 NIC, which can be configured as required
PCIe expansion	Up to 8 x PCIe slots 1 x FlexIO expansion slot dedicated for OCP 3.0, 1 x expansion slot dedicated for the RAID controller card, and 6 x standard PCIe expansion slots
Heterogeneous Accelerator Card	Up to 4 x 75 W half-height half-length GPU accelerator cards
Fan Modules	4 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management through the lifecycle
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating temperature	5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
