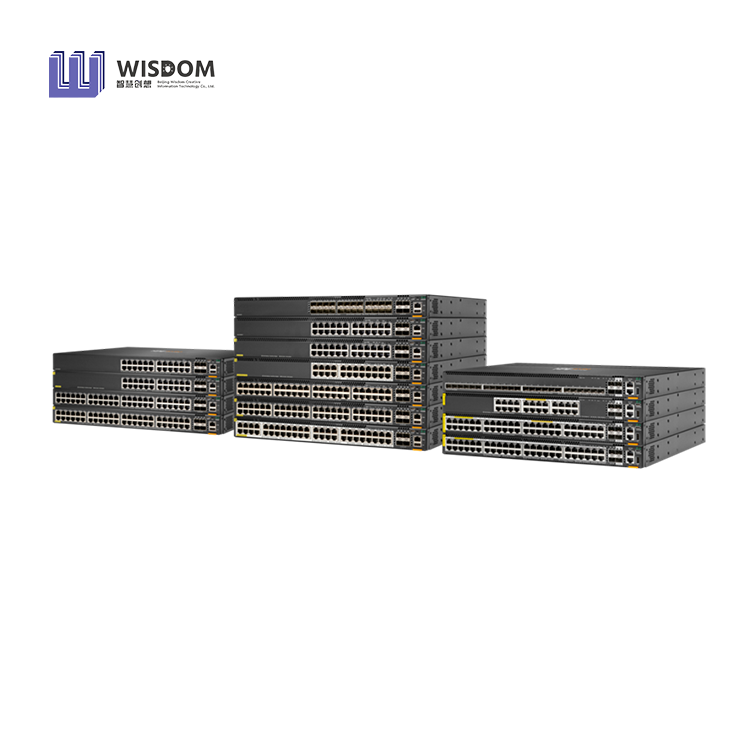

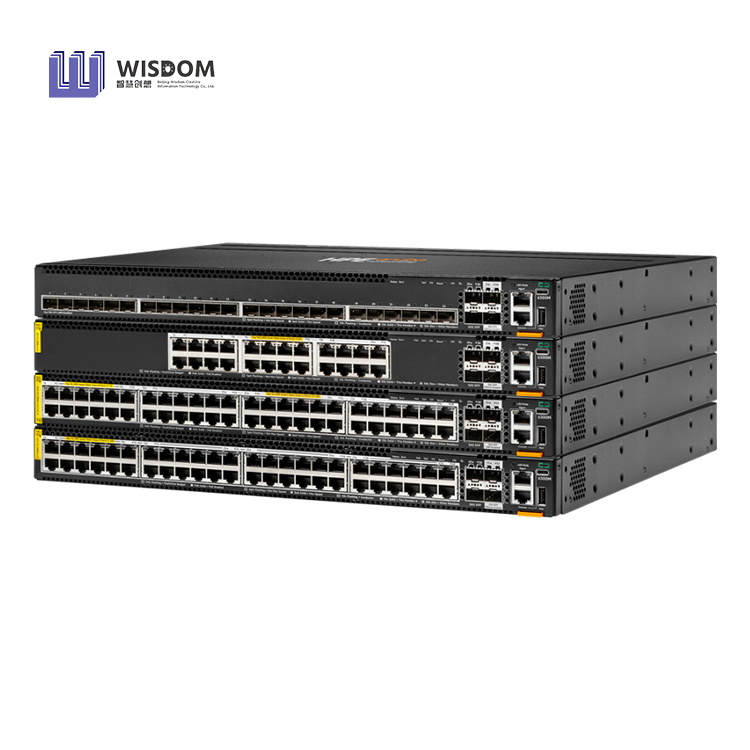

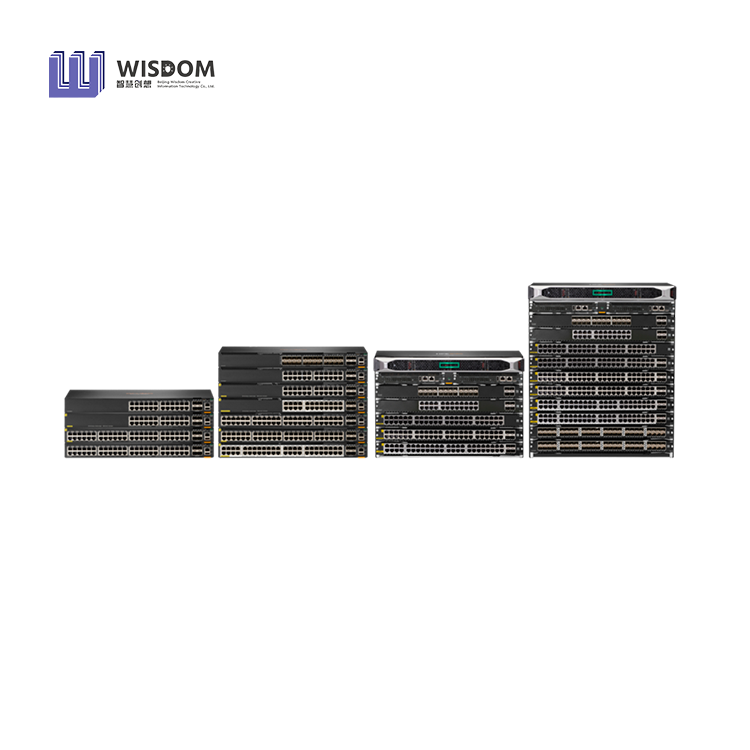

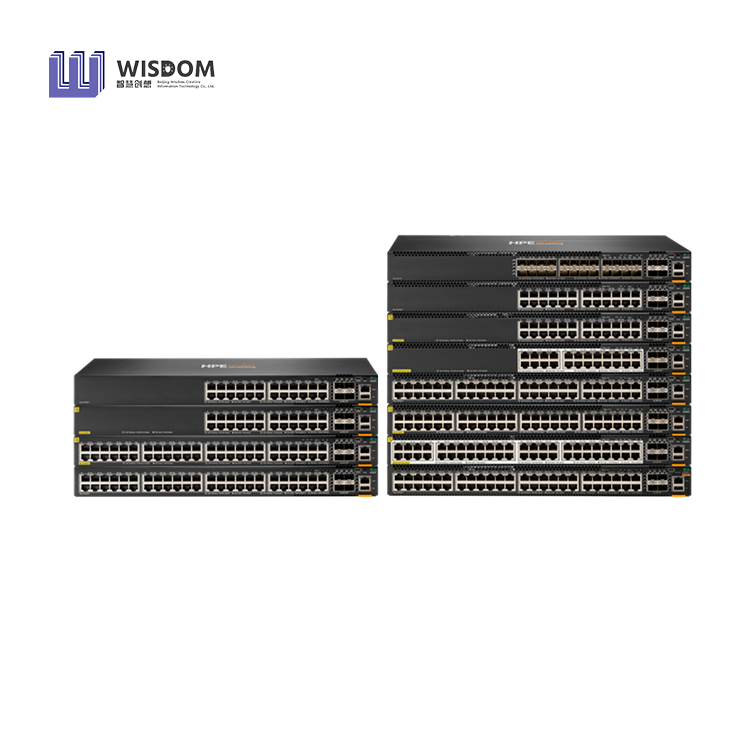

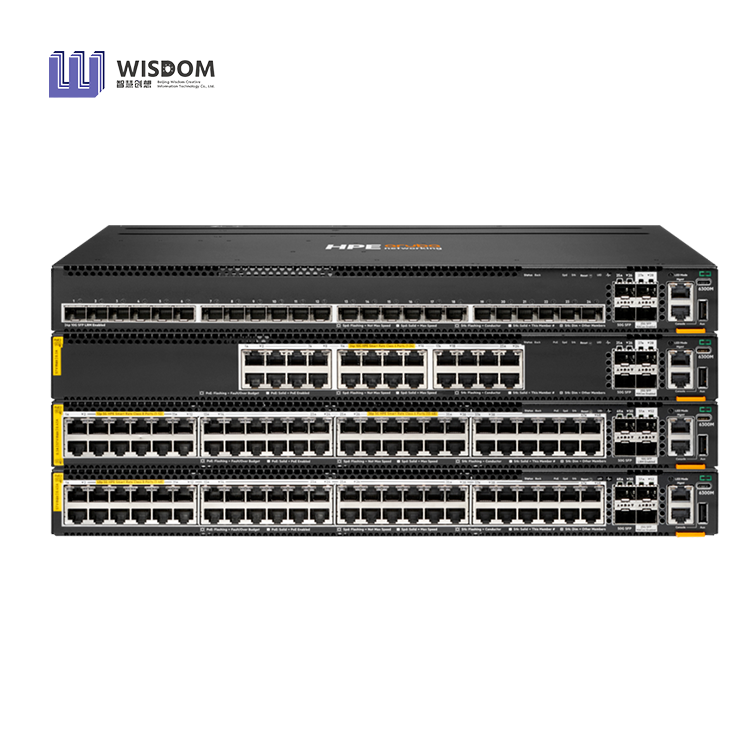

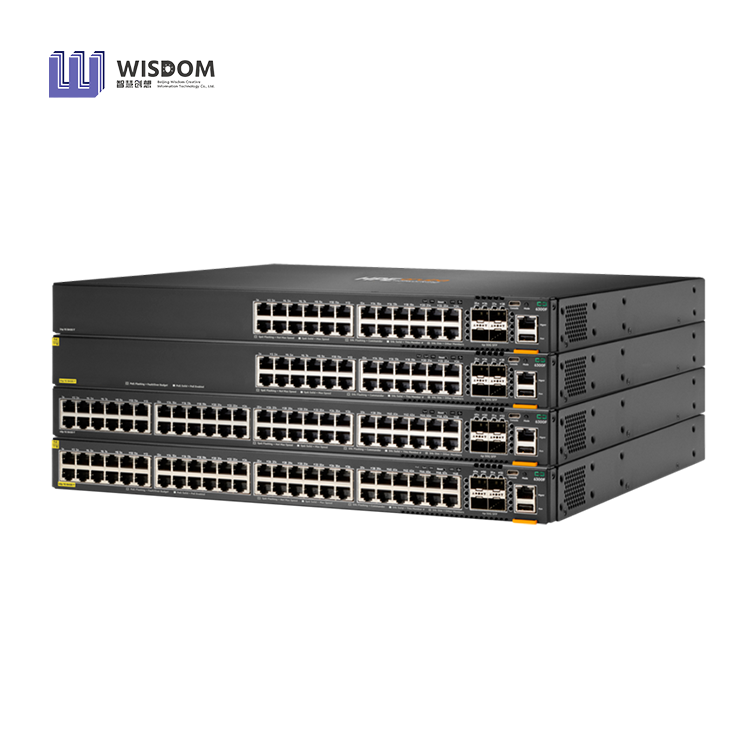

HPE Aruba Networking CX 6300 Switch Series

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). With its cloud-native design, fully programmable operating system, and the HPE Aruba Networking CX Network Analytics Engine, the CX 6300 Series extends industry-leading monitoring and troubleshooting to the access layer. Support for HPE Aruba Networking Switch Multi-Edit Software and the CX mobile app verify that configurations are flawless and easy to deploy.

A powerful ASIC architecture delivers fast, non-blocking performance, ready for tomorrow’s unpredictable demands. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high speed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for APs and IoT devices.

Description
Specifications

hpe aruba networking cx 6300 switch series-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments. Created for game- changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable CX 6300 switches are part of the CX switching portfolio, designed for today’s enterprise campus, branch and data center networks.By combining a modern, fully programmable OS with the Network Analytics Engine, the CX 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

A powerful Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high-speed access points and IoT devices by delivering fast
connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hotswappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle top-of-rack (TOR) and outof- band-management (OOBM) data center deployments.

Dynamic Segmentation extends foundational wireless role-based policy capability to wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Key features

* Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
* High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth (400Gbps at full duplex)

* Compact 1U switches with full density HPE Smart Rate (1G/2.5G/5G/10GbE) multi-gigabit, up to 90W PoE (Class 8) and 10G LRM SFP+ available on select models

* Power-to-port switch bundle with back-to-front airflow ideal for data center 1GbE ToR and OOBM deployments

* Three stackable, high‑performance Layer 2‑only CX 6300L access switcheswith HPE Smart Rate Multi‑Gigabit and MACsec encryption

* Built-in high speed 1/10/25/50GbE uplinks

* 50GbE connectivity with 50GbE DACs

* Intelligent monitoring, visibility, and remediation with Network Analytics Engine

* Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN

* NetEdit support for automated configuration and verification

* Dynamic Segmentation enables secure and simple access for users and IoT

What's New

* Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS, now supporting MACsec 256, PTP,AVB and LRM.

* Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS, now supporting MACsec 256, PTP,AVB and LRM..

* Series includes full density HPE Smart Rate (1/2.5/5/10GbE) multi-gigabit and up to 90W PoE, SFP+ model and switch bundle with power-to-port airflow for data center 1GbE ToR and OOBM deployments.

* Built-in high speed 10/25/40/50/100GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via Network Analytics Engine.

* Manage via single pane of glass with Central across wired, wireless, and WAN. Dynamic Segmentation enables enhanced security and simple access for users and IoT.

* HPE Data Center Networking Solution SKU (R9F63A) for HPE integrated and mixed use HPE Compute, HPE Storage and HPE Aruba Networking configuration and deployments.

Specifications

	HPE Aruba Networking 6300M 16p SmtRt 5G 32p 1G Class8 PoE 2p SFP28 25G MACsec 2p SFP56 50G Switch (S4P41A)	HPE Aruba Networking 6300M 32p SmtRt 5G CL8 8p SFP+ 10G LRM 2p SFP28 25G MACsec 2p SFP56 50G Switch (S4P42A)	HPE Aruba Networking 6300M 48p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch (S4P43A)	HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch (S4P44A)
	"32x 10/100/1000M and 16x SmartRate 1/2.5/5G BaseT Ports (Configuration can be changed to 8x SmartRate 10G BaseT Ports) with Class 8 PoE supporting up to 90W per port 2x 10G/25G/50G SFP56 ports 2x 1G/10G/25G SFP28 ports (MACsec) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1x USB‑C Console Port 1x RJ Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App"	"32x SmartRate 1/2.5/5G BaseT Ports (Configuration can be changed to 16x SmartRate 5G and 8x SmartRate 10G BaseT Ports) with Class 8 PoE supporting up to 90W per port and 8x 1/10G SFP+ (LRM) 2x 10G/25G/50G SFP56 ports 2x 1G/10G/25G SFP28 ports (MACsec) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1x USB‑C Console Port (higher priority than RJ45 console port) 1x RJ45 console port 1x OOBM 1x USB Type A Host port 1x Bluetooth adapter to be used with HPE Aruba Networking CX Switch Operating System Mobile App"	"48x ports 1G SFP 2x 10G/25G/50G SFP56 ports 2x 1G/10G/25G SFP28 ports (MACsec) 1x USB‑C Console Port (higher priority than RJ45 console port) 1x RJ45 console port 1x OOBM 1x USB Type A Host port 1x Bluetooth adapter to be used with HPE Aruba Networking CX Switch Operating System Mobile App"	"24x ports 1G SFP 2x 10G/25G/50G SFP56 ports 2x 1G/10G/25G SFP28 ports (MACsec) 1x USB‑C Console Port (higher priority than RJ45 console port) 1x RJ45 console port 1x OOBM 1x USB Type A Host port 1x Bluetooth adapter to be used with HPE Aruba Networking CX Switch Operating System Mobile App"
Power supplies	"2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A JL670A JL758A Max PoE Power: 2880W"	"2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A JL670A JL758A Max PoE Power: 2880W"	"2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL085A JL757A PSU"	"2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL085A JL757A PSU"
Fans	"Switch has two fan tray slots and comes with two fan trays installed. — Min 2 fan trays required. — Fan trays are field replaceable and hot‑swappable. — Each fan tray contains two fans."	"Switch has two fan tray slots and comes with two fan trays installed. — Min 2 fan trays required. — Fan trays are field replaceable and hot‑swappable. — Each fan tray contains two fans."	"Switch has two fan tray slots and comes with two fan trays installed. — Min 2 fan trays required. — Fan trays are field replaceable and hot‑swappable. — Each fan tray contains two fans."	"Switch has two fan tray slots and comes with two fan trays installed. — Min 2 fan trays required. — Fan trays are field replaceable and hot‑swappable. — Each fan tray contains two fans."
Physical characteristics
Dimensions	"4.4 cm (h) x 44.2 cm (w) x 38.5 cm (d) (1.73″ x 17.4″ x 15.2")"	"4.4 cm (h) x 44.2 cm (w) x 38.5 cm (d) (1.73″ x 17.4″ x 15.2")"	"4.4 cm (h) x 44.2 cm (w) x 38.5 cm (d) (1.73″ x 17.4″ x 15.2")"	"4.4 cm (h) x 44.2 cm (w) x 38.5 cm (d) (1.73″ x 17.4″ x 15.2")"
Configuration Weight	12.61 lb (5.72 kg)	12.52 lb (5.68 kg)	11.90 lb (5.40 kg)	11.40 lb (5.17 kg)
Additional Specifications
CPU	1.8 GHz Quad Core Arm® Cortex™ A72	1.8 GHz Quad Core Cortex™ A72	1.8 GHz Quad Core Cortex™ A72	1.8 GHz Quad Core Cortex™ A72
Memory and Flash	"8 GB DDR4 32 GB eMMC"	"8 GB DDR4 32 GB eMMC"	"8 GB DDR4 32 GB eMMC"	"8 GB DDR4 32 GB eMMC"
Packet Buffer	16 MB	16 MB	16 MB	16 MB
Performance
Model Switching Capacity	524 Gbps	780 Gbps	396 Gbps	348 Gbps
Model Throughput Capacity	390 Mpps	580 Mpps	295 Mpps	259 Mpps
Average Latency (LIFO-64-bytes packets)	<5 µs 1G: 3.6 µs	<5 µs 10G LRM ports: 2.3 µs 10G dual mode ports: 5.5 µs 25G: 3.5 µs	<5 µs 1G: 3.4 µs 50G:2.1 µs	<5 µs
Stack Size	10 members	10 members	10 members	10 members
Max Stacking Distance	Up to 10 kms with long range transceivers	Up to 10 kms with long range transceivers	Up to 10 kms with long range transceivers	Up to 10 kms with long range transceivers
Stacking Bandwidth	200 Gbps	200 Gbps	200 Gbps	200 Gbps
Switched Virtual Interfaces (dual stack)	1,024	1,024	1,024	1,024
IPv4 Host Table (ARP)	49,152	49,152	49,152	49,152
IPv6 Host Table (ND)	49,152	49,152	49,152	49,152
IPv4 Unicast Routes	61,000	61,000	61,000	61,000
IPv6 Unicast Routes	61,000	61,000	61,000	61,000
IPv4 Multicast Routes	8,192	8,192	8,192	8,192
IPv6 Multicast Routes	8,192	8,192	8,192	8,192
MAC Table Capacity	32,768	32,768	32,768	32,768
IGMP Groups	4,096	4,096	4,096	4,096
MLD Groups	4,096	4,096	4,096	4,096
IPv4/IPv6/MAC ACL Entries (ingress)	20,480/5,120/20,480
IPv4/IPv6/MAC ACL Entries (egress)	8,192/2,048/8,192
Environment	32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate ‑1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods1 of time.
Operating Relative Humidity	5% to 95% @ 104°F (40°C) non‑condensing
Non-Operating	‑40°F to 158°F (‑40°C to 70°C) up to 15,000 ft
Non-Operating Storage Relative Humidity	5% to 95% @ 149°F (65°C) non‑condensing
Max Operating Altitude	10,000 feet (3.04 km) Max
Max NonOperating Altitude	15,000 feet (4.6 km) Max
Acoustic	With JL670A PSU: Idle: 352 BTU/hr 100% Traffic Rate: 457 BTU/hr With JL758A PSU: Idle: 379 BTU/hr 100% Traffic Rate: 461 BTU/hr
Primary Airflow	Front and side to back
