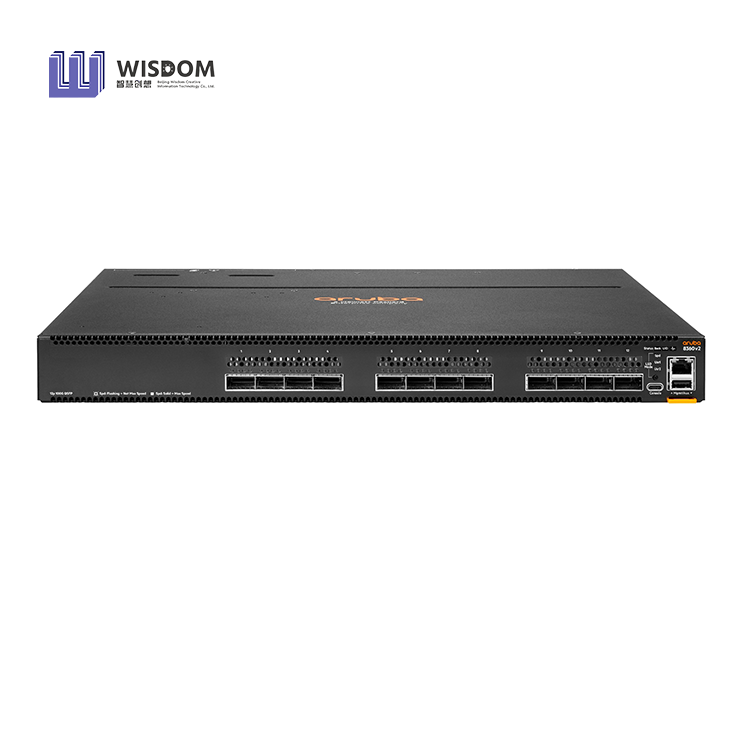

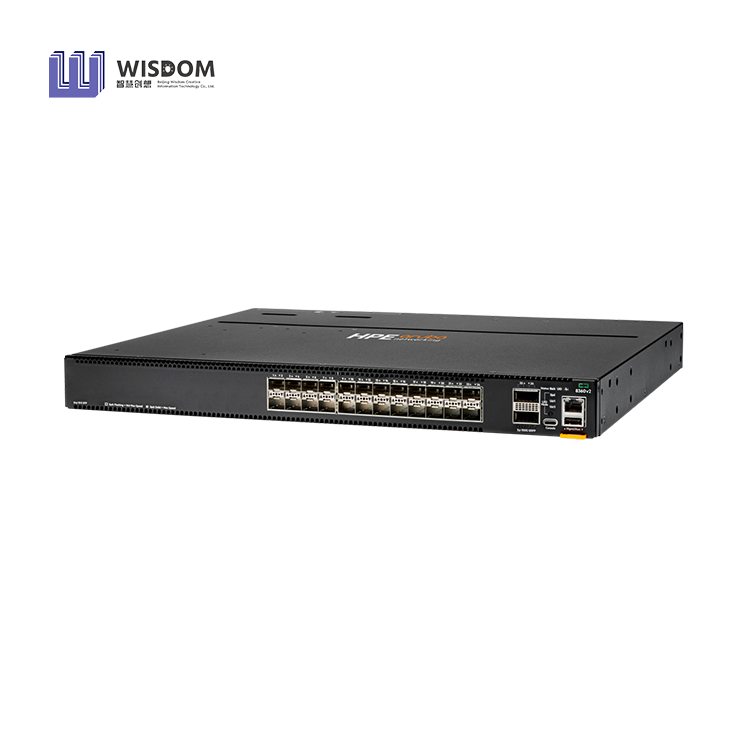

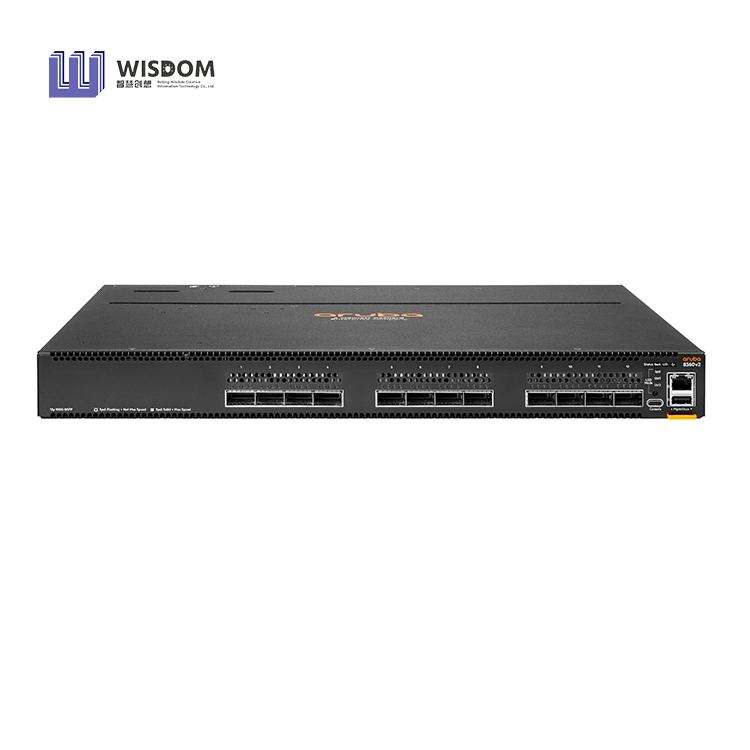

HPE Aruba Networking CX 8360 v2 Switch Series

The HPE Aruba Networking CX 8360 v2 Switch Series are designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. Provide up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5, 5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor.

These switches deliver a fantastic investment for customers wanting to migrate from older 1 GbE/10 GbE to faster 25 GbE, or from 10 GbE/40 GbE uplinks to 50/100 GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10 GbE and 25 GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100 G ports on the CX 8360 48-port model.

Description
Specifications

hpe aruba networking cx 8360 v2 switch series-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8 Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps.
The CX 8360 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor.

4x10 Gbps and 4x25 Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the 48 and 32 x 25G port 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.

key Features

—High performance 4.8 Tbps and 2678 Mpps —Intelligent monitoring and visibility with HPE Aruba Networking Network Analytics Engine
—High availability with industry leading VSX redundancy, and redundant power supplies and fans
—Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments —MACsec secured connectivity over untrusted domains
—HPE Aruba Networking OS-CX automation and programmability using built-in REST APIs and Python scripts
—Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
—50G support on 8360-48Y6C, 32Y4C, and 16Y2C switches
—Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C

What's New

 * 48-port 1/10/25 G with 4 MACsec, 6-port of 40/100 G with 2 MACsec. MACsec secured connectivity over untrusted domains.
 * High-performance 4.8 Tbps and 2,678 Mpps. 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches. Addition of HPE Smart Rate (1/2.5/5/10 G) ports on the 836048XT4C

 * Intelligent monitoring and visibility delivered by the HPE Aruba Networking Network Analytics Engine (NAE)
* High availability with industry-leading VSX redundancy and redundant power supplies and fans.

Specifications

	HPE Aruba Networking 8360-48Y6C v2 MACsec Front-to-Back 5 Fans, 2 AC Power Supplies [JL704C]	HPE Aruba Networking 8360-48Y6C v2 MACsec Back-to-Front 5 Fans, 2 AC Power Supplies [JL705C]	HPE Aruba Networking 8360-32Y4C v2 MACsec Frontto-Back 3 Fans, 2 Power Supplies [JL700C]	HPE Aruba Networking 8360-32Y4C v2 MACsec Back-toFront 3 Fans, 2 Power Supplies [JL701C]	HPE Aruba Networking 8360-16Y2C v2 Front-to-Back 3 Fans, 2 Power Supplies [JL702C]	HPE Aruba Networking 8360-16Y2C v2 Back-to-Front 3 Fans, 2 Power Supplies [JL703C]
I/O ports and slots
	Up to 22 ports of 50G (1) 48 ports of 1GbE (SFP) with no MACsec for ports 1-4 and Full Duplex only for ports 1-48 with the 836048Y6C (2) 44 ports for use with 100FX (J9054D, HPW ANW 100M SFP LC FX MMF Transceiver) for ports 5-48 with the 8360-48Y6C (3)44 ports 100M BaseT using J8177E (HPE ANW 1G SFP RJ45 100m Transceiver) and JL747A (HPE ANW 1G SFP RJ45 100m Cat5e TAA Transceiver) and Full Duplex only for ports 5-48 with the 8360-48Y6C1 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) with MACsec		Up to 12 ports of 50G 28 ports of 1GbE/10GbE/25GbE (SFP/ SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)		Up to 8 ports of 50G 16 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)
Additional ports and slots
Power supplies	2 field-replaceable and hot-swappable power supplies²
Fans	5 field-replaceable and hot-swappable fans³		5 field-replaceable and hot-swappable fans³
Management	RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A
Physical characteristics
Physical dimensions (HxWxD)	1.73 in x 17.4 in x 20.0 in 4.4 cm x 44.2 cm x 50.8 cm		1.73 in x 17.4 in x 16.0 in 4.4 cm x 44.2 cm x 40.64 cm
Full configuration weight	23.65 lb 10.73 kg		18.05 lb 8.19 kg		17.00 lb 7.71 kg
Memory and processor
CPU	1.8 GHz 4-core 64-bit
Memory, drive and flash	16GB RAM, 32GB Flash/Storage
Packet buffer	32MB
Performance
Switching capacity	4.8 Tbps		2.4 Tbps		1.2 Tbps
MAC address	212,992
IPv4 host table	145,780
IPv6 host table	145,780
IPv4 unicast routes	606,977
IPv6 unicast routes	630,784
Maximum number of access control list (ACL) entries ingress	IPv4 64,000, IPv6 32,764, MAC 64,000
Maximum number of access control list (ACL) entries egress	IPv4 8,192, IPv6 2,048, MAC 8,192
Maximum VLANs	4094
IGMP groups	7000
MLD groups	7000
IPv4 multicast routes	7000
IPv6 multicast routes	7000
Environment
Operating temperature⁴	32°F to 113°F (0°C to 45°C) up to 5000 ft	32°F to 104°F (0°C to 40°C) up to 5000 ft	32°F to 113°F (0°C to 45°C) up to 5000 ft	32°F to 104°F (0°C to 40°C) up to 5000 ft	32°F to 113°F (0°C to 45°C) up to 5000 ft	32°F to 104°F (0°C to 40°C) up to 5000 ft
Operating relative humidity	15% to 95% relative humidity at 113°F (45°C), non-condensing	15% to 95% relative humidity at 104°F (40°C), non-condensing	15% to 95% relative humidity at 113°F (45°C), non-condensing	15% to 95% relative humidity at 104°F (40°C), non-condensing	15% to 95% relative humidity at 113°F (45°C), non-condensing	15% to 95% relative humidity at 104°F (40°C), non-condensing
Non-operating temperature	–40°C to 70°C (–40°F to 158°F) up to 4.6 km (15000 ft)
Non-operating/ storage relative humidity	15% to 95% at 149°F (65°C) non-condensing
Maximum operating altitude	Up to 10,000 ft (3.048 km)
