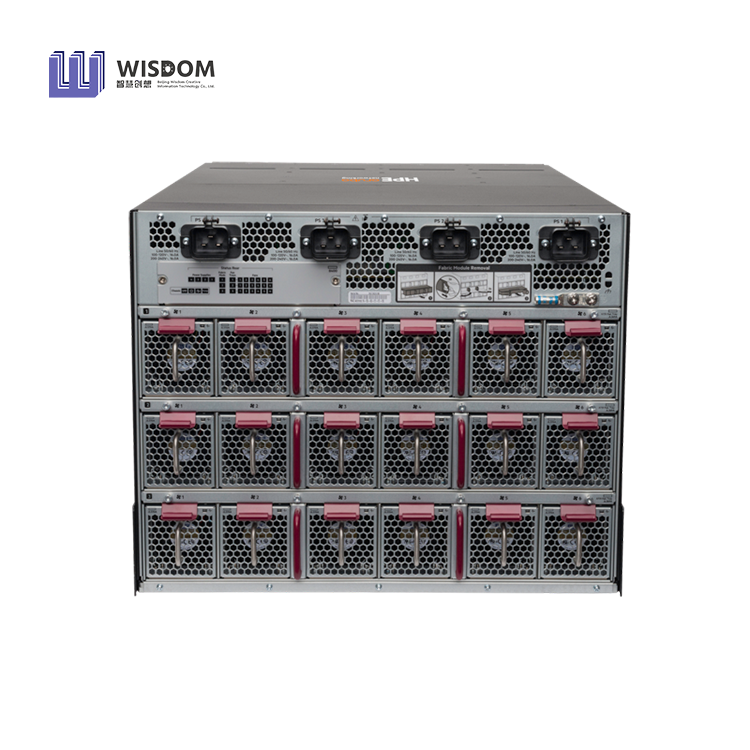

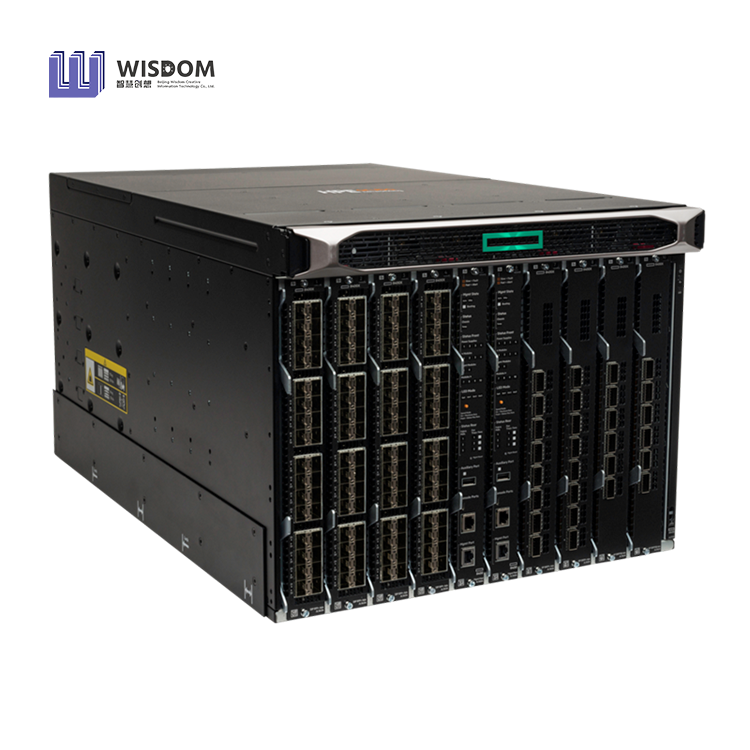

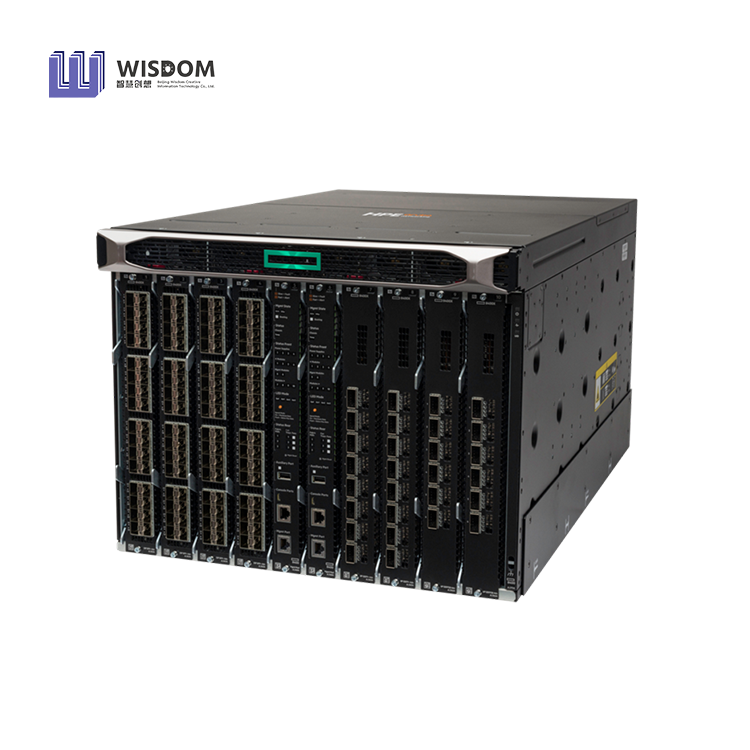

HPE Aruba Networking CX 8400 Switch Series

The HPE Aruba Networking CX 8400 Switch Series, a campus core and aggregation switch, is a game‑changing solution offering a flexible and innovative approach to dealing with the new application, security and scalability demands of the mobile‑cloud and IoT era. The CX 8400 Series also serves as a data center switch in a core/aggregation or a leaf/spine topology.

The CX 8400 Series provides carrier class high availability with industry‑leading line rate 10 GbE/25 GbE/40 GbE/100 GbE connectivity in a compact 8 slot chassis. It provides up to 19.2 Tbps of switching capacity based on a fully resilient design that includes redundant fabric, management, power and fans to create a resilient, highly available network that is ideal for the most demanding campus core and data center networks. It includes the HPE Aruba Networking CX Switch Operating System (AOS-CX) a software that automates and simplifies critical and complex network tasks.

Description
Specifications

hpe aruba networking cx 8400 switch series-2

+86-18600585382

[email protected]

Description

Product overview

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The HPE Aruba Networking CX 8400 campus core and aggregation switch is a game-changing solution offering a flexible and innovative approach to dealing with the new application, security and scalability demands of the mobile cloud and IoT era.

The CX 8400 provides carrier class high availability with industry-leading line rate 10GbE/25GbE/40GbE/100GbE connectivity in a compact 8 slot chassis. Together with fixed form factor solutions such as the CX 8320 Switch and the CX 8325 Switch, the CX 8400 rounds out HPE Aruba Networking’s core, aggregation and data center switching portfolio with a solution that ensures higher performance and higher uptime for the most demanding enterprise networks.

key Features

* High performance 19.2 terabits per second switching (1.2Tbps/slot) capacity
* Carrier-class high availability with Virtual Switching Extension (VSX), redundant management, power, and fabric
* AOS-CX enables automation and usability using built-in REST APIs and Python scripts
* Intelligent monitoring, visibility, and remediation with Network Analytics Engine
* Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
* One-touch deployment with the CX Mobile App
* NetEdit support for automated configuration and verification
* Advanced Layer 2/3 feature set includes BGP, EVPN, OSPF, VRF, and IPv6
* Compact 8U chassis with high density, line rate 10GbE/25GbE/40GbE/100GbE connectivity

What's New

* High performance 19.2 Tbps switching (1.2 Tbps/slot) capacity. Carrier‑class high availability with HPE Aruba Networking Virtual Switching Extension (VSX), redundant management, power, and fabric.
 * AOS‑CX enables automation and programmability using built‑in REST APIs and Python scripts.

 * Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Analytics Engine.

 * HPE Aruba Networking Switch Multi‑Edit Software support for automated configuration and verification.

 * Compact 8U chassis with high density, line rate 10 GbE/25 GbE/40 GbE/100 GbE connectivity.

 * Advanced Layer 2/3 feature set includes BGP, EVPN, OSPF, VRF, and IPv6.

Specifications

Series Specifications
Line modules and slots	Supports a maximum of 256 10GbE (SFP/SFP+) or 25G (SFP/SFP+/SFP28) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28) combination Eight slots for line modules
Module VoQ	1.5GB for JL363A and JL365A 3GB for JL366A 4GB for JL687A
Additional ports and slots	2 management module slots 3 fabric module slots 4 power supply slots
Power supplies	4 power supply slots
	2 minimum power supply required for a fully loaded chassis (or with 8 line modules)
Fan tray	Included with JL376A
Physical characteristics	Dimensions	17.4(w) x 26(d) x 13.8(h) in. (44.1 x 66.0 x 35.1 cm) (8U height)
Physical characteristics	Weight	-Empty configuration weight: 76 lbs (34 kg) -JL376A weight: 164 lbs (74 kg) -Full configuration weight: 241 lbs (109 kg)
Mounting and enclosure	Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only
Performance	Switching Capacity	19.2Tbps
	IPv4 Host Table	756,000
	IPv6 Host Table	524,000
	IPv4 Unicast Routes	1,011,712 (BGP RIB is limited to 256,00)
	IPv6 Unicast Routes	524,288
	MAC Table Size	768,000
	IGMP Groups	32,767
	MLD Groups	32,767
	IPv4 Multicast Routes	32,767
	IPv6 Multicast Routes	32,767
Environment	Operating	32°F to 104°F (-0°C to 40°C) with 5% to 95%, non-condensing
	Non-operating	-40°F to 158°F (-40°C to 70°C) with 5% to 95%, non-condensing
	Max operating altitude	Up to 10,000ft (3.048 Km)
	Max non-operating altitude	Up to 30,000ft (9.144 Km)
	Acoustics	Sound power (LWAd) 7.3 Bel Sound pressure (LpAm) (Bystander) 55.6 dB
Electrical characteristics	Frequency	47-63 Hz
	AC voltage	90 – 140/180 – 264 VAC
	DC voltage
	Current	16 A
	Power output	2750 W
Safety	EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; EN62368-1:2014; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC62368-1, Ed.2; IEC60825:2007 (Applies to products with lasers); UL60950-1, CSA 22.2 No 60950-1; UL62368-1 Ed. 2
Emissions	VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC; (CFR 47, Part 15) Class A; GB9254; EN55032:2012 Class A; CISPR32:2012 Class A
Immunity	Generic	Directive 2014/35/EU
	EN	EN 55024:2010+ A1:2001 + A2:2003; ETSI EN 300 386 V1.3.3
	ESD	EN 61000-4-2
	Radiated	EN 61000-4-3
	EFT/Burst	EN 61000-4-4
	Surge	EN 61000-4-5
	Conducted	EN 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	EN 61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	SNMP, RJ45 for Serial Console, USB-Type A for file management only, RJ45 Ethernet for OOBM
