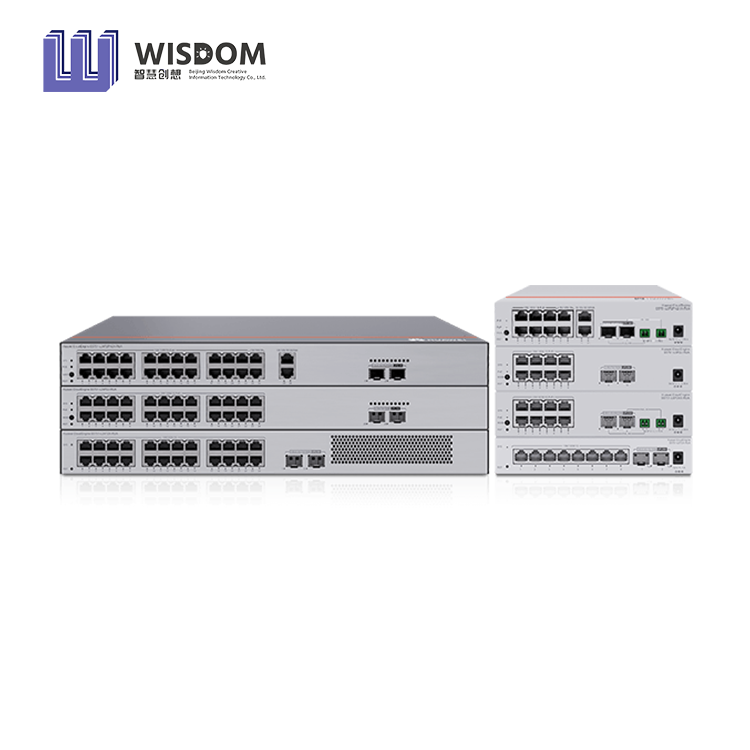

Huawei CloudEngine S5751-L Series 10GE Remote Unit Switches

CloudEngine S5751-L series switches are Huawei's remote unit (RU) switches with 10GE uplink ports based on the innovative and simplified architecture.

Description
Product Parameters

huawei cloudengine s5751 l series 10ge remote unit switches-2

+86-18600585382

[email protected]

Description

Product description

CloudEngine S5751-L series switches are Huawei's 10Gb/s uplink remote module switches based on the innovative minimalist architecture, which are complementary to Huawei's campus switch products to realize minimalist and efficient networking; they can be used as the port expansion module of the central switch to realize flexible port expansion.It provides GE/2.5GE data access capability, and optionally supports innovative optoelectronic PoE pickup, providing a maximum of 1200 meters of PoE power supply for remote modules from the center switch.Widely used in enterprise office, education, hotel, medical and other industry scenarios, help enterprises to build green low-carbon buildings.

Feature

Full Scenario Deployment

Supports 10GE/2.5GE uplink and 2.5GE/GE downlink

Supports wall-mounted and desktop-mounted modes

Bi-directional high-performance PoE

Supports three types of power supply: fiber optic hybrid cable, Phoenix terminal or local adapter
Supports secondary PoE power supply, maximum 30W PoE+ for single port

green energy efficiency

Fanless design, natural heat dissipation, no noise

Ice cooling architecture reduces power consumption by 50%.

Product Parameters

	CloudEngine S5751-L8T2J-RUA	CloudEngine S5751-L8LP2J-RUA	CloudEngine S5751-L8P2J-RUA	CloudEngine S5751-L8T2X-RUA
Dimensions (W x D x H)	19513035MM	19516043.6MM	19516043.6MM	19513035MM
full complementary weight	1.1kg	1.2kg	1.2kg	1.1kg
Installation	Desktop or wall mounting	Desktop or wall mounting	Desktop or wall mounting	Desktop or wall mounting
Power supply type	power adapter	power adapter	power adapter	power adapter
rated voltage	Power adapter input:170VAC~240V AC; 50/60Hz Power adapter output :12VDC	Power adapter input:170VAC~240V AC; 50/60Hz Power adapter output :56VDC	Power adapter input:170VAC~240V AC; 50/60Hz Power adapter output :56VDC	Power adapter input:170VAC~240V AC; 50/60Hz Power adapter output :12VDC
Maximum power consumption	7W	Without PoE:7W WithPoE:45W(PoE:35W)	Without PoE:7W WithPoE:138W(PoE:128W)	7W
operating temperature [°C]	-5℃~45℃	-5℃~45℃	-5℃~45℃	-5℃~45℃
Storage temperature [°C]	-40℃~70℃	-40℃~70℃	-40℃~70℃	-40℃~70℃
Relative humidity	5%~95% (no condensation)	5%~95% (no condensation)	5%~95% (no condensation)	5%~95% (no condensation)
Lightning protection for service ports	±8kW	±8kW	±8kW	±8kW
Power port lightning protection	±6kW	±6kW	±6kW	±6kW
Heat dissipation method	Fanless, natural heat dissipation	Fanless, natural heat dissipation	Fanless, natural heat dissipation	Fanless, natural heat dissipation
