Lenovo ThinkSystem SR630 V2 1U Rack Server

The Len ovo ThinkSystem SR630 V2 is a powerful 2-socket 1U rack server for small businesses to largeenterprises utilizing the new 3rd Gen Intel? Xeon" Scalable processors. lt is designed to handle a wide rangeof workloads such as databases, virtualization and cloud computing, VDl, infrastructure security, systemsmanagement, enterprise applications, collaboration/email, streaming media, web and HPC.

Description
Product Parameters

lenovo thinksystem sr630 v2 1u rack server-2

+86-18600585382

[email protected]

Description

Future Defined Data Center

Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.

Workload-Optimized Support

ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency,higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.

Flexible Storage

Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Product Parameters

Form Factor/Height	1U rack server
Processor	Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP

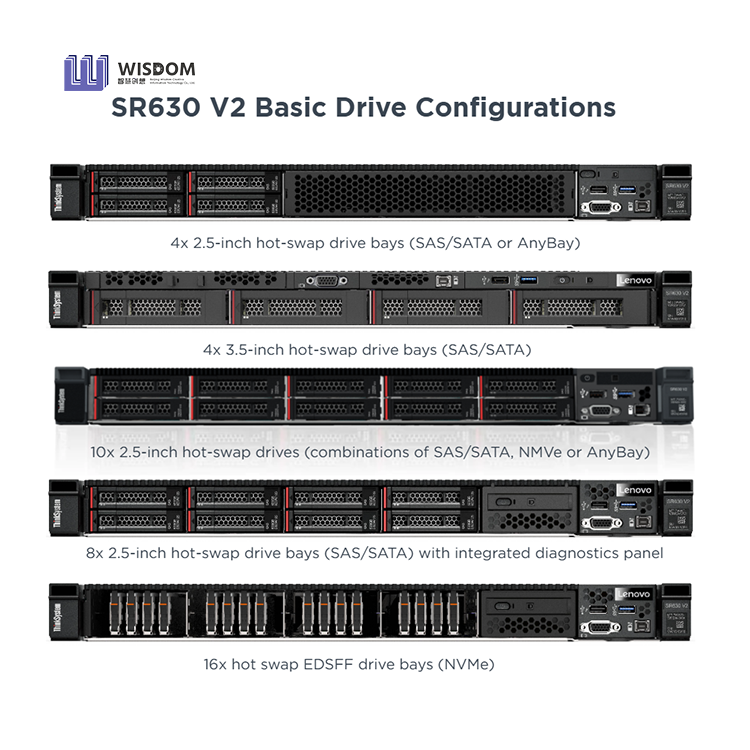

Drive Bays	Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)
Memory	32x DDR4 memory slots; Maximum 4TB using 32x 128GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem)

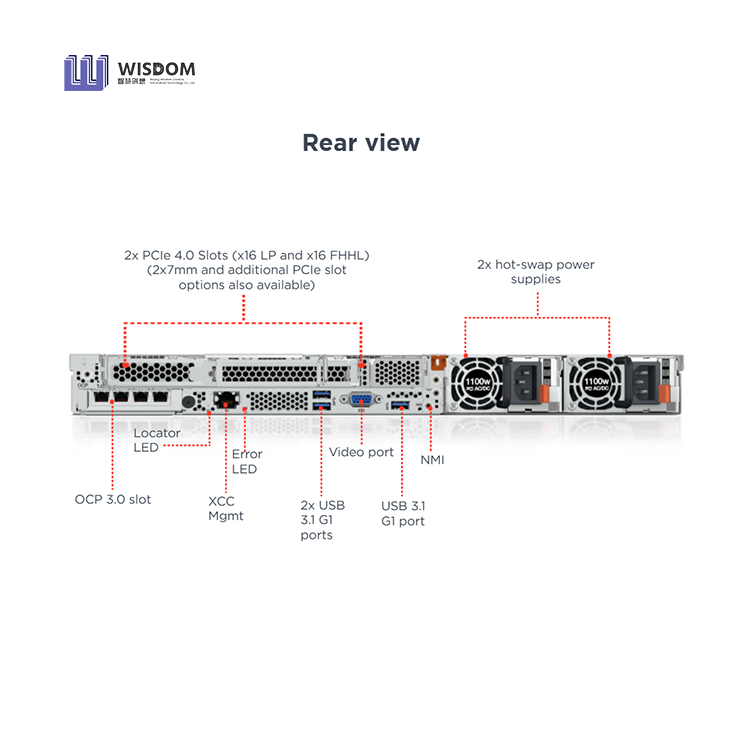

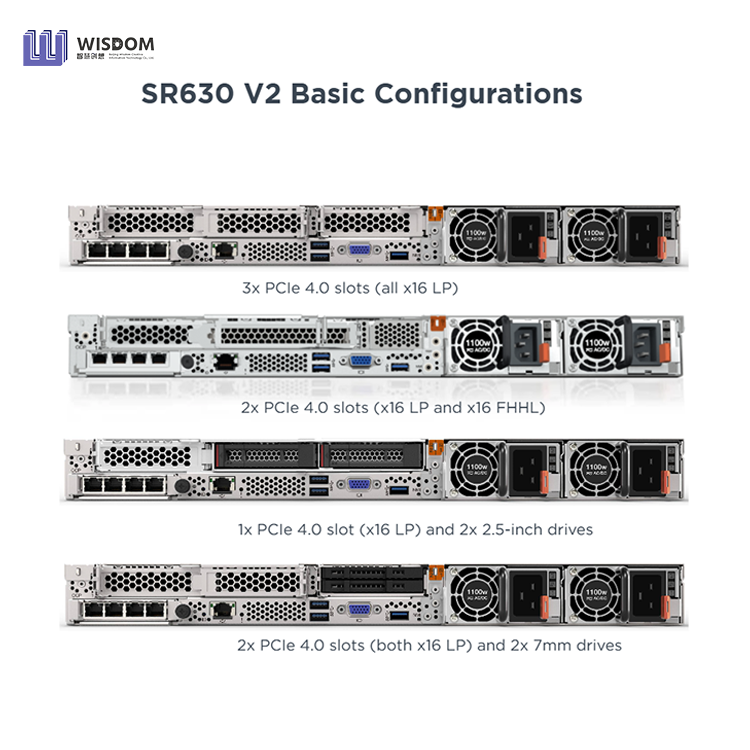

Expansion Slots	Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPUs	Up to 3x single-width 75W GPUs
Network Interface	LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Ports	* Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port * Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
HBA/RAID Support	SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
Power	Dual redundant power supplies (up to 1800W Platinum)
Systems Management	Lenovo XClarity Controller
OSes Supported	Microsoft, SUSE, Red Hat, VMware.
Limited Warranty	1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
