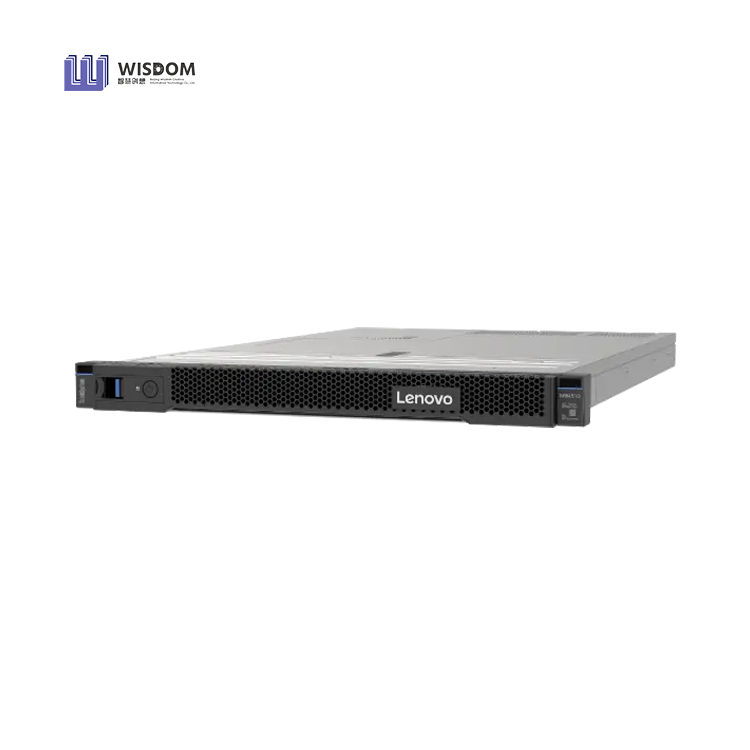

Lenovo ThinkSystem SR645 V3 1U Rack Server

  • Two 4th or 5th  Generation AMD EPYC™ Series processors

  • Up to 24x TruDDR5 DIMMs at 1DPC

  • Up to 3x PCIe 4.0 slots + 2x PCIe 5.0 slots for I/O flexibility

  • Up to 4x single-width GPUs for graphics-intensive workloads

  • Up to 16x EDSFF drives for high performance storage

  • Description
  • Product Parameters

Features:

Performance Without Compromise
You need a server that can handle the modern workloads of today and be agile enough to meet the challenges of tomorrow. With
increased core density in the 5th Generation AMD EPYC™ processor andlighting-fast memory speed, the SR645 V3 has the power,
bandwidth, and memory to tackle virtualization, data analytics, and high-performance computing.

With protection provided by Lenovo ThinkShield security and simplified management from Lenovo’s XClarity, the SR645 V3 embodies Lenovo’s reputation for top reliability.
Designed for Flexibility
Your data needs are unique to your business, and you need an infrastructure that is easily scaleable.

With the SR645 V3, you can choose the drive options from SAS/SATA, NVMe, and EDSFF in a hot swappable AnyBay™ format for quick
customization. You can also choose between PCIe 4.0 and 5.0 to meet the speed and budgetary goals for your infrastructure, and
select the best GPU option for your workloads.
Easy Management and Secure
The ThinkSystem SR645 V3 uses Lenovo XClarity for an easy-to-use system management solution. XClarity enables a data-driven,centralized view of data center operations and monitors for unexpected adds and changes.

ThinkShield security Root of Trust provides security that begins during the design phase and follows the SR645 V3 throughout its
entire life cycle.
Form Factor
1U rack server
Processors
Up to 2x 4th or 5th Generation AMD EPYC™ Processors
Memory
* Up to 24x TruDDR5 memory slots
* Up to 6TB with support for 3DS RDIMMs; up to 1DPC at 6400MHz

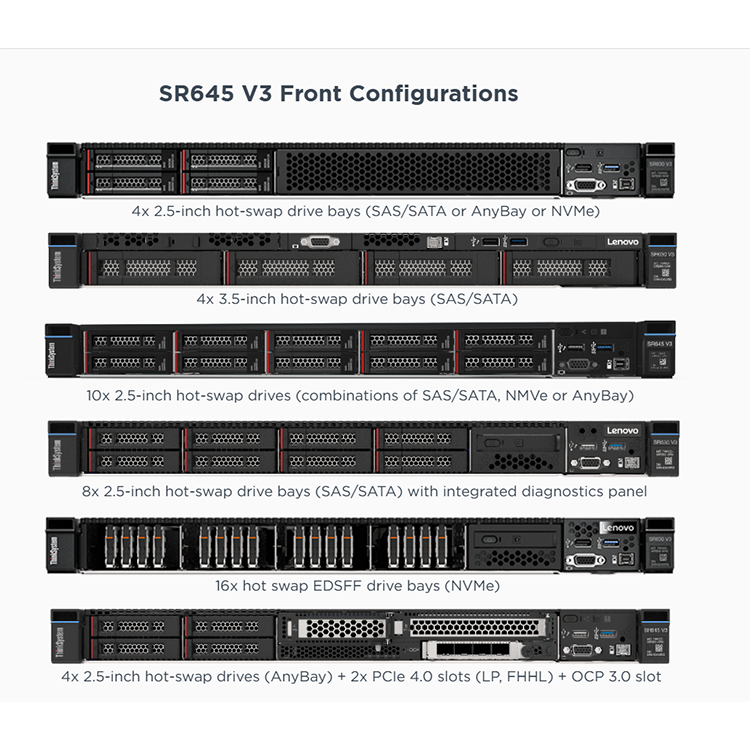

Drive Bays
* Up to 4x 3.5″
* 12x 2.5″ drives or 16x EDSFF drives

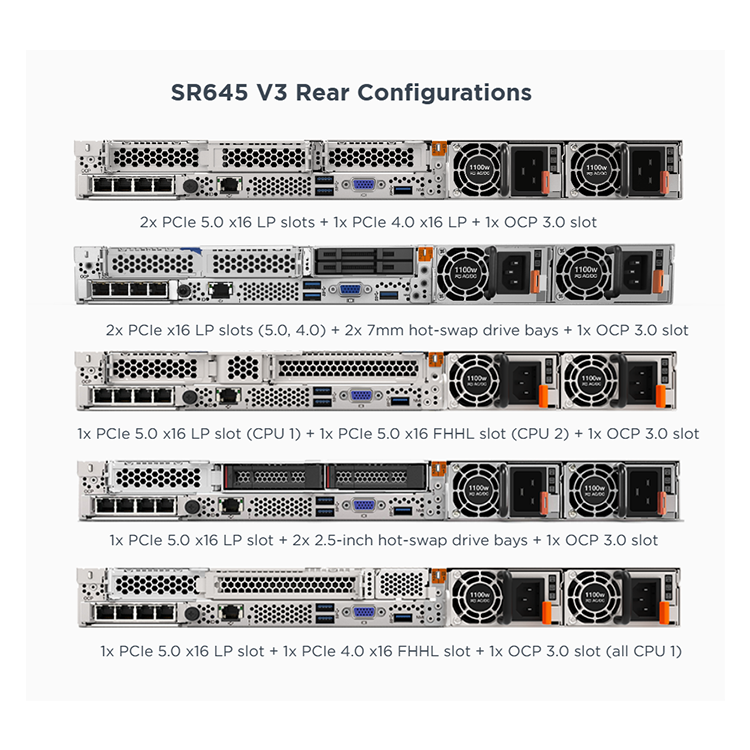

Expansion Slots
* Up to 3x PCIe 4.0 slots
* 2x PCIe 5.0 slots
* OCP 3.0 adapter slot
GPU
Up to 4x single-width GPUs
Network Interface
OCP 3.0 mezz adapter, PCIe adapters
Power
Dual Redundant AC & DC Supplies with Titanium/Platinum (ErP Lot 9 Compliant)
Ports
Front: 1x USB 3.1 G1, 1x USB 2.0 with XCC connection for mobile device, 1x VGA (optional), Optional external Diagnostic Port
Rear: 3x USB 3.1 G1, 1x VGA Port, 1x Serial port (optional), System ID LED, Error LED, NMI Button

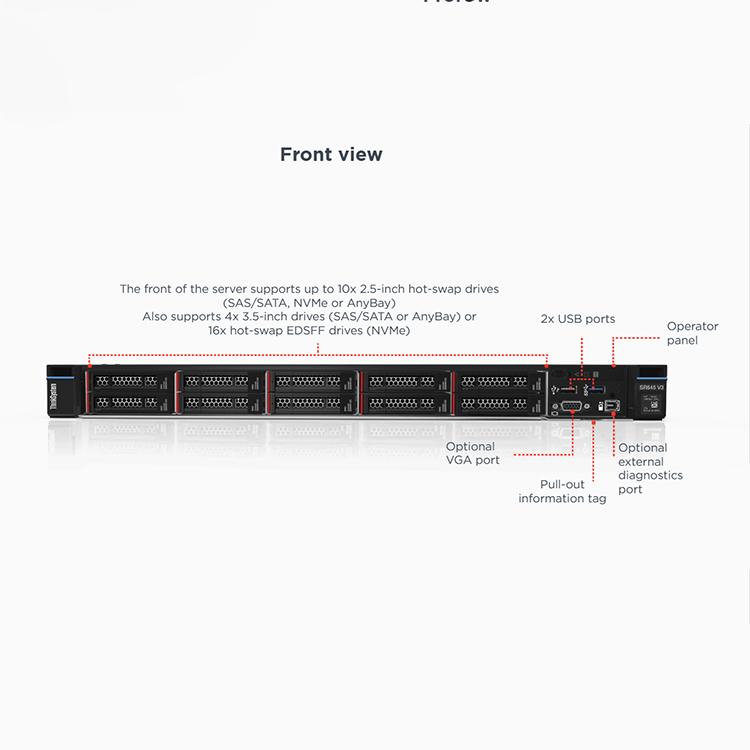

Front:

* USB 3.1 (USB 5Gbps)
* USB 2.0 with XCC connection for mobile device
* Optional: VGA
* Optional: External Diagnostic Port

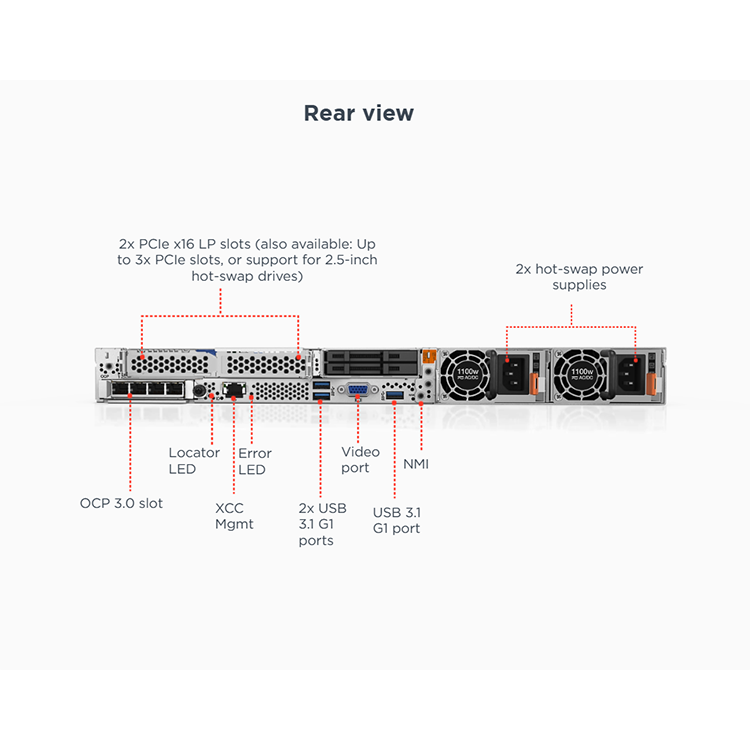

Rear:

* 3x USB 3.1 (USB 5Gbps)
* VGA Port
* System ID LED
* Error LED
* NMI Button
* Optional: Serial port
System Management
Lenovo XClarity Controller
OS Support
* Microsoft Windows Server

* SUSE Linux Enterprise Server

* Red Hat Enterprise Linux

* VMware ESXi
Limited Warranty
1 & 3-year customer replaceable unit and onsite services next business day 9x5 optional service upgrades
