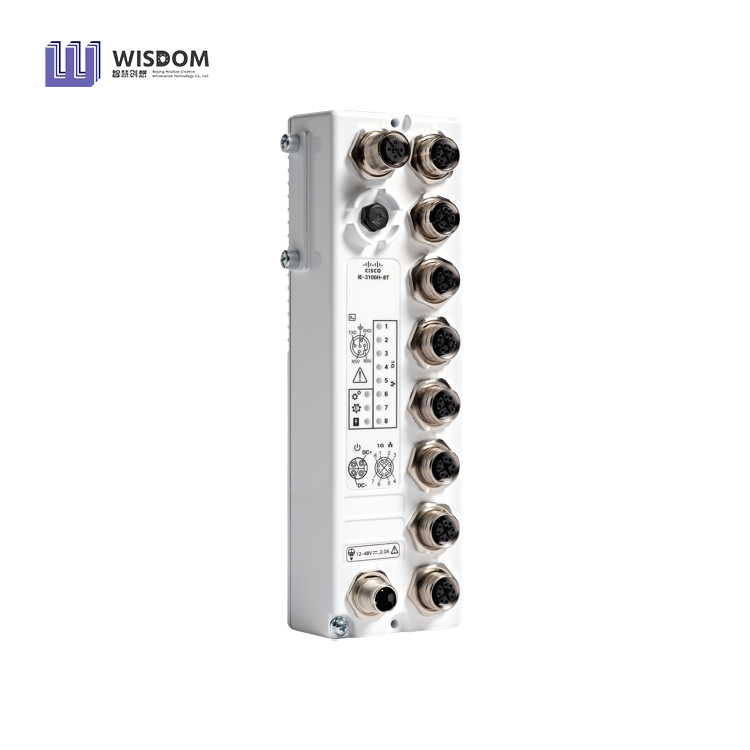

Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch
Cisco Catalyst IE3100 Heavy Duty Series Switch

Cisco Catalyst IE3100 Heavy Duty Series Switch

The Cisco Catalyst™ IE3100 Heavy Duty Series delivers Gigabit Ethernet connectivity in a compact, IP67 platform that is purpose-built for any industrial application in a wet, vibration-prone and space-constrained scenario.

Get a Quote Contact us
  • Description
  • Features and benefits
cisco catalyst ie3100 heavy duty series switch-2

+86-18600585382
[email protected]
Inquiry
The Cisco Catalyst™ IE3100 Heavy Duty Series delivers Gigabit Ethernet connectivity in a compact, IP67 platform that is purpose-built for any industrial application in a wet, vibration-prone and space-constrained scenario.

Product overview

Cisco® Catalyst IE3100 Heavy Duty Series switches deliver the advanced capability similar to the Cisco Catalyst IE3100 Rugged Series, but now in environments with extreme exposure to dust, vibration, and water. The platform is built to withstand the harshest environments found in manufacturing, transportation, mining, and rail. This switch is ideal for space-constrained, vibration-prone, wet deployments often found on production floors, railways and trains, clean rooms, outdoor spaces, and entertainment venues such as theme parks. By providing reliable connectivity to data sources like sensors, cameras, and other equipment located in tight spaces and extreme conditions, Catalyst IE3100 Heavy Duty switches help build a network ready for the demanding requirements of software-defined automation and industrial AI.

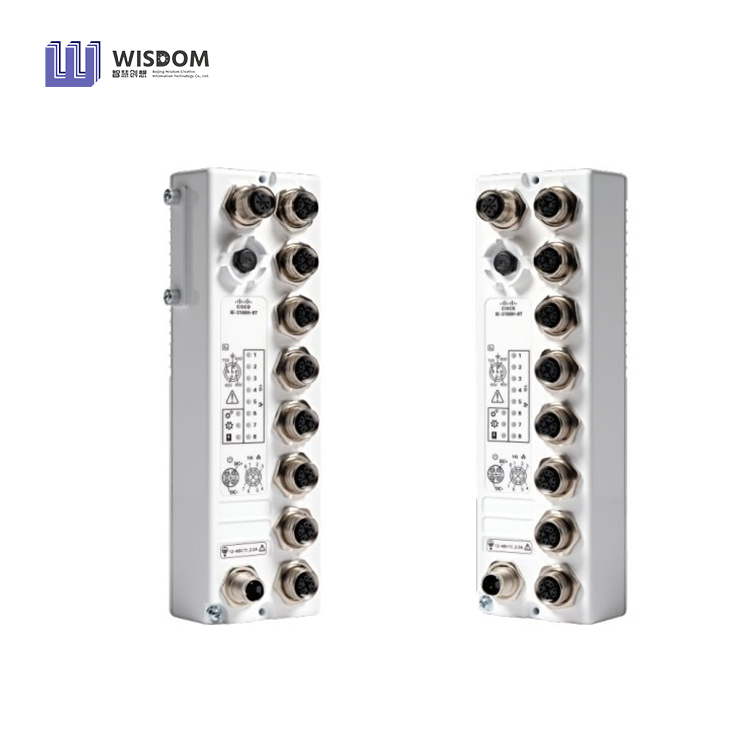

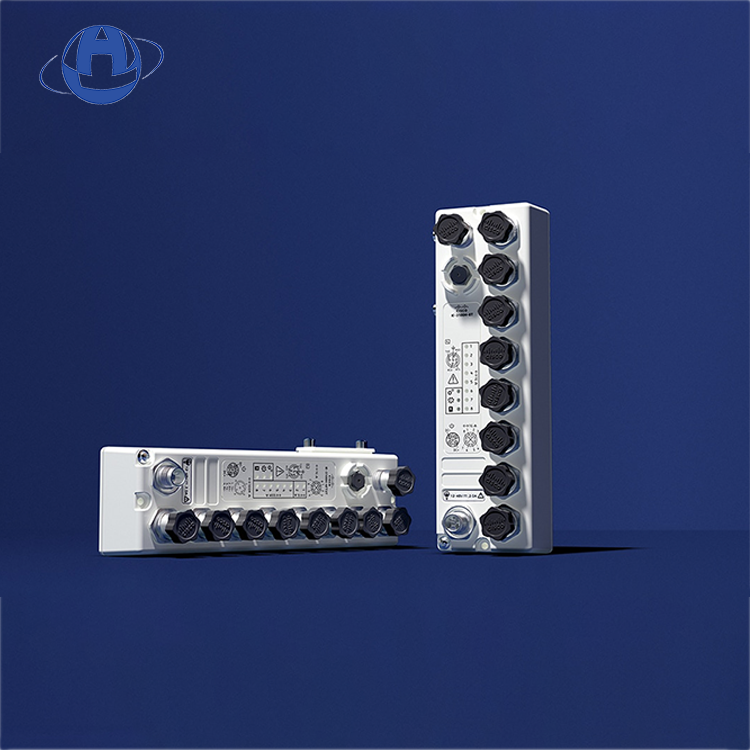

The Cisco Catalyst IE3100 Heavy Duty Series switches are available in 8 Gigabit Ethernet (X-coded) or 6 Fast Ethernet (D-coded) with 2 Gigabit Ethernet (X-coded) M12 interfaces. The switches can be wall mounted in all orientations and deployed without the dependency on a housing cabinet.

The IE3100H Series switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.Additionally, you can provide secure Zero-Trust Network Access (ZTNA) to industrial assets at scale with Cisco Secure Equipment Access.

The Cisco Catalyst IE3100 Heavy Duty Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a user-friendly modern GUI tool called WebUI.

The IE3100 Heavy Duty Series switches offer:

● Robust resiliency enabled by features such as Media Redundancy Protocol (MRP) or Resilient Ethernet Protocol (REP)
● Support for removable media (SD card) for local backups and fast recovery
● Simplified software management with universal images
● Support for industrial automation protocols Ethernet/IP (CIP), Modbus, and PROFINET
IE3100 Heavy Duty (4).png

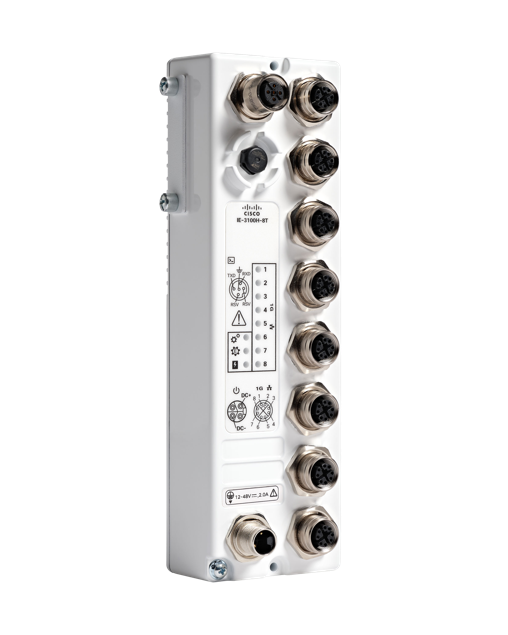

Figure 1.
IE-3100H-8T-E switch
IE3100 Heavy Duty (5).png

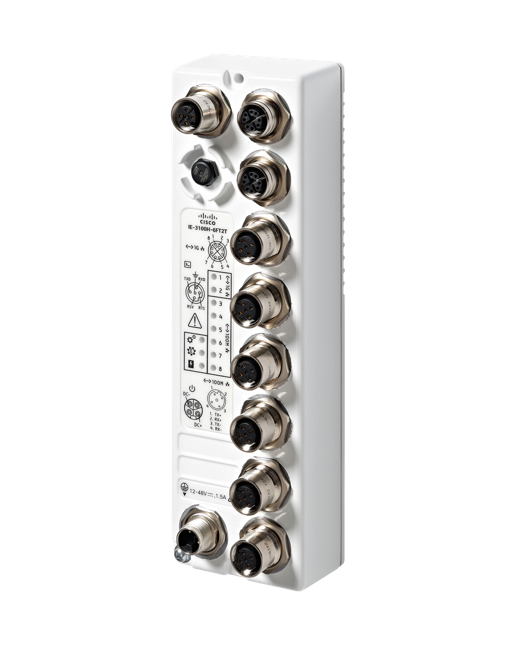

Figure 2.

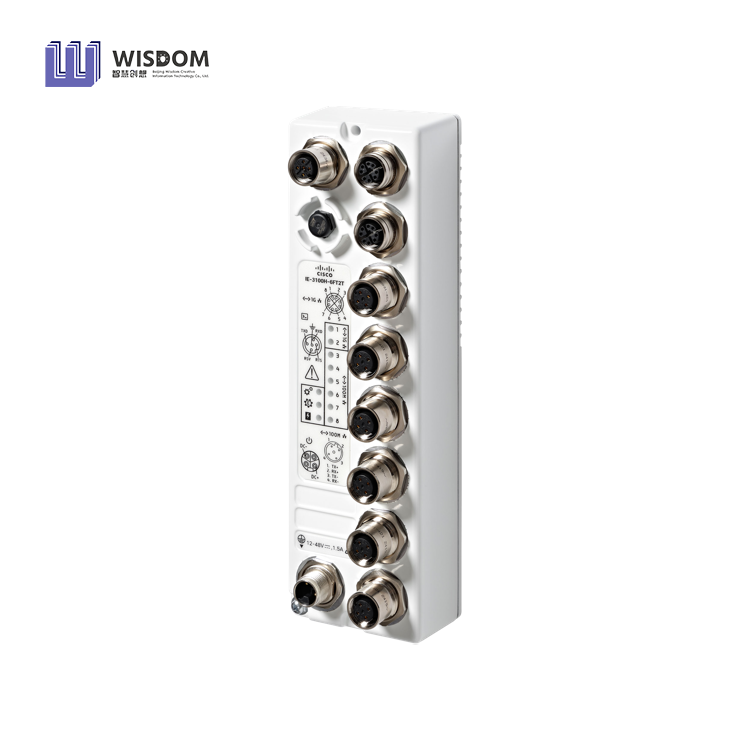

IE-3100H-6FT2T-E switch
Table 1. Features and benefits
Feature
Benefit
Heavy-duty design and industry compliance
● Mount the switch close to where the work is done, in the most demanding environments
● IP66/IP67 rated, providing protection against dust and submersion in water
● Hardened for vibration, shock and surge, electrical noise, and extreme temperatures (–40°F to 167°F [–40°C to 75°C])
● Compliant with industrial automation standards; supports Ethernet/IP Common Industrial Protocol (CIP)
● Supports Supervisory Control and Data Acquisition (SCADA) protocol classification—Generic Object-Oriented Substation Events
(GOOSE) messaging, Modbus TCP/IP
Full gigabit Ethernet switch
● Up to 8 Gigabit Ethernet M12 ports provide multiple resilient design options
● Provides secure access for new high-speed applications in the industrial space
● Allows IP-based Supervisory Control and Data Acquisition (SCADA) connectivity
● Delivers multiple rings, redundant ring topology for new network configurations
Redundancy and resiliency
● Resilient Ethernet Protocol (REP)
● Media Redundancy Protocol (MRP)
User-friendly WebUI
● Allows for easy configuration and monitoring, even by nonspecialist personnel
● Eliminates the need for more complex terminal emulation programs
● Reduces the cost of deployment
Industrial automation protocols
● Ethernet/IP (CIP), Modbus, SCADA, GOOSE, and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms
from Rockwell, Siemens, and others
● IEEE 1588v2 Precision Timing Protocol (PTP) (both power profile for utility and default profile for manufacturing are supported)
● gRPC (open source Remote Procedure Calls) mutual TLS (mTLS) Stream Telemetry
Zero Trust Network Access (ZTNA)
● Secure remote access to Operational Technology (OT) assets efficiency with Cisco Secure Equipment Access (SEA)
● Remote users connect to a cloud portal for authentication and authorization to configured devices and protocols for a designed
date and time
Platform support

Table 2. Product feature sets
Product Family
Platforms Supported
IOS Images (Feature Sets) Supported
IE3100
IE-3100H-6FT2T-E
Network Essentials
IE-3100H-8T-E
Network Essentials
Product specifications
Table 3 highlights the hardware configuration for Cisco Catalyst IE3100 Heavy Duty Series
Table 3. Hardware configurations
Product ID
Total M12 Ports
10/100 Fast Ethernet (C-code) ports
10/100/1000 Gigabit Ethernet (X-code) ports
IE-3100H-6FT2T-E
8
6
2
IE-3100H-8T-E
8
8

Table 4. Hardware Specifications

Product ID
IE-3100H-6FT2T-E
IE-3100H-8T
Removable Storage
SD card1
SD card1
Alarms
No alarm port
No alarm port
Console Ports
1 (A-coded M12)
1 (A-coded M12)
Power Inputs
Single power source (L-coded M12)
Single power source (L-coded M12)

1 The SD card is optional and not shipped by default with the switch.

Table 5. physical configurations
Product ID
Dimensions (H x W x D)
Weight
Mounting
IE-3100H-6FT2T-E
7.90 x 2.71 x 2.10 in
20.07 x 6.88 x 5.33 cm
1.75 lbs (0.79 kg)1
Wall
IE-3100H-8T-E
7.90 x 2.71 x 2.33 in
20.07 x 6.88 x 5.92 cm
1.65 lbs (0.75 kg)1
Wall

1 Chassis only

IE3100 Heavy Duty (6).png

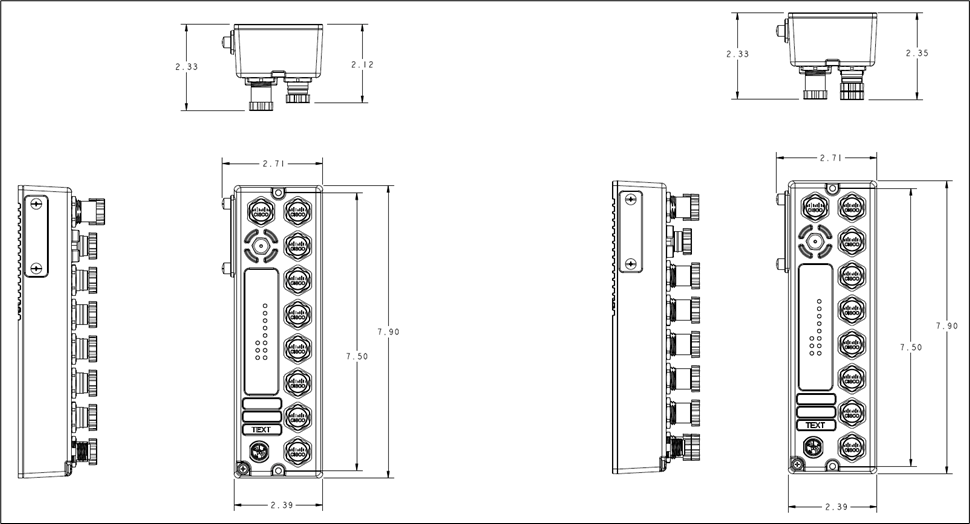

Figure 3. IE-3100H-8T-E dimensions (left), IE-3100-6FT2T-E (right)
Table 6 highlights power specifications for the Cisco Catalyst IE3100 Heavy Duty Series
Table 6. Power specifications
Product ID
Input Voltage Range
Max current during normal operation
Inrush Current
Power Consumption
IE-3100H-6FT2T-E
12V to 48V nominal
9.6V to 60V absolute
1.2 A with 12V input
0.6 A with 24V input
0.3 A with 48V input
17.4 A for 0.15ms with 12V input
42 A for 0.1ms with 24V input
91.7 A for 0.1ms with 48V input
10.4W
IE-3100H-8T-E
12V to 48V nominal
9.6V to 60V absolute
1.4 A with 12V input
0.7 A with 24V input
0.35 A with 48V input
17.4 A for 0.15ms with 12V input
42 A for 0.1ms with 24V input
91.7 A for 0.1ms with 48V input
11.6W

1 Max Current should be used for sizing power supplies and electrical wiring.
2 Power consumption should be used for thermal load and battery capacity.
3 Power consumption varies with the local ambient temperature, the input voltage, and the number/type of active interfaces. Please see the IE-310x Power Estimator for more detailed power consumption.
4 For BTU/hr, please convert the Power Consumption watts to BTU/hr.
