Dells PowerEdge R6725 is ideal for a variety of workloads:
● High-performance compute (HPC)
● Virtual desktop integration (VDI)
● Dense virtualization
● Artificial Intelligence (AI)
Dells PowerEdge R6725 is ideal for a variety of workloads:
● High-performance compute (HPC)
● Virtual desktop integration (VDI)
● Dense virtualization
● Artificial Intelligence (AI)
Accelerate transformation anywhere

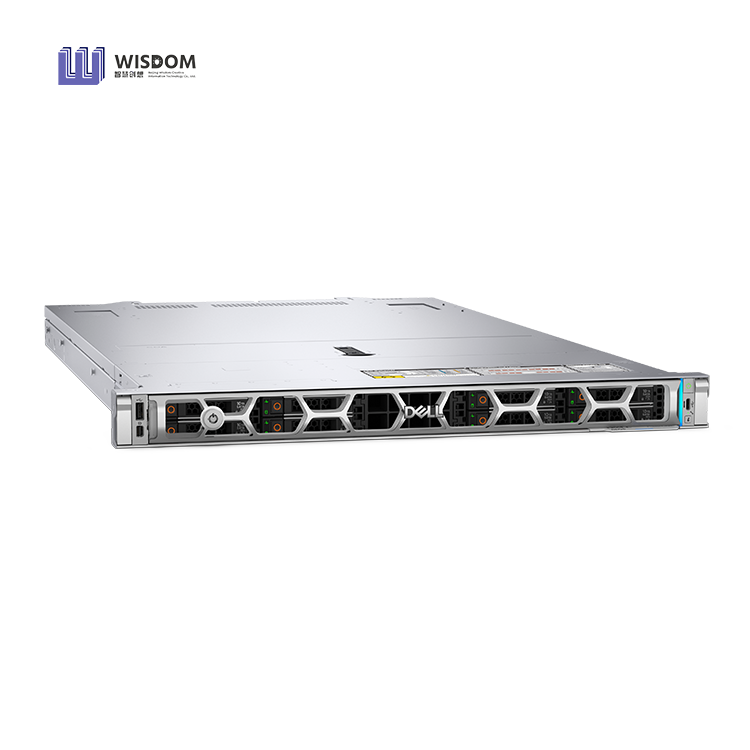

The PowerEdge R6725 will push the limits of application with two AMD EPYC™ 5th generation processors, up to 3x PCIe Gen5 slots,DDR5 memory and optional dual OCP.
|
|
Versatility meets performance Providing excellent power and density in a 1U two - socket server, these systems will easily process workloads including data analytics, dense virtualization and software defined storage. * Maximize performance with two AMD EPYC™ 5th generation processors * Up to 24x DDR5 RDIMMs (3TB max) |
|
Processor |
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor |
|
Memory |
● 24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s ● Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
● Internal Controllers (RAID): PERC H365i, H965i, H975i* ● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) ● External HBAs (non-RAID): HBA465e* |
|
Drive bays |

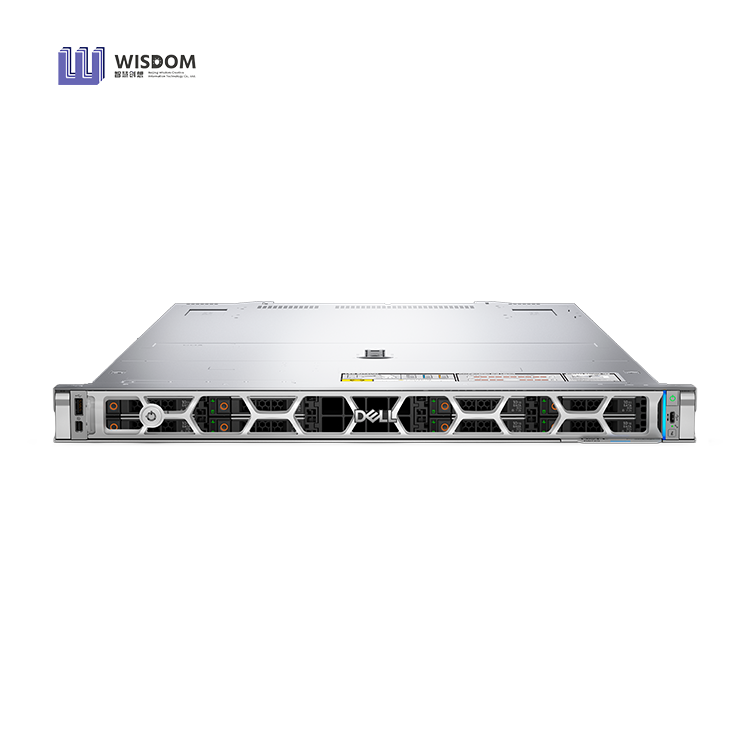

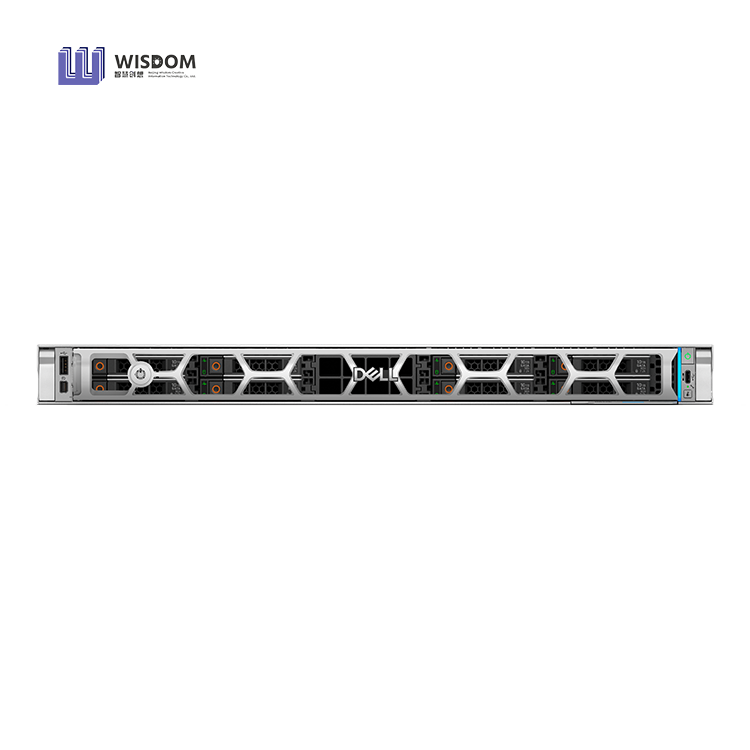

Front bays: ● 4 x 3.5-inch SAS/SATA* ● 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA* ● 10 x 2.5-inch with 4 x Universal* ● 8 x EDSFF E3.S / 16 x EDSFF E3.S / 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S* |
|
Power Supplies |
● Platinum: 800W, 1100W ● Titanium: 800W, 1100W, 1500W, 1500W 277VAC & HVDC**, 1800W** ● Telco: 1400 W -48VDC |
|
Cooling Options |
Air cooling, Direct Liquid Cooling (DLC) |
|
Fans |
● Up to four sets (dual fan module) hot plug fans |
|
Dimensions |
● Height – 42.8 mm (1.68 inches) ● Width – 482 mm (18.97 inches) ● Depth – 816.921 mm (32.16 inches) with bezel – 815.141 mm(32.09 inches) without bezel |
|
Form Factor |
1U rack server |
|
Embedded Management |
● iDRAC10 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● Racadm CLI |
|
Bezel |
Optional Metal Bezel |
|
Security |
● AMD Secure Encrypted Virtualization (SEV) ● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown ● TPM 2.0 FIPS, CC-TCG certified ● Chassis Intrusion Detection |
|
Ports |

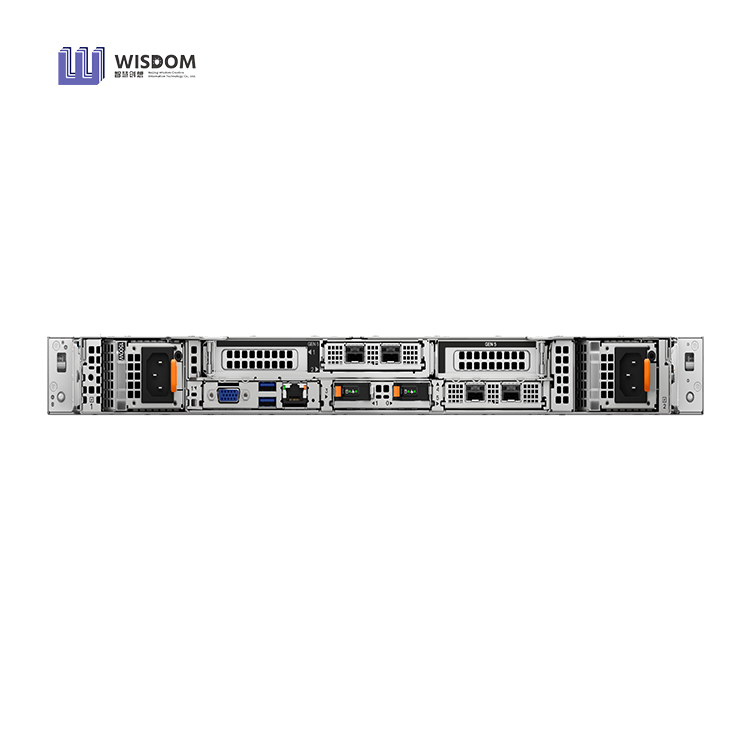

Front Ports ● 1 x USB 2.0 Type-A (optional LCP KVM) ● 1 x USB 2.0 Type-C (HOST/BMC Direct) ● 1 x Mini DisplayPort (optional LCP KVM) Rear Ports ● 1 x 1 Gb dedicated BMC Ethernet port ● 2 x USB 3.1 Type-A ● 1 x VGA Internal Port ● 1 x USB 3.1 Type-A |
|
PCIe |
Up to three PCIe slots (x16 connector) ● Slot 1: 1 x16 Gen5 Full Height or Low Profile ● Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0 ● Slot 4: 1 x16 Gen5 Full Height or Low profile |
Systems management and security solutions
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC,
OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
