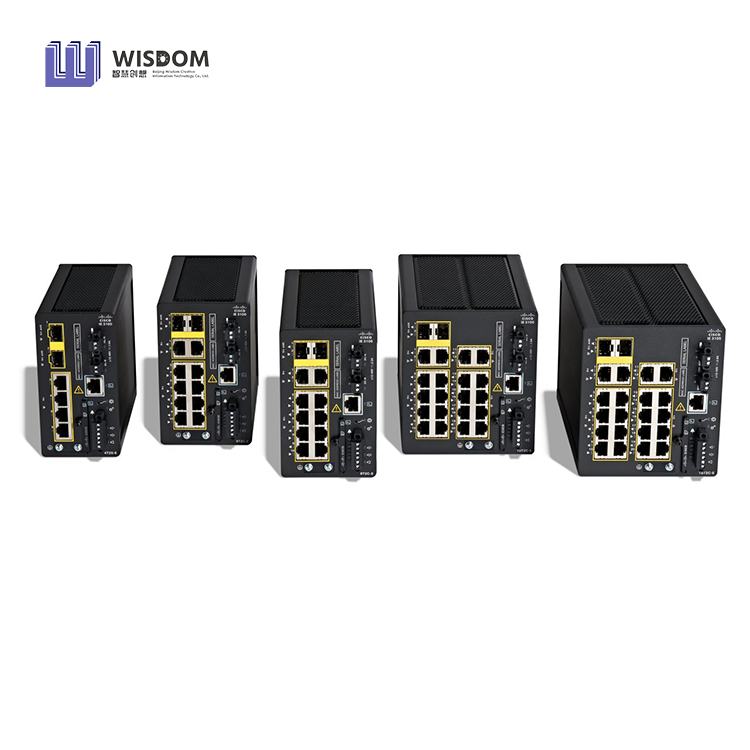

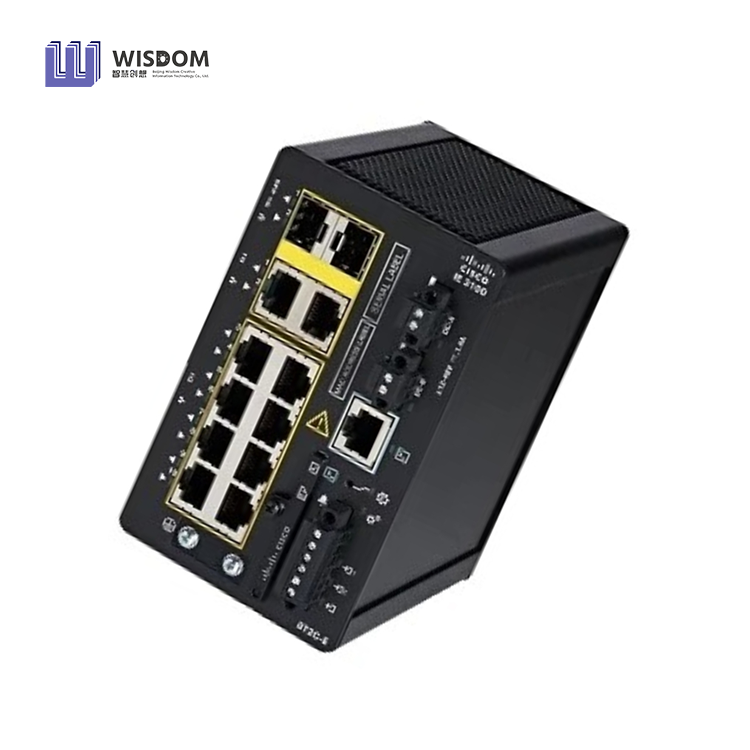

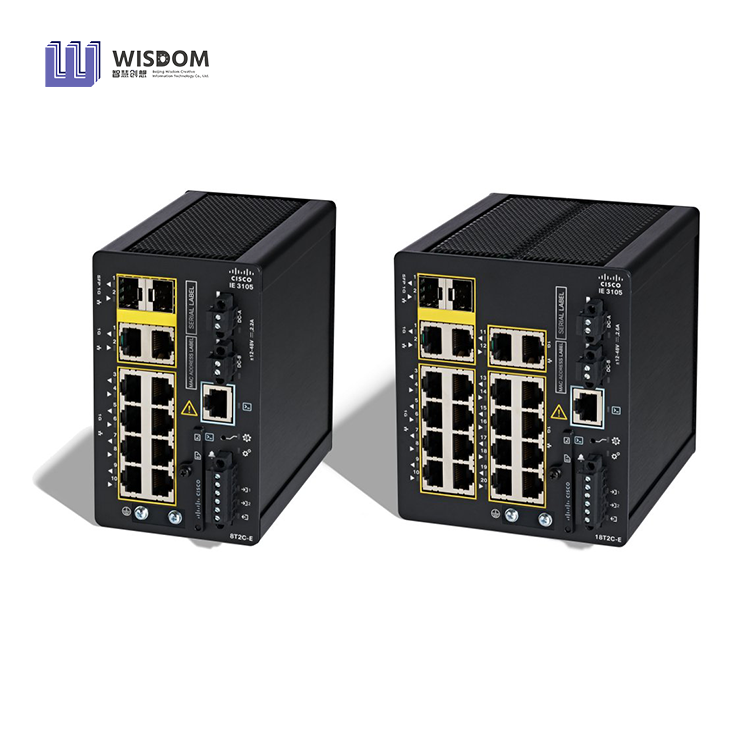

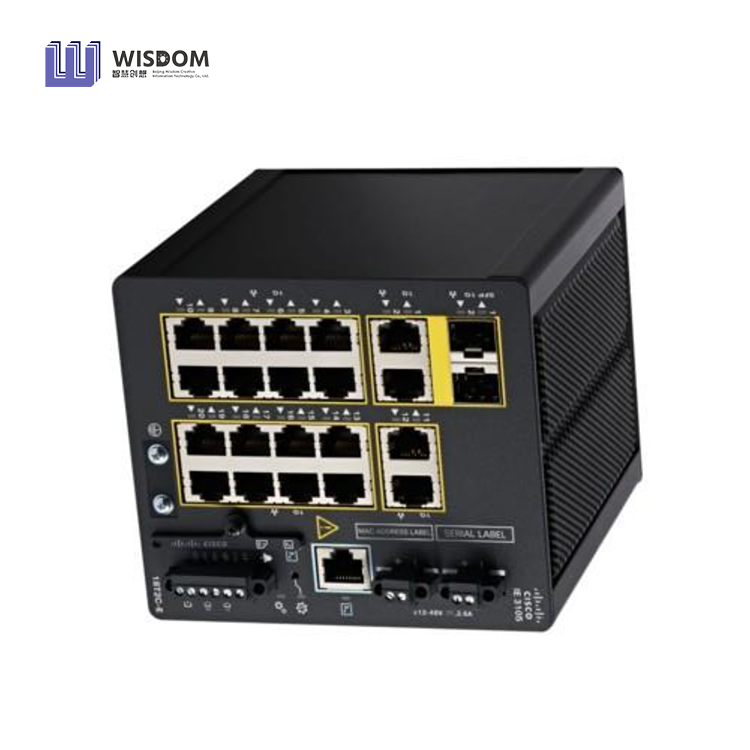

Cisco Catalyst IE3100 Rugged Series Switch

● Built for harsh environments and temperature ranges (-40° to 75°C / -40° to 167°F)
● Fanless, convection-cooled with no moving parts for extended durability
● Hardened for vibration, shock and surge, and electrical noise immunity
● Complies with multi-industry specifications for automation, Intelligent Transport Systems (ITS), and substation environments
● Improves the uptime, performance, and safety of industrial systems and equipment
● Alarm I/O for monitoring and signaling to external equipment

● Up to 20 Gigabit Ethernet ports provide multiple resilient design options
● Provides secure access for new high-speed applications in the industrial space
● Allows IP-based Supervisory Control And Data Acquisition (SCADA) connectivity
● Delivers multiple rings, redundant ring topology for new network configurations
● Extends geographical scalability where connectivity over longer distances is required

● Support for up to 8 Ports of Power over Ethernet with 802.3af, 802.3at and 802.3bt options with a maximum PoE budget of up to
240W
● Controls costs by limiting wiring, distribution panels, and circuit breakers
● Reduces equipment needs, thus requiring less space and reducing heat dissipation
● Enables ready-to-use PoE devices, such as IP phones, vision cameras, next-generation PTZ cameras, and wireless access points
● PoE Boost Support: PoE/PoE+/4PPoE is supported on DC power input as low as 12VDC.Perpetual PoE Support: With Perpetual PoE, the
PoE power is maintained during a switch reload. This is important for IoT endpoints such as PoE-powered lights, so the device does
not completely power off.
● Fast PoE Support: When power is restored to a switch, PoE starts delivering power to endpoints without waiting for the operating
system to fully load, thereby speeding up the time for the endpoint to start up.

● Resilient Ethernet Protocol (REP)
● Media Redundancy Protocol (MRP)

● Allows for easy configuration and monitoring, even by nonspecialist personnel
● Eliminates the need for more complex terminal emulation programs
● Reduces the cost of deployment

● EtherNet/IP (CIP), Modbus, SCADA, GOOSE and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms from
Rockwell, Siemens, and others
● IEEE 1588v2 Precision Timing Protocol (PTP) (both power profile for utility and default profile for manufacturing are supported)
● gRPC mTLS Stream Telemetry

● Secure remote access to Operational Technology (OT) assets efficiency with Cisco Secure Equipment Access (SEA)
● Remote users connect to a cloud portal for authentication and authorization to configured devices and protocols for a designed
date and time
