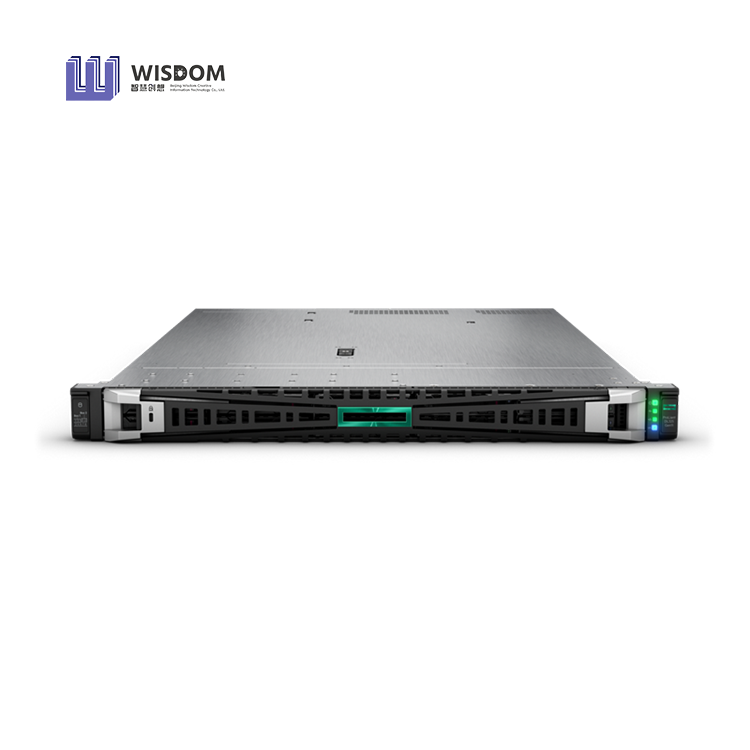

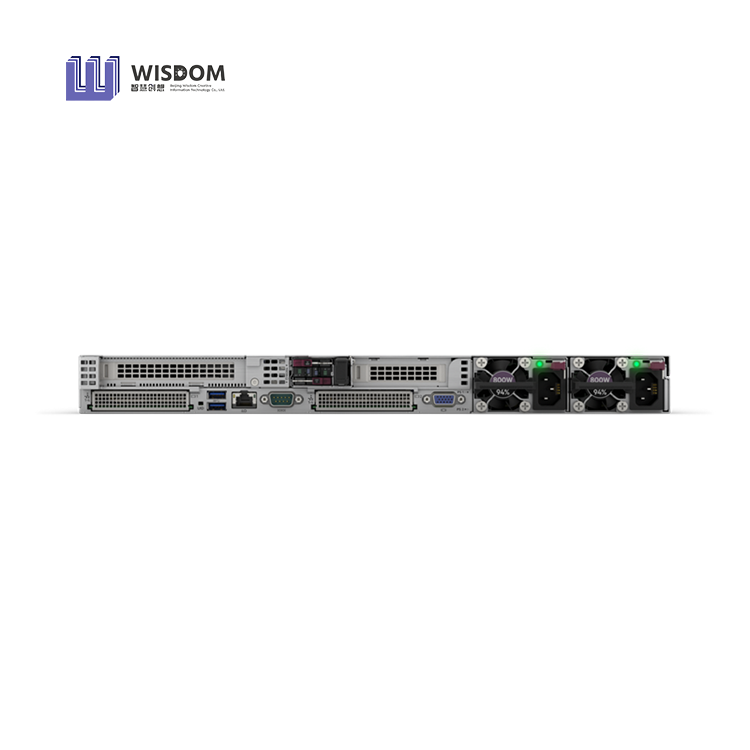

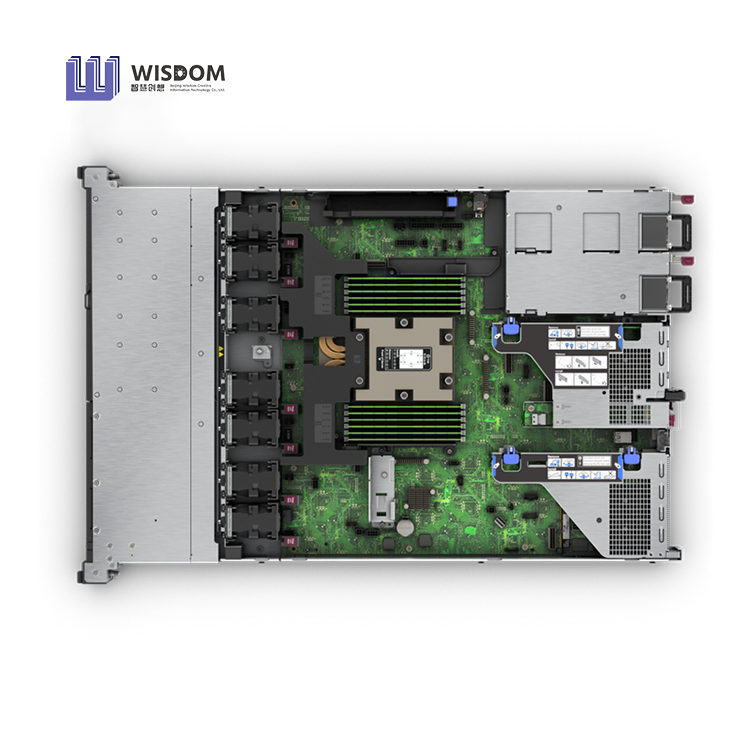

The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 128 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to two GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads?
The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 128 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to two GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
What's new
•Powered by the 4th Generation AMD EPYC™ Processors with 5nm technology that supports up to 128 cores at 400W, 384 MB of L3 cache, and 12 DIMMs for DDR5 memory up to 4800 MT/s.
•12 DIMM channels per processor for up to 3 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
•Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5, two OCP 3.0 slots, and EDSFF E3.S 1T drives.
•Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere
•Supports hot-pluggable, high-availability RAID M.2 boot options.
•Supports closed-loop liquid cooling heat sink for high wattage processors.
|
MODEL |
HPE ProLiant DL325 Gen11 Server |
|
Processor type |
AMD |
|
Processor family |
4th Generation AMD EPYC™ processors |
|
Processor core available |
Up to 128, depending on processor |
|
Processor cache |
Up to 384 MB L3 cache, depending on processor model |
|
Processor number |
1 |
|
Processor speed |
4.0 GHz maximum, depending on processor |
|
Maximum memory |
3.0 TB with 256 GB DDR5 |
|
Memory slots |
12 |
|
Memory type |
HPE DDR5 Smart Memory |
|
Memory protection features |
ECC |
|
Drive supported |
4 LFF SAS/SATA or 10 SFF SAS/SATA/NVMe or 20 EDSFF E3.S 1T NVMe drives, depending on model |
|
Optical drive type |
Optional, None ship standard |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO |
|
Power supply type |
2 Flexible Slot power supplies maximum, depending on model |
|
Expansion slots |
4 maximum |
|
Network controller |
Optional OCP and/or optional PCIe network adapters, depending on model |
|
Storage controller |
HPE Smart Array SAS/SATA Controllers or Tri-Mode controllers, refer to the QuickSpecs for more details |
|
System fan features |
7 fans included, with closed-loop liquid cooling heat sink optional for high wattage processors |
|
Form factor |
1U Rack |
