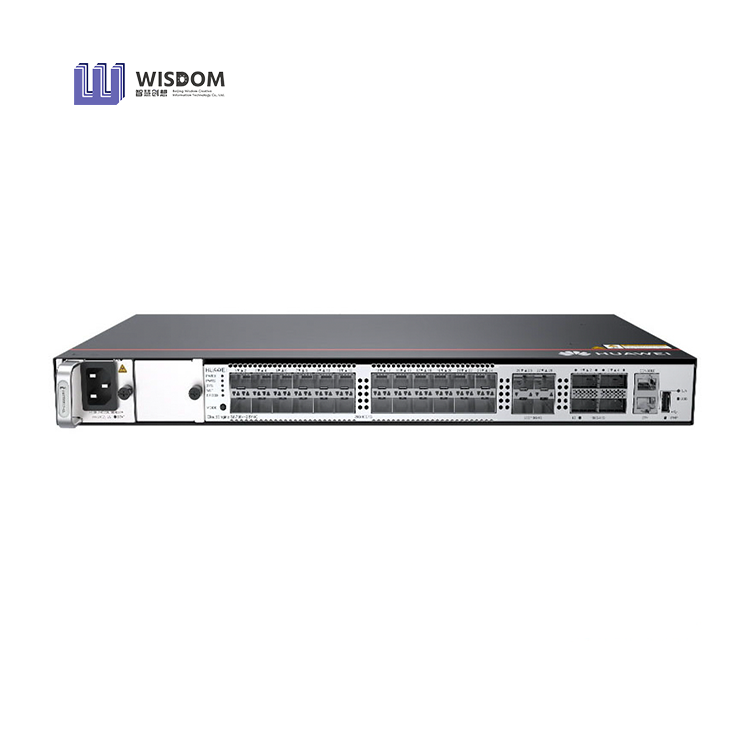

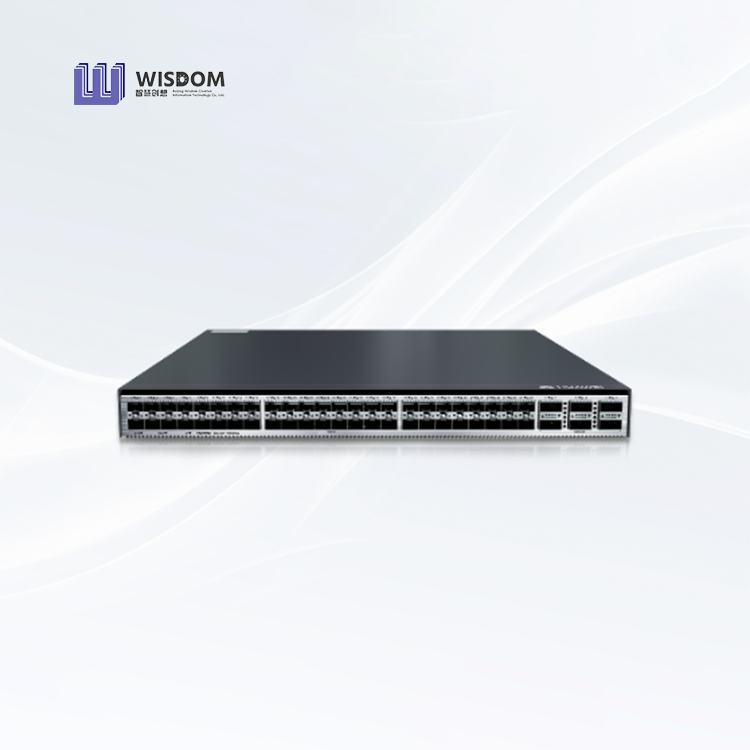

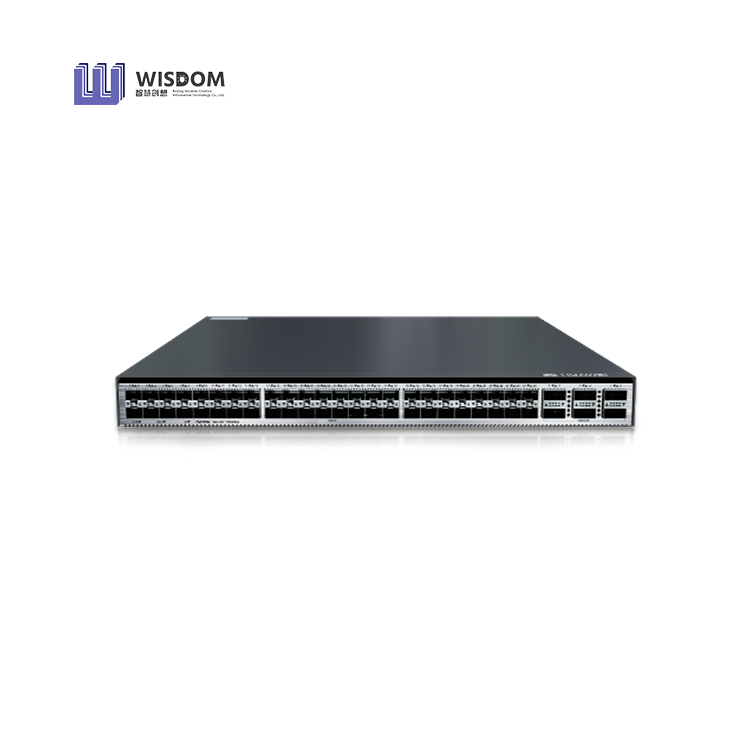

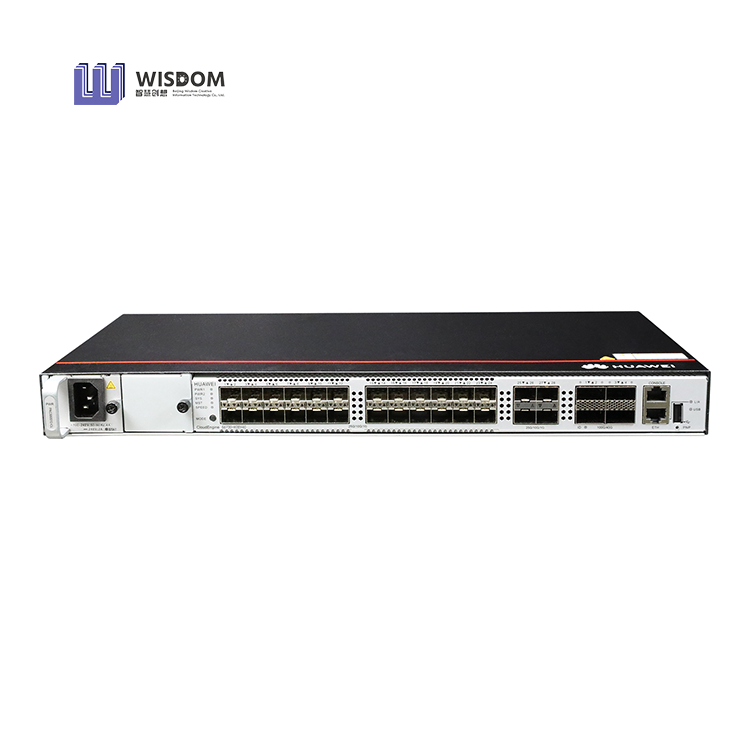

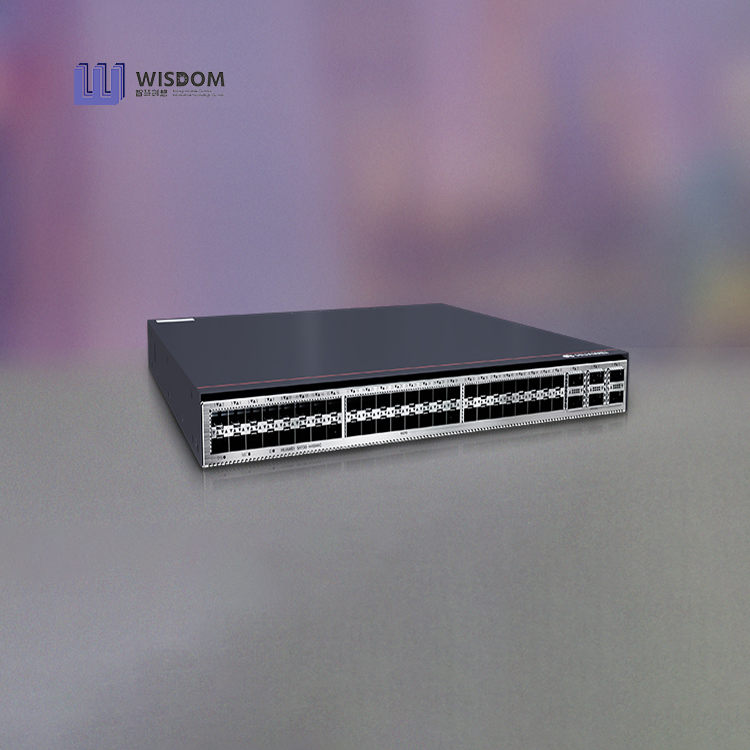

The CloudEngine S6730-H series 10GE switch, a new 10GE box switch launched by Huawei, has the ability to follow-board AC, which can manage a large number of APs with large specifications; it has the service-following capability, which provides a consistentuser experience; it has the VXLAN capability, which supports the network virtualization function; and it has a built-in security probe, which supports anomaly traffic detection, encrypted trafficThreat analysis, as well as network-wide threat trapping and other functions, widely used in transportation, manufacturing, education and other industries in large park convergence, access or small and medium-sized park core.
CloudEngine s6730-H48X6C | CloudEngine s6730-H24X6C | CloudEngine s6730-H24X4Y4C | |
Dimensions (W x D x H) | 442*420*43.6mm | 442*420*43.6mm | 442*220*43.6MM |
Chassis height [U] | 1U | 1U | 1U |
Rated Input Voltage [V] | AC input :100VAC~240V AC:50/60HZ | ||
HVDC input :240VDC | |||
DC input :-48VDC to -60V DC | |||
Input voltage range | Ac input :90VAC~290VAC; 45HZ~65HZ | ||
HVDC input :190VDC to 290V DC | |||
DC input :-38.4V DC to -72VDC | |||
Maximum input current | 600WAC :8A | 300W AC:4A | |
1000W DC :30A | 260W DC:10A | ||
Typical power consumption | 165W | 149W | 186W |
Maximum power consumption | 291W | 254W | 253W |
Operating temperature | -5°C~+45°C(0m~1800m altitude) | ||
Storage temperature | -40°C~+70°C | ||
Relative humidity | 5%-95%(no condensation) | ||
Number of fans | Four fans. The fans are pluggable | Three built-in fans, not pluggable | |
Heat dissipation mode | Air cooling heat dissipation, intelligent speed regulation. |
