Provides performance and versatility as needed to address your most demanding applications

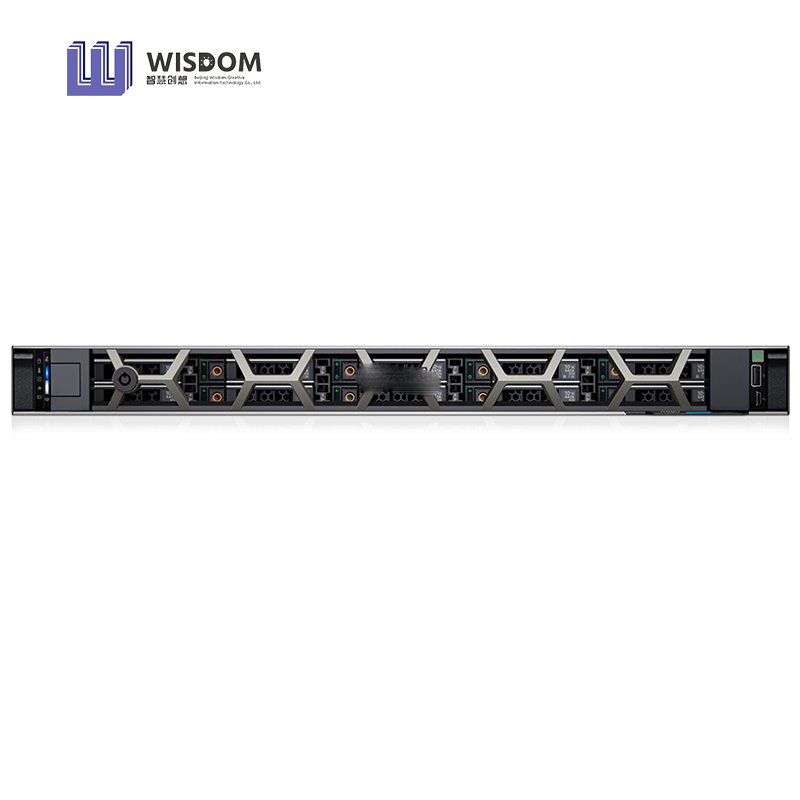

The new Dell PowerEdge R660 is a 1U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like dense database analytics and high-density virtualization.
Max Performance
• Add up to two Next Generation Intel® Xeon® Scalable processors with up to 56 cores for faster and more accurate processing performancet.
• Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4400 MT/sec (2DPC) or 4800 MT/sec for 1DPC (16 DDR5 RDIMMs max).
• Support for GPUs including 2* x single-wide for workloads requiring acceleration.
Air cooled at peak performance
• New Smart Flow chassis optimizes airflow to support the highest core count CPUs in an air-cooled environment within the current IT infrastructure.
• Support for up to 8 x 2.5” drives and 2 x 350 watt processors.
Gain agility
• Achieve maximum efficiency with multiple chassis designs that tailor to your desired workloads and business objectives.
• Storage options include up to 8 x 2.5” NVMe/SAS4/SATA, plus up to 10 x 2.5” NVMe/SAS4/SATA, 14/16 x NVME E3.S Gen5*.
• Multiple Gen4 and Gen5 riser configurations (up to 3 x PCIe slots) with interchangeable components that seamlessly integrate to address customer needs over time.
|
Processor |
Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores and optional Intel® QuickAssist Technology. |
|
Memory |
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 |
|
Drive Bays |

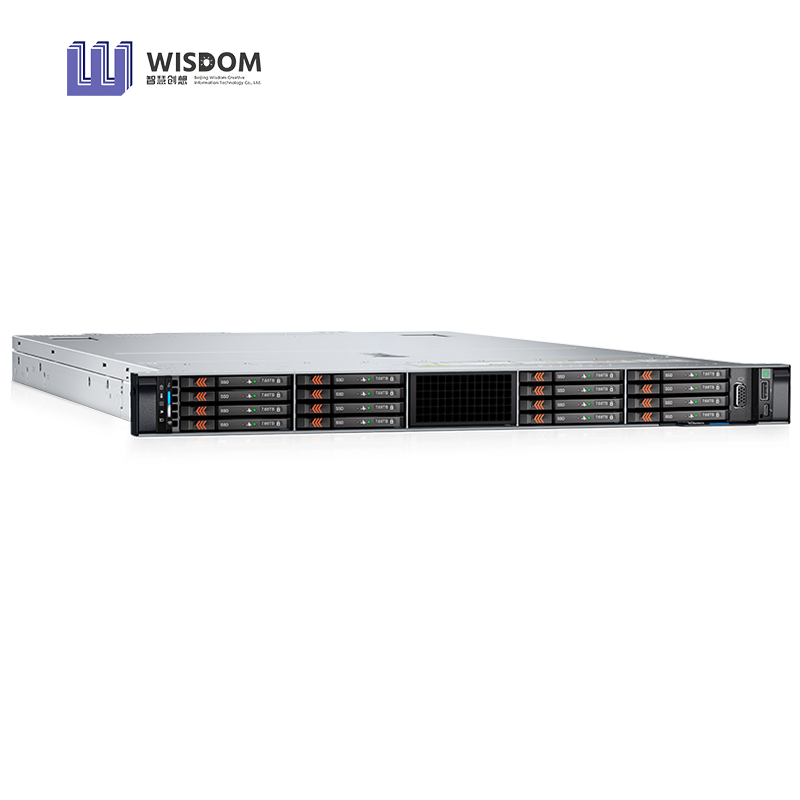

Front bays: • Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB Rear bays: • Up to 2 x 2.5-inch, SAS/SATA/NVMe, max 30.72 TB |
|
Power Supplies |
• 1800W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant • 1400W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant • 1100W Titanium 100—240 VAC or 240 HVDC, hot swap with full redundant • 1100W LVDC -48 — -60 VDC, hot swap with full redundancy • 800W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant |
|
Cooling Options |
• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
|
Fans |
• Standard (STD) fans/High performance Gold (VHP) fans • Up to 4 sets (dual fan module) hot plug fans |
|
Dimensions |

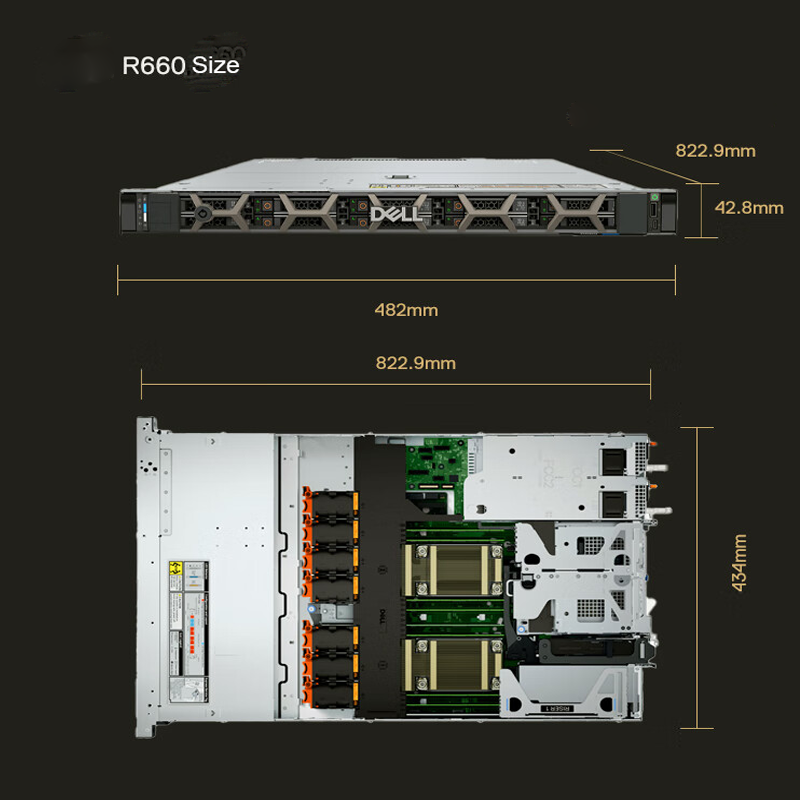

• Height – 42.8 mm (1.68 inches) • Width – 482 mm (18.97 inches) • Depth – 822.88 mm (32.39 inches) with bezel 809.04 mm (31.85 inches) without bezel |
|
Form Factor |
1 U rack server |
|
Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
Bezel |
Optional LCD bezel or security bezell |
|
OpenManage Software |
• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
|
Mobility |
OpenManage Mobile |
|
OpenManage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC |
2 x 1 GbE LOM card (optional) |
|
Network options
|
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
GPU Options
|
Up to 2* x 75 W SW |
|
Ports
|

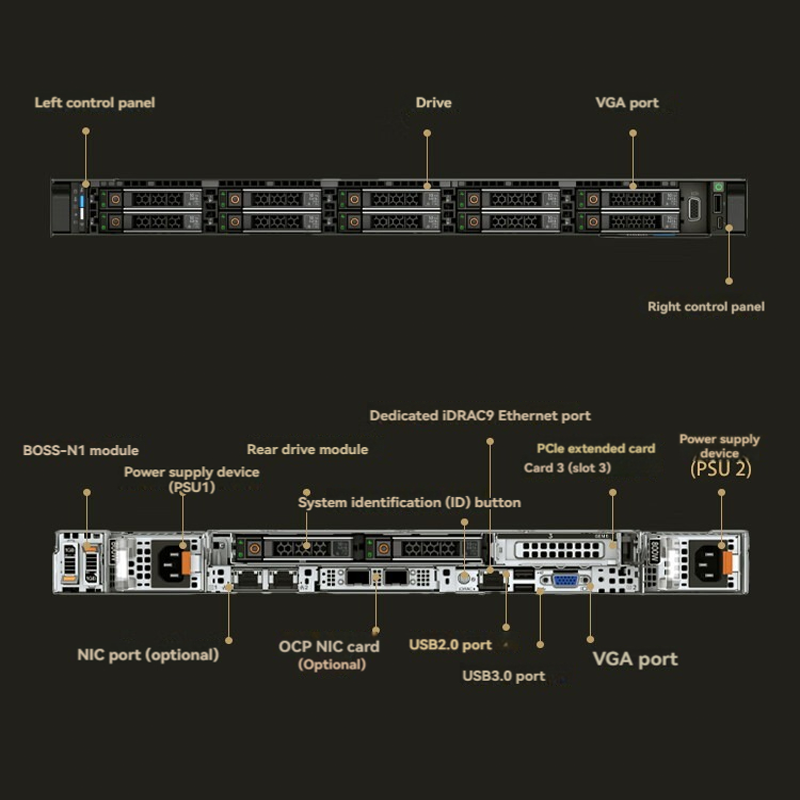

Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports • 1 x USB 3.0 (optional) |
|
PCIe
|
Up to three PCIe slots : • Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length • Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length • Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length |
|
Operating System and Hypervisors
|
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
