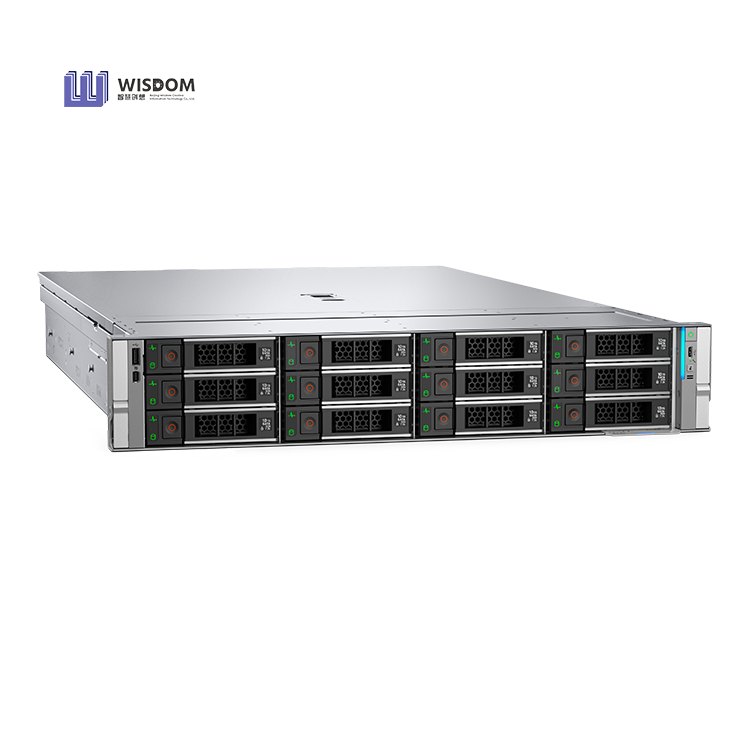

The Dell PowerEdge R570 offers power-packed performance in a purpose-built, cyber resilient, mainstream server.
The Dell PowerEdge R570 offers power-packed performance in a purpose-built, cyber resilient, mainstream server. Ideal for:
• Virtualization
• Scale-Out Database
• Medium VM Density or VDI
• Software-Defined Storage Node
|
Processor |
• One Intel® Xeon® 6 E-core processor with up to 144 cores • One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option |
|
Memory |
• 16 DDR5 DIMM slots, speeds up to 6400 MT/s • One Intel® Xeon® 6 E-core processor - supports RDIMM 1 TB max • One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max* • Supports registered ECC DDR5 DIMMs only Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs*, USB • External Controllers: PERC H965e*, HBA 465e* |
|
Drive bays |

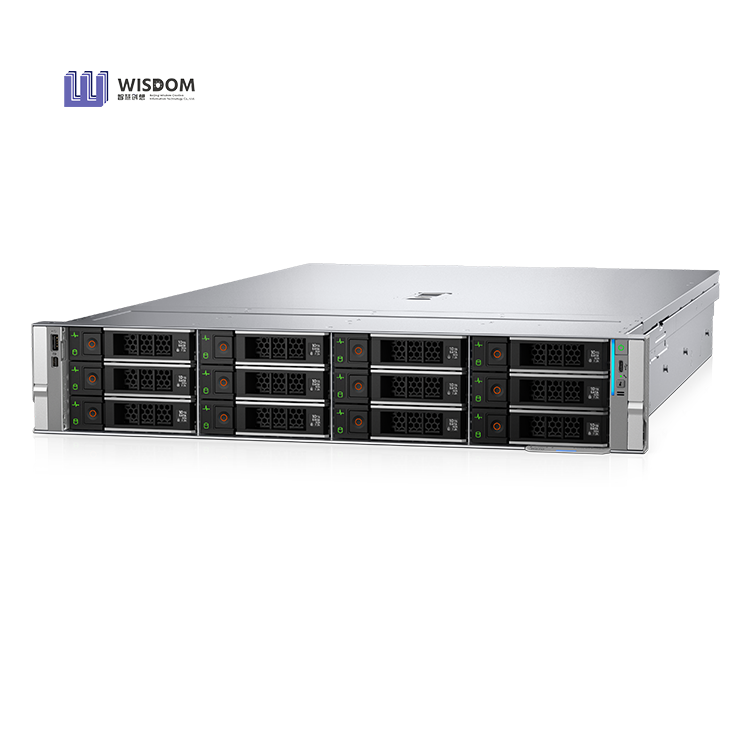

Front bays: • Up to 12 x 3.5-inch SAS (HDD) RAID max 288 TB • Up to 12 x 3.5-inch SAS/SATA (HDD) RAID max 288 TB* • Up to 8 x2.5-inch NVMe (SSD) RAID max 122.88 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB • Up to 8 x 2.5-inch SAS/SATA/Universal (HDD/SSD) max 122.88 TB* • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) RAID max 61.44TB • Up to 24 x 2.5-inch SAS4/SATA (HDD/SSD) max 92.16 TB* • Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 122.88 TB* • Up to 8 xEDSFF E3.S (cold-aisle) Gen5 NVMe 122.88 TB • Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 245.76 TB* • Up to 16 x EDSFF E3.S(hot-aisle) Gen5 NVMe max 245.76 TB* • Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB*
Rear bays: • Up to 4 x EDSFF E3.S Gen5 NVMe max 61.44 TB |
|
Power Supplies |
• 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1500 W 277 Vac and HVDC Titanium, hot swap redundant* • 1400 W -48 VDC, hot swap redundant* |
|
Cooling Options |
• Air cooling |
|
Fans |
• Up to six hot plug fans |
|
Dimensions |
• Height – 86.8 mm (3.42 inches) • Width – 482.0 mm (18.98 inches) • Depth – 802.38 mm (31.59 inches) with bezel • Depth – 801.49 mm (31.55 inches) without bezel • Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) |
|
Bezel |

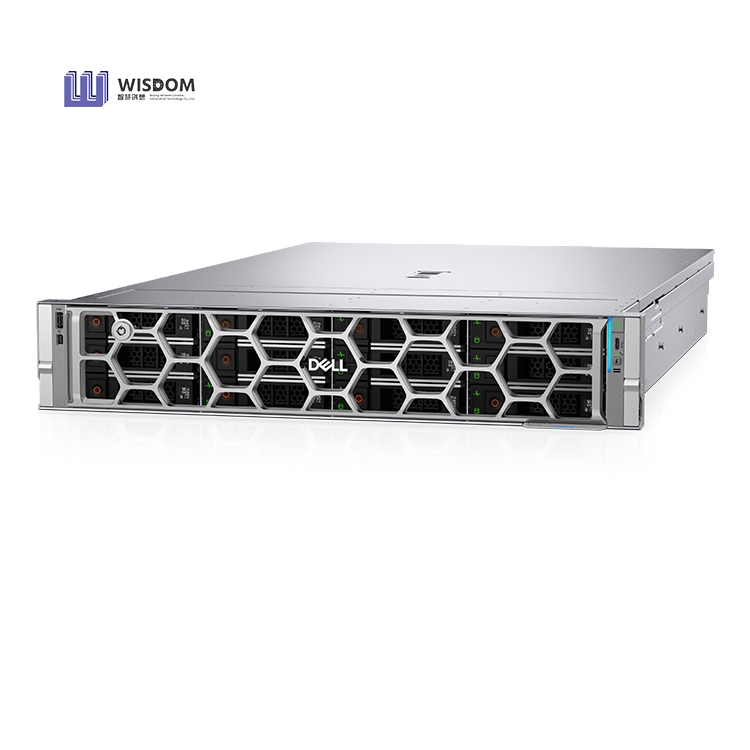

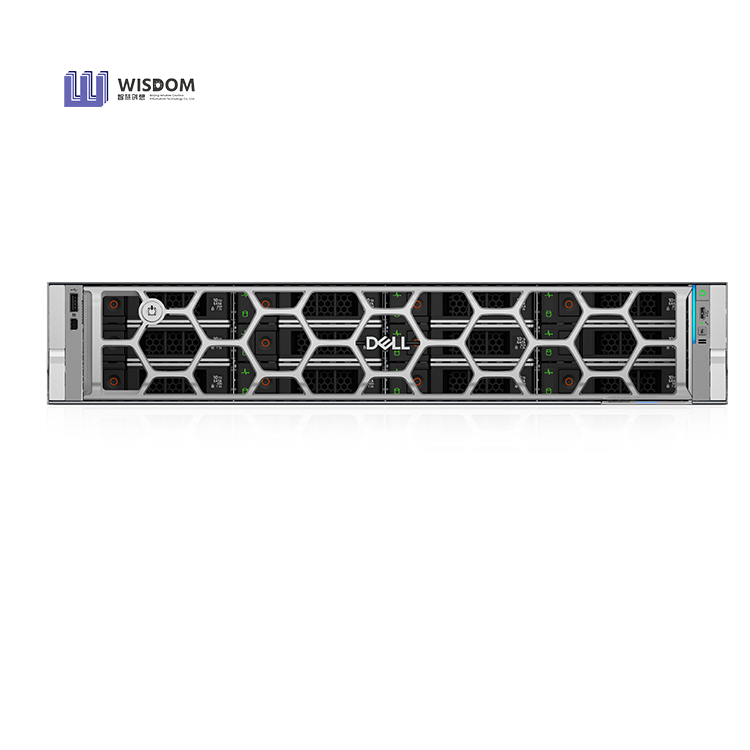

Optional security bezel |
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
|
GPU Options |
Up to 3 x 400W DW*; Up to 4 x 75W SW |
|
Ports |

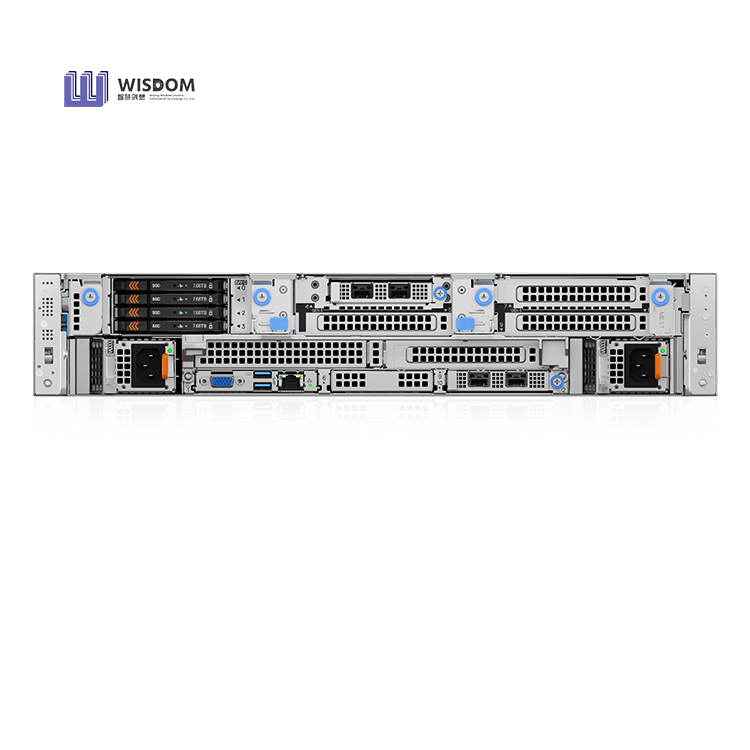

Front Ports • 1 x USB 2.0 Type-C (HOST/BMC Direct) • 1 x USB 2.0 Type-A (optional LCP - Secondary KVM) • 1 x Mini DisplayPort(optional LCP - Secondary KVM) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated BMC Ethernet port (with front I/O configuration) Rear Ports • 1 x Dedicated BMC Ethernet port • 2 x USB 3.1 Type-A • 1 x VGA Internal Port • 1 x USB 3.1 Type-A |
|
PCIe |
Up to six PCIe slots* (x16 connector) • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection Rear Ports • 1 x Dedicated BMC Ethernet port • 2 x USB 3.1 Type-A • 1 x VGA • Slot 2: 1 x16 Gen5 Full Height,Half Length or 1 x16 Full Height, Full Length* • Slot 3: 1 x16 Gen5 Full Height, Half Length • Slot 4: 1 x16 Gen5 Full Height,Half Length* or 1 x16 Full Height, Full Length* or 1 x16 OCP3.0 • Slot 6: 1 x4 Gen4 Boss (optional) • Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length* • Slot 9: 1 x16 Gen5 Full Height, Half Length • Slot 10: 1 x16 OCP3.0 •Slot 31: 1 x16 Gen5 Full Height, Half Length • Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional) • Slot 36: 1 x16 Gen5 Full Height, Half Length • Slot 38: 1 x16 OCP3.0 |
|
Gen5 PCIe slots |
4 |
Driving energy efficiencies in large-scale data centres
The Dell PowerEdge R570 is designed to maximise value and efficiency in your data centre
Purpose-built to boost data centre productivity
The Dell PowerEdge R570 is a 2U, one-socket rack server engineered for high-performance computing with exceptional power
efficiency and balanced performance, driving cost savings and boosting data centre productivity. Its advanced design maximises
rack utilisation by offering more cores in a single socket enabling better performance in a smaller footprint while minimising
energy consumption. This makes it ideal for workloads like virtualisation, scale-out database, medium VM density or VDI, and
software-defined storage node.
• Purpose-built to scale infrastructure to adapt seamlessly to technological changes, integrating new capabilities that support
long-term growth and innovation.
• Powered by Intel® Xeon® 6 processors designed to meet diverse performance and efficiency requirements and offered with advanced GPU support.
• Enhanced I/O flexibility with optional front I/O configuration for seamless cold aisle serviceability.
• Energy-efficient designs with Smart Power and Cooling deliver cost savings and peak performance.
• Configurable to suit diverse needs with industry standard open designs (DC-MHS) compliance.
Systems management and security solutions
OpenManage systems management
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
