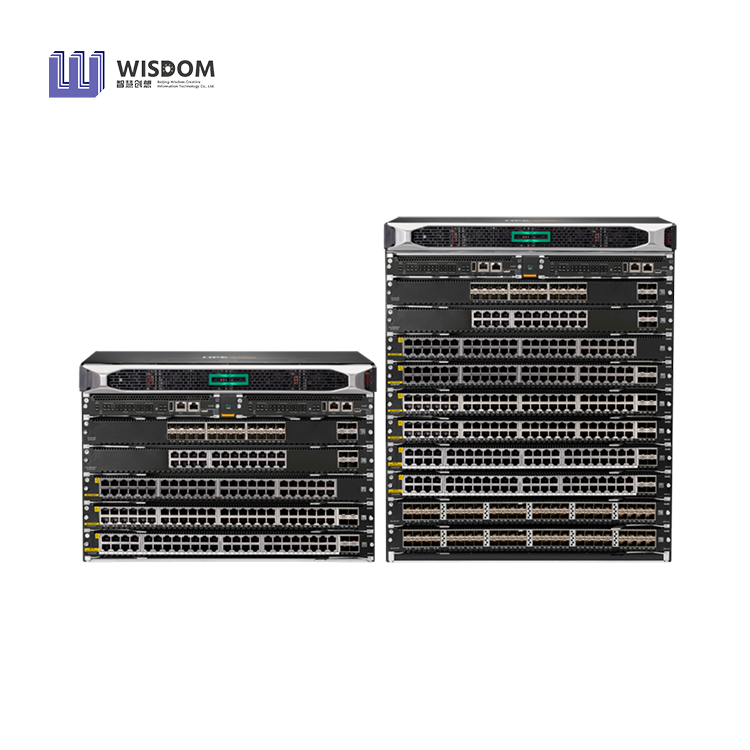

HPE Aruba Networking CX 6400 Switch Series for enterprise campus and data center deployments

The HPE Aruba Networking CX 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments. With a cloud-centric design that combines a fully programmable OS with NAE, the CX 6400 Series extends industry-leading monitoring and troubleshooting across the network.

Powerful Gen7 ASIC architecture delivers fast, non-blocking performance so your network is ready for tomorrow’s unpredictable demands. HPE Aruba Networking Virtual Switching Extension (VSX) brings high availability and enables fast, non-disruptive upgrades. Support for HPE Aruba Networking Switch Mutli-Edit Software and the CX mobile app verify configurations are flawless and easy to deploy. This series offers 5 and 10-slot compact chassis, a choice of line rate interfaces including 25 GbE, 100 GbE, and full density 60W PoE with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.

Description
Specifications

hpe aruba networking cx 6400 switch series for enterprise campus and data center deployments-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 6400 Switch Series is a modern, flexible, and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the 6400 switches are part of the HPE Aruba Networking CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the HPE Aruba Networking Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.

A powerful HPE Aruba Networking Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The HPE Aruba Networking Virtual Switching Extension (VSX) allows for high availability, and also enables non-disruptive fast upgrades and simplified management. This flexible series offers powerful connectivity options in a 5- or 10-slot compact chassis with non-blocking 2.8 Tb fabric per slot and high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Line rate interfaces include 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE ports. High speed interconnect and VSX using 50G DACs.

HPE Aruba Networking dynamic segmentation extends HPE Aruba Networking’s foundational wireless role-based policy capability to HPE Aruba Networking wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Key features

—Powerful, modular Layer 3 switches with BGP, MPLS, EVPN, VXLAN, VRF, and OSPF with robust security and QoS —High performance switching with up to 28 Tbps with 11.4 Bpps
— High availability with VSX live upgrades, redundant power supplies and fans
—High capacity HPE Smart Rate1 (1/2.5/5/10GbE) multi-gigabit, 60W to 90W PoE, and SFP+ modules
— High speed, non-blocking 1/10/25/40/50/100GbE ports
—Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine (NAE)
—Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
—HPE Aruba Networking NetEdit support for automated configuration and verification
—HPE Aruba Networking dynamic segmentation enables secure and simple access for users and IoT devices

What's New

* High-performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security, MACsec encryption, and QoS while delivering up to 28 Tbps in non-blockling bandwidth.
* High availability with industry-leading VSX and redundant power supplies and fans.
* Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules. * High-speed, non-blocking 1GbE, 10 GbE, 25GbE, 40 GbE, and 100 GbE with intelligent monitoring, visibility and remediation with the Network Analytics Engine
* Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN.
* Dynamic Segmentation enables enhanced security and simple access for users and IoT.

Specifications

	HPE Aruba Networking 6405 v2 Switch (R0X26C)	HPE Aruba Networking 6410 v2 Switch (R0X27C)
Description	1x 6405 v2 Chassis (R0X24C) 1x Management Module (R0X31A) 2x Fan Trays (R0X32A) 5 open module slots Power supply units not included; order separately Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A,R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C, S0E48A, S1T83A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W) 1x RJ‑45 Console Port 1x USB‑C Console Port 1x OOBM 1x USB Type A Host port	1x 6410 v2 Chassis (R0X25C) 1x Management Module (R0X31A) 4x Fan Trays (R0X32A) 10 open module slots Power supply units not included; order separately Supports any of the following line cards in the open slots: R0X38B, R0X39B,R0X40B, R0X41A, R0X42A,R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C, S0E48A, S1T83A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W) 1x RJ‑45 Console Port 1x USB‑C Console Port 1x OOBM 1x USB Type A Host port
Power supplies	Supports four modular front‑serviceable power supplies with removable rear‑serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
Fans	Two field replaceable system fan trays	Four field replaceable system fan trays
Physical characteristics
Dimensions	(H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")	(H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
Configuration weight	29.3 kg (64.7 lb)	53.5 kg (118.2 lb)
Additional specifications
CPU	Management Module: Quad Core Arm® Cortex™ A72 @ 1.8GHz R0X38A‑R0X45A and R0X38B‑R0X40B Line Cards: Dual Core Arm Cortex [email protected] R0X38C‑R0X45C, S0E48A, S1T83A Line Cards: Quad Core Arm Cortex A72 @ 1.8GHz
Memory and flash	Management Module: 16GB DDR4 ECC memory: 32GB eMMC Flash memory R0X38A‑R0X45A and R0X38B‑R0X40B Line Cards: 4GB DDR4 memory R0X38C‑R0X45C, S0E48A, S1T83A Line Cards: 8GB DDR4 memory
Packet buffer	R0X38A‑R0X43A and R0X38B‑R0X40B Line Cards: 8MB packet buffer memory per line card R0X38C‑R0X43C, S1T83A Line Cards: 16MB packet buffer memory per line card R0X44A‑R0X45A, R0X44C‑R0X45C, S0E48A Line Cards: 32MB packet buffer memory per line card
Performance
System switching capacity	14 Tbps	28 Tbps
System throughput capacity	5.7 Bpps	11.4 Bpps
Average latency (LIFO‑64‑bytes packets)	1G: 5.32 μSec 10G: 1.48 μSec 25G: 2.78 μSec 40G: 1.31 μSec 100G: 1.42 μSec
Switched virtual interfaces (dual stack)	2,048
IPv4 host table (ARP)	49,152; Up to 163,840 for R0X44C, R0X45C, and S0E48A²
IPv6 host table (ND)	49,152; Up to 163,840 for R0X44C, R0X45C, and S0E48A²
Performance
IPv4 unicast routes	61,000; Up to 630,780 R0X44C, R0X45C, and S0E48A²
IPv6 unicast routes	61,000; Up to 630,780 R0X44C, R0X45C, and S0E48A²
IPv4 multicast routes	8,192
IPv6 multicast routes	8,192
MAC table capacity	32,768; Up to 212,992 R0X44C, R0X45C, and S0E48A²
IGMP groups	7,000
MLD groups	8,192
IPv4/IPv6/MAC ACL entries (ingress)	64,000/16,384/64,000 per line card for R0X44A/R0X44C, R0X45A/R0X45C, S0E48A; 20,480/5,120/20,480 per line card for all other line cards
IPv4/IPv6/MAC ACL entries (egress)	20,480/5,120/20,480 per line card for R0X44A/R0X44C, R0X45A/R0X45C, S0E48A; 8,192/2,048/8,192 per line card for all other line cards
VRF	256
Environment
Operating temperature	32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de‑rating per 1,000 feet above 5,000 feet
Operating relative humidity	15% to 95% relative humidity at 113°F (45°C), non‑condensing
Non‑operating	−40°F to 158°F (−40°C to 70°C)
Non‑operating storage relative humidity	15% to 95% relative humidity at 149°F (65°C), non‑condensing
Max operating altitude	Up to 10,000 feet (3 km)
Max non‑operating altitude	Up to 15,000 feet (4.5 km)
