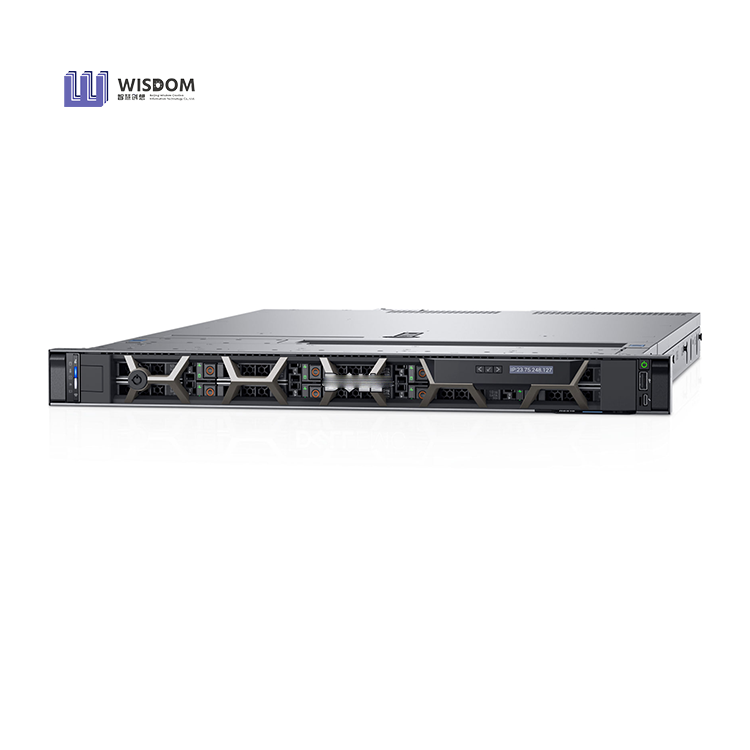

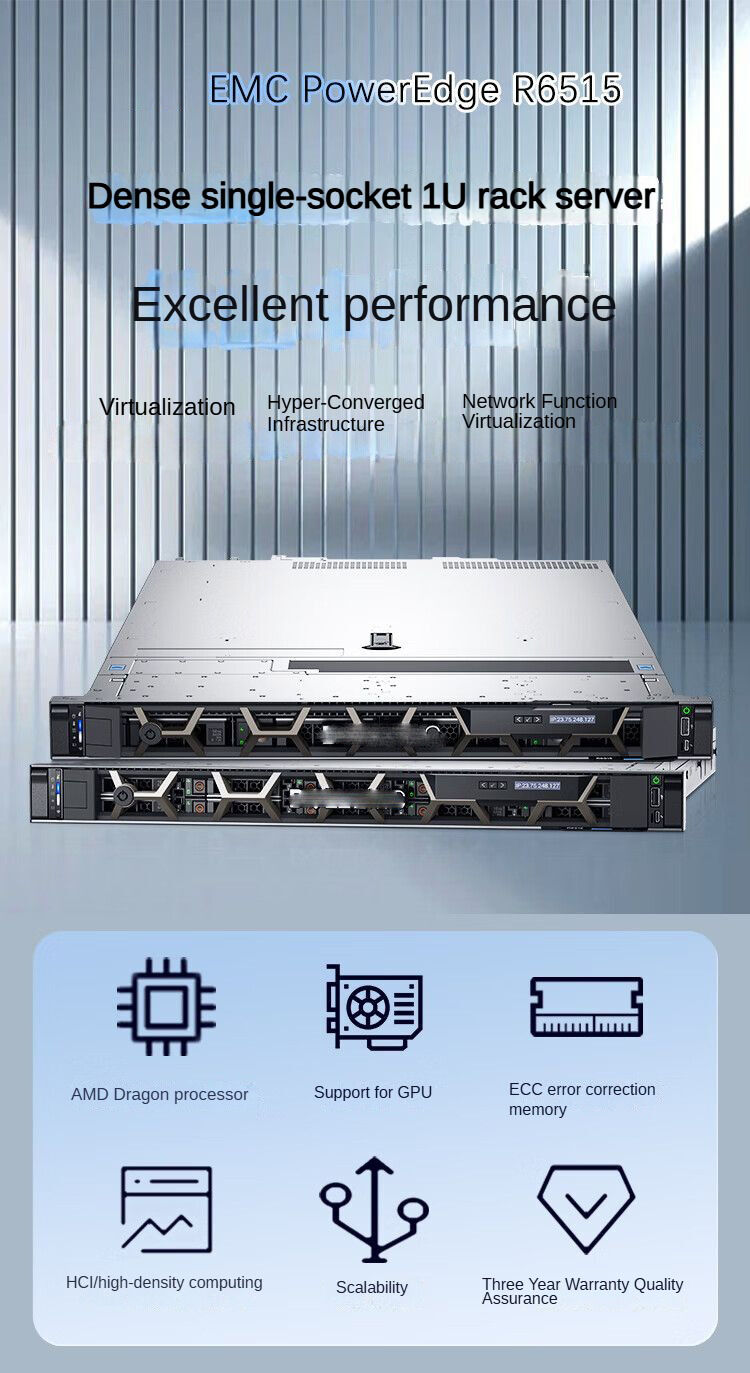

The EMC PowerEdge R6515 rack server is a dense single-socket 1U rack server delivering peak performance and excellent TCO.
The EMC PowerEdge R6515 rack server is a dense single-socket 1U rack server delivering peak performance and excellent TCO.
Features:
1. Deliver breakthrough performance, innovation and density for traditional and emerging workloads
2.Increase efficiency and accelerate operations with an automated infrastructure
3.Fortify your data center with integrated security
|
MODEL |
PowerEdge R6515 rack server |
|
Processor |

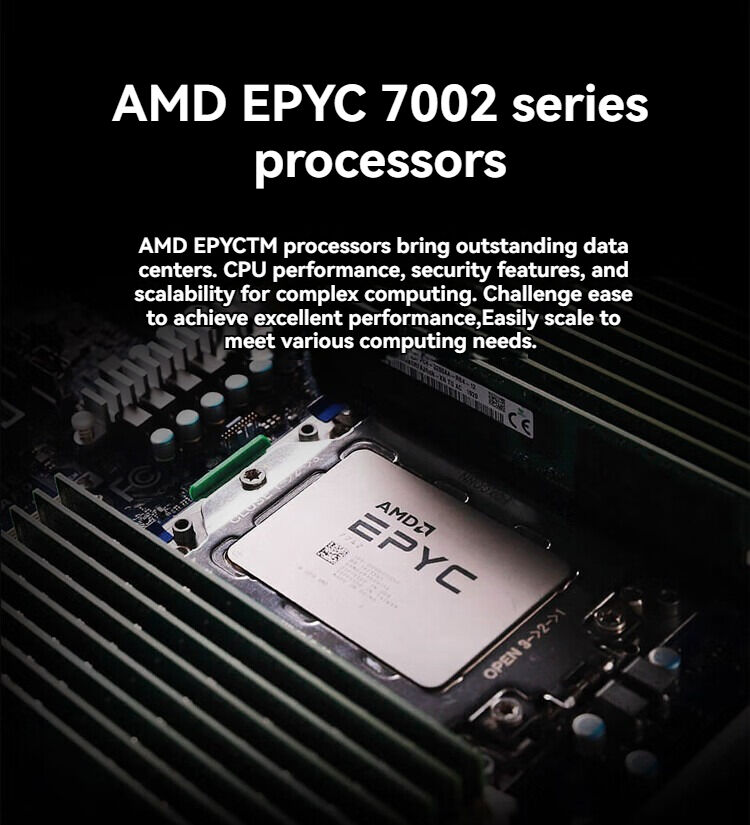

One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores |
|
Memory |
DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S |
|
Controllers |
HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA Chipset SATA/SW RAID: S150 |
|
|
Front Bays Up to 4x 3.5” Hot Plug SAS/SATA HDD Up to 10x 2.5” Hot Plug SAS/SATA/NVMe Up to 8x 2.5” Hot plug SAS/SATA Internal: Optional 2 x M.2 (BOSS) |
|
Power Supplies |
550W Platinum |
|
Fans |
Standard/High Performance FANs N+1 Fan redundancy. |
|
Dimensions |

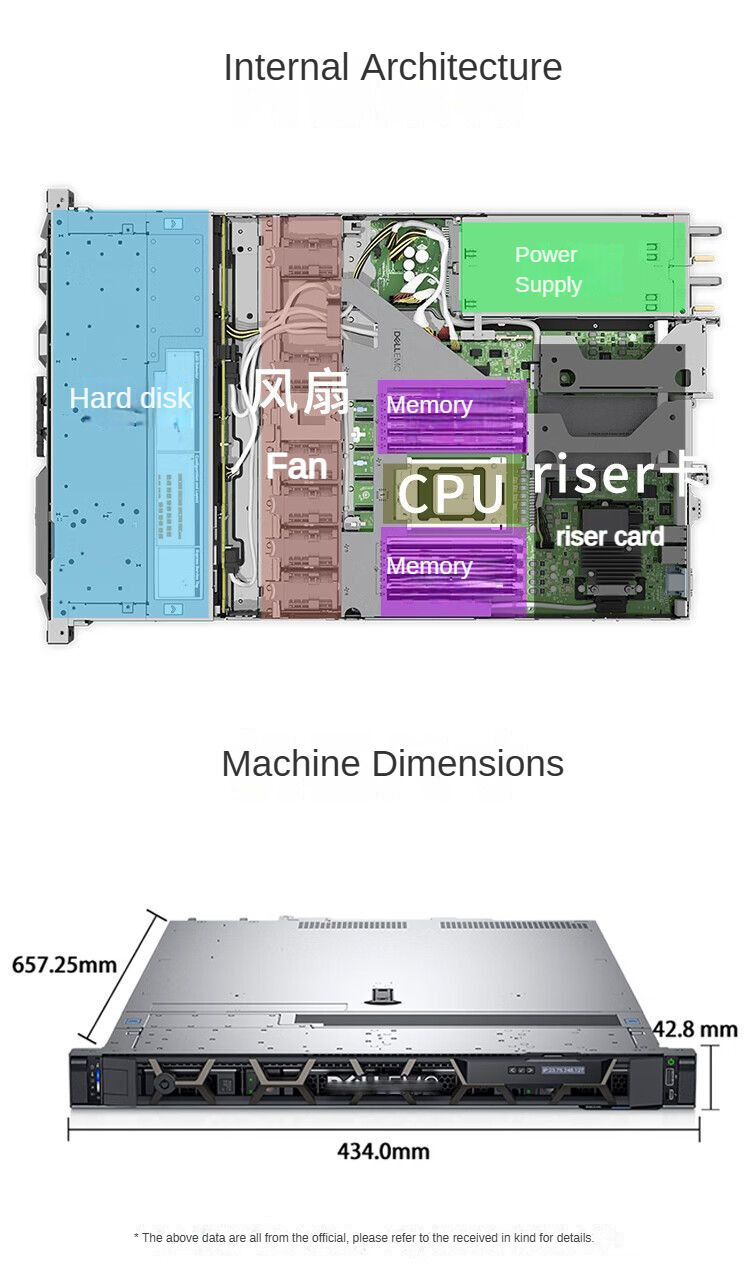

Height: 42.8 mm (1.7”) Width: 434.0mm (17.09”) Depth: 657.25mm (25.88”) Weight: 16.75 kg (36.93 lb) |
|
Rack Units |
1U Rack Server |
|
Embedded Management |
iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
|
Bezel |
Optional LCD or security bezel |
|
OpenManage™ SW |
Consoles OpenManage Enterprise OpenManage Enterprise Power Manager Mobility OpenManage Mobile Tools EMC RACADM CLI EMC Repository Manager EMC System Update EMC Server Update Utility EMC Update Catalogs iDRAC Service Module IPMI Tool OpenManage Server Administrator OpenManage Storage Services |
|
Integrations & Connections |
OpenManage Integrations BMC Truesight Microsoft® System Center Redhat® Ansible® Modules VMware® vCenter™ OpenManage Connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® XI |
|
Security |
Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional |
|
Networking Options (NDC) |
2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP28 |
|
GPU Options |
Up to 2 Single-Wide GPU |
|
Ports |

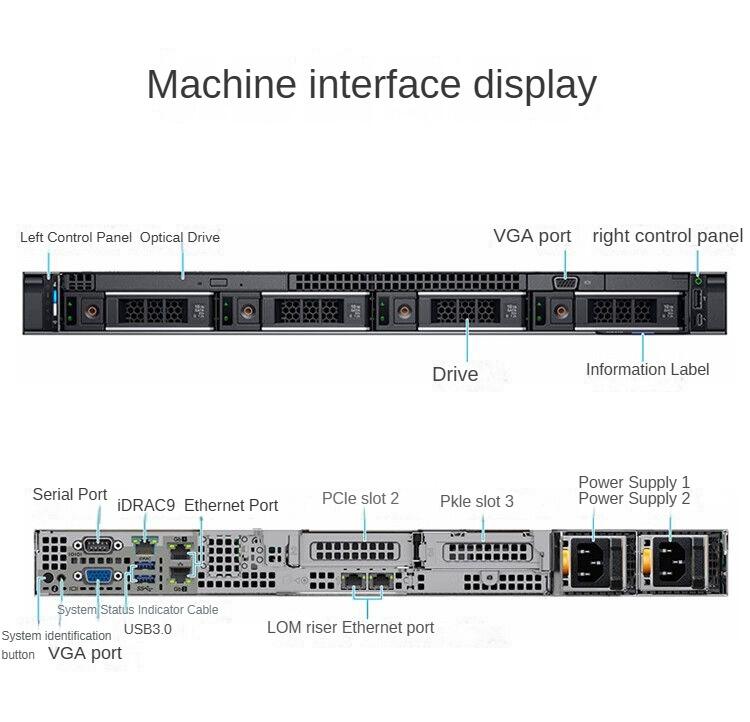

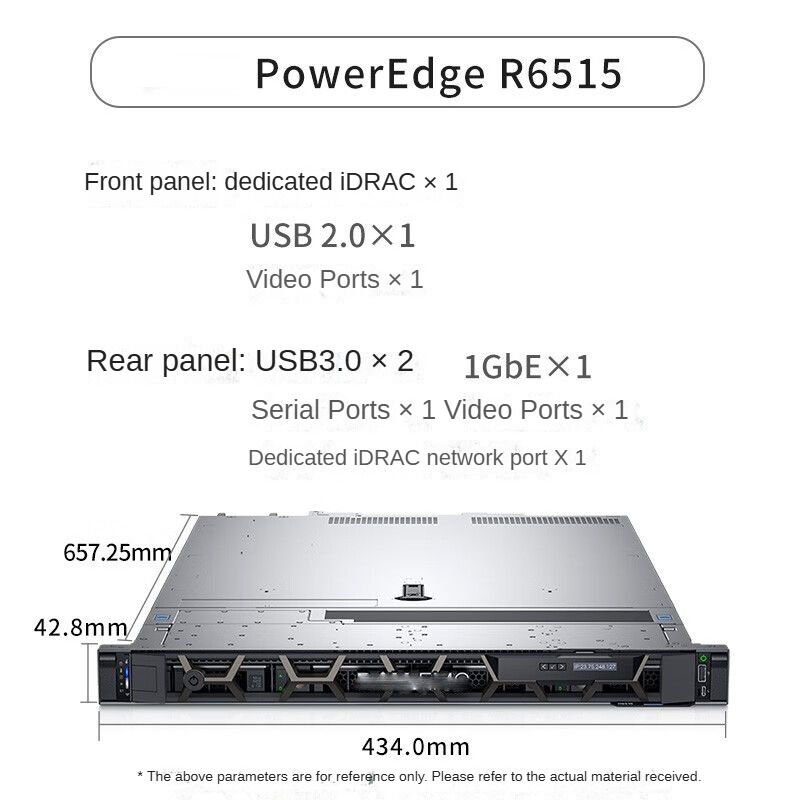

Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x Video Rear Ports: 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video |
|
Internal |
1 x USB 3.0 |
|
PCIe |
Up to 2: 1 x Gen3 slot (1 x16) 1 x Gen4 slot (1 x16) |
|
Operating System and Hypervisors |
Canonical® Ubuntu® Server LTS Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
