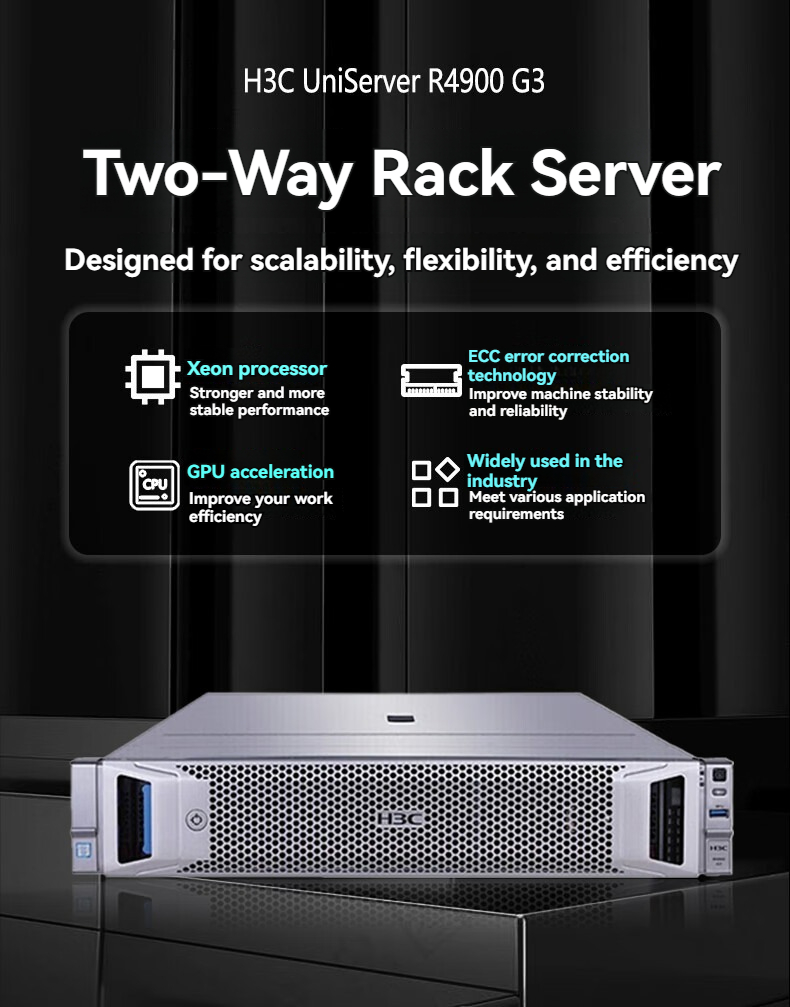

H3C UniServer R4900 G3 Server

Designed for the workloads of modern data centers

Description
Product Display

+86-18600585382

[email protected]

Description

Model	H3C UniServer R4900 G3 Server
Form Factor	2u
Processor	Supports up to 2 Intel Xeon Scalable Family processors with up to 28 cores each and up to 205W of power

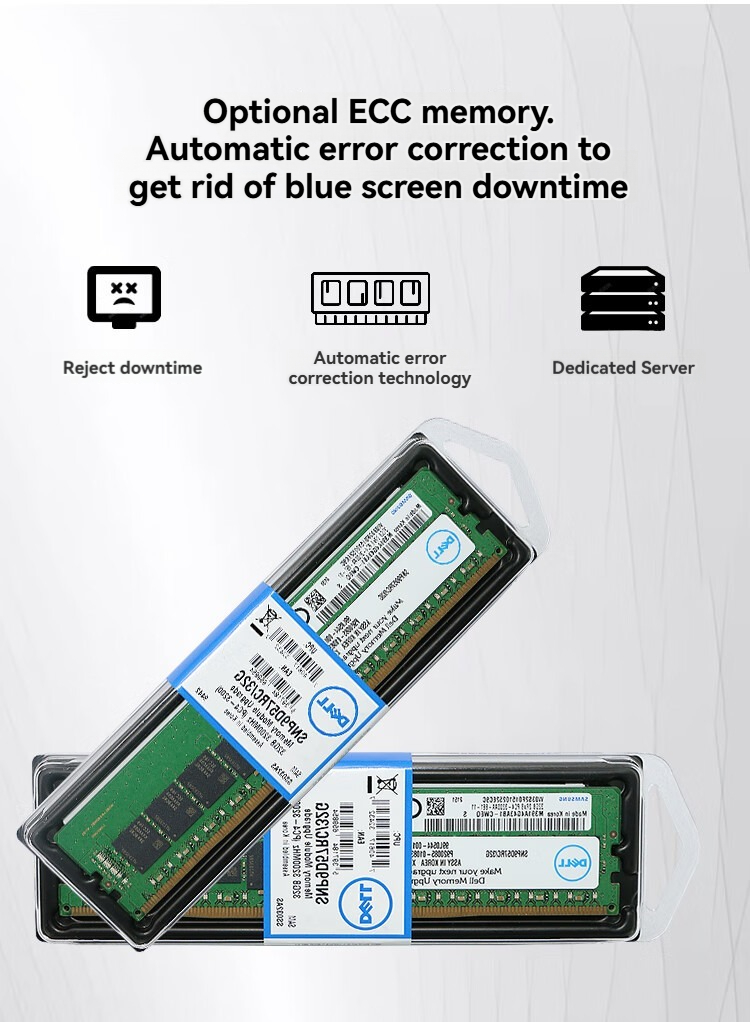

Memory	Supports up to 24 DDR4 memory slots at rates up to 2933MT/S Supports RDIMM or LRDIMM up to 3TB per processor Supports up to 12 Intel@Armor "Data Center Class Persistent Memory (DCPMM)

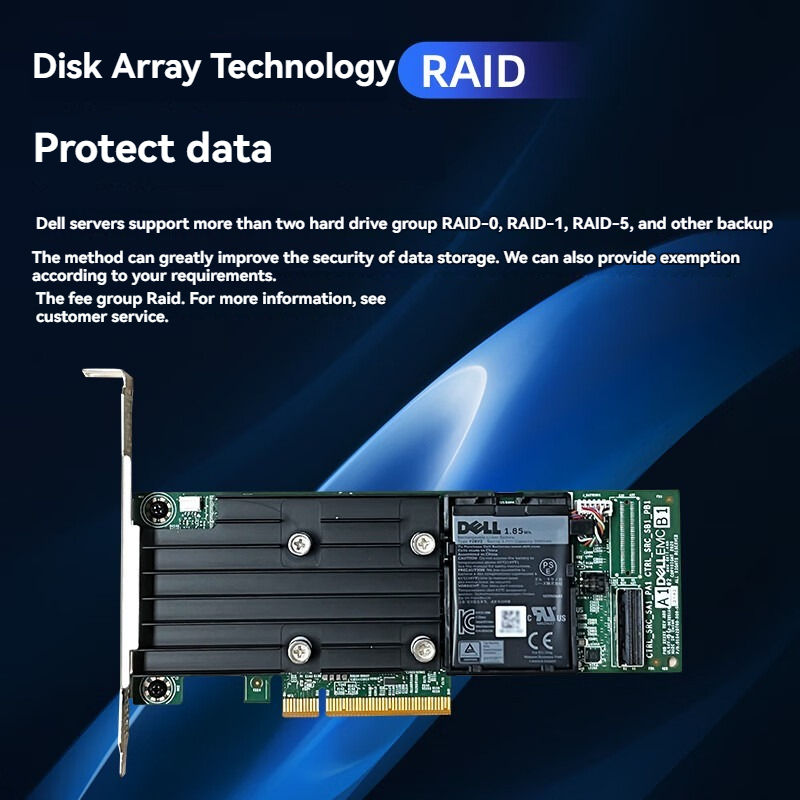

Storage controller	Standard onboard array controller, support SATA RAID 0/1/10/5 optional HBA card based on array card proprietary slot, support SATA/SAS RAID0/1/10 optional array card based on array card proprietary slot, support RAID0/1/10/5/6/50/60/1E optional HBA card and array card based on standard PCle slot
FBWC	Optional support for up to 8GB of cache with capacitor protection support

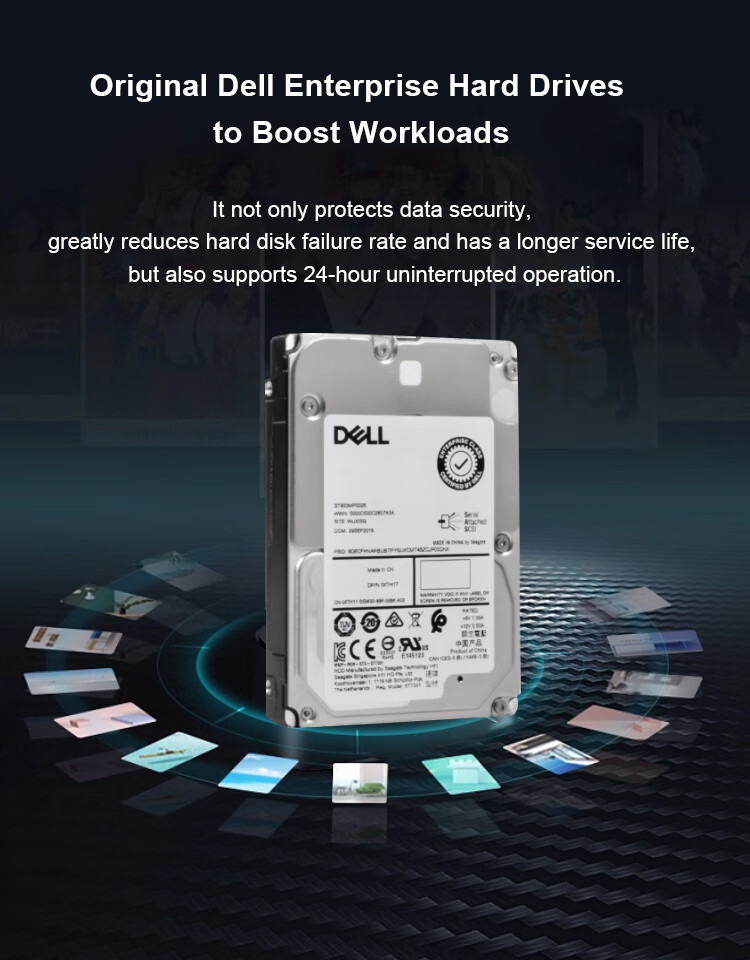

Storage	Supports up to 20 3.5-inch HDDs, 4 2.5-inch HDDs (12 front 4 internal expansion, 8 rear expansion)Supports up to 37 2.5-inch HDDs, 3 3.5-inch HDDs (25 front 8 internal expansion, 7 rear expansion)Supports SAS/SATA HDD/SSD HDDs, Supports front/internal NVMe HDDs, Supports up to 32NVMe drive bays1 support SATA M.2 option
Network	On-board 1x1Gbps management port Optional expansion via mLOM 4x1GE electrical or 2x10GE electrical/optical ports Optional standard PCle slot based network adapter
PCIe slots	Up to 10 available PCle 3.0 slots (including 1 dedicated slot for array cards and 1 dedicated slot for network cards)
Ports	Optional front VGA, standard rear VGA and serial ports, 5 USB3.0 (1 front 2 rear, 2 internal), optional 1 USB2.0 and 2 MicroSD card kit
GPU	Supports up to 3 double-wide GPU cards or 8 single-wide GPU cards
Optical drive	Supports external optical drive, some models support internal optical drive
Manage	HDM agentless management tool (with independent management port) and H3CFIST management software, support 16M local video memory
Security	Support chassis intrusion detection, TCM/TPM security module, optional configuration of PCle protection module, providing firewall, IPS, anti-virus and QoS protection functions
Power and heat	Optional Platinum level 550W/800W/850W/1200W/1600W 1+1 redundant power supply, optional Titanium level 1+1 redundant power supply Optional 800W minus 48V/336V DC power supply module, support 1+1 redundancy, support hot-swappable redundant fans
operating temperature	5℃-50℃

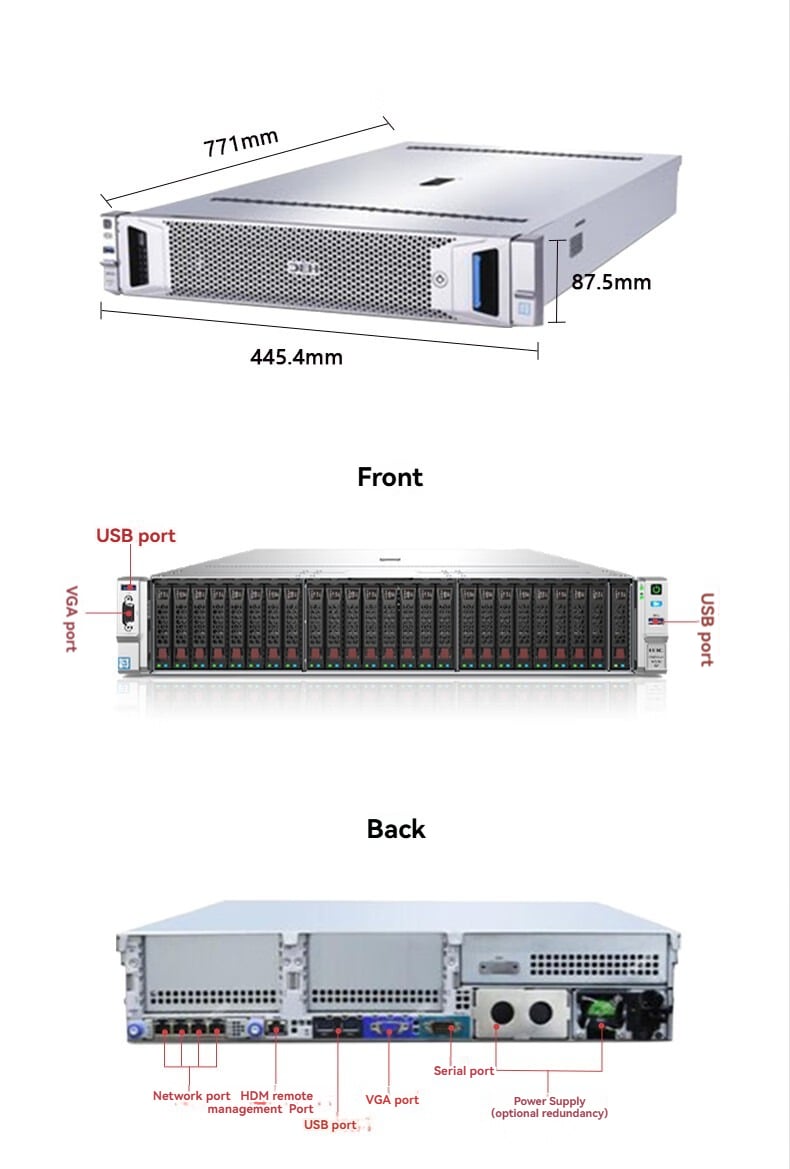

Appearance/Chassis dimensions	2U chassis 87.5mm(H)445.4mm(W)748mm(D)(without safety panel) 87.5mm(H)445.4mm(W)771mm(D)(including safety panel)

Product Display

Features:

Excellent performance improves data center productivity

Support the most up-to-date tech platforms and massive memory expansion

Support high-performance GPU acceleration

Scalable configuration protects IT investment

Flexible subsystem selection

Modular design that allows phased investment

Comprehensive security protection

Indigenous chip-level encryption

Security bezel, chassis lock, and chassis intrusion monitoring

You can use the R4900 G3 to support below services:

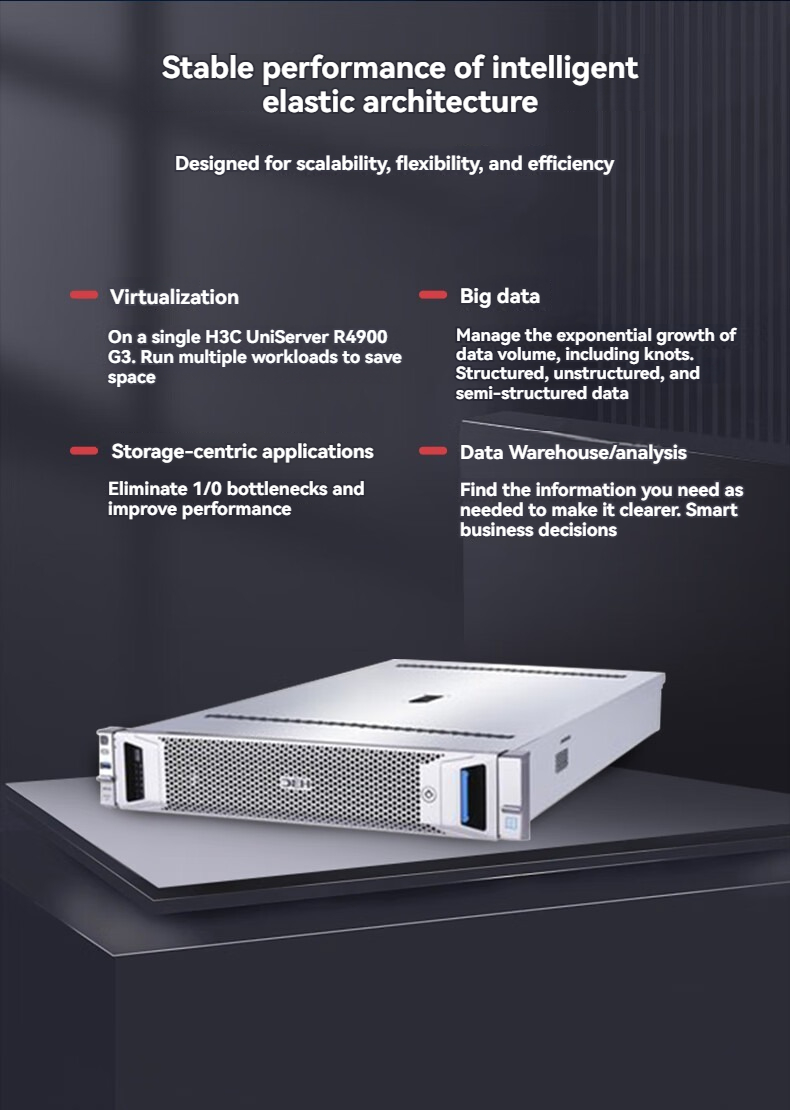

Virtualization — Support multiple types of workloads on a single server to save space

Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.

Applications centered on storage — Remove I/O bottleneck and improve performance

Data warehouse/analysis — Query data on demand to help service decision

Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty

Enterprise resource planning (ERP) — Trust the R4900 G3 to help you manage services in real time

Virtual desktop infrastructure (VDI) — Deploys remote desktop service to bring great office agility and enable telecommuting with any device anywhere anytime

High-performance computing and deep learning — Provide 3 dual-slot wide GPU modules in a 2U footprint, meeting the requirements of machine learning and AI applications

The R4900 G3 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
