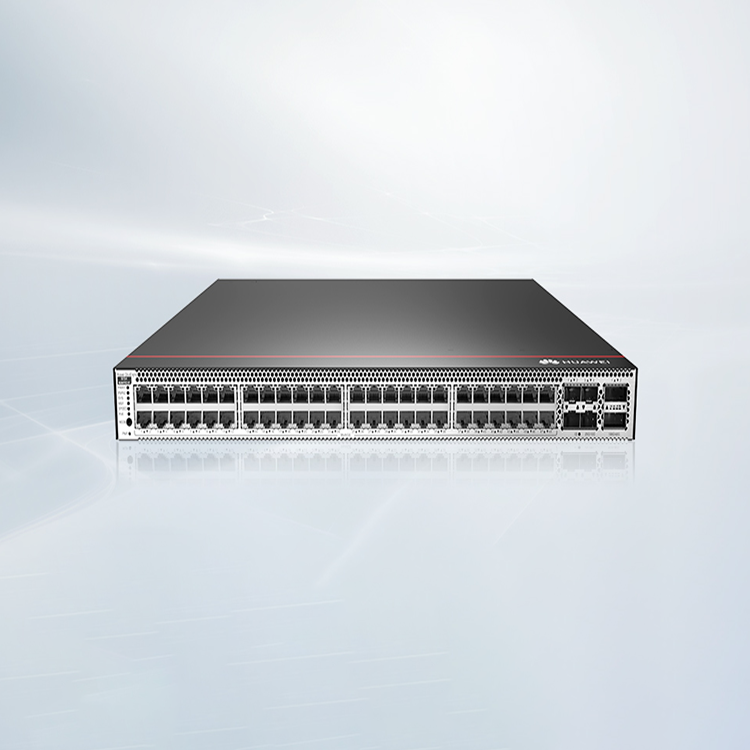

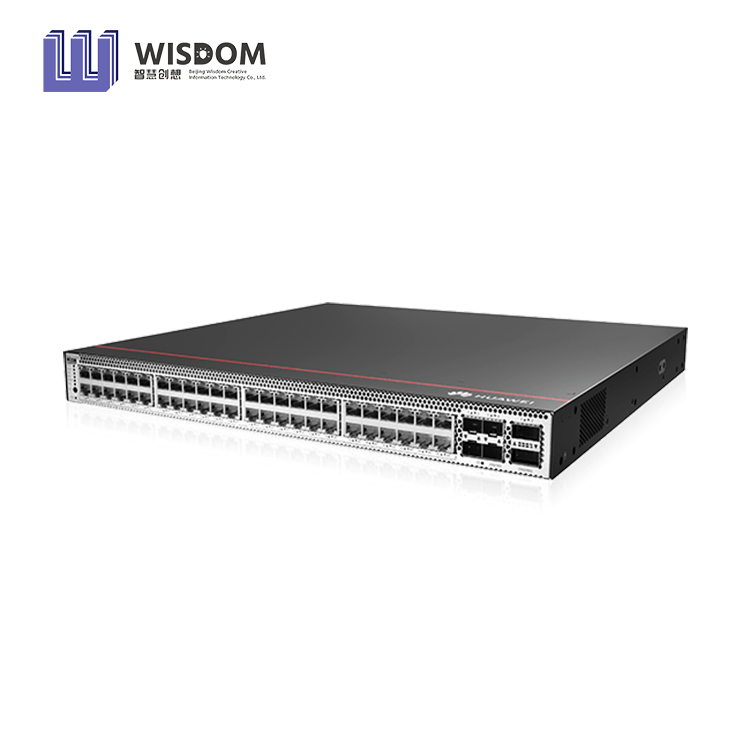

Huawei CloudEngine S5732-H Series Multi-GE Switches

CloudEngine S5732-H series switches are brandnew ful-10GE(Multi-GE capable) accessswitches that provide 24-port and 48-port models, and provide four 25GE and two 100GEuplink ports and one extended slot.

Description
Product Parameters

huawei cloudengine s5732 h series multi ge switches-2

+86-18600585382

[email protected]

Description

Product description

The CloudEngine S5732-H-V2 series of next-generation multirate Ethernet switches are available in 24-port and 48-port models, with four 25GE and two 100GE ports in the uplink and support for one expansion card slot.

The CloudEngine S5732-H-V2 series switch is a new-generation multirate switch launched by Huawei. Based on Huawei's unified,self-developed software platform, it supports VxLAN to realise campus network virtualisation and realise multi-purpose use of a single network; it has the ability to provide consistent user experience with the ability of service followers, and the whole machine can provide a maximum of 48 full 10 Gigabit multirate ports, which is the best choice for the Wi-Fi 6It is the best choice for WLAN AP access switch in the era of Wi-Fi 6.Widely used in medical, retail, mining, Internet and other industries.

Feature

10GE Extreme Access

Supports 24-port or 48-port full 10GE access, with single port providing 90W high power supply.

network virtualisation

Supporting VxLAN-based campus network virtualisation, a physical network converges to carry multiple services, realising
multi-purpose use of one network and saving network deployment and operation and maintenance costs.

Network Intelligent Operation and Maintenance

Support Telemetry technology, real-time collection of device data, with the park network analyser timely detection of network problems affecting user experience, accurate protection of user experience.

Product Parameters

	CloudEngine S5732-H24UM4Y2CZ-V2	CloudEngine S5732-H48UM4Y2CZ-V2
Dimensions (W x D x H)	44242043.6MM	44242043.6MM
Chassis height [U]	1U	1U
Exchange capacity	2.56/25.6Tbps	2.56/25.6Tbps
Packet forwarding rate	1110Mpps	1470Mpps
fixed port	24 100M/1G/2.5G/5G/10G Base-T Ethernet ports , 4 x 25GE SFP28 + 2 x 100GE QSFP28	48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports , 4 x 25GE SFP28 + 2 x 100GE QSFP28
POE ++	support	support
full complementary weight	8.88kg	9.53kg
Power supply type	600W POE AC power supply 1000W POE AC power supply 1000W POE DC power supply	600W POE AC power supply 1000W POE AC power supply 1000W POE DC power supply
Rated Input Voltage [V]	AC Input:(600W/1000W POE AC)： 100-240V AC:50/60Hz High Voltage DC Input:(600W/1000W POE AC):240V DC DC Input(1000WPOEDC):-48~-60VDC	AC Input:(600W/1000W POE AC)：100-240V AC:50/60Hz High Voltage DC Input:(600W/1000W POE AC):240V DC DC Input(1000WPOEDC):-48~-60VDC
Maximum voltage	Ac input(600W/1000W POEAC) :90VAC~290VAC; 45HZ~65HZ HVDC input(600W/1000W PoE AC) :190V DC to 290VDC DC input(1000W POEDC) :-38.4V DC to -72V DC	Ac input(600W/1000W POEAC) :90VAC~290VAC; 45HZ~65HZ HVDC input(600W/1000W PoE AC) :190V DC to 290VDC DC input(1000W POEDC) :-38.4V DC to -72V DC
operating temperature [°C]	-5°C~+45°C	-5°C~+45°C
Storage temperature [°C]	-40℃~+70℃	-40℃~+70℃
Long-term working environment relative humidity [RH]	5%RH to 95%RH, non-condensation	5%RH to 95%RH, non-condensation
Heat dissipation method	Air-cooled cooling, intelligent speed control, pluggable fan	Air-cooled cooling, intelligent speed control, pluggable fan
