Processor
|
Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
|
|
Memory
|
16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, Supports registered ECC DDR5 DIMMs only
|
|
Storage controllers
|
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
|
|
Drive Bays
|
Front bays:
• 0 drive bay
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
|
|
Hot swap Power Supplies
|
• 1800 W Titanium 200—240 VAC or 240 VDC
• 1400 W Titanium 100—240 VAC or 240 VDC
• 1400 W Platinum 100—240 VAC or 240 VDC
• 1400 W Titanium 277 VAC or HVDC (HVDC stands for High Voltage DC, with 336V DC)
• 1100 W Titanium 100—240 VAC or 240 VDC
• 1100 W -(48V — 60V) DC • 800 W Platinum 100—240 VAC or 240 VDC
• 700 W Titanium 200—240 VAC or 240 VDC
• 600 W Platinum 100—240 VAC or 240 VDC
|
|
Cooling Options
|
Air cooling
|
|
Fans
|
• Standard (STD) fans / High performance Gold (VHP) fans, Up to 7 hot swappable fans
|
|
Dimensions
|
• Height – 42.8 mm (1.68 inches)
• Width – 482 mm (18.97 inches)
• Depth – 748.79 mm (29.85 inches) with bezel
712.95 mm (28.05 inches) without bezel
• Weight – 19.45 Kg (55.33 pound)
|
|
Form Factor
|

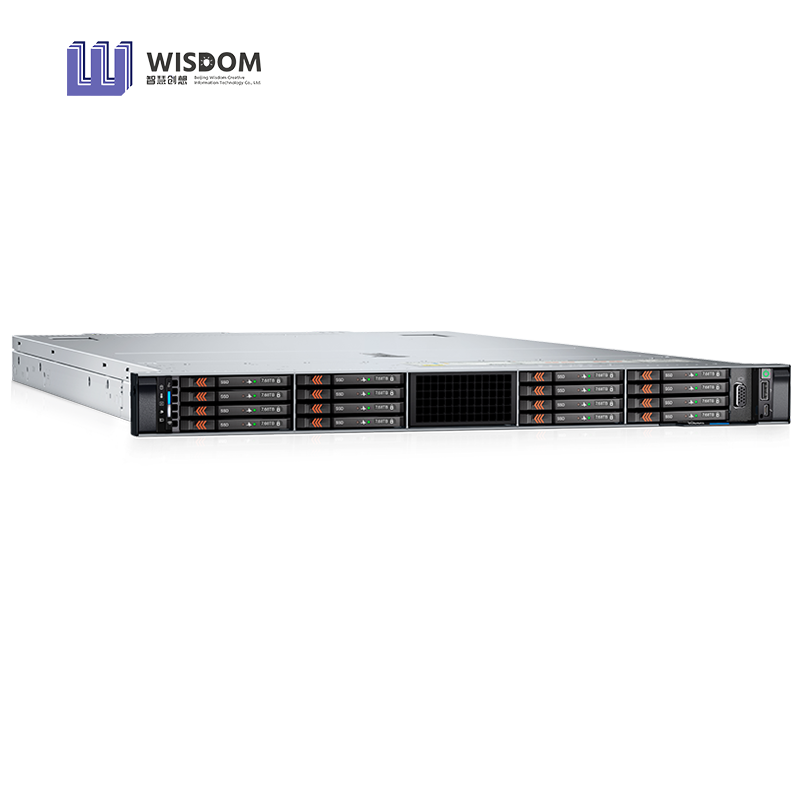

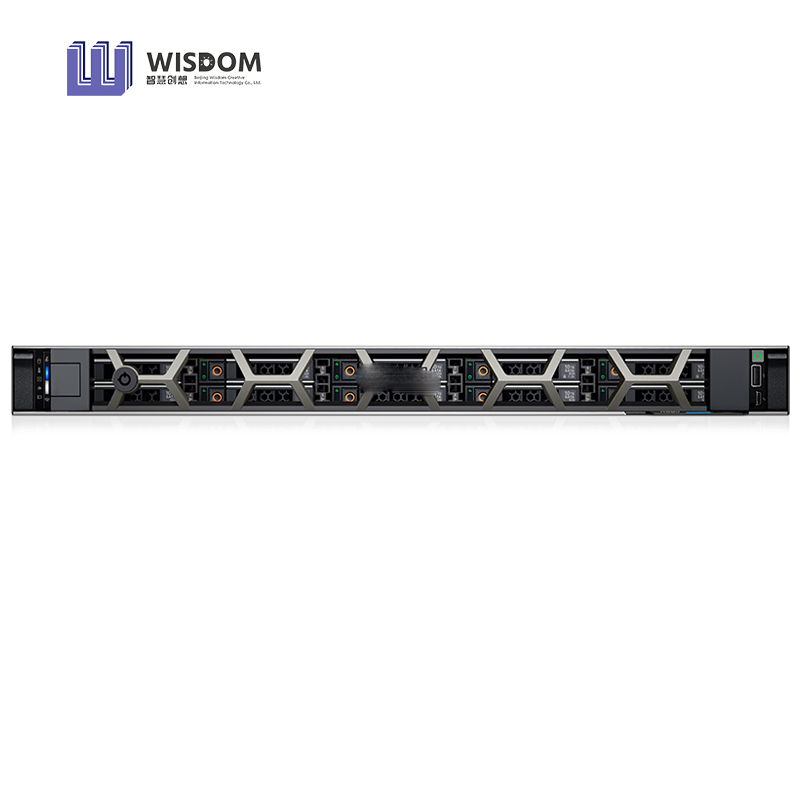

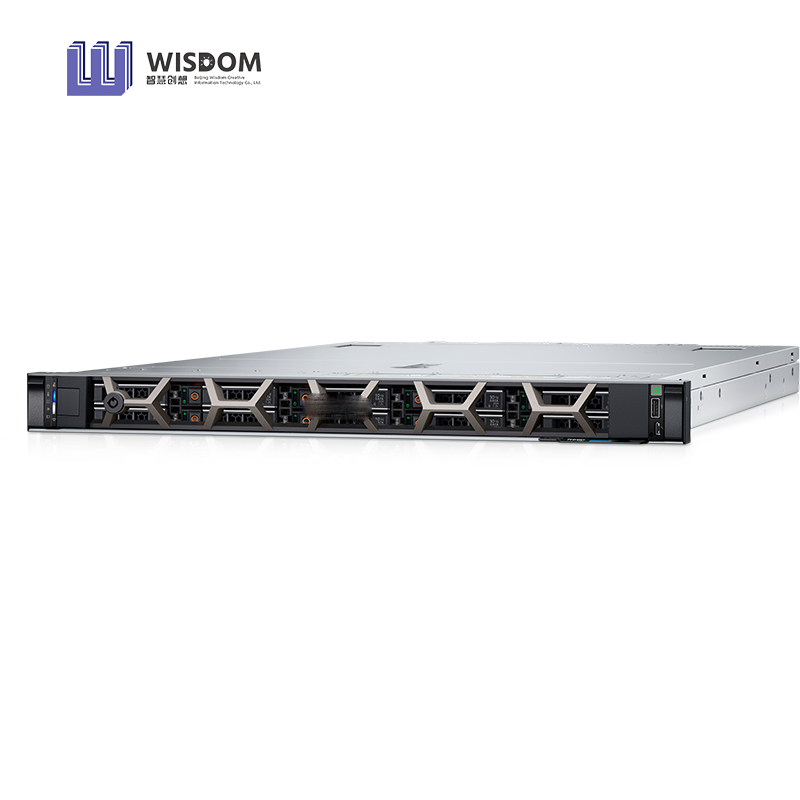

1U rack server
|
|
Embedded Management
|
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
Security
|
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
|
|
Embedded NIC
|
2 x 1 GbE LOM card
|
|
Network options
|
1 x OCP card 3.0 (optional)
|
|
Ports
|
Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Internal Ports
• 1 x USB 3.0 (optional)
Rear Ports
• 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)
|
|
PCIe
|
• 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
• 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
|
|
Operating System and Hypervisors
|
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server.
• VMware ESXi
• Canonical Ubuntu Server LTS
|
×
