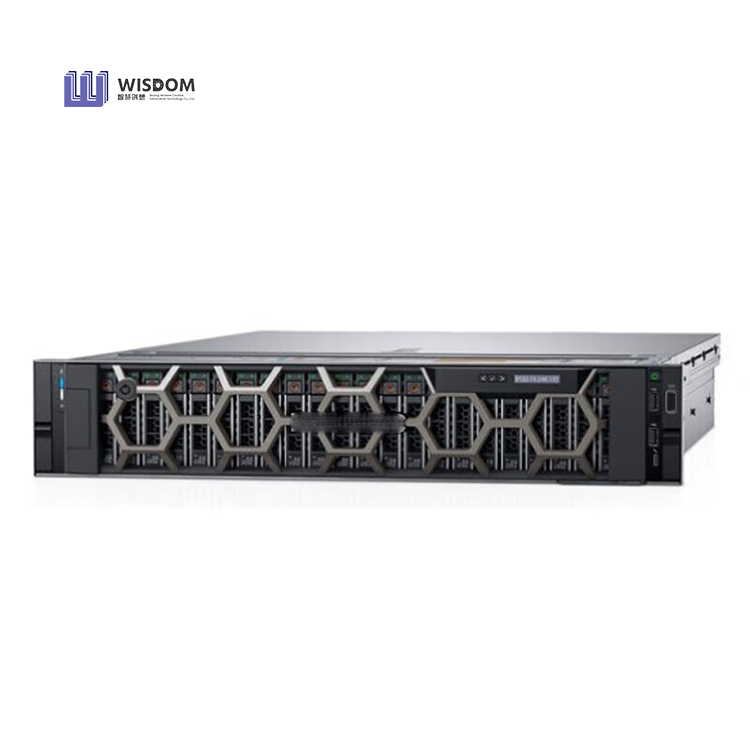

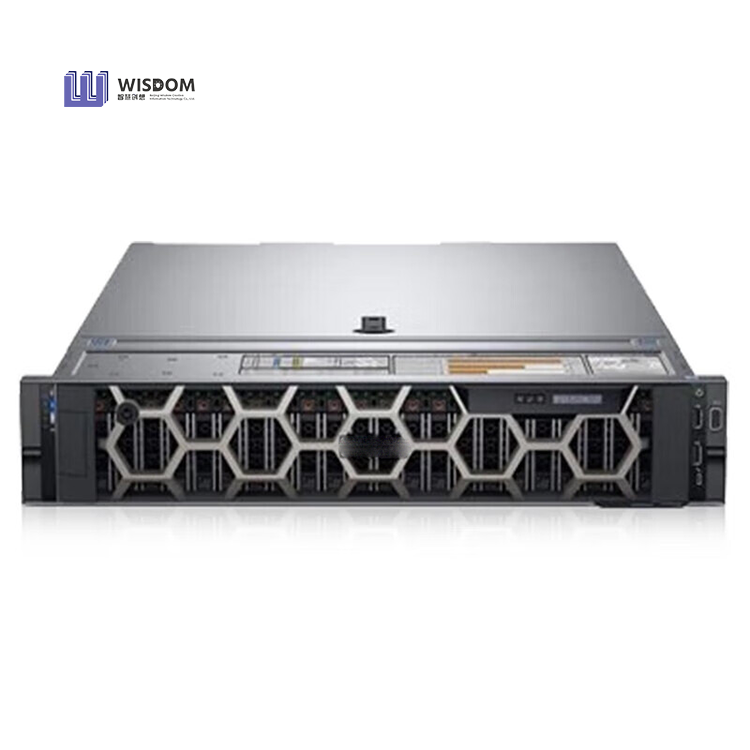

The PowerEdge R740xd delivers a perfect balance between storage scalability and performance. The 2U two-socket platform is ideal for software defined storage, service providers or as virtual desktop infrastructure.
The PowerEdge R740xd delivers a perfect balance between storage scalability and performance. The 2U two-socket platform is ideal for software defined storage, service providers or as virtual desktop infrastructure.
•Maximize performance and capacity
•Automate systems management with OpenManage
•Ensure server security from factory to you
|
MODEL |
PowerEdge R740xd rack server |
|
Processor |

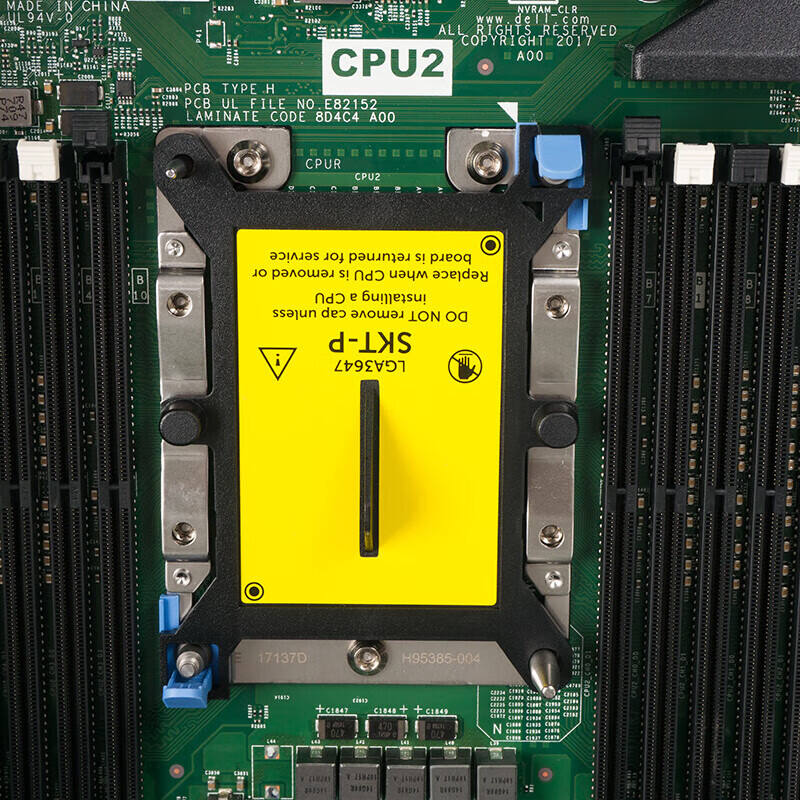

Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor |
|
Memory |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID) |
|
|
Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB Mid bay: Up to 4 x2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA(HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD |
|
Power Supplies |
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
|
Dimensions |

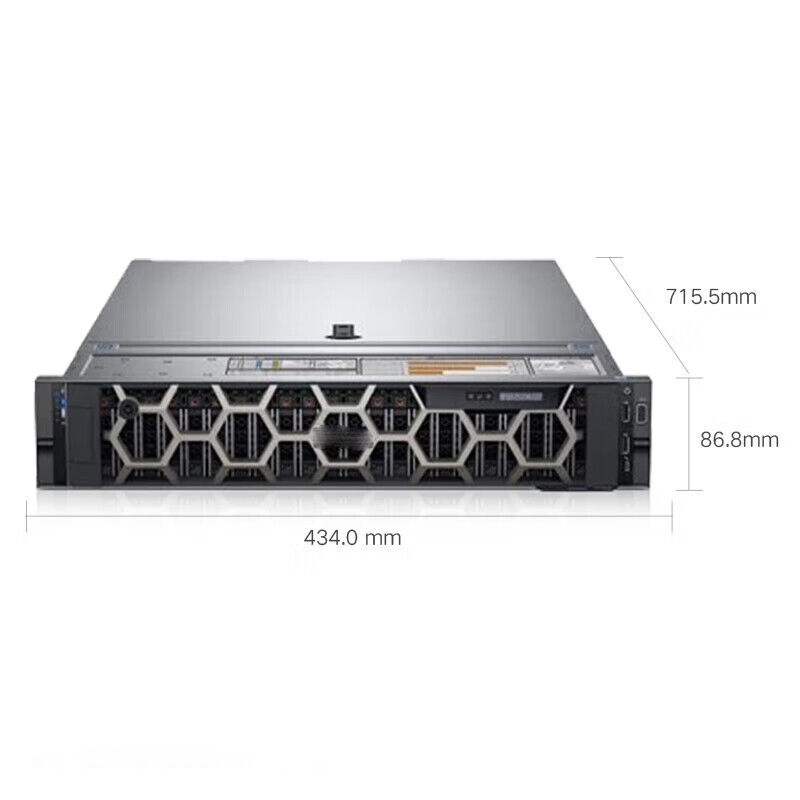

Form factor: Rack (2U) Max depth: 715.5 mm |
|
Embedded management |
IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional |
|
Bezel |
Optional LCD Bezel or Security bezel |
|
OpenManage™ Software |
OpenManage Enterprise OpenManage Essentials OpenManage Mobile OpenManage Power Center |
|
Integrations and connections |
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management |
|
I/O & Ports |

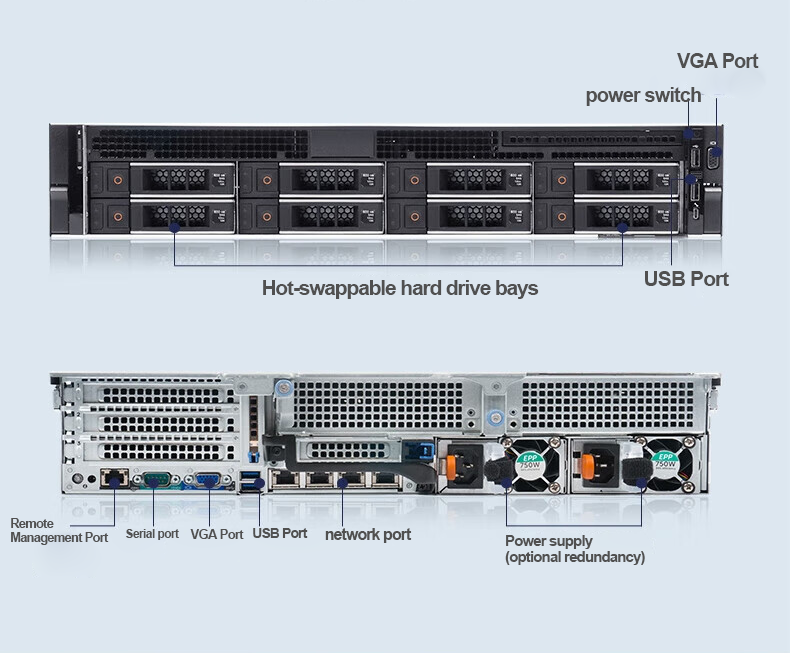

Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
|
Accelerator options |
GPU and FPGA options are available only on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000,NVIDIA V100 or Intel Arria® 10 GX |
