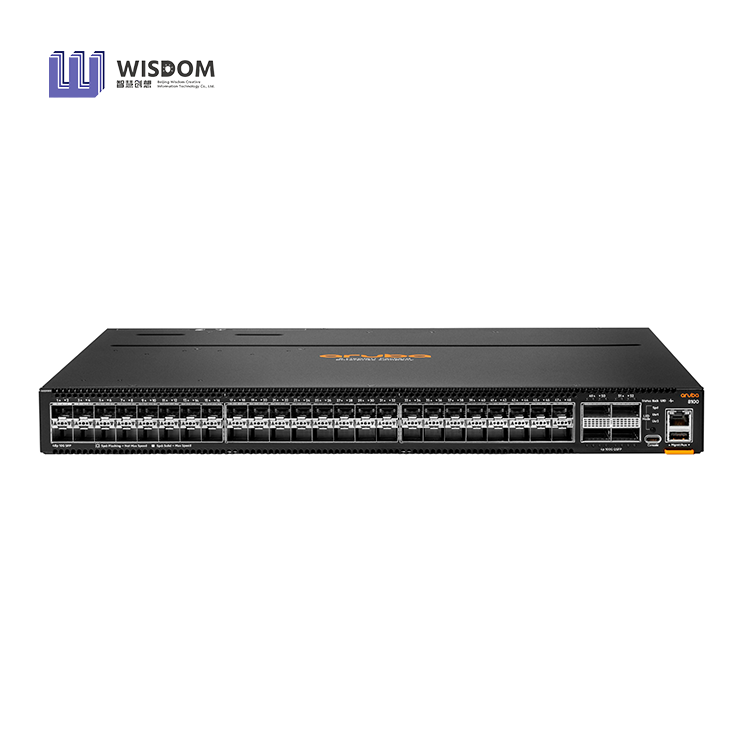

HPE Aruba Networking CX 8100 Switch Series

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT.

The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch.

The series includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G. These switches are great for customers needing 1 GbE/10 GbE with mix of fiber and copper ports.

Description
Specifications

hpe aruba networking cx 8100 switch series-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 8100 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the nextgeneration core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 1.76 Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, and 100 Gbps.
The CX 8100 series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers requiring 1GbE/10GbE with a mix of fiber and copper ports, and 40/100GbE uplink ports.

key Features

—High performance 1.76 Tbps and 1309 Mpps —Intelligent monitoring and visibility with HPE Aruba Networking Network Analytics Engine
—High availability with industry leading VSX redundancy, and redundant power supplies and fans
—Designed for core/aggregation in the campus or top of rack or end of row in data center environments
—AOS-CX automation and programmability using built-in REST APIs and Python scripts
— Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
—Addition of Smart Rate (1/2.5/5/10G) ports on the 8100-40XT8XF4C and 8100-24XT4XF4C

What's New

* High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.

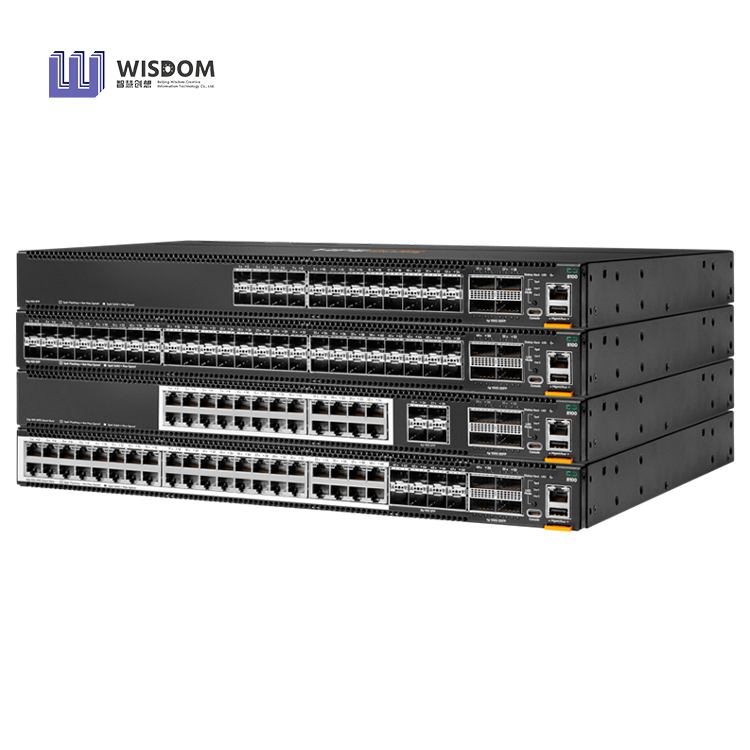

* Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with
Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.

* High availability with industry-leading VSX redundancy and redundant power supplies and fans.

 * HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts

* Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)

Specifications

	HPE Aruba Networking 8100 24XF4C 3 Fans, 2 AC Power Supplies [R9W87A (Back to Front)]	HPE Aruba Networking 8100 24XT4XF4C 3 Fans, 2 AC Power Supplies [R9W89A (Back to Front)]	HPE Aruba Networking 8100 48XF4C 3 Fans, 2 AC Power Supplies [R9W91A (Back to Front)]	HPE Aruba Networking 8100 40XT8XF4C 3 Fans, 2 AC Power Supplies [R9W93A (Back to Front)]
I/O ports and slots

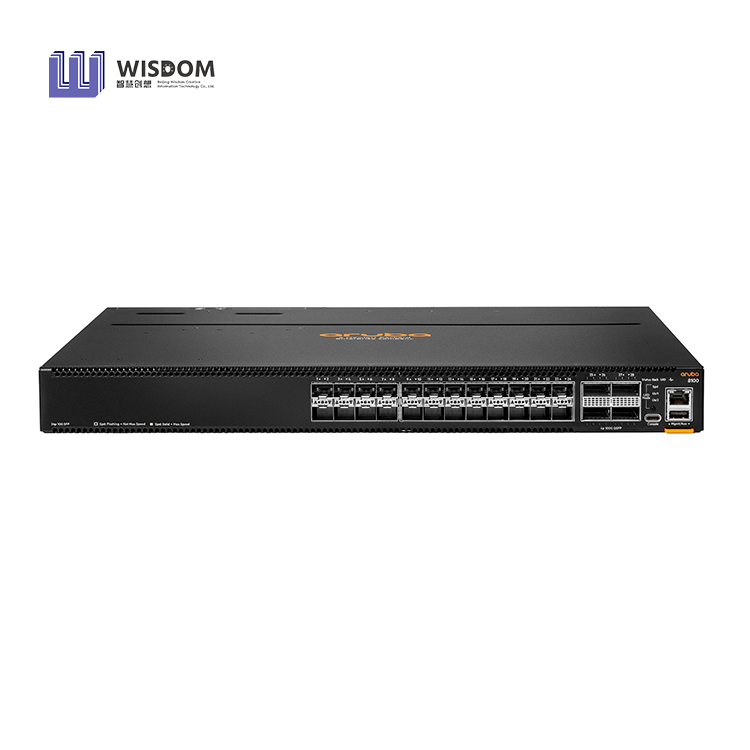

	24 ports of 1GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)	24 ports of 100M/1/2.5/5/10GbE/ 10BaseT 4 ports of 1/GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)	48 ports of 1GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)	40 ports of 100M/1/2.5/5/10GbE/ 10BaseT 8 ports of 1/GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)
Additional ports and slots

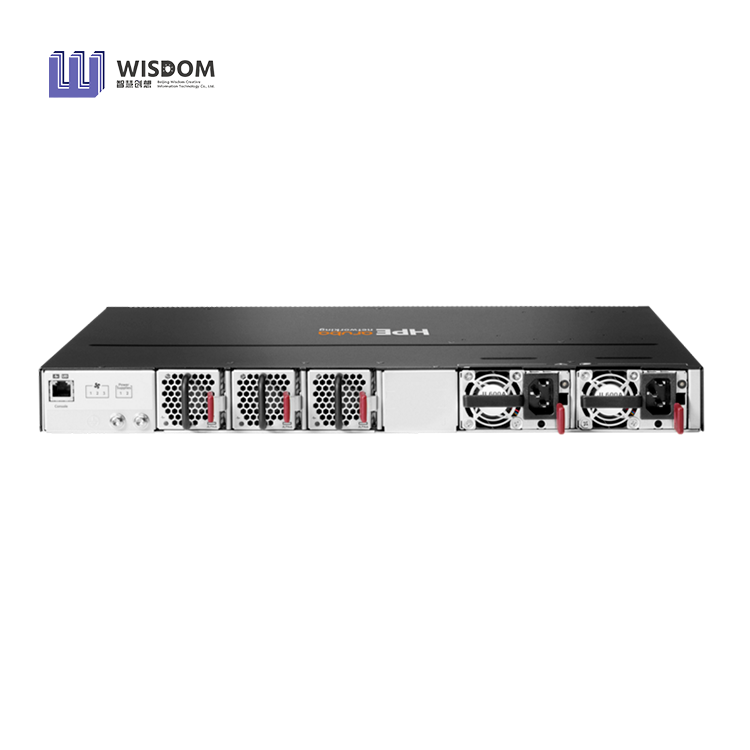

Power supplies	2 field-replaceable and hot-swappable power supplies
Fans	3 field-replaceable and hot-swappable fans
Management	RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A
Physical characteristics
Physical dimensions (HxWxD)	1.73in x 17.4in x 16.0in (4.4 cm x 44.25 cm x 40.64 cm)
Full configuration weight	18.0 lb (8.16 kg)	18.3 lb (8.30 kg)	18.5 lb (8.39 kg)	18.9 lb (8.57 kg)
Memory and processor
CPU	1.8 GHz 4-core 64-bit
Memory and flash	16 GB RAM, 32 GB Flash/storage
Packet buffer	32 MB
Performance

Switching capacity	1.28 Tbps/952 Mpps	1.36 Tbps/1011 Mpps	1.76 Tbps/1309 Mpps	1.76 Tbps/1309 Mpps
MAC address table size	147,456
IPv4 host table	65,636
IPv6 host table	65,636
IPv4 unicast routes	24,576
IPv6 unicast routes	12,288
Maximum number of access control list (ACL) entries ingress	IPv4 16,384, IPv6 4,096, MAC 16,384
Maximum number of access control list (ACL) entries egress	IPv4 2,048, IPv6 512, MAC 2,048
Maximum VLANs	1024
IGMP groups	4096
MLD groups	4096
IPv4 multicast routes	4096
IPv4 multicast routes	4096
Environment
Operating temperature	32°F to 104° (0°C to 40°C) up to 5000 ft
Operating relative humidity	15% to 95%, relative humidity at 104°F (40°C), non-condensing
Non-operating temperature	−40°C to 70°C (−40°F to 158°F) up to 4.6 km (15,000 ft.)
Non-operating storage relative humidity	15% to 95% at 149°F (65°C) noncondensing
Max operating altitude	Up to 10,000 ft (3.048 km)
Max non-operating altitude	Up to 15,000 ft (4.6 km)
Primary airflow	Back to front
Heat dissipation	1275 BTU/hr	1364 BTU/hr	1535 BTU/hr	1705 BTU/hr
Acoustic	L_WAd = 5.9 Bel L_pAm (Bystander) = 41.2 dB	L_WAd = 6.6 Bel L_pAm (Bystander) = 47.7 dB	L_WAd = 6.3 Bel L_pAm (Bystander) = 44.9 dB	L_WAd = 6.8 Bel L_pAm (Bystander) = 49.3 dB
Electrical characteristics
Frequency	47-63 Hz
AC voltage current	100–127V–7.1 A for 100–127VAC 200–240V–3.4A for 200–240VAC
Power consumption (230VAC)	120W Idle Power / 375W Max Power	120W Idle Power / 400W Max Power	120W Idle Power / 450W Max Power	120W Idle Power / 500W Max Power
Regulatory
Compliance	Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety)
RoHS	EN 63000:2018
Safety
EU	EN62368-1, Ed.2:2014 EN62368-1, Ed.3:2020
North America	UL62368-1, CSA 22.2 No 62368-1
Worldwide	IEC 62368-1:2014 IEC 62368-1:2018
EMC
	EN55032:2015/CISPR 32, Class A FCC CFR 47 Part 15:2018, Class A ICES-003, Class A CNS 13438 Class A KN32 Class A VCCI Class A AS/NZS CISPR 32 Class A EN55035:2017/CISPR 35 EN/IEC 61000-4-2 EN/IEC 61000-4-3 EN/IEC 61000-4-4 EN/IEC 61000-4-5 EN/IEC 61000-4-6 EN/IEC 61000-4-8 EN/IEC 61000-4-11 EN/IEC 61000-3-2:2019 EN/IEC 61000-3-3:2013
Laser
	EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1
Mounting
	Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available
