The Dells PowerEdge R770 is powered by Intel Xeon 6 Processors, DDR5 Memory, NVMe BOSS, Energy Star compliant, advanced cooling forcloud environments.
The Dells PowerEdge R770 is powered by Intel Xeon 6 Processors, DDR5 Memory, NVMe BOSS, Energy Star compliant, advanced cooling forcloud environments.
Ideal for:
● Virtualization
● Artificial Intelligence Inferencing
● Cloud-native applications
● Hyperscale workloads
● Scale out Databases
Maximum performance and flexibility to tackle traditional and demanding data center workloads

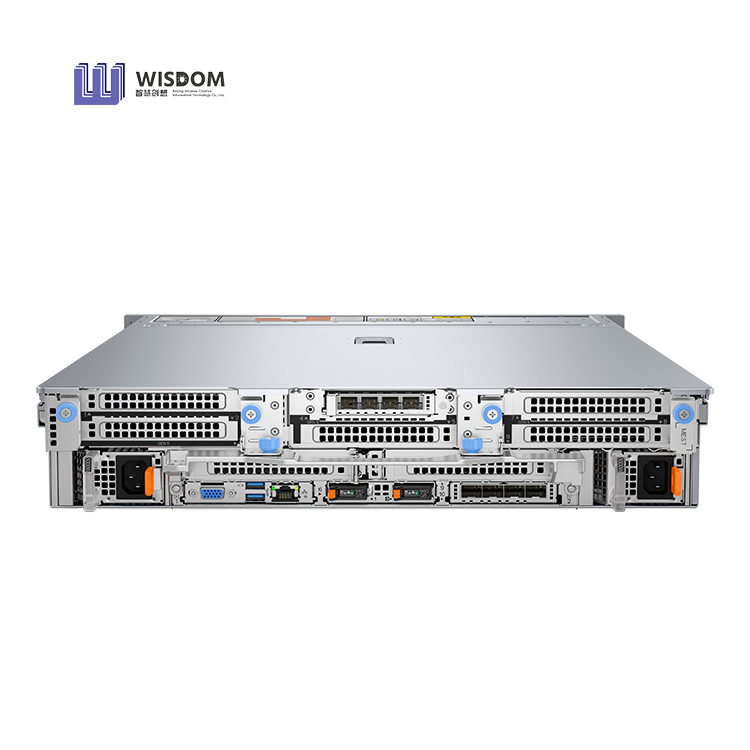

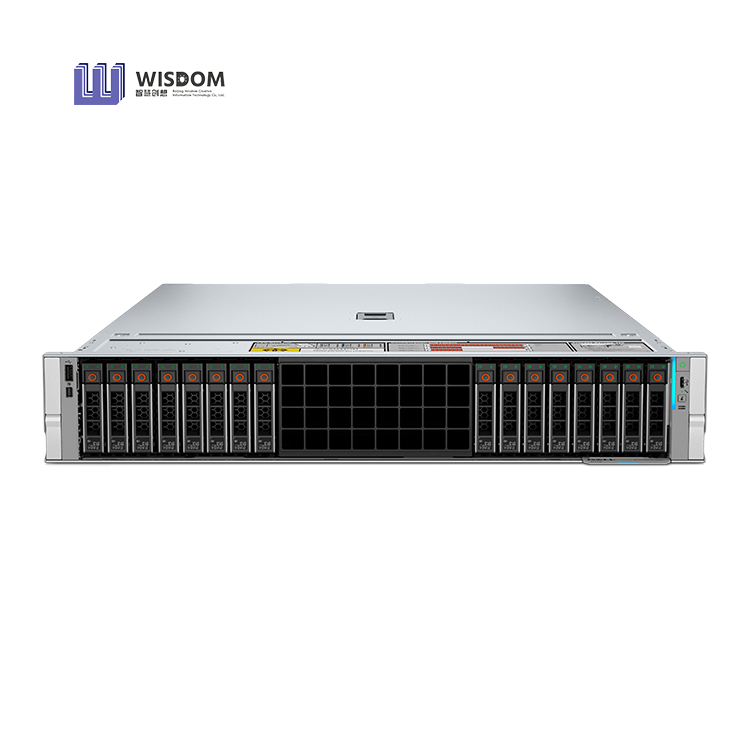

The Dells PowerEdge R770 rack server accelerates your outcomes efficiently with purpose built, intelligent servers designed with maximum performance and flexibility in design.
Tailored to fit complex data centers
The Dell PowerEdge R770 is a 2U, two-socket rack server delivering exceptional performance and scalability transforming complex IT requirements of today’s data centers. It combines enhanced compute power, flexible configurations, and energy efficiency to boost productivity. This makes it ideal for virtualization and microservices, cloud-native applications, large-scale analytics, and AI inferencing support to empower your infrastructure.
● Purpose-built to scale infrastructure to adapt seamlessly to technological changes, integrating new capabilities that support long-term growth and innovation.
● Powered by Intel® Xeon® 6 processors designed to meet diverse performance and efficiency requirements and offered with advanced GPU support.

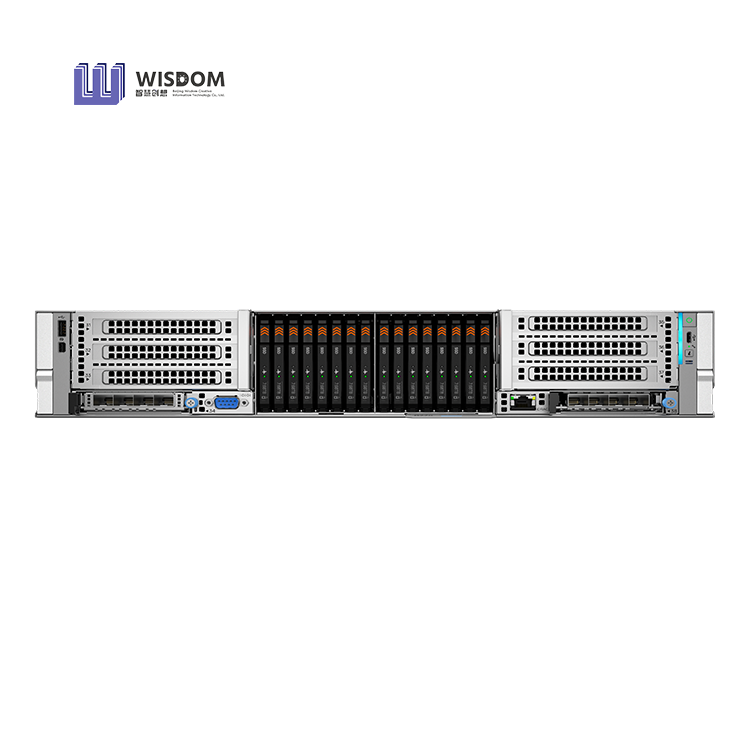

● Enhanced I/O flexibility with optional front I/O configuration for seamless cold aisle serviceability.
● Dells Smart Power and Cooling solutions allow you to choose air cooled or DLC solutions to fit your IT and data center requirements.
● Configurable to suit diverse needs with industry standard open designs (DC-MHS) compliance.
|
Processor |
Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor |
|
Memory |
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS):2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i*, Front PERC H365i |
|
Front and Rear Bays |
• No backplane configuration • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB also comes with FIO configuration • Up to 16 xEDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB also comes with FIO configuration • Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 489.6 TB •Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 122.88 TB • Up to 8 x 2.5-inch Universal max 245.6 TB • Up to 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB • Up to 24 x 2.5 inch SAS/SATA (SSD) max 92.16 TB • Up to 16 x 2.5 inch SAS/SATA (SSD) + 8 x 2.5-inch NVME) max92.16 TB • Up to 40 x EDSFF E3.S Gen5 NVMe (SSD) max 614.4 TB* • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 61.2 TB on the rear |
|
Hot swap Power Supplies |
• 800 W Platinum 100—240 VAC or 240 VDC • 1100 W Platinium 100—240 VAC or 240 VDC • 1500 W Titanium 100—240 VAC or 240 VDC • 1100W Titanium 100—240 VAC or 240 VDC* • 3200 W Titanium 200—240 VAC or 240 VDC • 800 W Titanium 100—240 VAC or 240 VDC* • 3200 W 277 VAC and 336 HVDC Titanium* • 1400 W -48VDC 60mm* • 1500 W 277 VAC and 336 HVDC Titanium* • 2400 W Titanium 100—240 VAC or 240 VDC* |
|
Cooling Options |
Air cooling and Direct Liquid Cooling |
|
Fans |
• High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans • Up to 6 hot swappable fans |
|
Dimensions |
• Height – 86.8 mm (3.42 inches) • Width – 482 mm (18.97 inches) • Weight – 28.53 kg (62.89 pound) Depth (for rear I/O configuration) • 802.40 mm (31.59 inches) with bezel • 801.51 mm (31.56 inches) without bezel Depth (for front I/O configuration) • 814.52 mm (32.07 inches) without bezel Note: The front I/O configuration does not support the bezel. |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) • NativeEdge Endpoint •NativeEdge Orchestrator |
|
Bezel |
Optional security bezel |
|
Security |
• Cryptographically signed firmware • Secure Boot • Silicon Root of Trust • System Lockdown • Data at Rest Encryption (SEDs with local or external key mgmt) • Secured Component Verification (Hardware integrity check) • System Lockdown (requires iDRAC10 Enterprise or Datacenter) • Chassis Intrusion Detection • TPM 2.0 FIPS, CC-TCG certified |
|
Network options |
4 x OCP NIC 3.0 cards (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE* Slot 4 1 x 8 or 1 x 16 Gen5 OCP 3.0 Slot 10 1 x 8 or1 x 16 OCP 3.0 Slot 34 1 x 16 Gen5 OCP 3.0 on front riser Slot 38 1 x 16 Gen 5 OCP 3.0 on front riser |
|
GPU Options |
Up to 6 x 75 W FHHL* or up to 2 x 350 W DWFL |
|
Ports |
Front Ports • 1 x USB 2.0 Type C port • 1 x USB 2.0 Type A port (optional) • 1 x Mini-DisplayPort (optional) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated ethernet port for iDRAC management Rear Ports • 1 x Dedicated ethernet port for iDRAC management • 1 x VGA • 2 x USB 3.1 Type A ports Internal Port • 1 x USB 3.1 Type A por |
|
PCIe |
• Upto two PCIe slots ( x16 connectors) • Slot 31 1 x 16 Gen5 Full Height - Half Length or Full Length on front Riser • Slot 36 1x 16 Gen5 Full Height - Half Length on front Riser • Upto eight PCIe slots (x8 and x16 connectors) • Slot 1 1 x 8 Gen5 Full Height- Half Length • Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length • Slot 3 1 x 16 Gen5 Full Height- Half Length or 1 x 16 Gen5 Low Profile • Slot 4 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or1 x 8 or 1 x 16 OCP 3.0 • Slot 5 2 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length • Slot 7 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length • Slot 8 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length • Slot 9 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 16 Low Profile- Half Length |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V (P-Core only) • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
Systems management and security solutions
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC,
OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
