Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
|
Processor |
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor |
|
Memory |
• 24 DDR5 DIMM slots, supports RDIMM 3TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Controllers (RAID): N/A • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) • External HBAs (non-RAID):N/A |
|
Drive bays |
Front bays: • 24 x 2.5-inch U.2 Gen5 NVMe max 2928 TB |
|
Power Supplies |
• 1500 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant •2400 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 3200 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant |
|
Cooling Options |
Air cooling |
|
Fans |
• Up to six hot plug fans |
|
Dimensions |
• Height – 86.8 mm (3.42 inches) • Width – 482 mm (18.98 inches) • Depth – 802.4 mm (31.59 inches) with bezel 801.51 mm (31.55 inches) without bezel |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC10 • iDRAC Direct • iDRAC RESTful API with Redfish • Racadm CLI |
|
Bezel |
Optional Metal Bezel |
|
OpenManage Consoles |
• OpenManage Enterprise (OME) • OME Power Manager • OME Services • OME Update Manager • OME APEX AIOps Observability • OME Integration for VMware vCenter (with VMware Aria Operations) • OME integration for Microsoft System Center • OpenManage Integration for Windows Admin Center |
|
Mobility |
N/A |
|
Tools |
IPMI |
|
Integrations and Connections |
OpenManage Integrations • RedHat Ansible Collections • Terraform Providers |
|
Change Management |
• Dell Repository Manager • Dell System Update • Enterprise Catalogs • Server Update Utility (SUU) |
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
|
GPU Options |
N/A |
|
Ports |
Front Ports • 1 x USB 2.0 Type-A (optional LCP-Secondary KVM) • 1 x USB 2.0 Type-C (HOST/BMC Direct) • 1 x Mini DisplayPort (optional LCP-Secondary KVM)
Rear Ports • 1 x dedicated BMC Ethernet port • 2 x USB 3.1 Type-A • 1 x VGA
Internal Port • 1 x USB 3.1 Type-A |
|
PCIe |
Up to five* PCIe slots (x16 connector) • Slot 2: 1 x16 Gen5 Full Height • Slot 3: 1 x16 Gen5 Full Height or 1 x16 Gen5 Low Profile • Slot 4: 1 x16 Gen5 Full Height* • Slot 7: 1 x16 Gen5 Full Height • Slot 8: 1 x16 Gen5 Full Height • Slot 9: 1 x16 Gen5 Low Profile |
|
Gen5 PCIe slots |
5 |
|
OCP Network options |
• 1 x OCP NIC 3.0 card (optional) and 10GbE • Slot 10: 1 x4 Gen3 OCP3.0 |
|
Embedded NIC |
1 Gb dedicated BMC Ethernet port |
|
PCIe Add-in Card (AIC) NIC |
100 GbE and 400GbE; NDR VPI (400GbE) |
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V* • Red Hat Enterprise Linux • VMware ESX |
Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
Accelerate transformation anywhere

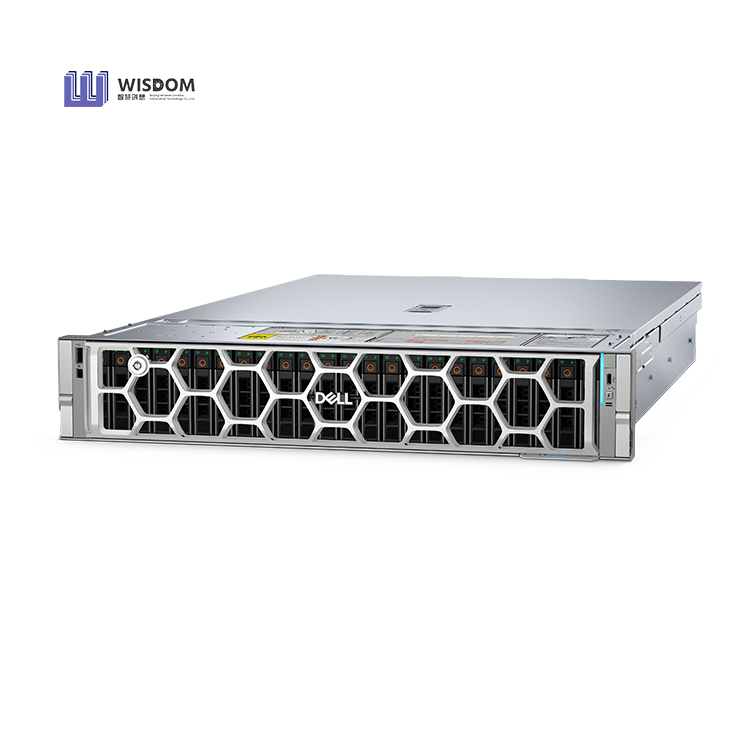

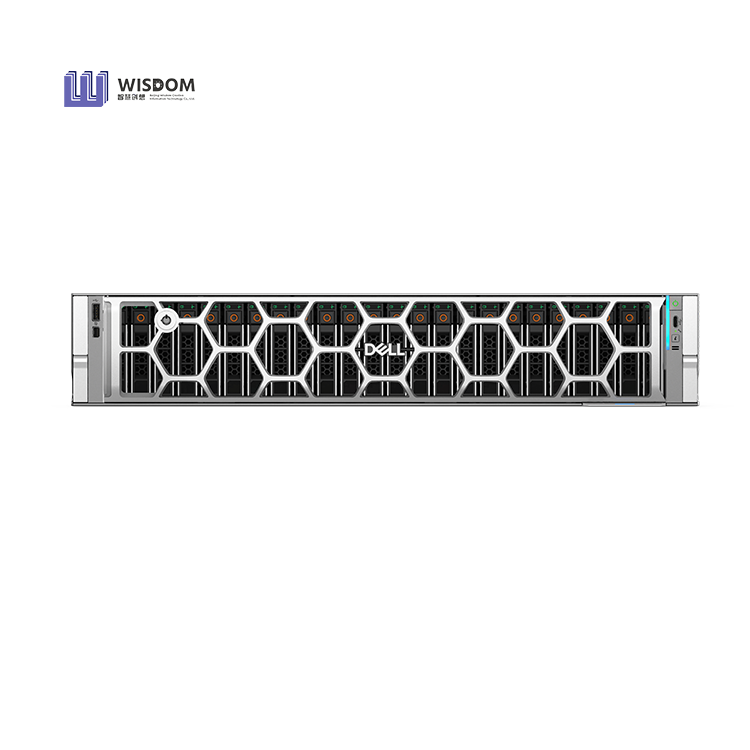

The PowerEdge R7725xd is perfect for high storage requirement data applications with two AMD EPYC™ 5th generation processors, up to 5x PCIe Gen5 slots[1] and up to 24 DDR5 memory DIMMs.
Versatility meets performance
The PowerEdge R7725xd is a storage dense two-socket, 2U rack server built to scale your storage by enabling high-capacity U.2 along with up to 5x 16 PCIe Gen5[2] lanes enabling outstanding storage and networking performance. Ideal for data analytics,high-performance compute (HPC) and high bandwidth object scale.
• Two AMD EPYC™ 5th gen processors
• 50% more PCIe bandwidth for NVMe drives
• Available with air-cooled configurations
Systems management and security solutions
OpenManage systems management
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
