With computing capability previously only seen in 2U servers, the ultra-dense PowerEdge R630 two-socket 1U rack server delivers an impressive solution for virtualization environments, large business applications or transactional databases.

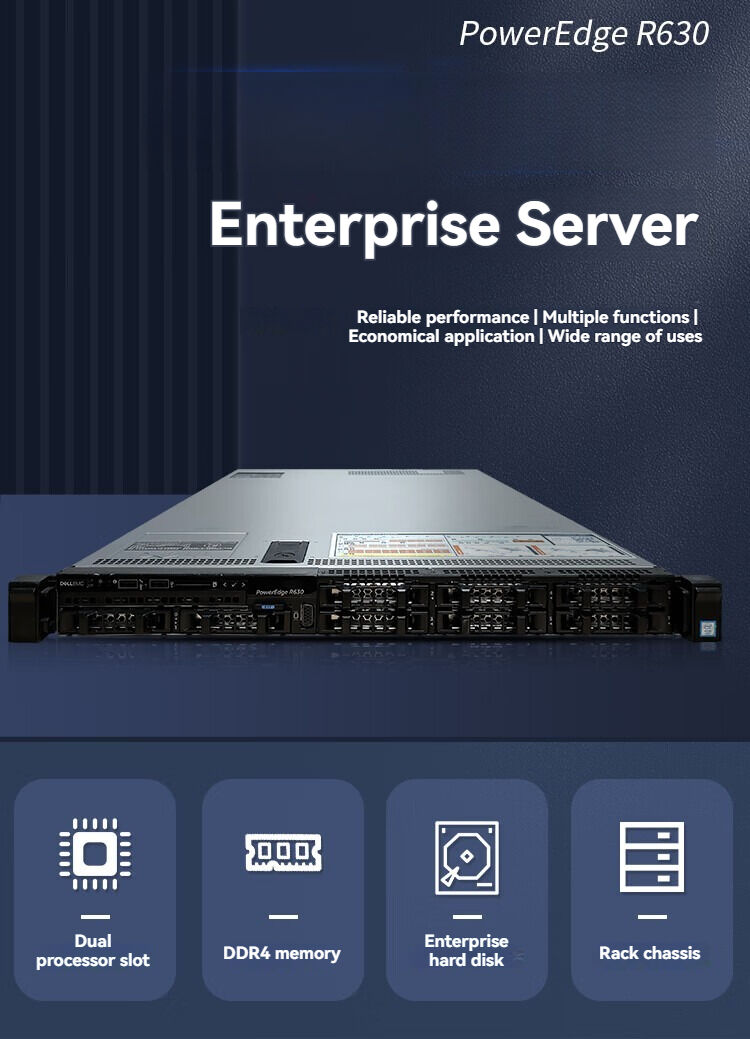

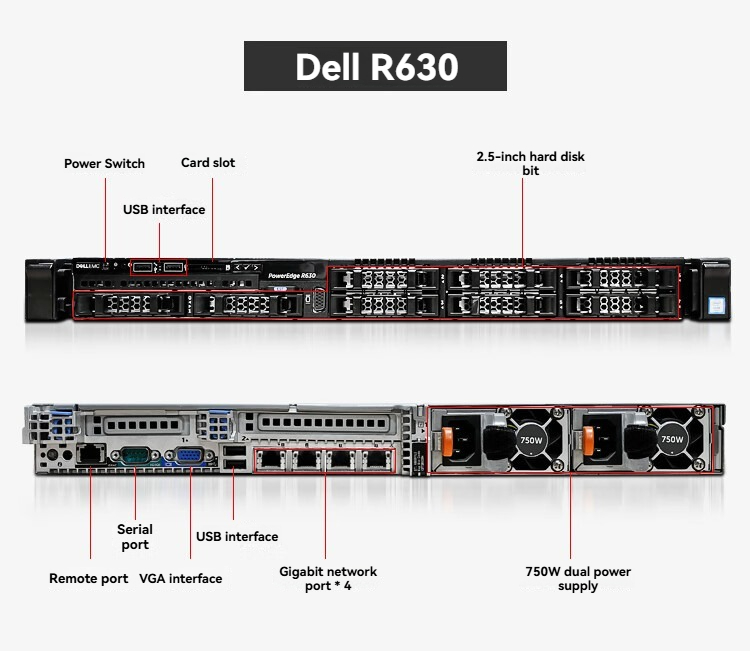

PowerEdge R630
With computing capability previously only seen in 2U servers, the ultra-dense PowerEdge R630 two-socket 1U rack server delivers an impressive solution for virtualization environments, large business applications or transactional databases.
• Latest Intel Xeon E5-2600 v4 processors — up to 22 cores

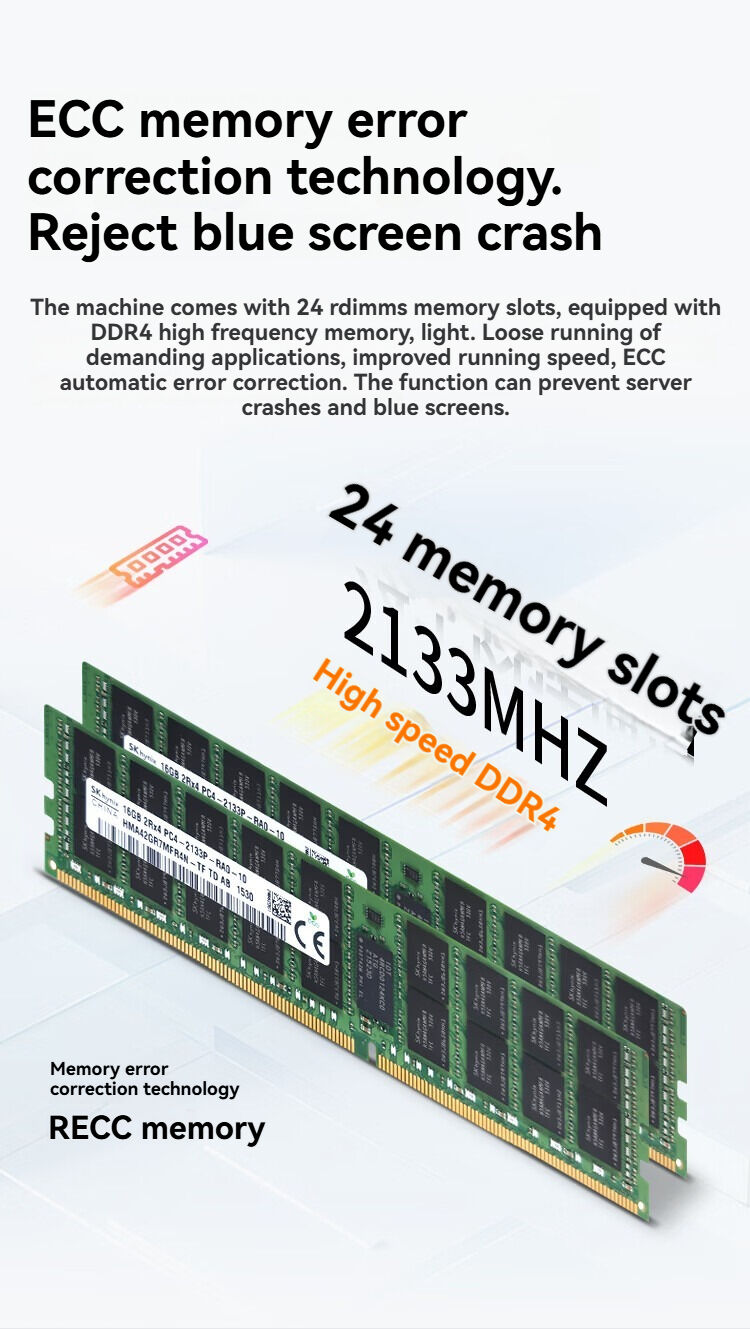

• Up to 24 DIMMs high-capacity DDR4 memory
• Up to 24 1.8" SSDs (23TB)
• Up to 3 PCIe 3.0 expansion slots
• Up to 4 Express Flash NVMe PCIe SSDs
|
Feature |
PowerEdge R630 technical specification |
|
Form factor |
1U rack server |
|
Dimensions |
24 x 1.8" and 10 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 75.51 cm (29.72 in) 8 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 70.05 cm (27.57 in) |
|
Processors |
Intel® Xeon® processor E5-2600 v4 product family |
|
Processor sockets |
2 |
|
Cache |
2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22 |
|
Chipset |
Intel C610 series chipset |
|
Memory |
Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
|
I/O slots |
Up to 3 x PCIe 3.0 slots plus dedicated PERC slot |
|
RAID Controller |

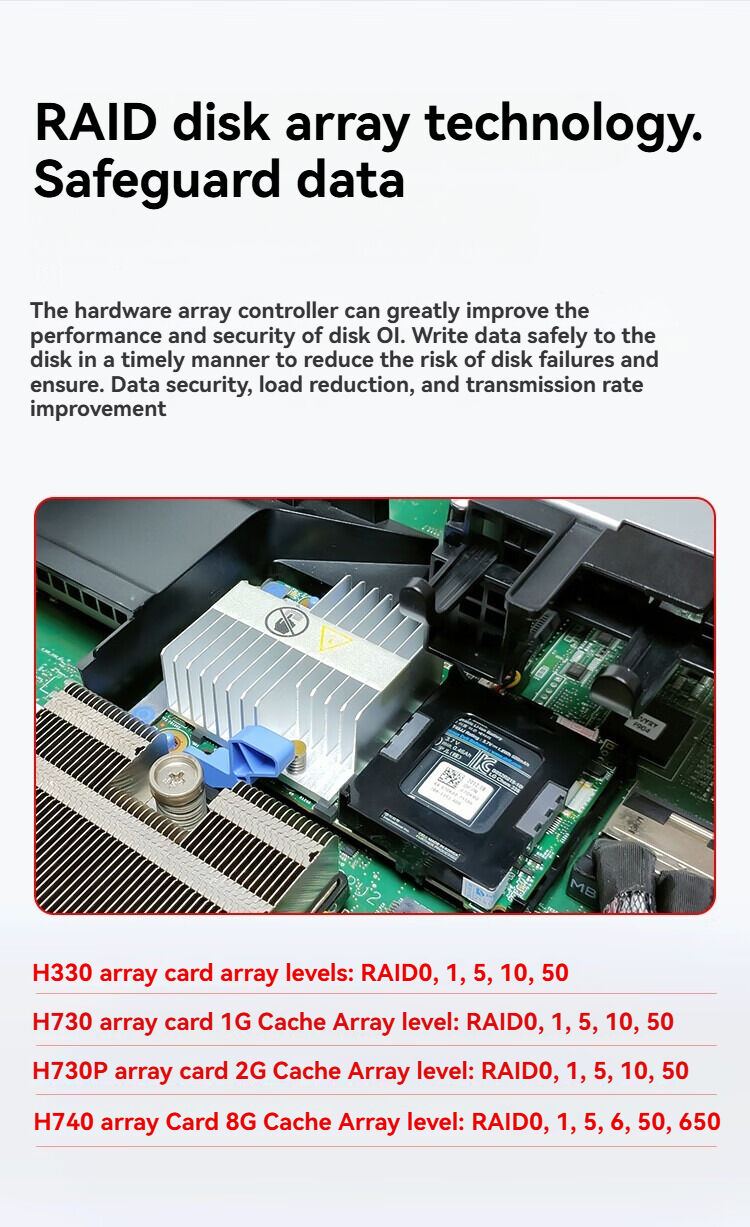

Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA |
|
Drive bays |

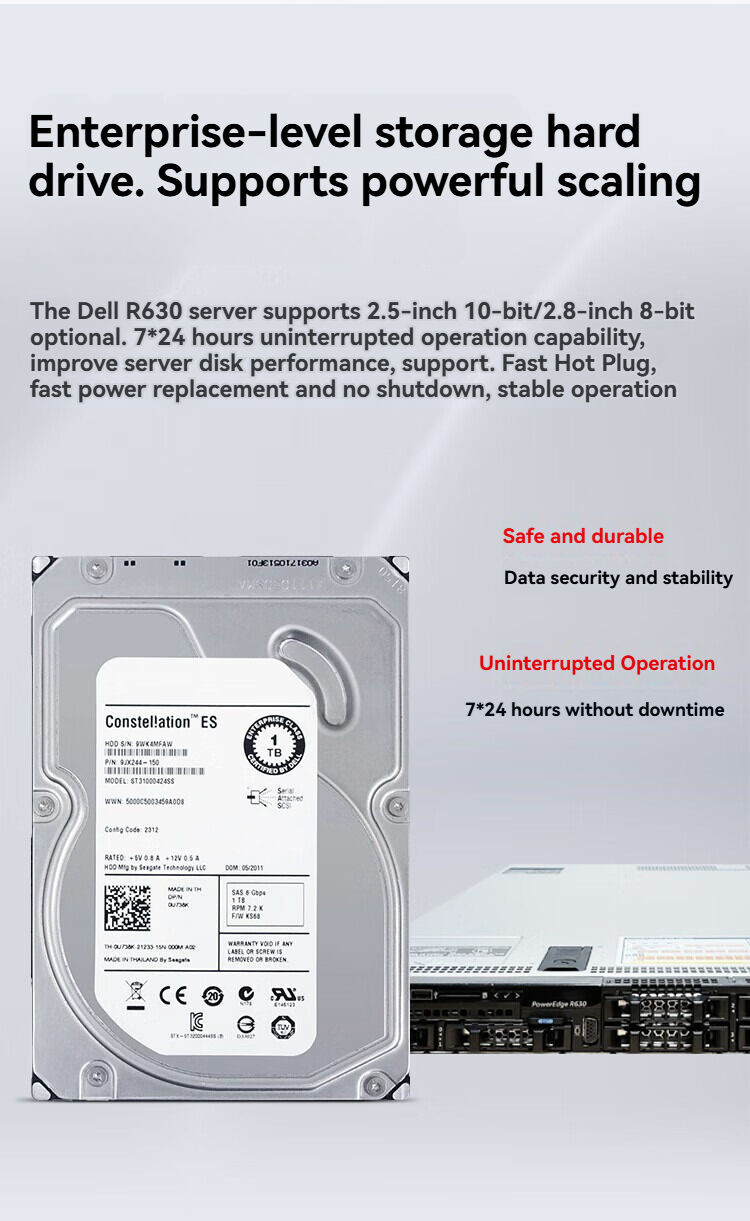

Internal hard drive bay and hot-plug backplane: Up to 24 x 1.8" SATA SSD Up to 10 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS,SATA, Up to 4 NVMe PCIe Up to 8 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA |
|
Maximum internal storage |
HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe 24 x 1.8" SSD – up to 23TB via 0.96 TB hot-plug SATA SSD 10 x 2.5" – up to 18TB via 1.8TB hot-plug SAS HDD 8 x 2.5" – up to 14TB via 1.8TB hot-plug SAS HDD |
|
Embedded NIC |
4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
|
Power supplies |

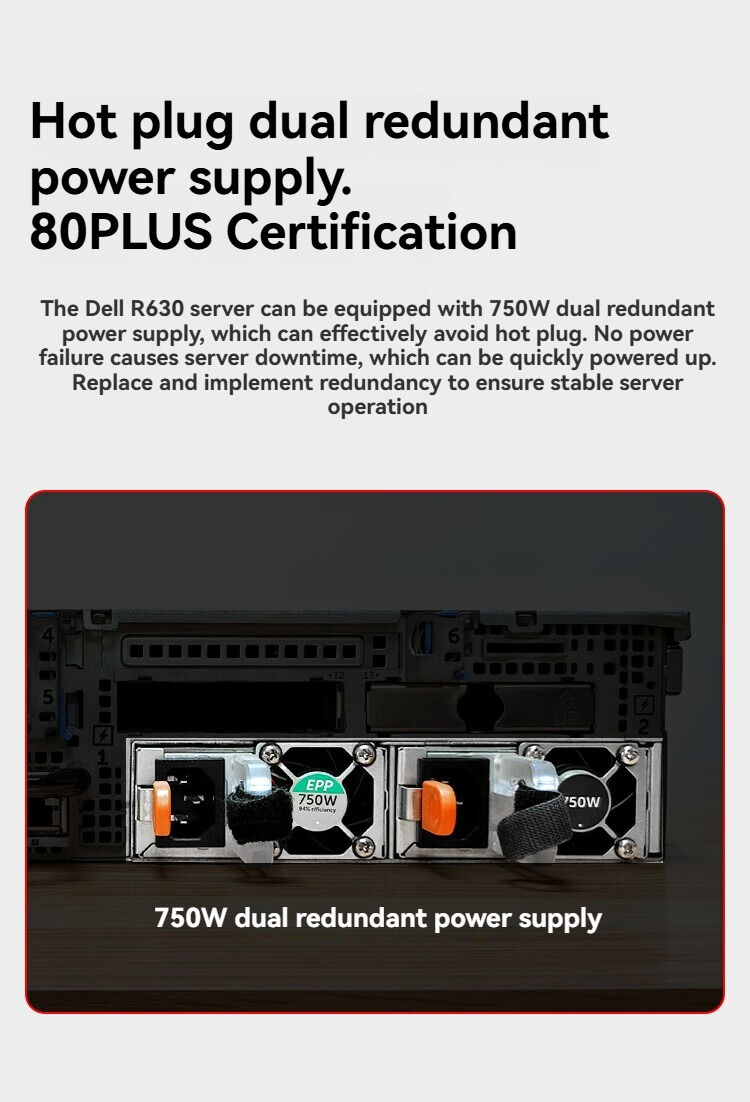

Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W |
|
Availability |
ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, support for high availability clustering and virtualization, proactive systems management alerts |
|
Systems management |
Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center

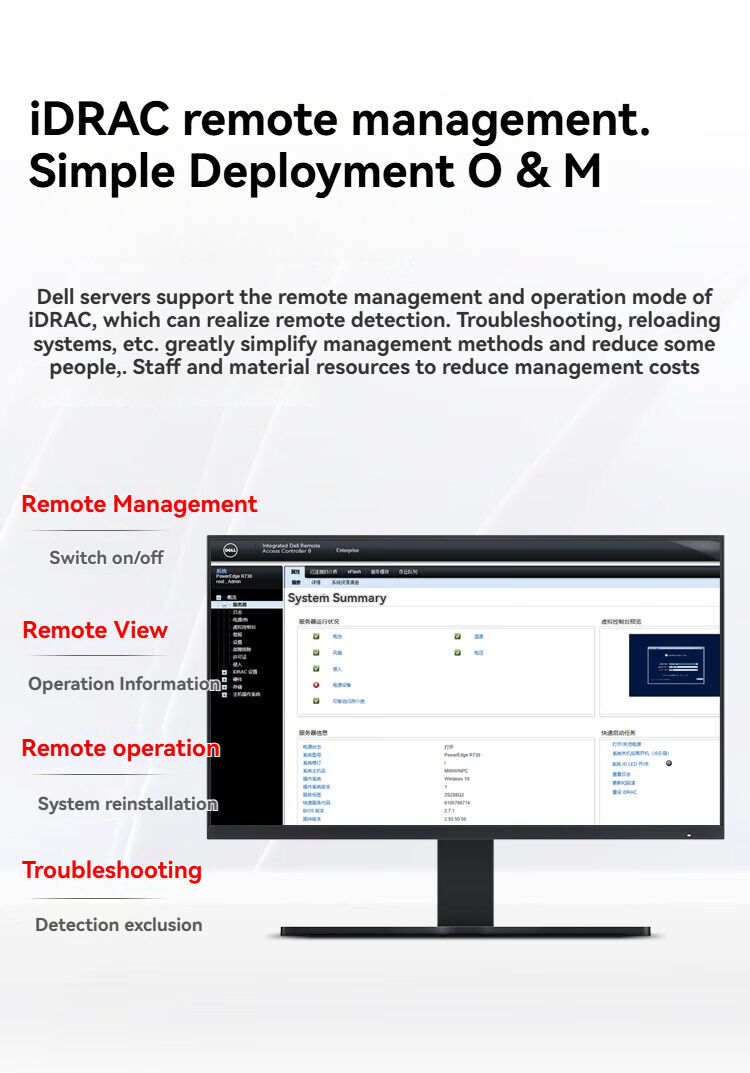

Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade),16GB vFlash media (upgrade) iDRAC Quick Sync
Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management |
