PowerEdge XE servers are acceleration-optimized, purpose-built for Artificial Intelligence (AI), Generative AI (GenAI), and High Performance Computing (HPC). With superior acceleration and diverse GPU options, these powerful platforms are optimized to turn ideas into action faster.
PowerEdge XE servers are acceleration-optimized, purpose-built for Artificial Intelligence (AI), Generative AI (GenAI), and High Performance Computing (HPC). With superior acceleration and diverse GPU options, these powerful platforms are optimized to turn ideas into action faster.
No-compromise accelerated AI
Rapidly develop, train and deploy large machine learning models with this high-performance application server designed for HPC super computing clusters and the largest data sets for AI, used for large scale natural language processing, recommendation engines and neural network applications
Rapidly develop, train and deploy large machine learning models. Accelerate complex HPC applications and drive a wide range of processing needs. XE9640 delivers outstanding performance using Intel® CPUs and new Intel® Data CenterTM Max Series GPUs.
* Break through boundaries with two 4th generation Intel® Xeon® processors and options of Intel and NVIDIA® GPUs
* Increase performance and efficiency with liquid cooled CPUs and GPUs
* Be more efficient with a slim 2U form factor and rack installation for high-density deployments
Deploy and enable HPC applications and AI workloads across your business.
* Efficiently cool data center and HPC cluster operations with Dell Smart Cooling technology with Direct Liquid Cooling on all CPUs and GPUs
*Scale effectively with up to 32 DDR5 memory DIMM slots, up to four drives and up to 4 PCIe Gen5 expansion slots
* Deploy Al operations with confidence thanks to built - in security features including Secured Component Verification and Silicon Root of Trust
|
Processor |
• Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor • Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor |
|
Memory |
• Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor) for XE9640 Intel GPU supported systems. RDIMM max 1 TB with max speeds up to 5600 MT/s • 8 DIMMS, 16 DIMMs and 32 DIMMs for XE9640 NVIDIA GPU supported systems. RDIMM max 2 TB with max speeds up to 5600 MT/s. • Supports DDR5 RDIMM (registered DIMM) only. |
|
GPU |
• NVI DIA H100 SXM 700W NVLINK GPUs • Intel Data Center Max GPU Series 1550 OAM 600W Xelink GPUs |
|
Storage controllers |
• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160 |
|
Drive bays |
Front bays: Up to 4 x 2.5-inch NVMe SSD drives, 61.44 TB max |
|
Power Supplies |
2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant. |
|
Cooling Options |

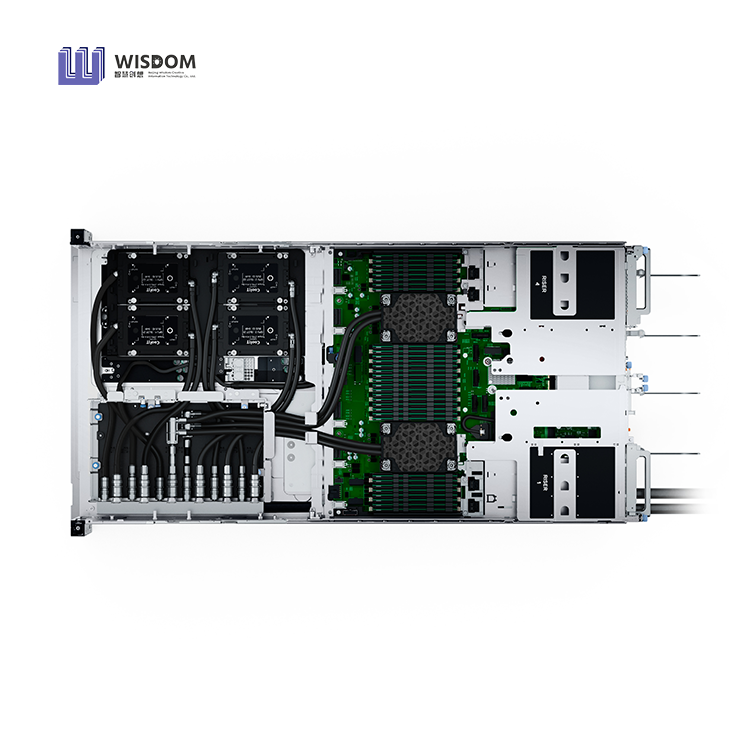

• Liquid Cooling with internal Manifold for GPUs and processors • Four sets (dual fan module) High performance (HPR) gold grade fans for Processors. All are hot swap fans. |
|
Chipset |
Intel® C741 chipset |
|
PCIe |
2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5) |
|
Embedded NIC |
2 x 1 GbE |
|
Network Options |
1 x OCP 3.0 (x8 PCIe lanes) |
|
Dimensions and weight |
• Height — 86.8 mm (3.41 inches) • Width — 482 mm (18.97 inches) • Depth — 926.5 mm (36.47 inches) with bezel — 912.8 mm (35.93 inches) without bezel • Weight — 43.2 kg (95.23 pounds) for XE9640 Intel GPU supported systems — 46.3 kg (102.07 pounds) for XE9640 NVIDIA GPU supported systems |
|
Form Factor |
2U rack server |
|
Embedded Management |
• iDRAC9 • iDRAC Direct |
|
Ports |
Front ports • 1 x iDRAC Direct (Micro-AB USB) port |
Systems management and security solutions
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC,
OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
