Form factor
|
1U rack server
|
|
Processors
|
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
|
|
Chipset platform
|
Intel C622
|
|
Memory
|
24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s
|
|
Internal storage
|
Supports hot-swappable hard drives with the following configuration options:
• 10 x 2.5-inch SAS/SATA/SSDs (6–8 NVMe SSDs and 2–4 SAS/SATA HDDs, with a total number of 10 or less)
• 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total
number of 10 or less)
• 10 x 2.5-inch SAS/SATA
• 8 x 2.5-inch SAS/SATA hard drives
• 4 x 3.5-inch SAS/SATA hard drives
Flashstorage:
• 2 M.2 SSDs
|
|
RAID support
|
RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,self-diagnosis, and web-based remote configuration
|
|

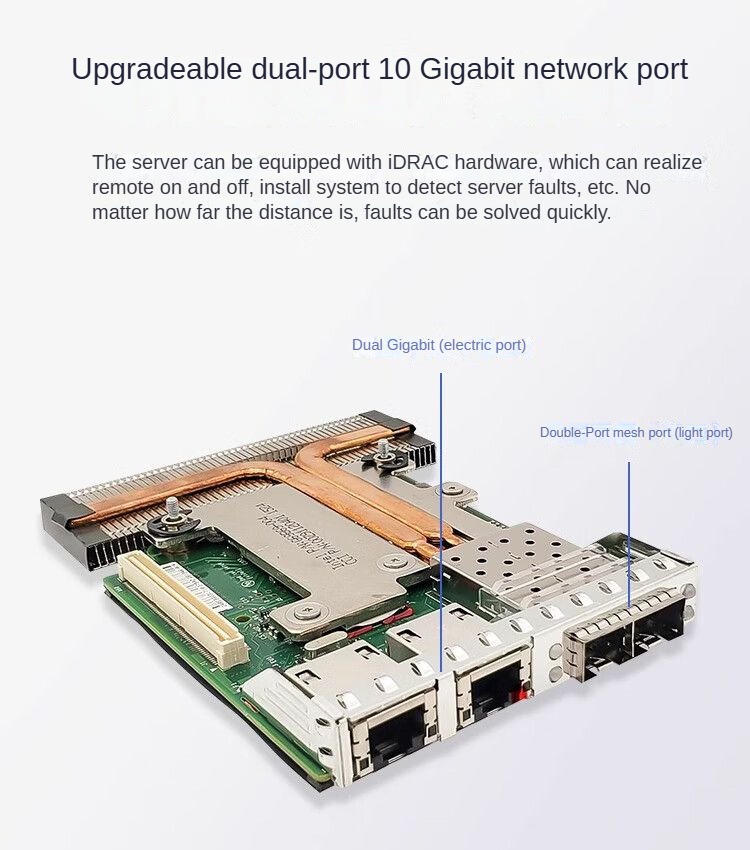

Network ports
|
LOM: 2 x 10GE + 2 x GE ports Flexible
NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports
|
|
PCIe expansion
|
Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
|
|
Heterogeneous accelerator cards
|
2 single-slot HHHL GPU heterogeneous accelerator cards
|
|
Fan modules
|
7 hot-swappable counter-rotating fan modules with support for N+1 redundancy
|
|
Power supply units
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 550 W AC Platinum PSUs (input:100 V to 240 V AC, or 192 V to 288 V DC)
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
|
|
Management
|
• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis,automated O&M, and hardware security hardening. • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/ VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
|
|
Operating Systems
|
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi
|
|
|
Power-on password, Administrator password, Trusted Platform Module (TPM), Security front panel
|
|
Operating
temperature
|
5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE A3 and A4
|
|
Certification
|
CE, UL, FCC, CCC, and RoHS
|
|
Installation suite
|
L-shaped guide rails, adjustable guide rails, and holding rails
|
|

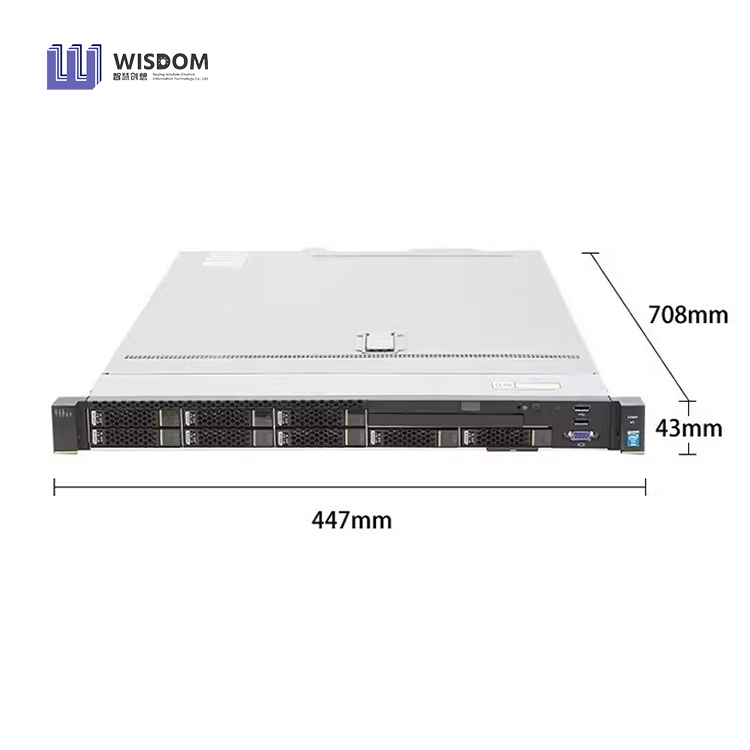

Dimensions
(H x W x D)
|
Chassis with 3.5-inch hard drives: 43 mm x 436mm x 748 mm (1.70 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives:43 mm x 436mm x 708 mm (1.70 in. x 17.60 in. x 27.87 in.)
|
×
