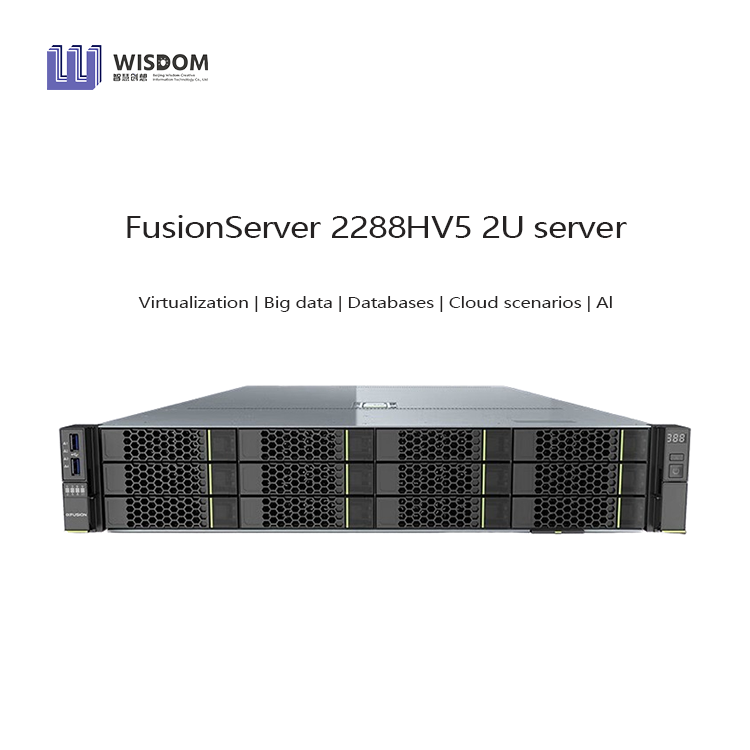

FusionServer 2288H V5 Rack Server

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel^® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

Description
Product Parameters

+86-18600585382

[email protected]

Description

Optimally Balanced Configuration with Ultra-Large Storage

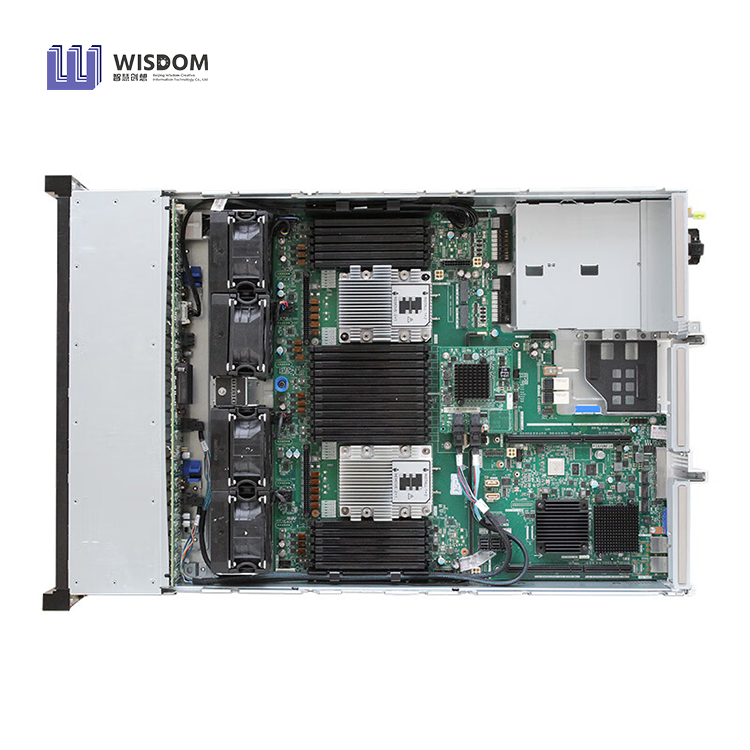

Powered by Intel® Xeon® Scalable processors, supports 24 DDR4 DIMMs and up to 20 x 3.5-inch or 31 x 2.5-inch local hard drives

Smart Power Savings and Better Energy Efficiency

Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance, and uses 80 Plus® Titanium PSUs for better energy utilization

Unmatched Intelligent Manageability and Openne

* Supports smart O&M across the entire lifecycle and FDM for diagnosis with accuracy of up to 93%

* Provides standardized and open interfaces, facilitating integration with third-party management software

Product Parameters

Form factor	2U rack server
Processors	1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
Chipset platform	Intel C622
Memory	24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s
Internal storage	Supports hot-swappable hard drives with the following configuration options: • 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • 12/16/20 x 3.5-inch SAS/SATA hard drives • 4/8/12/24/28 NVMe SSDs Flash storage: • 2 M.2 SSDs
RAID support	RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,self-diagnosis,and web-based remote configuration

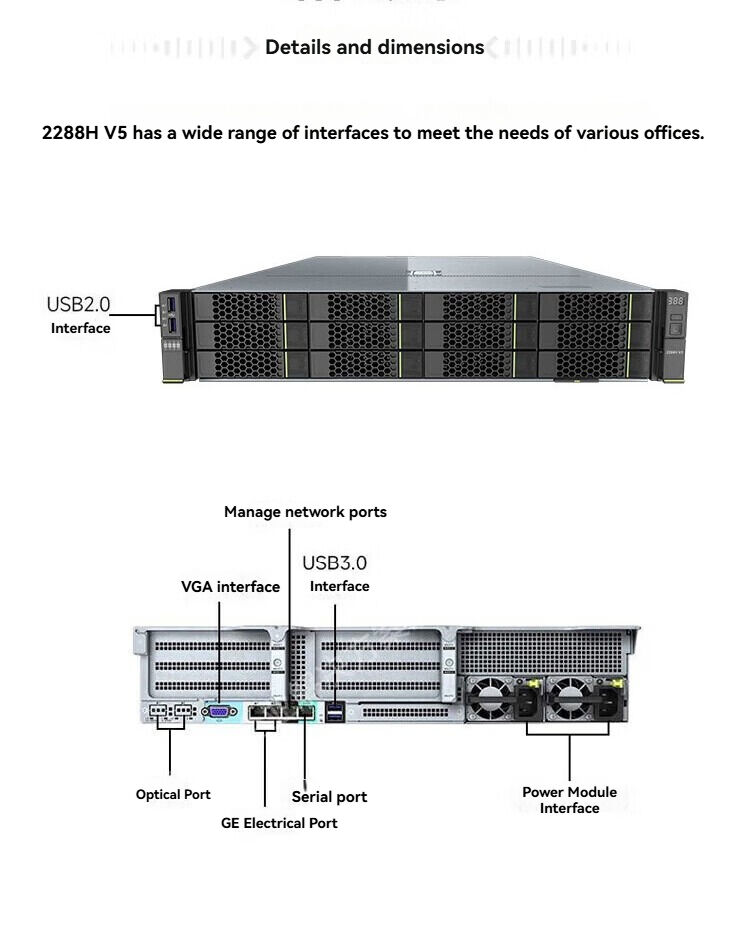

Network ports	LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports
PCIe expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
GPU Card	Up to 7 single-width half-height half-length accelerator cards Up to 2 dual-width full-height full-length accelerator cards
Fan modules	4 hot-swappable counter-rotating fan modules with support for N+1 redundancy
Power supply units	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 550 W AC Platinum PSUs (input:100 V to 240 VAC, or 192 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs • 1000 W (input: 100 V to 127 V AC) • 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
Management	• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing,batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi
Security	Power-on password, Administrator password, Trusted Platform Module (TPM), Security front panel
Operating temperature	5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE A3 and A4
Certification	CE, UL, FCC, CCC, and RoHS
Installation suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
