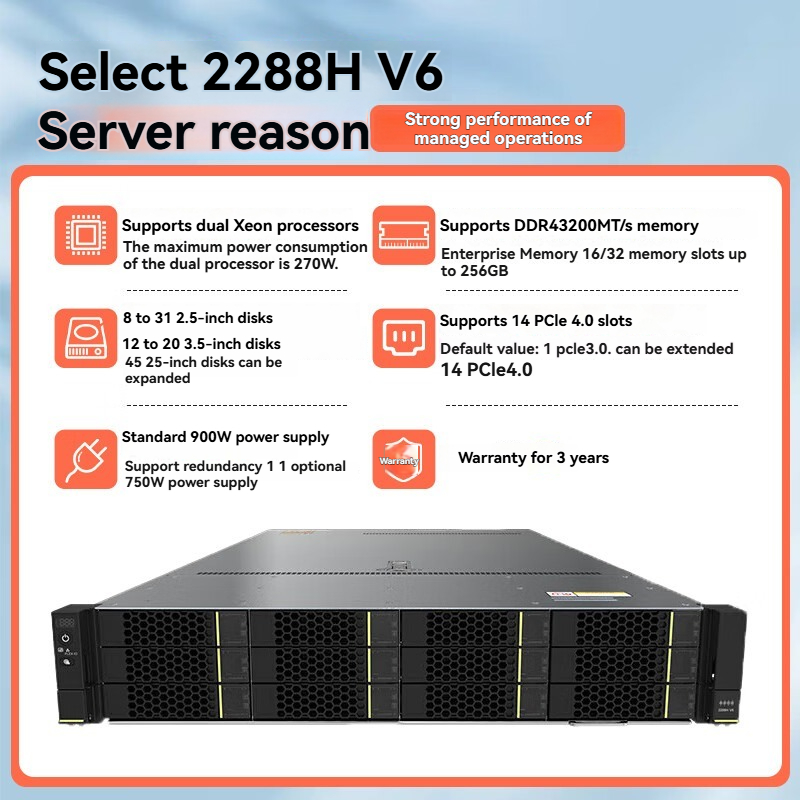

Form factor
|
2U rack server
|
|
Processors
|
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
|
|
Chipset
|
Intel C621A
|
|
Memory
|
16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s
|
|
Local Storage
|
Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
• 2 x M.2 SSDs
|
|
RAID support
|
Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration,drive roaming, self-diagnosis, and remote web-based configuration.
|
|
Network
|
Provides expansion capability of multiple types of networks.
Provides OCP 3.0 NICs. The two FlexlO card slots support two OCP 3.0 network adapter respectively, which can be configured as required. Hot swappable function supported.
|
|
PCIe expansion
|
Provides up to 14 PCIe 4.0 expansion slots for a variety of applications.
|
|
Fan Modules
|
Four hot-swappable counter-rotating fan modules in N+1 redundancy mode
|
|
Power supply
|
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
|
|
Management
|
The BMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis,automated O&M, and hardware security hardening.
• The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for smart and simplified management.
• (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five intelligent technologies,realizing intelligent, automatic, visualized, and refined management throughout the lifecycle
|
|
Operating Systems
|
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu,
Debian, openEuler,etc .
|
|
|
Supports power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and cover opening detection.
|
|
Operating
temperature
|
5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant)
|
|
Certification
|
CE, UL, FCC, CCC, and RoHS
|
|
Installation Kit
|
Supports L-shaped guide rails, adjustable guide rails, and holding rails.
|
|
Dimensions
(H x W x D)
|
Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.)
Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.)
|
×
