H3C UniServer R4900 G6 server is the latest generation H3C X86 2U 2-Socket Rack Server.
R4900 G6 is featured by Intel's new-generation Eagle Stream platform.
R4900 G6 is suitable for most general computing scenarios, including cloud computing,virtualization, distributed storage, and enterprise resource planning.
For typical applications, such as the Internet, Carriers, enterprises, and governments, R4900 G6 can provide balanced computing performance, storage capacity, power saving, scalability, and reliability. For the management part, it becomes much easier for management and deployment.
H3C UniServer R4900 G6 incorporates the latest Inte®Xeon®Scalable family processor and uses 8 - channel 5600MT/s DDR5 memory technology, bringing up to 8TB* memory expansion and a 50% bandwidth increase. The new I/O structure is compatible with PCIe 5.0 standard with a 100% increased data bandwidth compared with the previous generation.
It achieves excellent scalability through local storage support of up to 10 standard PCIe slots and up to 29 drive slots. 96% power supply energy efficiency, and an operating temperature design of 5°C-45°C, provide users with higher energy efficiency returns.
| Model | H3C UniServer R4900 G6 Server |
| Form Factor | 2u |
| Processor | Supports up to 2 Intel Xeon 4th Generation Scalable processor series with up to 60 cores per processor and up to 350W of power |
| Chipset | Intel C741 |

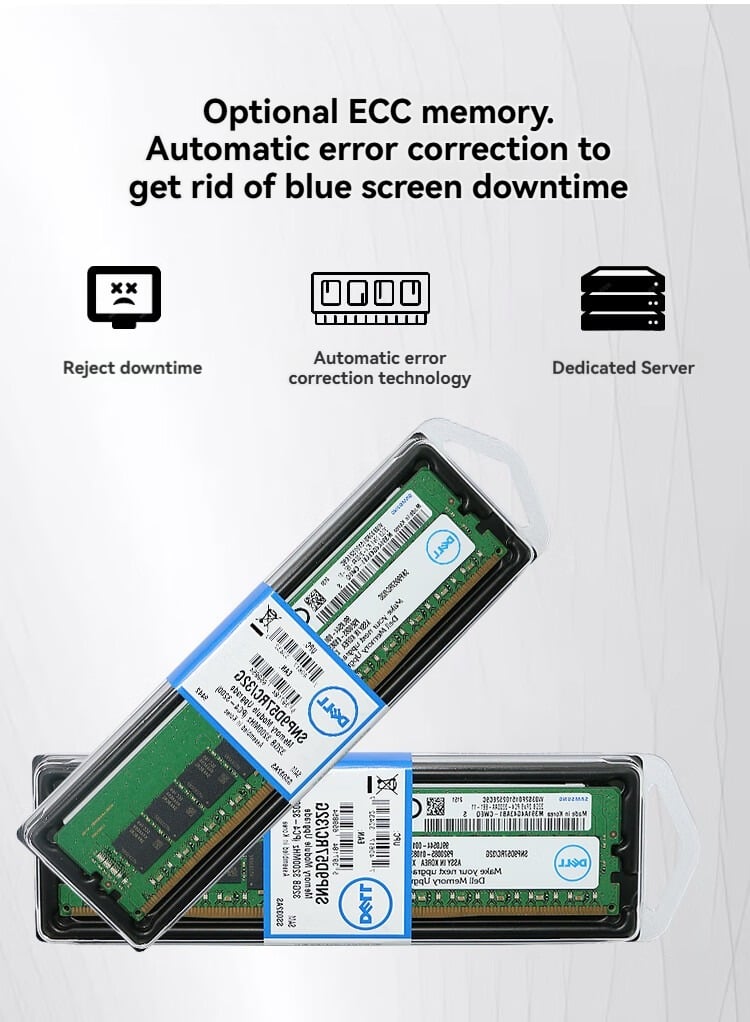

| Memory | Supports up to 32 DDR5 memory slots at a rate of up to 4800MT/S Supports RDIMM; Supports expansion of 16 additional memory slots via CXL |

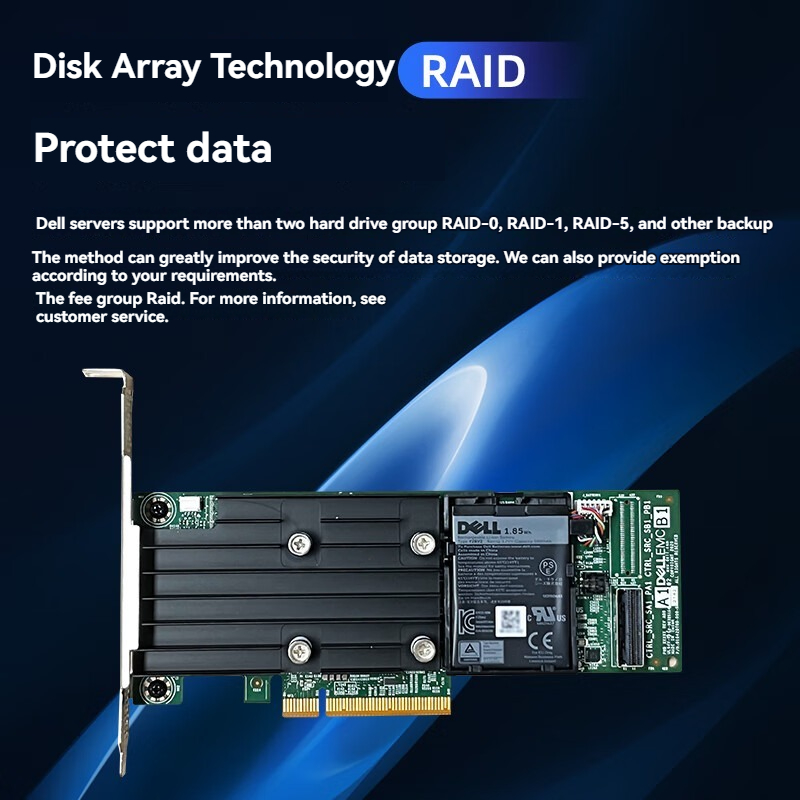

| Storage controller | Standard onboard array controller with SATA RAID 0/1/10/5 support Optional standard PCle 4.0/3.0 based HBA and Smart Array Card options NVMe RAID support |
| FBWC | Optional support for up to 8GB of cache |
| Storage | Supports up to 45 SAS/SATA HDDs1 Supports up to 20 3.5-inch HDDs (12 front, 4 internal expansion, 4 rear expansion)1 Supports up to 45 2.5-inch HDDs (25 front, 10 internal expansion, 10 rear expansion)1 Supports SAS/SATA HDD/SSD HDDs; Supports up to 32 NVMeU.2 HDD slotsSupport up to 8 E1.S slots 1 Optional SATA/NVMe M.2 option, DSD module |
| Network | Onboard 1 1Gbps dedicated management port Onboard up to 2 OCP 3.0 NIC slots with optional expansion 4x1GE electrical or 2x10GE electrical/optical ports or 2x25GE optical or 2x100GE optical ports Optional network adapter based on standard PCle slots, supports 1/10/25/100200 GE NICs, Smart NICs |
| PCIe slots | Supports up to 18 PCle standard slots and 2 OCP 3.0 onboard slots, can support up to 11 PCle5.0 and 7 PCle4.0 standard slots1;Supports CXL1.1 Supports FuII-OCP architecture, can support up to 8 OCP3.0 slots, and can support hot-swappable functions |
| Ports | Standard 1 rear VGA, 4 USB interfaces (1 front, 2 rear, 1 built-in) optional 1 management serial port; optional smart lanyard, support for 1 front dedicated management interface, 1 front VGA, 1 front USB interface |
| GPU | Supports up to 4 double-wide GPU cards or 14 single-wide GPU cards |
| Optical drive | Supports external USB optical drive |
| Manage | HDM agentless management tool (with independent management port) and H3CiFIST/FIST management software, support LCD touchable intelligent management module, support 64M local video memory, optional U-Center data center management platform |
| Security | Support chassis intrusion detection, optional TCM/TPM security module |
| Power and heat | Optional Platinum 800W/1300W/1600W/2000W/2400W/2700W1+1 redundant power supply;optional negative 48V/336V DC power module,support 1+1 redundancy;optional Titanium, CQC31-461288 certified Class V power supply support hot-swappable redundant fans |
| operating temperature | 5℃-45℃ |

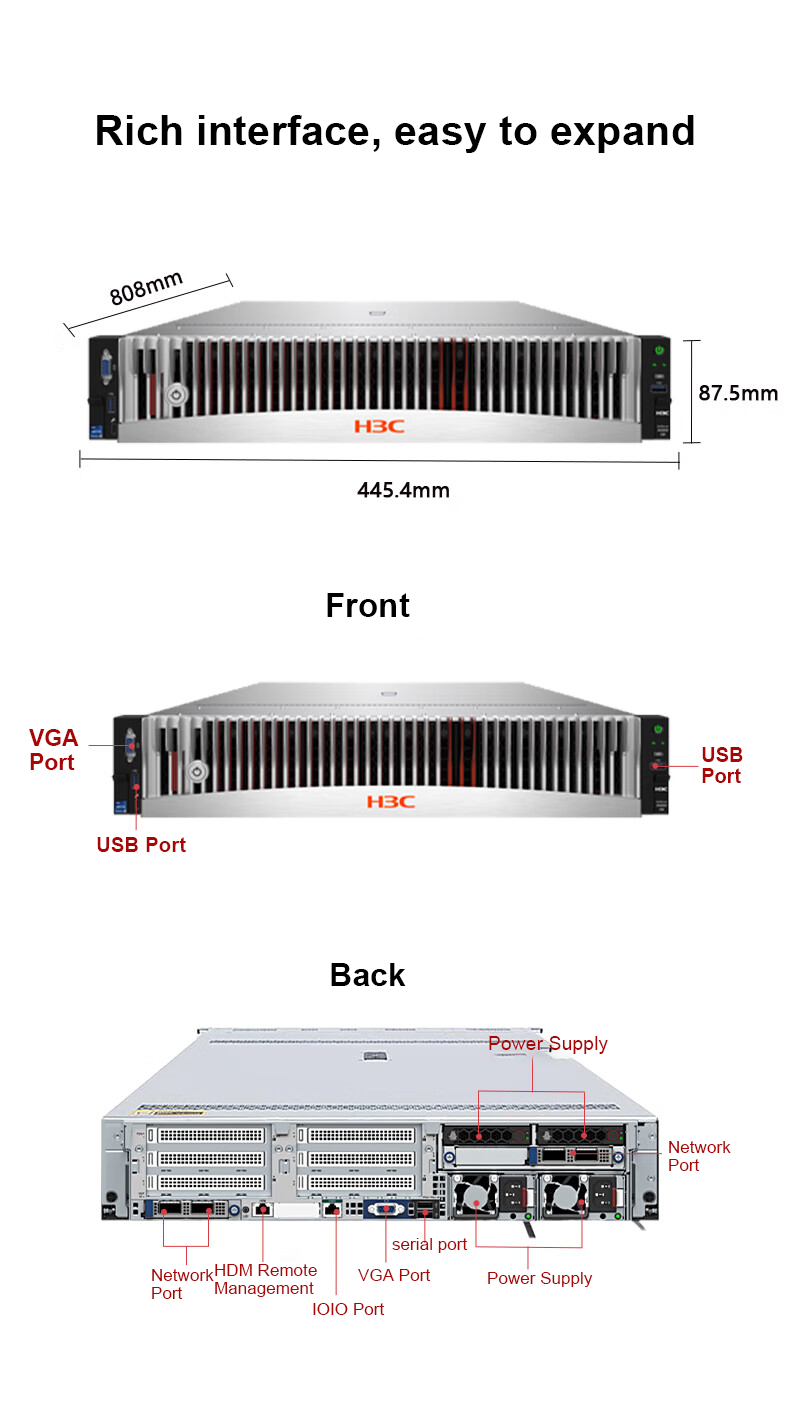

| Appearance/Chassis dimensions | 2U chassis
87.5mm(H)*445.4mm(W)*780mm(D)(without safety panel) 87.5mm(H)*445.4mm(W)*808mm(D)(including safety panel)
|
Features:
Up to 128 CPU cores
Up to 4 dual-slot GPU*
Up to 8 single-slot GPU
XPU
32 DDR5 memory slots
5600MT/s Data Rate
24 U.2 NVME SSD
6 PCI-E 5.0 & 4 PCI-E 4.0 slots
2 onboard OCP3.0 slots
Chassis intrusion detection
SGX 2.0
TPM 2.0
HDM two-factor authorization
