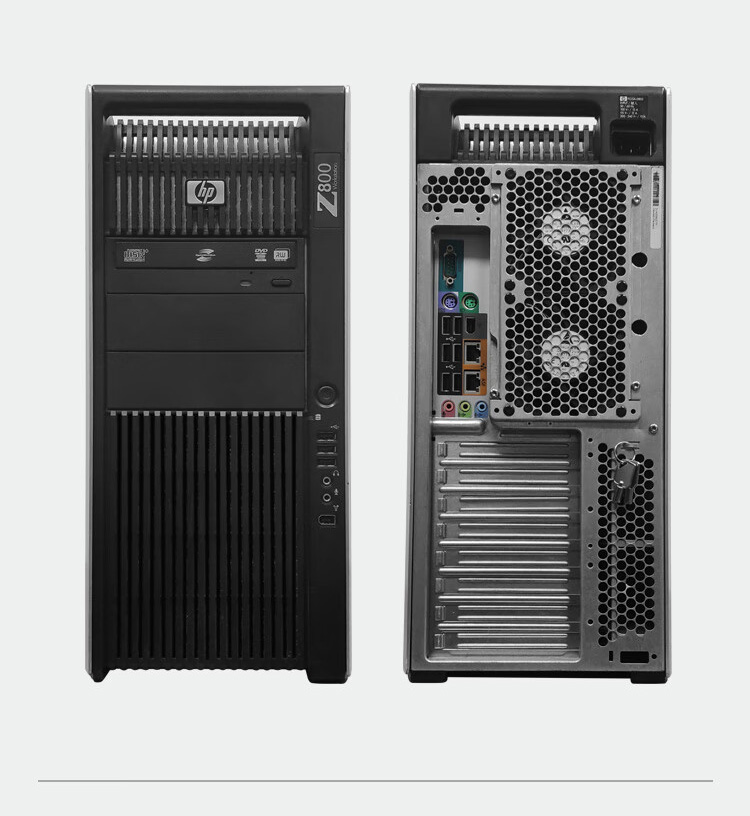

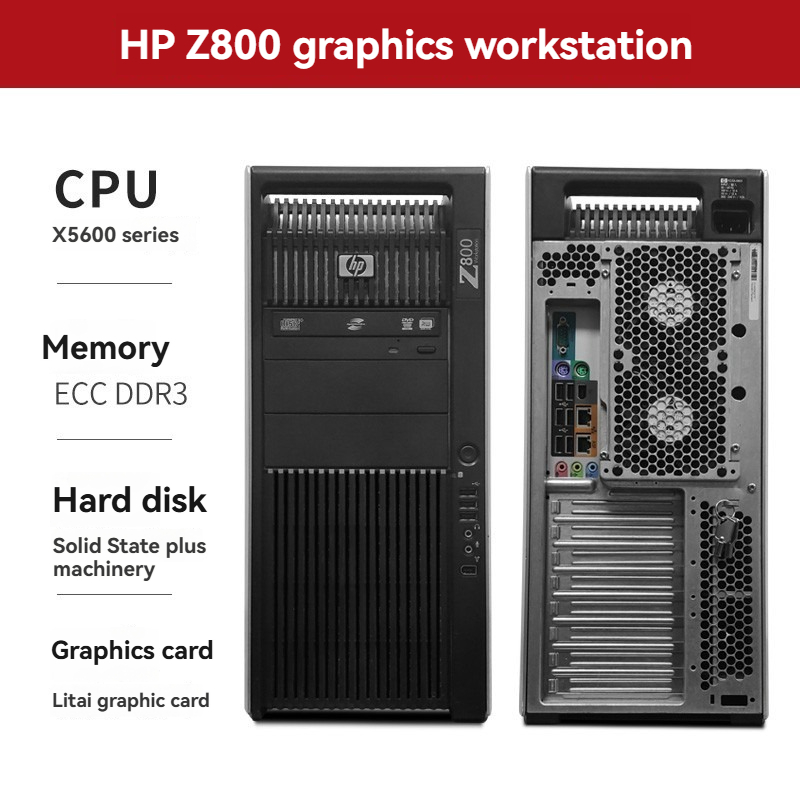

HP Z800 Workstation

Combining ultimate performance with a revolutionary new industrial design, the HP Z800 Workstation delivers the extreme speed and massive expandability that you demand to tackle your biggest challenges.

Description
Product Display

+86-18600585382

[email protected]

Description

Form Factor	Rackable Minitower
Operating System	Genuine Windows Vista® Business 32-bit with downgrade to Windows® XP Professional 32-bit custom installed Genuine Windows Vista® Business 64-bit with downgrade to Windows® XP Professional x64 custom installed Genuine Windows Vista® Business 32-bit Genuine Windows Vista® Business 64-bit HP Installer Kit for Linux (includes drivers for both 32-bit and 64-bit OS versions of Red Hat Enterprise Linux WS4 and WS5)
Available processors	Intel® Xeon® processor1,2 E55043, 2.00 GHz, 4 MB cache, 800 MHz memory, Quad-Core Intel Xeon processor1,2 E55063, 2.13 GHz, 4 MB cache 800 MHz memory, Quad-Core Intel Xeon processor1,2 E55203, 2.26 GHz, 8 MB cache, 1066 MHz memory, Quad-Core Intel Xeon processor1,2 E55303, 2.40 GHz, 8 MB cache, 1066 MHz memory, Quad-Core Intel Xeon processor1,2 E55403, 2.53 GHz, 8 MB cache, 1066 MHz memory, Quad-Core Intel Xeon processor1,2 E55503, 2.66 GHz, 8 MB cache, 1333 MHz memory, Quad-Core Intel Xeon processor1,2 E55603, 2.80 GHz, 8 MB cache, 1333 MHz memory, Quad-Core Intel Xeon processor1,2 E55703, 2.93 GHz, 8 MB cache, 1333 MHz memory,Quad-Core Intel Xeon processor1,2 W55803, 3.20 GHz, 8 MB cache, 1333 MHz memory, Quad-Core
Chipset	Intel® 5520 (Dual)

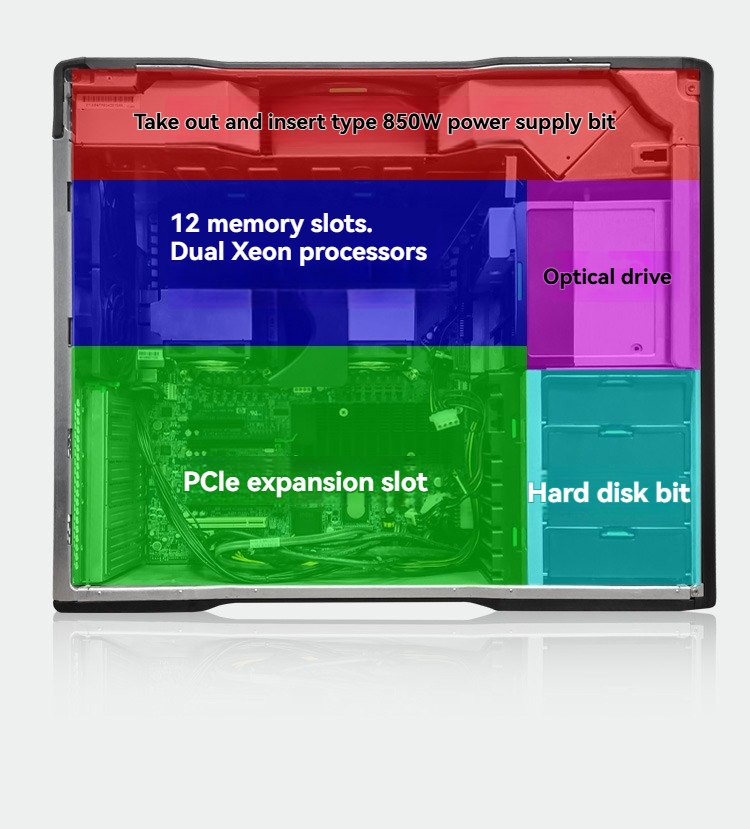

Memory	12 DIMM slots, up to 192 GB (expected availability Q409), 6-channel DDR3 1333 MHz, 3 channels per CPU (actual memory speed dependent on processor capability)
Drive controllers	Integrated SATA 3Gb/s controller, RAID 0, 1, 5, 10 capable; Integrated 8-channel SAS controller, RAID 0, 1, 10 capable; Optional LSI 8888 ELP 8-port SAS HW RAID 0, 1, 5, 10 capable; 6 channels SATA 3Gb/s
Hard drive	Up to (5) 3.5-inch 7200 rpm SATA drives: 160, 250, 320, 500 GB, 1, 1.5* TB, 7.5 TB max; Up to (6) 2.5-inch 10K rpm SATA drives:160, 300 GB SFF, 1.8 TB max; Up to (5) 3.5-inch 15K rpm SAS drives: 146, 300, 450 GB, 2.25 TB max (1.5 TB SATA drive expected availability 9/09).
Optical drives	DVD-ROM, DVD+/-RW, Slot-load DVD+/-RW, Blu-Ray Writer (expected availability May, 2009)
Drive bays	3 external 5.25-inch bays, 4 internal 3.5-inch bays, Up to 4 eSATA, Up to 8 external SAS
Slots	2 PCI Express Gen2 x16, 2 PCI Express Gen2 x16 mechanical/x8 electrical, 1 PCI Express Gen2 x8 mechanical/x4 electri cal, 1 PCI Express Gen1 x8 mechanical/x4 electrical, 1 PCI
Graphics	Professional 2D: NVIDIA Quadro NVS 295 (256 MB) Entry 3D: NVIDIA Quadro FX 380 (256 MB), ATI FirePro V3700 (256 MB), NVIDIA Quadro FX 580 (512 MB) Midrange 3D: NVIDIA Quadro FX 1800 (768 MB), ATI FirePro V5700 (512 MB) High-end 3D: NVIDIA Quadro FX 3800 (1 GB), ATI FirePro V7750 (1 GB), NVIDIA Quadro FX 4800 (1.5 GB), NVIDIA Quadro CX, NVIDIA Quadro FX 5800 (4 GB)
Audio	High-definition integrated Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Network	Integrated Dual Broadcom 5764 LAN, TPM 1.2 Controller, Optional Broadcom NIC, Optional Intel NIC

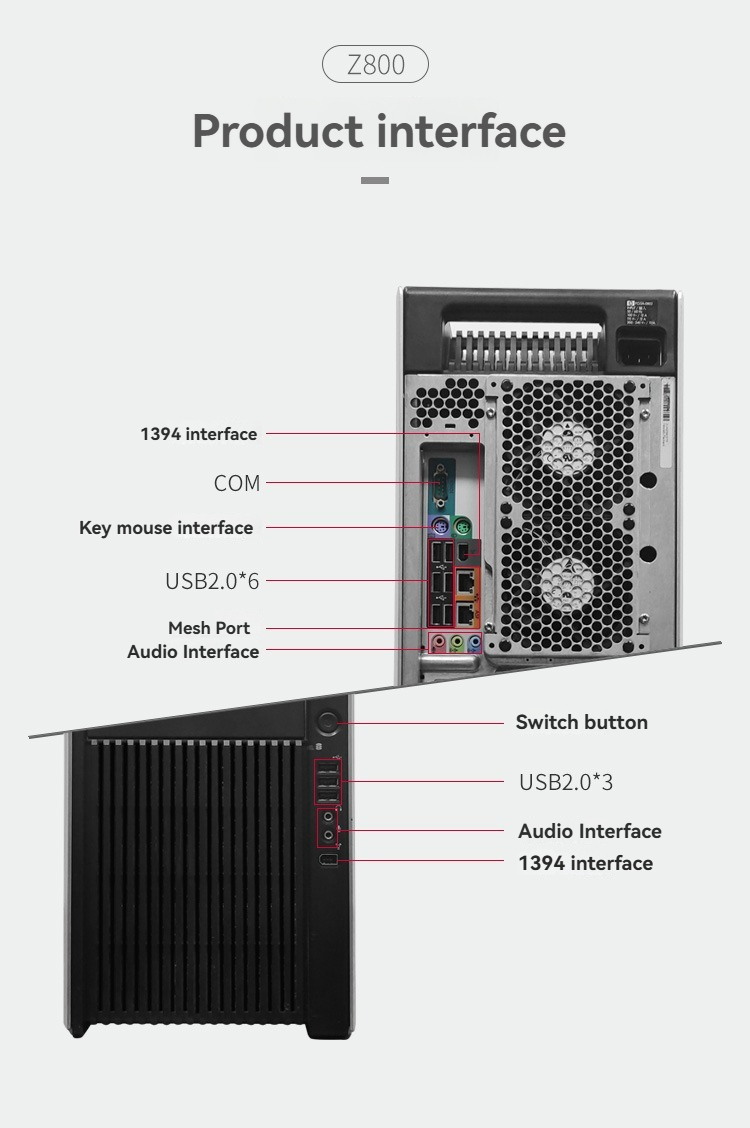

Ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial Internal: 3 USB 2.0
Input devices	PS/2 standard keyboard, USB standard keyboard, USB Smart Card Keyboard, USB 2-button optical scroll mouse, USB 3-button optical mouse, USB SpaceExplorer, USB SpacePilot, USB Laser Scroll Mouse

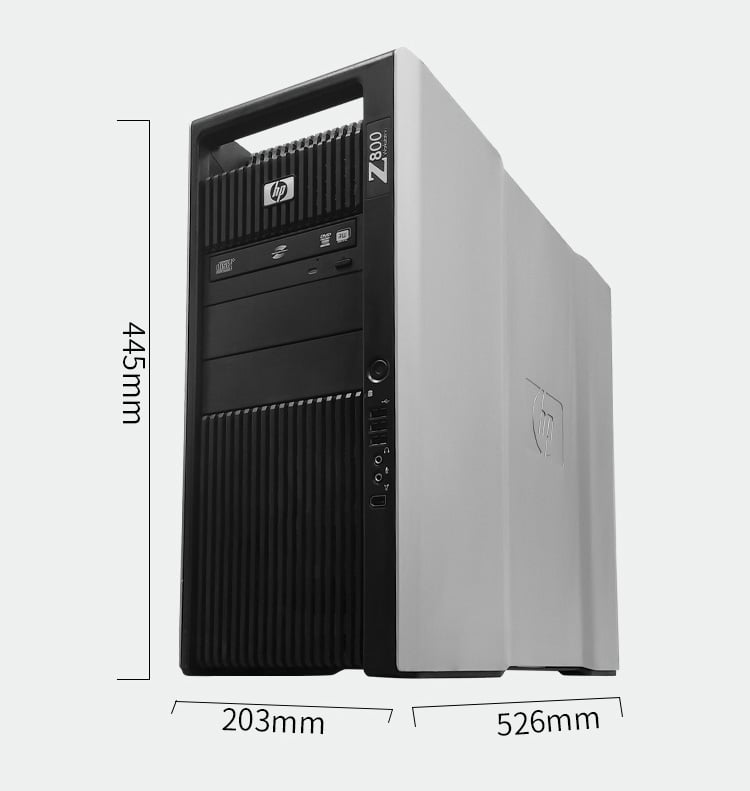

Dimensions (H x W x D)	17.5 x 8.0 x 20.7 in (44.51 x 20.35 x 52.65 cm)
Power supply	850-Watt 85% efficient power supply or 1110-Watt 88% efficient (ENERGY STAR® SILVER) power supply; direct connection Power Supplies
Monitors (screen size diagonally measured)	HP LP1965 19-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch diagonal widescreen), HP LP3065 30-inch Widescreen LCD Monitor

Features:

Innovation that transforms the way you work

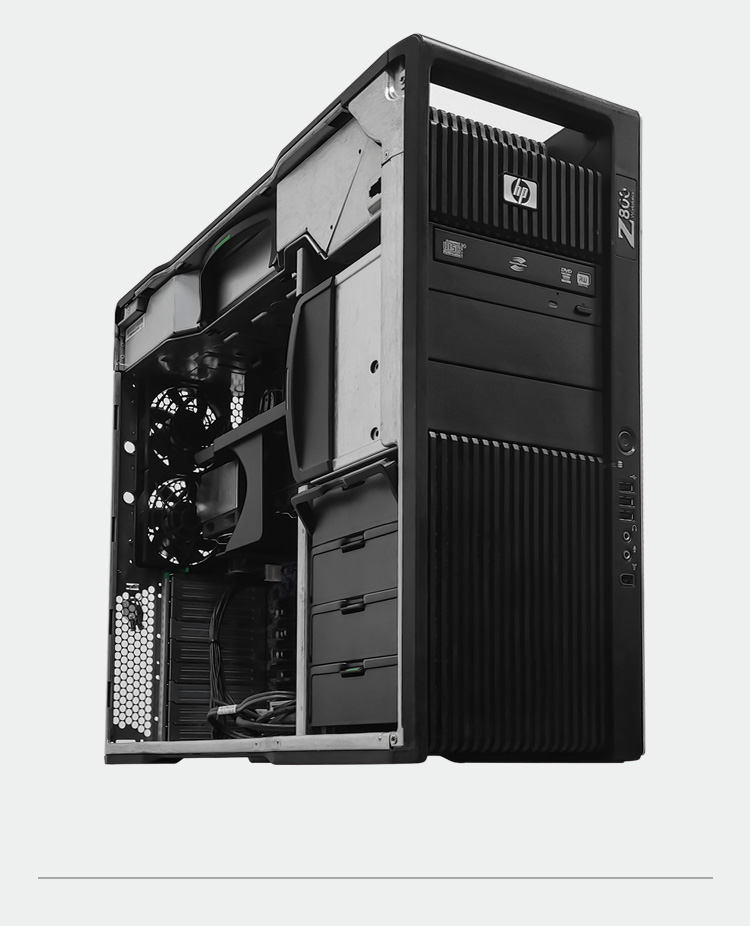

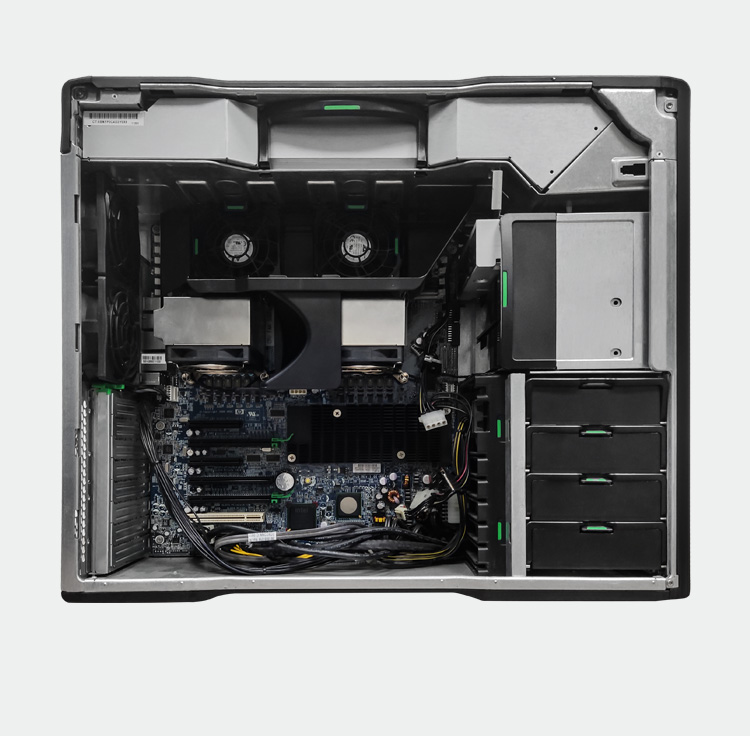

Designed for speed, inside and out, the new HP Z800 revolutionizes workstation industrial design. Featuring brushed aluminum side panels, integrated handles, visually cable-less engineering that maximizes airflow, modular component removal and reconnect, and optional liquid cooling (expected availability July 2009), among many other signature HP Workstation innovations, this is a system you’ll want everyone to see. • Minimize power and cooling costs with ENERGY STAR® qualified configurations featuring 85% or 88%
efficient power supplies and an HP-developed energy-saving feature that helps lower energy consumption in off mode.
• See, share,and show your work across the 9 world with built-in HP SkyRoom collaboration solution which combines real-time 3D graphics sharing and video conferencing

Performance to help you accomplish more every minute

Get massive, whole-system computational power from a workstation that optimizes the way the processor, memory, graphics, OS, and software technology work together. • Process more tasks—in less time—with the massive computational horsepower of the new quad-core Intel® Xeon® processors and Intel® QuickPath Technology
• Customize your HP Z800 with faster and larger memory capacity and large-scale storage
• Choose from a breadth of operating system choices and new professional graphics options from ATI and NVI DIA

Reliable and legendary confidence-inspiring quality

• Close relationships with ISVs help ensure that HP Workstations are fully certified and optimized for your applications •In-depth testing and quality assurance keep you productively up-and-running
• HP Performance Tuning Framework helps ease configuration and updates while optimizing a range of applications
• Comprehensive, lifetime HP Total Care options, easy HP financing solutions, and an array of monitors and other accessories make HP Workstations easy to own and use
