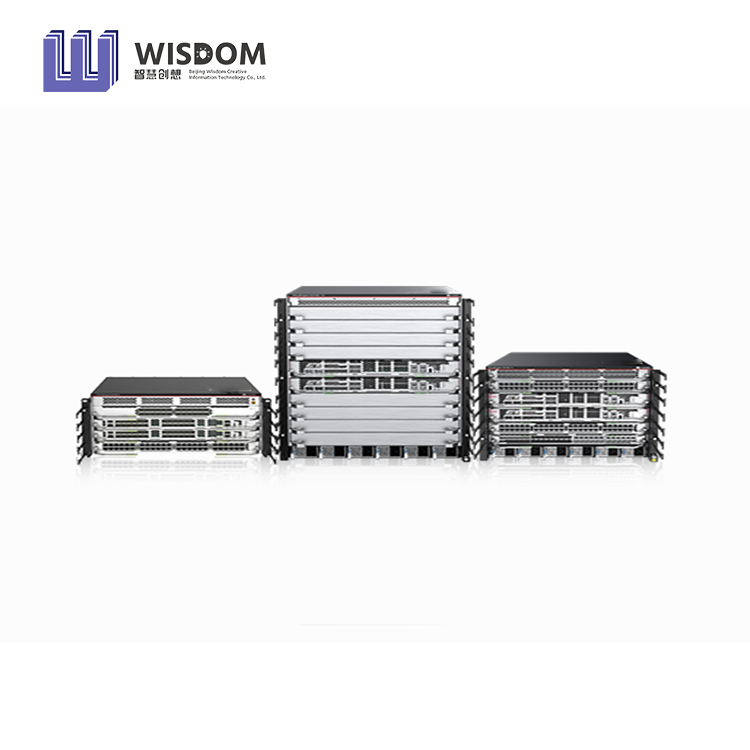

The CloudEngine S8700 series switch (S8700 for short) is Huawei's new-generation, high-density frame switch for cloud campus networks, offering 4-slot, 6-slot, and 10-slot form factors, with ultra-high-density GE/10GE/25GE/40GE/100GE full-rate access ports, which meets the needs of customers to quickly build a two-tier minimalist architecture for medium- and large-scale campus networks.This series of switches is equipped with Huawei's ownEquipped with Huawei's self-developed software platform, this series of switches provides customers with a trusted platform system and secure data access; key components such as the main control, power supply, and fan are designed with redundancy to provide carrier-grade reliability, making it an ideal choice for building a cloud campus network, and helping customers around the world with digital transformation.Widely used in transport, manufacturing, education and other industries in large park convergence, access or small and medium-sized park core.
Features
High density access:
The single board supports up to 72 10 Gigabit optical ports, and the whole machine supports 504 10 Gigabit optical ports, which meets the demand for high-density unified network access.
Ultra-high reliability:
Redundant design of key components, carrier-grade reliability.Main control dual-activity detection mechanism, main control failure white motion inversion service without interruption.
Ultra Power:
Innovative optoelectronic synergy technology supports ultra-long-range PoE power.Up to 90W per port to power APs, IP video phones, and more high-power terminals.
green energy efficiency:
Innovative front and rear "Y + plants" air duct cooling and mixed flow fan technology, low power consumption, bass, strong cooling, green energy saving.
Product Parameters
CloudEngine S8700-4

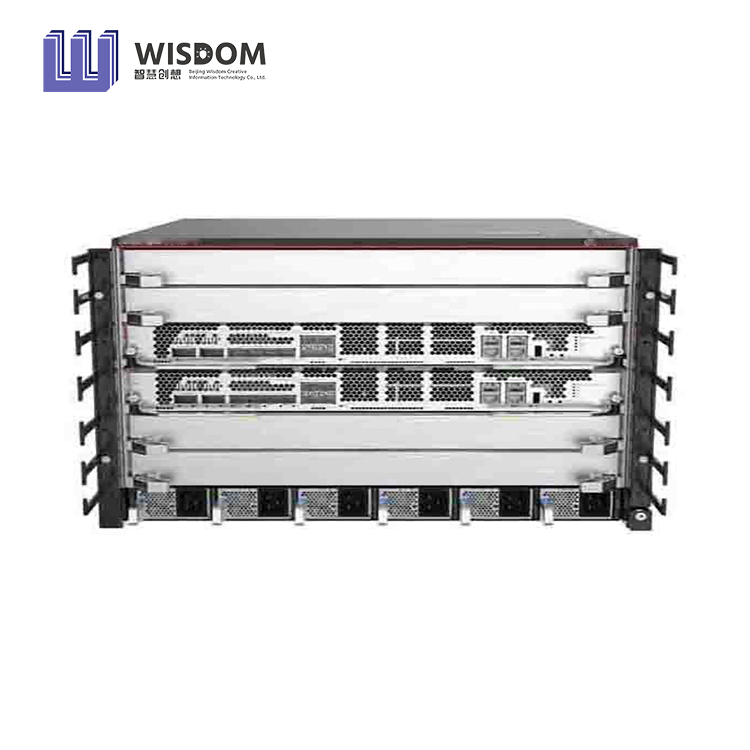

CloudEngine S8700-6

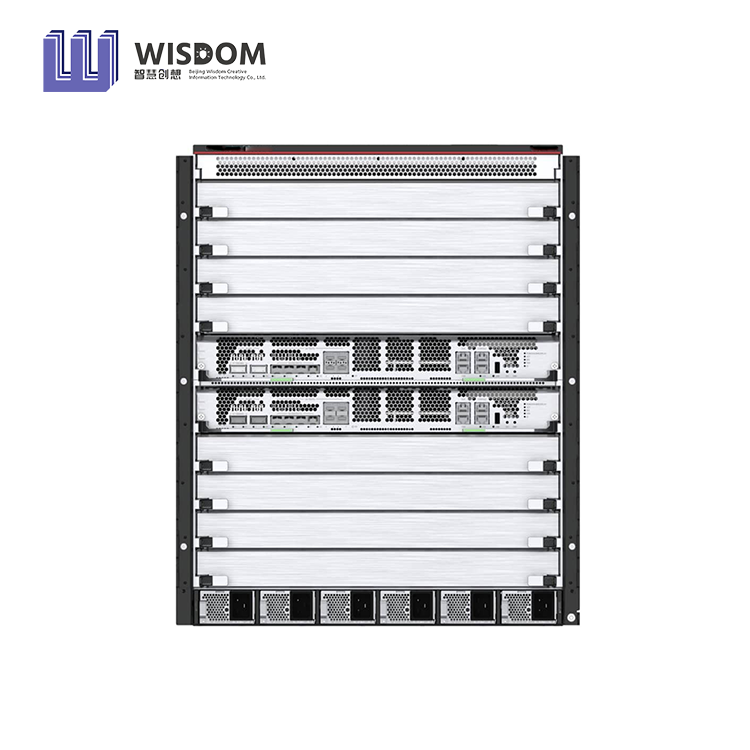

CloudEngine S8700-10
Dimensions (W x D x H)
442*504.5*219.5MM
442*515.5*352.8MM
442*515.5*575MM
Chassis height [U]
5
8
13
Exchange capacity
68.2/307.2 Tbps
102.4/460.8Tbps
170.6/768 Tbps
Packet forwarding rate
51200Mpps
76800Mpps
128000Mpps
Slots of the main control board
2
2
2
Switched Network Slot
2
4
4
Business Board Slots
4
6
10
System power supply
6
6
6
Number of fan modules
1
2
2
Main control board redundancy
hot standby (1:1) mode
hot standby (1:1) mode
hot standby (1:1) mode
Power redundancy
DC power supply: Supports N+0 and N+1 mode. N+1 mode is recommended
AC power supply: Supports N+0.N+1 and N+N modes.N+1 mode is recommended
Dual power supply: N+0.N+1 mode is supported.N+1 mode is recommended
Single input power supply: N+0.N+1, N+N mode, N+1 mode is recommended
Dual power supply: N+0.N+1 mode is supported.N+1 mode is recommended
Single input power supply: N+0.N+1, N+N mode, N+1 mode is recommended
Fan redundancy
A single fan failure is supported in the fan box, and the system supports normal operation for a short period of time after a single fan failure, but it is recommended that the failed fan box be replaced immediately.
Fan modules support hot backup
After a single fan module fails, the system can work normally for a short period of time
Fan modules support hot backup
After a single fan module fails, the system can work normally for a short period of time
Rated input voltage
DC input:-48VDC/-60VDC/48V DC
Ac input :110VAC/220VAC, 50/60Hz
HVDC input :240V DC
Input voltage range
DC input :-38.4V DC to -72VDC
Ac input :90VAC~290VAC; 45HZ~65HZ
HVDC input :190V DC to 290V DC
Maximum power consumption [W]
638W
1560W
2914W
operating temperature
-5°C~45°C(-60m~1800m altitude)
working environment relative humidity [RH]
5%~95%(non-condensation)
Heat dissipation mode
Front air inlet, rear air outlet;air extraction and heat dissipation, intelligent speed control
×
