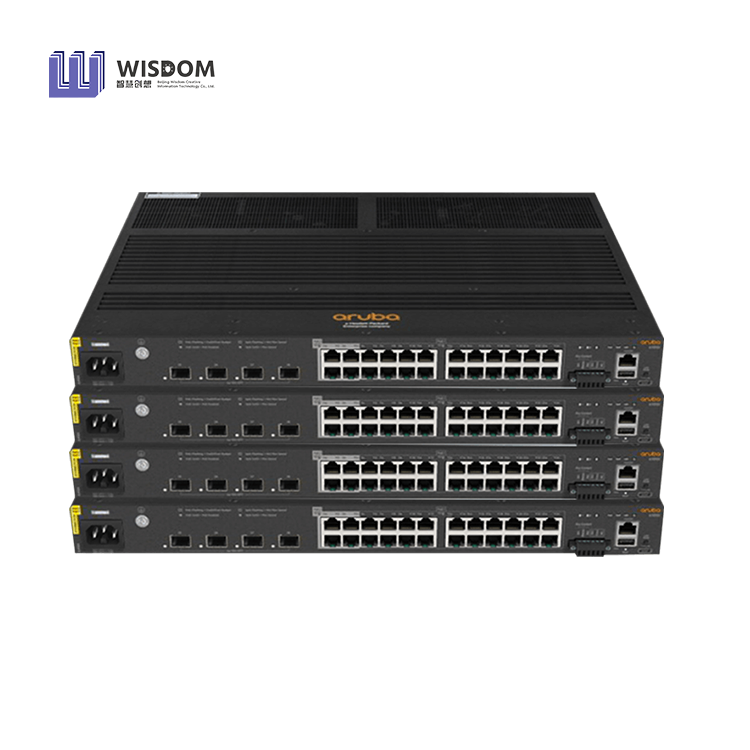

HPE Aruba Networking CX 4100i Switch Series

The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.

Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i also simplifies ownership with no switch software licensing requirements.

Description
Specifications

hpe aruba networking cx 4100i switch series-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access, the HPE Aruba Networking CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.
Based on the programmable HPE Aruba Networking CX Operating System used across the HPE Aruba Networking CX portfolio for a more efficient operator experience, this IP30 ruggedized series operates in extended temperatures, provides protection for sub-station applications with IEC 61850-3 and IEEE 1613 compliance, and has high tolerances for railway applications.

This Layer 2 access switch has convenient built-in high speed uplinks, supports combination of 30W and 60W PoE with up to a 360W power budget, and relies on passive cooling for the fan less 12 port DIN rail mount model and fan less 24 port 1U rack mount model. With enhanced access security, traffic prioritization, and IPv6 support, the HPE Aruba Networking CX 4100i also simplifies ownership and brings peace of mind with no switch software licensing requirements.
Key Features—Ruggedized IP30 series brings enterprise-class Ethernet Layer 2 connectivity with support for ACLs, robust QoS and static routing to non-carpeted areas
—Operational in extended temperatures from -40ºC to +70ºC using HPE Aruba Networking’s industrial transceivers

—Versatile form factors deliver both 30W and 60W PoE to optimize IoT power

—Built-in high-speed 1/10GbE uplinks for demanding applications

—Robust protection for sub-station applications and high tolerances for railway rolling stock, signaling and telecommunications

—Secure and simple access for IoT and users with HPE Aruba Networking Dynamic Segmentation

—Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

—Software defined ready with REST APIs —No switch software licensing required
What's New* Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT,access points, and user devices in harsh environments.
* Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
* Layer 2 feature set with static routing and no switch software licensing required. * HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
* Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch
Multi-Edit Software.

Specifications

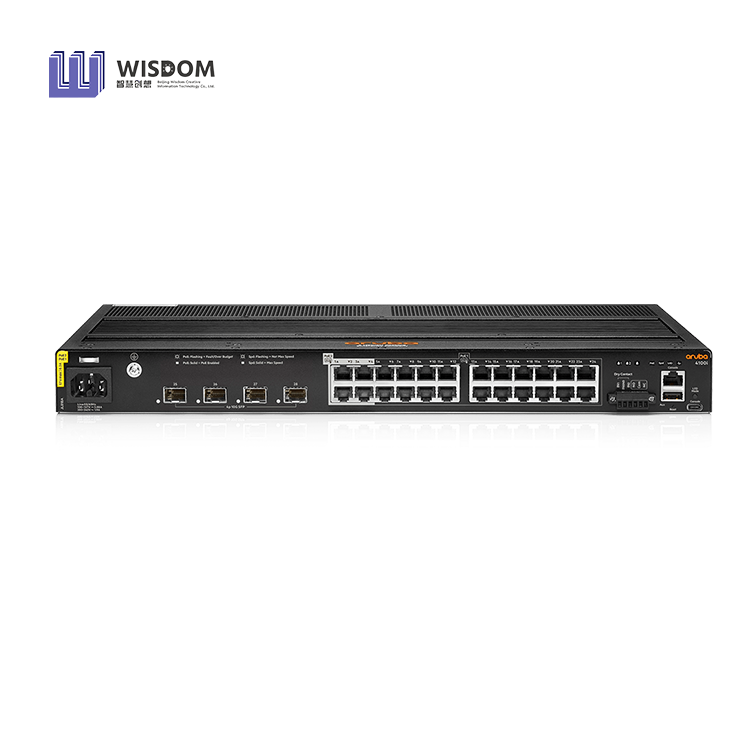

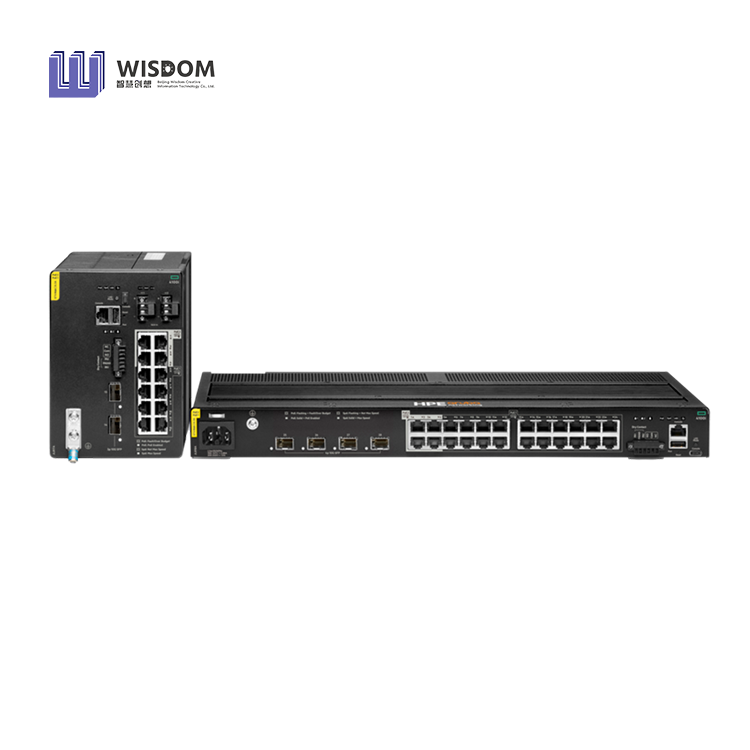

	HPE Aruba Networking 4100i 12-port 1GbE (8-port Class 4 PoE and 4-port Class 6 PoE) 2-port SFP+ DIN Mount Switch (JL817A)	HPE Aruba Networking 4100i 24-port 1GbE (20-port Class 4 PoE and 4-port Class 6 PoE) 4-port SFP+ Switch (JL818A)
Description	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port 2x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket 2x DC power socket	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket
Power supplies	Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy,non-sharing See external PSU specification table for available PoE power	Fixed internal power supply (300W) 240W of PoE Power (no de-rating)
Fans	Fanless	Fanless
Physical characteristics
Dimensions	(H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket) [6.3” x 4.4” x 6.4” (6.8” w/DIN Rail Bracket)]	(H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73” x 17.5” x 12.0”
Configuration weight	3.84 kg (8.46 lb)	6.50 kg (14.33 lb)
Additional specifications
CPU	Dual Core Arm® Cortex A9 @ 1016 MHz	Dual Core Arm Cortex A9 @ 1016 MHz
Memory and flash	4 GB DDR3 32 GB eMMC	4 GB DDR3 32 GB eMMC
Packet buffer	12.38 MB	12.38 MB
Performance
Model switching capacity	Up to 64 Gbps	Up to 128 Gbps
Model throughput capacity	Up to 46 Mpps	Up to 95 Mpps
Average latency (LIFO-64-bytes packets)	1 Gbps: 2.390 µ Sec, 10 Gbps: 2.038 µ Sec	1 Gbps: 1.585 µ Sec, 10 Gbps: 1.243 µ Sec
Switched virtual interfaces (dual stack)	16	16
IPv4 host table (ARP)	756	756
IPv6 host table (ND)	576	576
IPv4 unicast routes	576	576
IPv6 unicast routes	576	576
MAC table size	8192	8192
IGMP groups	512	512
MLD groups	512	512
IPv4/IPv6/MAC ACL entries (ingress)	256/128/256	256/128/256
Environment
Operating temperature	−40°C to 60°C, 0 m/s (-40°F to 140°F, 0 LFM) −40°C to 70°C, 0.2 m/s (-40°F to 158°F, 40 LFM) −34°C to 75°C, 1 m/s (-29.2°F to 167°F, 200 LFM)	−40°C to 60°C, 0 m/s (-40°F to 140°F, 0 LFM) −40°C to 70°C, 0.2 m/s (-40°F to 158°F, 40 LFM) −34°C to 75°C, 1 m/s (-29.2°F to 167°F, 200 LFM)
Non-operating storage relative humidity	5% to 95%, non-condensing	5% to 95%, non-condensing
Max operating altitude	Up to 4.2 km (13,800 ft) Max	Up to 4.2 km (13,800 ft) Max
Max nonoperating altitude	4.6 km (15,000 ft) Max	4.6 km (15,000 ft) Max
Electrical characteristics
Frequency	N/A	50Hz/60Hz
AC voltage	Refer to the PSU specification table	100V–240V
DC input voltage	54V (switch input voltage, provided by JL819A, JL820A, JL821A)	N/A
Current	JL820A — max 8A (360W PoE) JL819A, JL821A — max 4.4A (180W PoE)	max 3.9A/1.9A (240W PoE)
Maximum heat dissipation BTU/ hr	With JL819A PSU: 89 BTU/hr at 230V — Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V — Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V — Room temperature (25°C)	117 BTU/hr at 230V — Room temperature (25°C)
Power consumption (JL819A, JL820A-230VAC) (JL821A-48VDC)	With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/heater): 55W With JL820A PSU: Idle: 24W 100% Traffic Rate:28W 100% Traffic Rate (w/heater): 57W	Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/heater*): 62W
Power Consumption (JL819A, JL820A-230VAC) (JL821A-48VDC)	With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/heater*): 56W	Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/heater*): 62W
