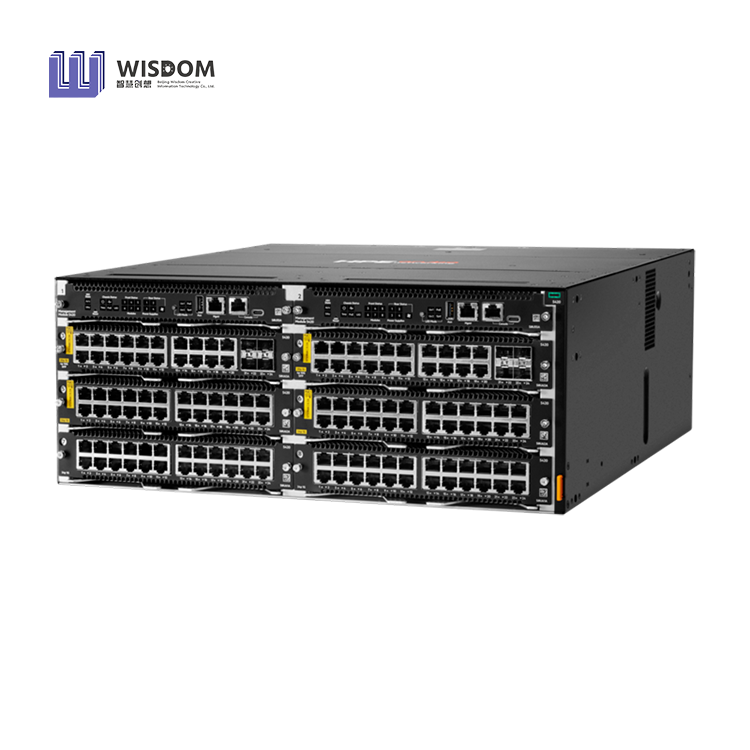

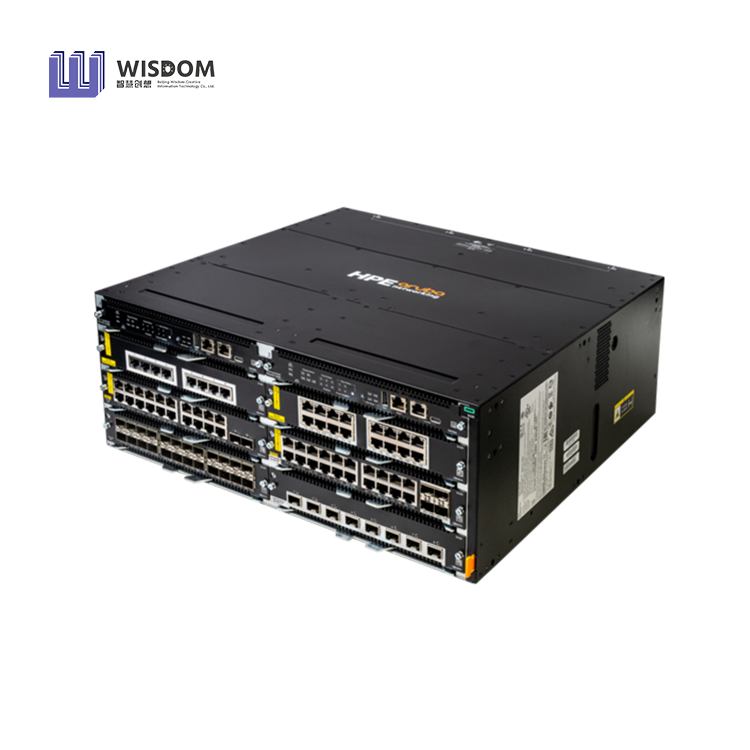

HPE Aruba Networking CX 5420 6‑slot TAA Switch

1 x 5420 6-slot Chassis (S0U60A)
1 x 5420 Management Module (S0U55A)
1 x Fan Tray (S0U54A)
1 x 6-slot Accessory Kit (S0U57A)
1 x 2-post 6-slot Rack Kit (S0U56A)
1 open management slot
6 open line card module slots

Description
Specifications

hpe aruba networking cx 5420 6slot taa switch-2

+86-18600585382

[email protected]

Description

Product overview

HPE Aruba Networking CX 5420 chassis switches are modern, flexible, intelligent, and modular making them optimal for access, small core, and aggregation deployments. Designed for operational efficiency, CX 5420 chassis switches feature built-in MACsec1 hardware capability, analytics, and automation — providing an enterprise-class access layer solution that’s easy-to-deploy, simple, secure, and resilient.
Part of the HPE Aruba Networking CX switching portfolio, CX 5420 chassis switches were built from the ground up with cutting-edge hardware, software, and analytics and automation tools, and are ideal for small and medium campus and branch networks.

CX 5420 chassis switches combine a modern, fully programmable OS with the HPE Aruba Networking Network Analytics Engine for superior monitoring and troubleshooting capabilities across the network.

A powerful HPE Aruba Networking Gen7 ASIC architecture delivers performance and feature support with flexible programmability for tomorrow’s applications. The HPE Aruba Networking Virtual Switching Extension (VSX) with live upgrades provides high availability, fast, non-disruptive upgrades, and simplified management. This advanced modular 4U chassis switch offers performance up to 960 Gbps with low latency, six half-width line card slots with line rate at 64 bytes, and up to 90W Smart Rate 10 GbE PoE. The Layer 3 chassis provide BGP/OSFP/RIP/PIM support with single data-plane VRF and management VRF.

HPE Aruba Networking dynamic segmentation extends HPE Aruba Networking’s wireless role-based policy capability to HPE Aruba Networking wired switches. This means the same security, user experience, and simplified IT management is uniform throughout the network.

Key Features

—Powerful, modular, intelligent Layer 3 chassis switch with BGP, VSX, OSPF, and robust QoS
—High performance switching up to 960 Gbps in non-blocking bandwidth and up to 714 Mpps for forwarding

—High availability VSX live upgrades, redundant power supplies, and N+1 redundant fans

—High capacity HPE Smart Rate 10GbE multi-gigabit for up to 90W Class-8 PoE

—High speed 6-line card slots with up to 160 Gb/s forwarding per slot, line rate at 64 bytes

—Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine (NAE)

—Single pane of glass management with HPE Aruba Networking Central across wired, wireless, and WAN

—Support for automated configuration and verification with HPE Aruba Networking NetEdit. Secure and simple access for users and IoT devices via HPE Aruba Networking dynamic segmentation

What's New

* Powerful, modular, intelligent Layer 3 switch chassis with BGP, VSX, and OSPF with robust quality of service (QoS).
 * Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.

 * High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade and Always-On PoE.

 * Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.

 * Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software,with easy-to-use web GUI or industry-standard CLI.

 * Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking Dynamic Segmentation and intelligent monitoring, visibility, and remediation with NAE.

Specifications

	HPE Aruba Networking 5420 6‑slot Switch (S0U59A)
Description	1 x 5420 6‑slot Chassis (S0U60A) 1 x 5420 Management Module (S0U55A) 1 x Fan Tray (S0U54A) 1 open management slot 6 open line card module slots Supports the management card in the open management slots: SOU55A, S0U58A Supports any of the following line cards in the open slots: S0U62A, S0U66A, S0U65A, S0U61A, S0U67A, S0U63A, S0U64A, S0U68A S0U72A, S0U76A, S0U75A, S0U71A, S0U77A, S0U73A,S0U74A, S0U78A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W)

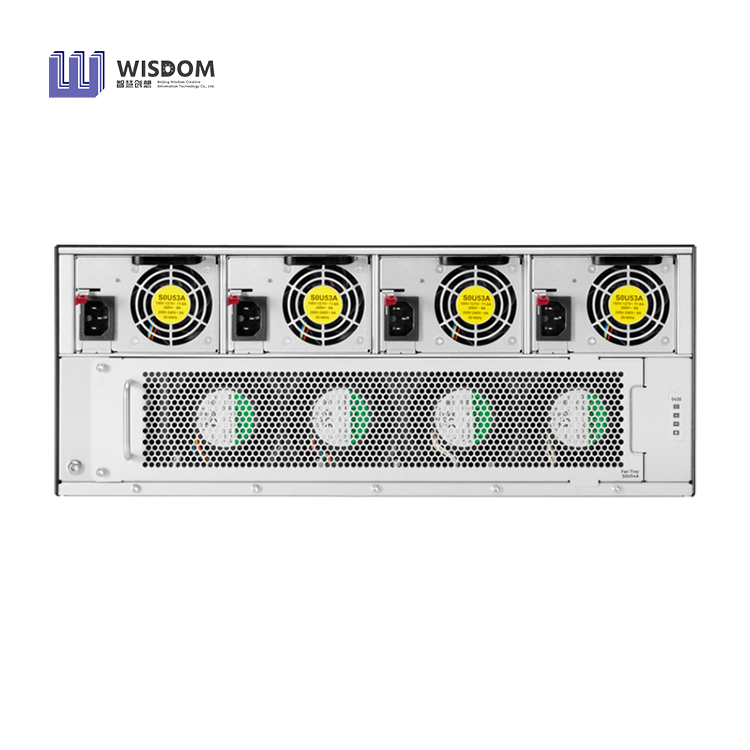

Power supplies	Supports 4 field replaceable and hot‑swappable power supply slots Supported power supplies: S0U53A PoE availability is dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies are not included; order separately.
Fans	1 field‑replaceable and hot‑swappable system fan tray
Dimensions	(H) 17.41 cm x (W) 44.25 cm x (D) x 44.74 cm (6.85” x 17.42” x 17.6”)
Configuration weight	15.73 kg (34.7 lb)
Additional specifications
CPU	Management Module: AMD Ryzen Quad Core V1500B x86 processor @ 2.2GHz
Memory and flash	Management Module: 16GB DDR4 SODIMM with ECC, 32GB eMMC Flash Memory
Packet buffer	64MB packet buffer memory shared dynamically among ports
Performance
Model switching capacity	960 Gbps (480 Gbps in + 480 Gbps out)
Model throughput capacity	714 Mpps
Average latency (LIFO‑64‑bytes packets)	2.5 micro sec
Switch Virtual Interface (SVI) (dual stack)	512
IPv4 host table (ARP)	25,600
IPv6 host table (ND)	25,600
IPv4 unicast routes	16,384
IPv6 unicast routes	8,192
MAC table capacity	32,768
IGMP groups	2,048
MLD groups	2,048
IPv4/IPv6/MAC ACL entries (ingress)	MAC – 10,233 IPv4 – 10,233 IPv6 – 2,558 (1/4 of scale)
IPv4/IPv6/MAC ACL entries (egress)	MAC – 5,113 IPv4 – 5,113 IPv6 – 1,278 (1/4 of scale)
Environment
Operating temperature	32°F to 113°F (0°C to 45°C), up to 5,000 feet Derate 1°C every 1,000 feet from 5,000 feet to 10,000 feet Can support excursion to 131°F (55°C) for short periods of time
Operating relative humidity	5% to 95% relative humidity at 113°F (45°C), non‑condensing
Non‑operating	−40°F to 158°F (−40°C to 70°C) up to 15,000 feet
Non‑operating storage relative humidity	5% to 95% relative humidity at 149°F (65°C), non‑condensing
Max operating altitude	Up to 10,000 feet (3 km)
Max non‑operating altitude	Up to 15,000 feet (4.5 km)
Acoustics	Sound power (LWAd): 4.7 Bel, Sound pressure (LpAm, Bystander): 44.6 dB when tested with 2x S0U53A power supply at low voltage line, loaded with 2 x S0U55A, 3 x S0U67A, 3 x S0U68A with a loading of 50% traffic on all ports Sound power (LWAd): 5.5 Bel, Sound pressure (LpAm, Bystander): 52.1 dB when tested with 4x S0U53A power supply at low voltage line, loaded with 2 x S0U55A, 6 xS0U66A and drawing a total of 2000W PoE, with a loading of 50% traffic on all ports
Primary airflow	Front to back
Electrical characteristics
Frequency	50Hz/60Hz
AC voltage	S0U53A PSUs: 100–127/200–240VAC
Current	11.6A @ 100–127VAC 9A @ 200VAC 8A @ 208‑240VAC
Power output	S0U53A: 1600W @ 200‑240VAC, 1000W @ 100–127VAC
80plus.org certification	Platinum for S0U53A PSU
Safety
	IEC 62368‑1:2014 2nd Ed with all known national deviations IEC 62368‑1:2018 3rd Ed with all known national deviations EN 62368‑1:2014 +A11:2017 2nd Ed. EN IEC 62368‑1:2020 +A11:2020 3rd Ed. UL 62368‑1 3rd Ed./ CAN/CSA C22.2 No. 62368‑1:19 CNS 15598‑1:2020
Emissions
	EN 55032:2015+A11:2020 Class A, CISPR 32:2015+A1:2019 Class A, FCC Part 15B Class A, VCCI 32‑1 Class A, ICES‑003 Class A, AS/NZS CISPR 32 Class A, CNS 15936:2016
Lasers
	IEC 60825‑1:2014/EN 60825‑1:2014+A11:2021 Class 1 Laser
Immunity
Generic	Directive 2014/35/EU
EN	CISPR 35:2016/EN 55035:2017+A11:2020
ESD	IEC 61000‑4‑2
Radiated	IEC 61000‑4‑3
EFT/Burst	IEC 61000‑4‑4
Surge	IEC 61000‑4‑5
Conducted	IEC 61000‑4‑6
Power frequency magnetic field	IEC 61000‑4‑8
Voltage dips and interruptions	IEC 61000‑4‑11
Harmonics	EN IEC 61000‑3‑2
Flicker	EN IEC 61000‑3‑3
Mounting and enclosure
	Cable management kit and 2‑post rack mounting kit included. 4‑post rack mounting kit available separately
