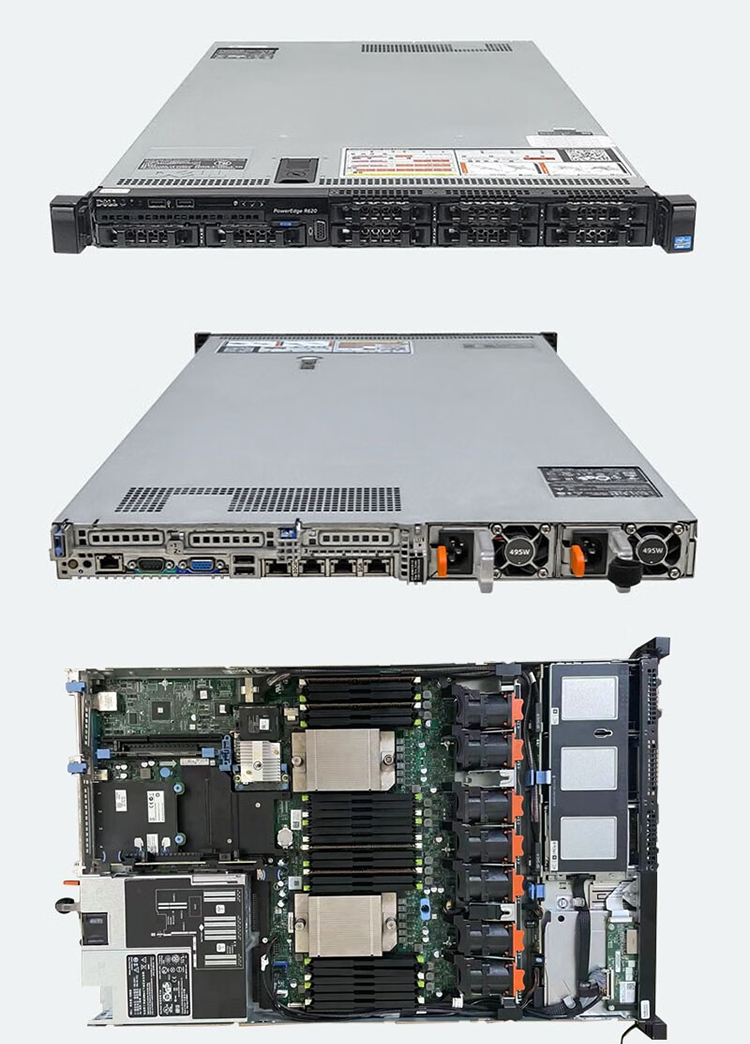

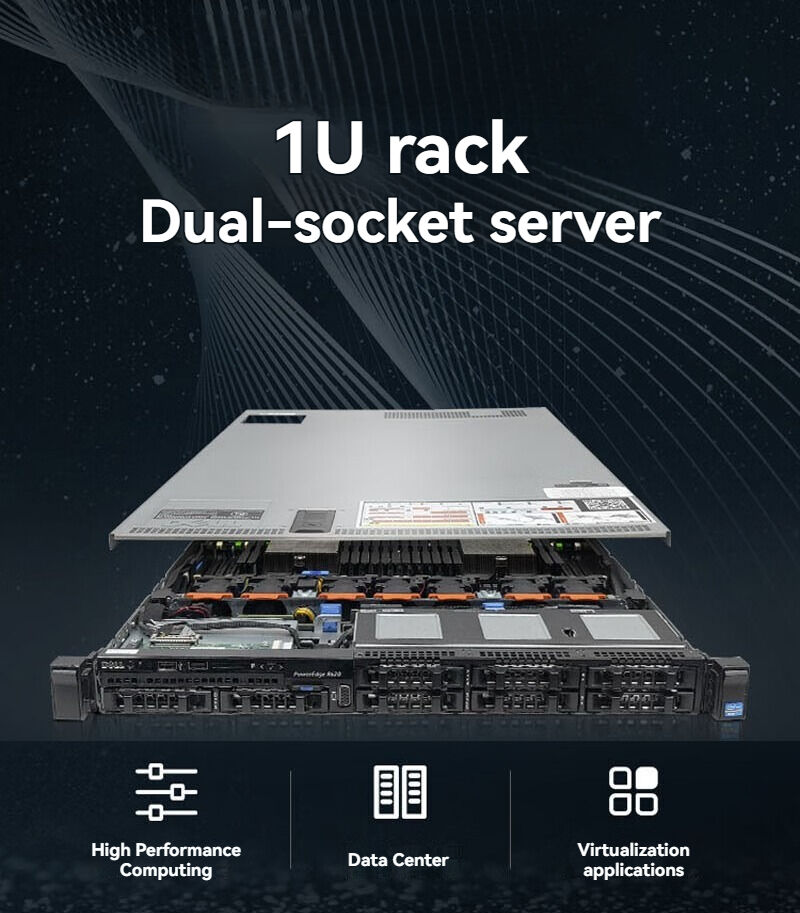

A hyper-dense, two-socket, 1U rack server, the Dell PowerEdge R620 has a large memory footprint and impressive I/O options that make it an exceptional platform for space-sensitive environments.
PowerEdge R620
A hyper-dense, two-socket, 1U rack server, the Dell PowerEdge R620 has a large memory footprint and impressive I/O options that make it an exceptional platform for space-sensitive environments.
• Compute density in a 1U form factor
• Optional hot-plug, front-access PCIe SSDs
• Choice of network fabric technologies
• PCIe 3.0-enabled expansion slots
|
Feature |
PowerEdge R620 technical specification |
|
Form factor |
1U rack |
|
Processors |

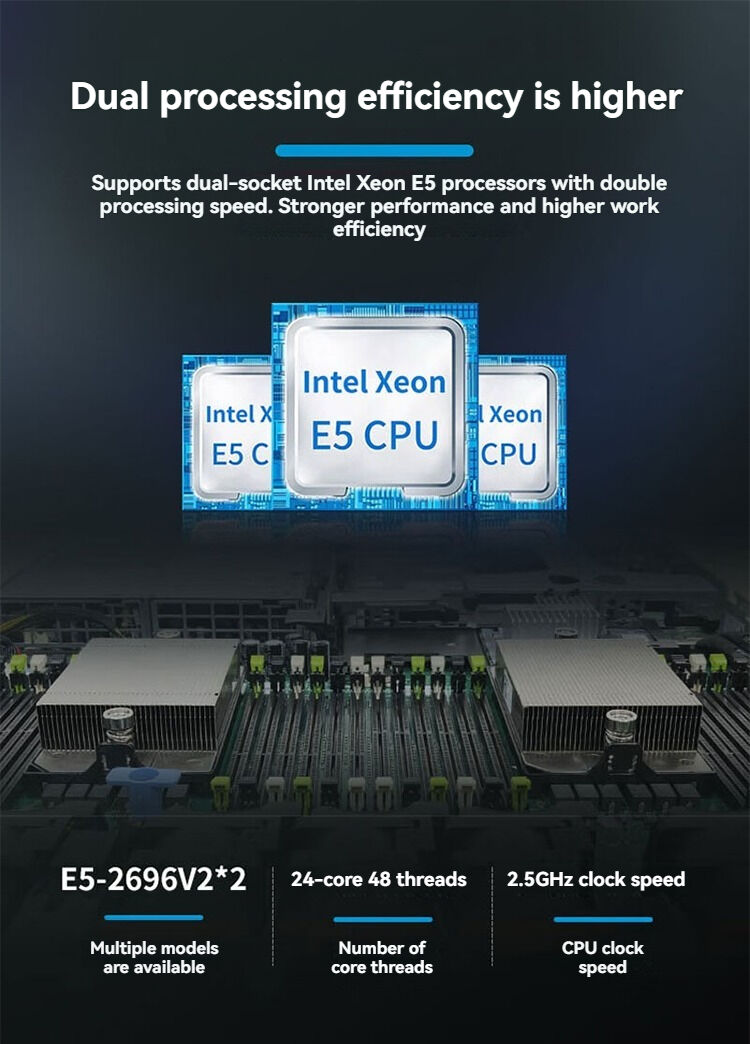

Intel® Xeon® processor E5-2600 or E5-2600 v2 product family |
|
Processor sockets |
2 |
|
Internal interconnect |
2 x Intel QuickPath Interconnect (QPI) links: 6.4GT/s, 7.2GT/s, 8.0GT/s |
|
Cache |
2.5MB per core; core options: 4, 6, 8, 10, 12 |
|
Chipset |
Intel C602 |
|
Memory |

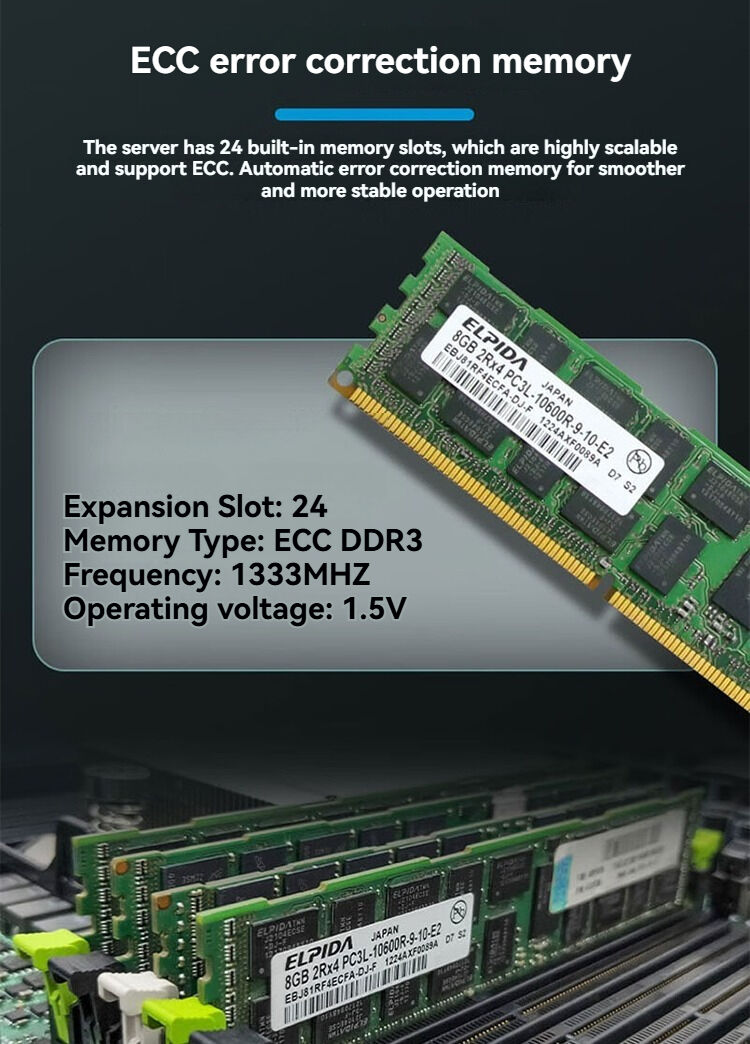

Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s |
|
I/O slots |
3 PCIe slots: (10-drive-bay configuration is available only with the 3 PCIe slot option) Two x16 slots with x16 bandwidth,half-height, half-length One x16 slot with x8 bandwidth, half-height, half-length or 2 PCIe slots: One x16 slot with x16 bandwidth, full-height, 3/4 length One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length |
|
RAID Controller |

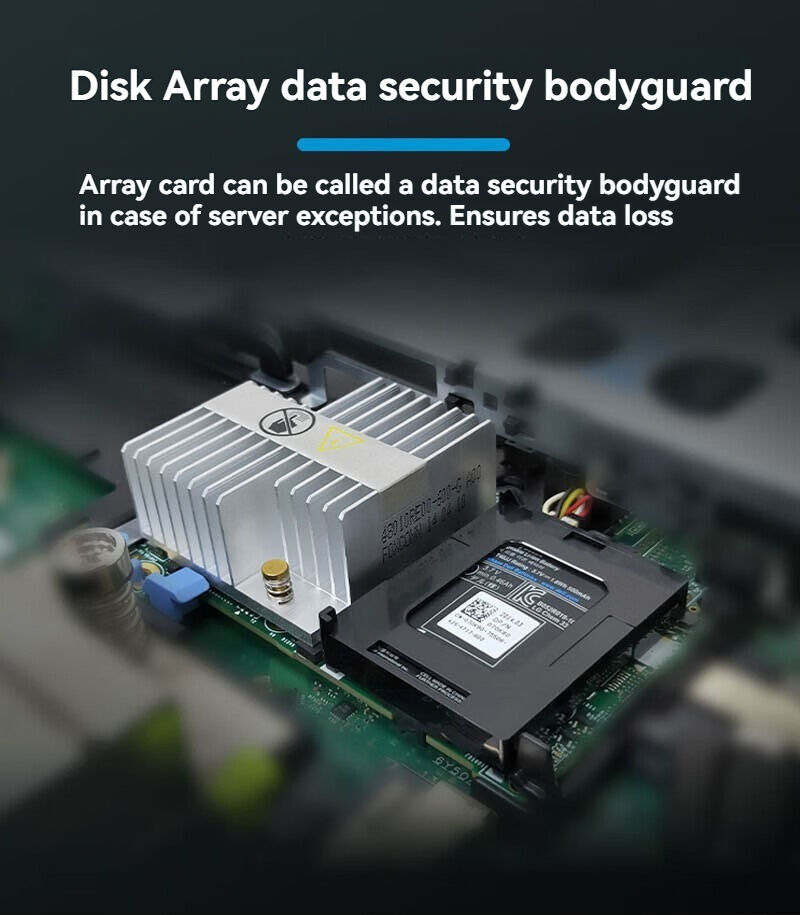

Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 PERC H710P
External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA LSI SAS 9207-8i 6Gb/s SAS |
|
Drive bays |

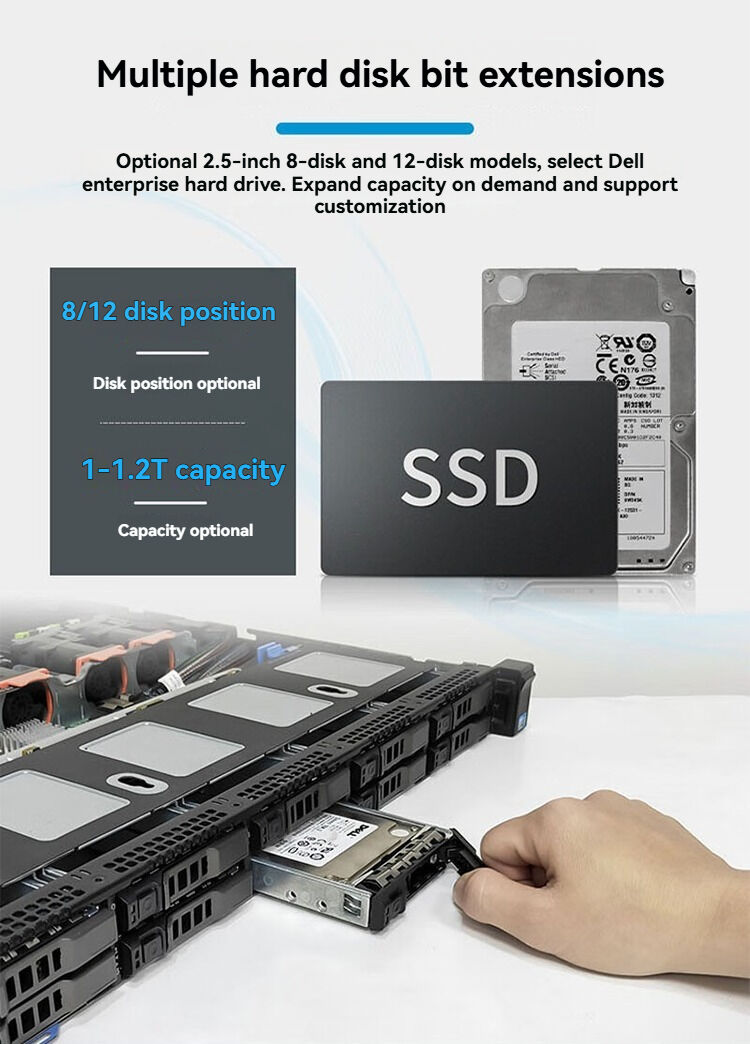

Up to ten 2.5” hot-plug SAS, SATA, or SSD or up to four hot-plug 2.5” SAS, SATA, or SSD + two PCIe SSD |
|
Hard drives |
Hard drive options: 2.5” SSD, SAS HDD
3.5” SAS HDD, Nearline SAS HDD, SATA HDD Self-encrypting drives available |
|
Embedded NIC |
Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload) Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM) Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload) Intel X540 dual-port 10GbE Bse-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) |
|
Power supplies |

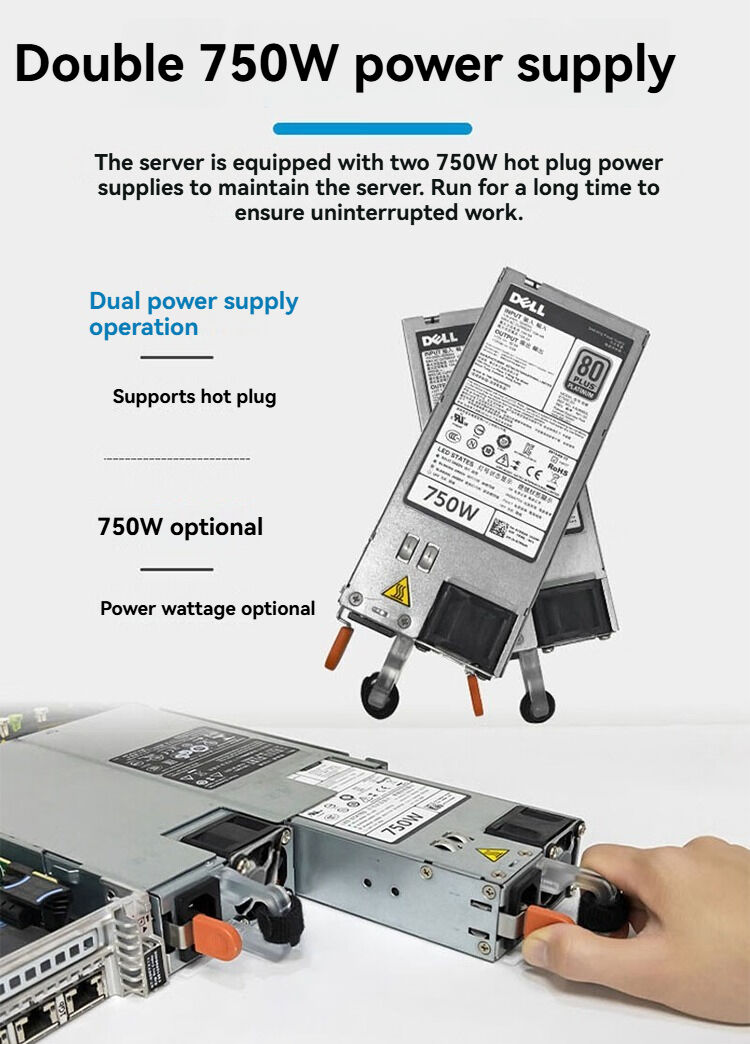

Titanium efficiency, hot-plug redundant 750W AC power supply; auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply |
|
Availability |

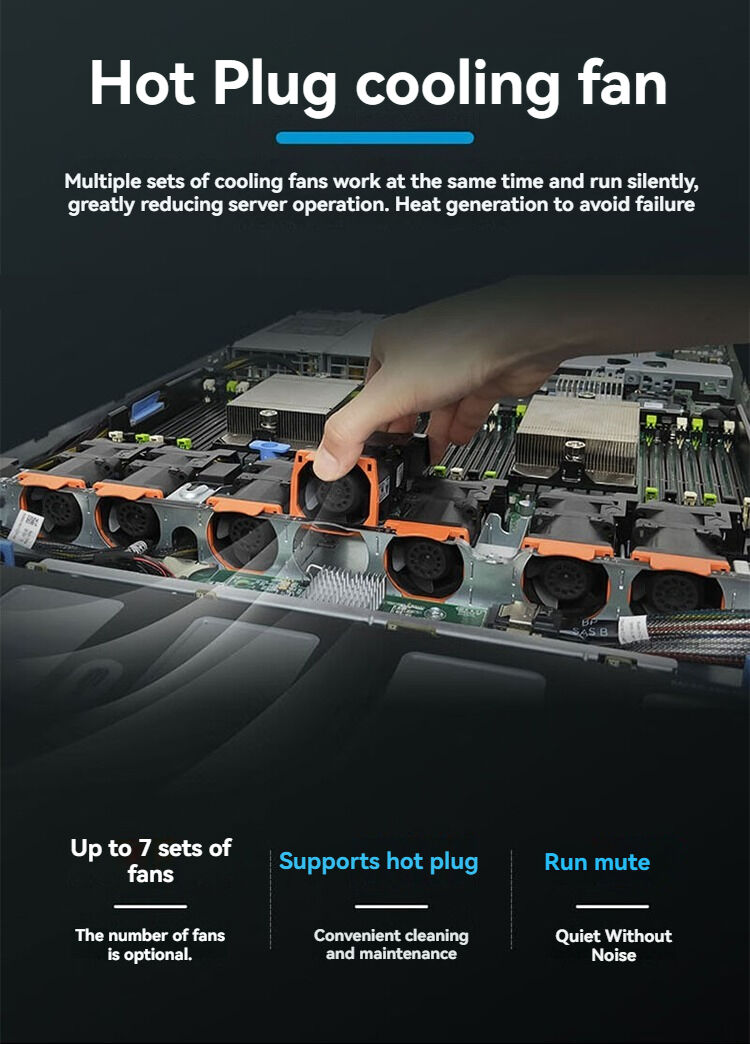

High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support;hot-plug, redundant fans; optional bezel; information tag; ECC memory; interactive LCD screen; extended thermal support; ENERGY STAR® compliant; switch independent partitioning |
|
Remote management |
iDRAC7 with Lifecycle Controller iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option), 8GB vFlash media (upgrade option),16GB vFlash media (upgrade option) |
