| Form Factor | 2U Rackmount
Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
|
| Processor | Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
|
| GPU | Max GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU: NVIDIA PCIe: H100, L40, L40S, L4, A40, A16, A100
|

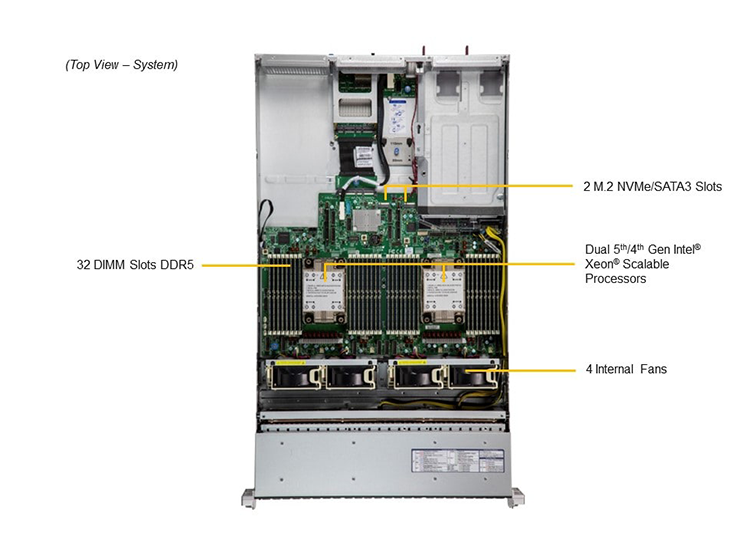

| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
|

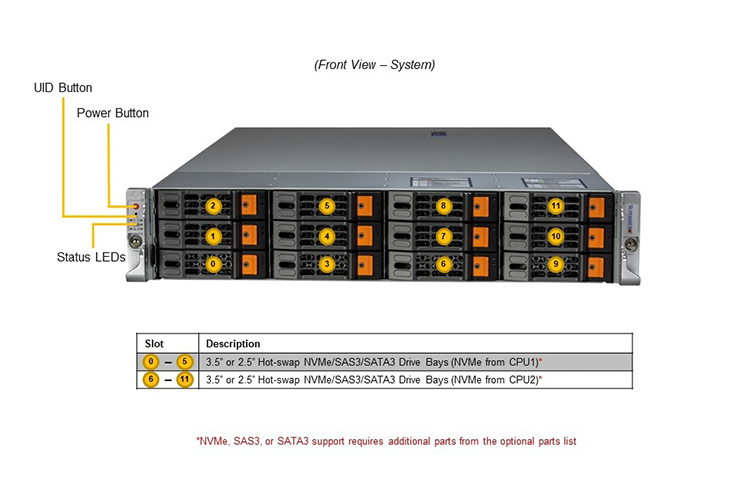

| Drive Bays Configuration | Default: Total 12 bays

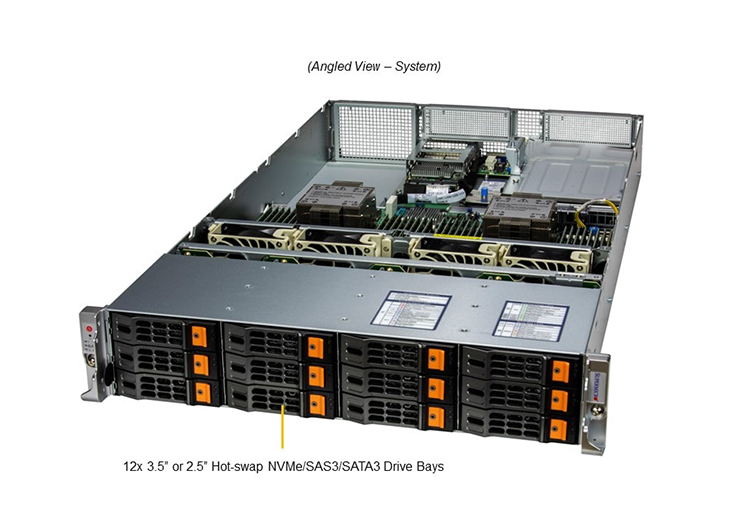

12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
|

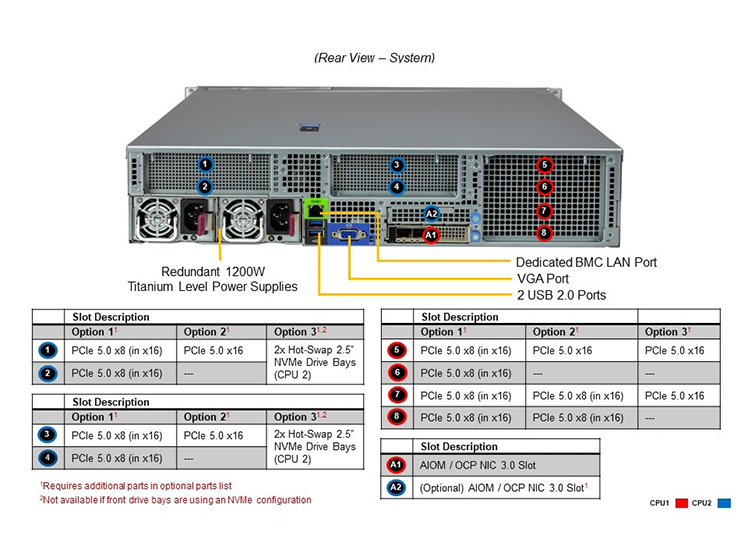

| Expansion Slots | PCI-Express (PCIe) Configuration:
Option A:
4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B:
8 PCIe 5.0 x8 (inx16) HH/10.5"L slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
|
| On-Board Devices | SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB:2 USB 2.0 ports(rear)
2 USB 3.2 Gen1 ports(Header)
Video: 1 VGA port
|
| System Cooling | Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds

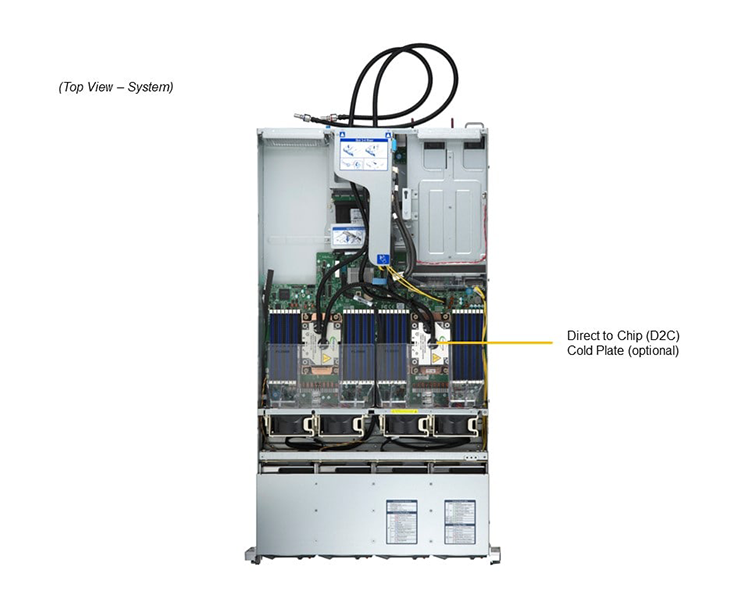

Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
|
| Power Supply | 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies |
| System BIOS | BIOS Type: AMI 64MB SPI Flash |
| Management | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment Thermal Control for fan connectors
|
| Dimensions and Weight | Weight:Gross Weight: 63 lbs (28.6 kg)
Net Weight: 37 lbs (16.8 kg)
Available Color: N/A
|
| Operating Environment | Name: A2
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
|

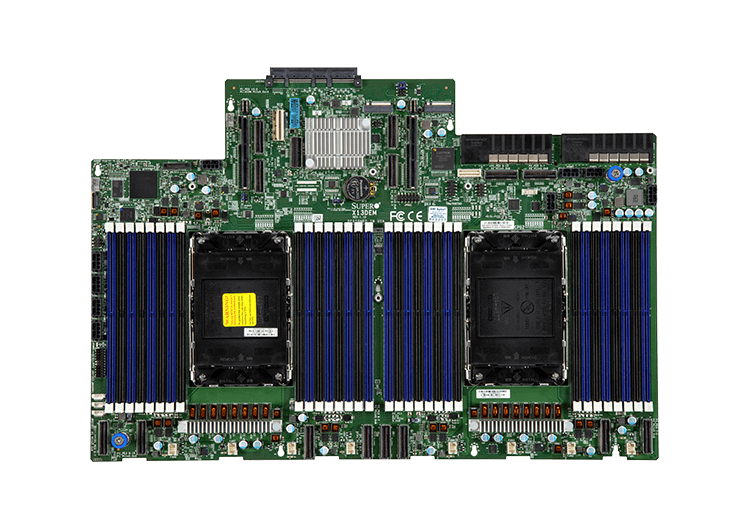

| Motherboard | Super X13DEM |
| Chassis | CSE-HS829-R1K24P |
