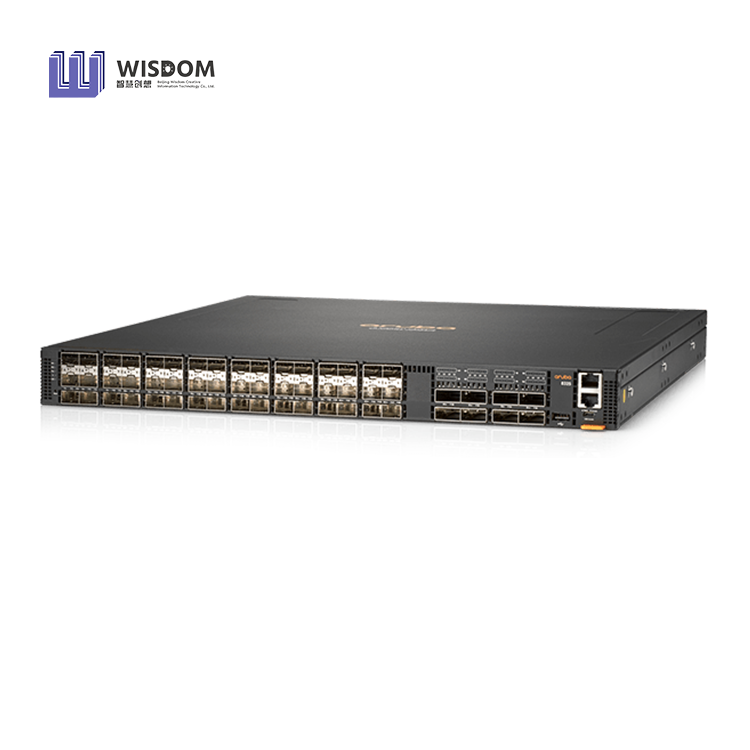

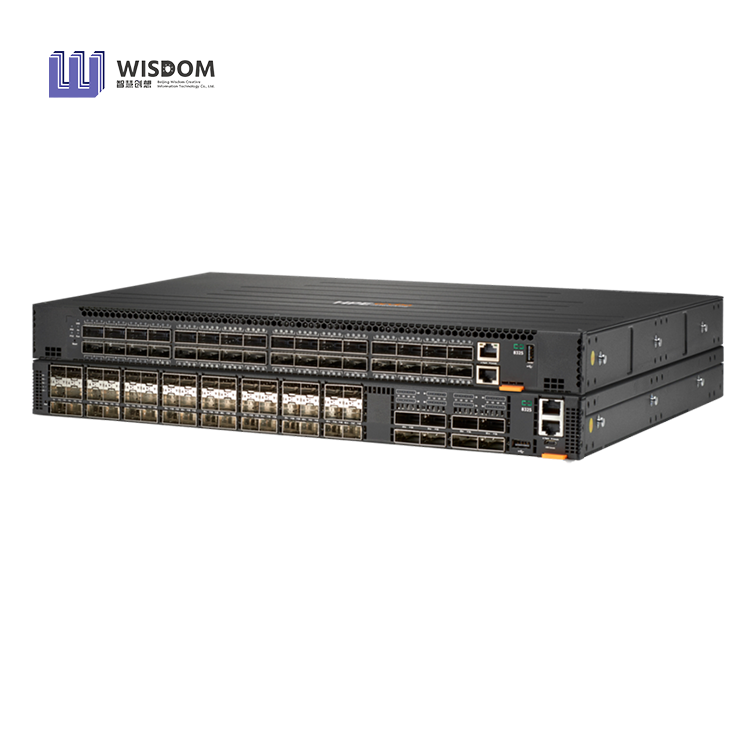

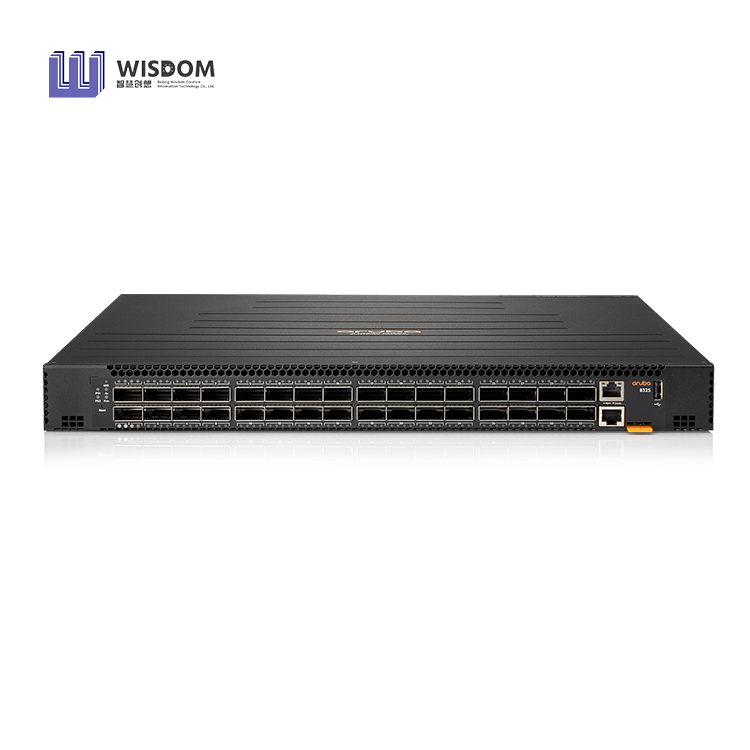

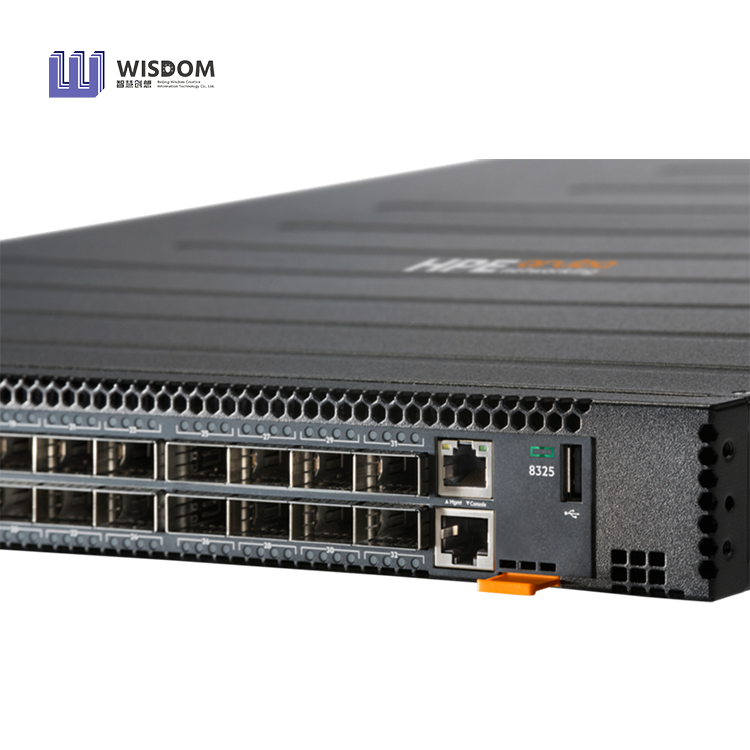

HPE Aruba Networking CX 8325 Switch Series

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud, and IoT era. CX 8325 Switch Series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor.

CX 8325P, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments. CX 8325H are high-performance 1/10/25/40/100G half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

Description
Specifications

hpe aruba networking cx 8325 switch series-2

+86-18600585382

[email protected]

Description

Product overview

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud, and IoT era. CX8325 Switch Series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX8325 provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor.

CX 8325P, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments. CX 8325H are high-performance 1/10/25/40/100G half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

key Features

—High performance 6.4 Tbps of bidirectional switching capacity with 2,000 Mpps —High availability with industry-leading VSX redundancy, and redundant power supplies and fans
—Designed for core/aggregation in the campus or Top of Rack or End of Row in the data center
—HPE Aruba Networking CX Operating System automation and programmability using built-in REST APIs and Python scripts
—Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
—Dynamic VXLAN* with BGP-EVPN for deep segmentation in data center and campus networks
— Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine
—HPE Aruba Networking Storage Optimized with validated Ethernet Storage Fabric solutions with HPE Storage and HCI solutions
—HPE Aruba Networking NetEdit support for automated configuration and verification
—Compact 1 U switch with 1/10/25GbE and 40/100GbE connectivity
—High hardware scale, including key data center and DCBx features including NEBS certification, N+1 fan tray redundancy with Front to Back or Back to Front airflow, N+1 redundant and hot swappable AC or DC power supplies, supporting a variety of deployment models

What's New

 * High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
* AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.

* Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
 * Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.

* CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.

* CX 8325H has two variations:
• 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE
• 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE

Specifications

	JL624A 8325-48Y8C front-to-back AC switch bundle	JL625A 8325-48Y8C back-to-front AC switch bundle	JL626A 8325-32C front-to-back AC switch bundle	JL627A 8325-32C back-to-front AC switch bundle
Description	1 x JL635A base 8325‑48Y8C switch — 6 x JL628A Front-to-Back Fan — 2 x JL632A Frontto-Back 650W 100-240 VAC Power Supply	1 x JL635A base 8325‑48Y8C switch — 6 x JL629A Back-to-Front Fan — 2 x JL633A Backto-Front 650W 100-240 VAC Power Supply	1 x JL636A base 8325‑32C switch — 6 x JL630A Front-to-Back Fan — 2 x JL632A Frontto-Back 650W 100-240 VAC Power Supply	1 x JL636A base 8325‑32C switch — 6 x JL631A Back-to-Front Fan — 2 x JL633A Backto-Front 650W 100-240 VAC Power Supply
	Supports 48 ports of 1G/10G/25GbE (SFP/ SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) [optional 1 GBASE‑T and 10 GBASE‑T transceivers, 4x10G and 4x25G breakout cables]	Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/ QSFP28) [optional 1 GBASE‑T and 10 GBASE‑T transceivers, 4x10G and 4x25G breakout cables]	Supports 32 ports of 40G/100GbE (QSFP+/ QSFP28) [optional 4x10G and 4x25G breakout cables]	Supports 32 ports of 40G/100GbE (QSFP+/ QSFP28) [optional 4x10G and 4x25G breakout cables]
Power supplies	Field‑replaceable, hot‑swappable, and up to 2 power supplies.
Fans	Field‑replaceable, hot‑swappable, and up to 6 fans.
Physical characteristics
Dimensions	(H) 4.35 cm x (W) 43.84 cm x (D) 53.6 cm (1.71" x 17.26" x 21.1")	(H) 4.35 cm x (W) 43.84 cm x (D) 53.6 cm (1.71" x 17.26" x 21.1")	(H) 4.395 cm x (W) 44.25 cm x (D) 47.3 cm (1.73" x 17.42" x 18.62")	(H) 4.395 cm x (W) 44.25 cm x (D) 47.3 cm (1.73" x 17.42" x 18.62")
Full configuration weight	10 kg (22.05 lb)	10 kg (22.05 lb)	10.87 kg (23.96 lb)	10.87 kg (23.96 lb)
Additional specifications
CPU	2.2 GHz
Memory, drive and flash	16 GB RAM, 64 GB SSD, 8 GB flash
Packet buffer	32 MB
Performance
Switching capacity	4 Tbps		6.4 Tbps
IPv4 host table	120,000
IPv6 host table	52,000
IPv4 unicast routes	131,072
IPv6 unicast routes	32,732
MAC table size	98,304
IGMP groups	4,094
MLD groups
IPv4 multicast routes	8,192
IPv6 multicast routes	8,192
Environment
Operating temperature	0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.)
Operating relative humidity	5% to 95% at 40°C (104°F) non‑condensing
Non‑operating temperature	−40°C to 70°C (−40°F to 158°F) up to 4.6 km (15,000 ft.)
Non‑operating/storage relative humidity	5% to 95% @ 65°C (149°F)
Max operating altitude	Up to 10,000 ft (3.048 km)
Max non‑operating	Up to 15,000 ft (4.6 km)
Primary airflow	Front‑to‑back or back‑to‑front
Electrical characteristics
Power supplies	50‑60 Hz
AC voltage	100‑240 VAC
Current	6.2 A (low voltage)–3.1 A (high voltage)
Power consumption	Max: 586W, 2000 BTU/hr Idle: 209W, 714 BTU/hr	Max: 586W, 2000 BTU/hr Idle: 209W, 714 BTU/hr	Max: 618W, 2110 BTU/ hr Idle: 143W, 489 BTU/hr	Max: 618W, 2110 BTU/ hr Idle: 143W, 489 BTU/hr
