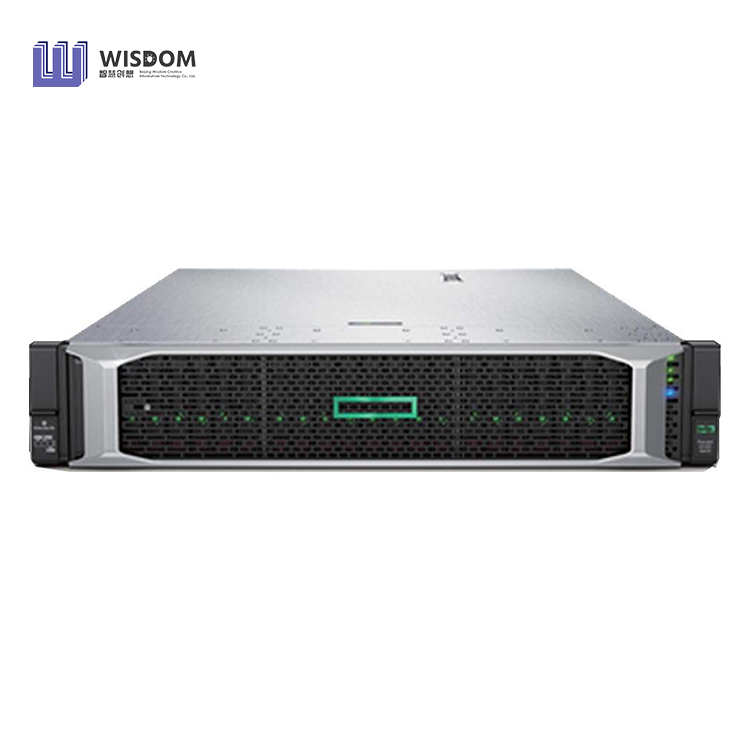

The HPE ProLiant DL560 Gen10 server is a high-density 4P server. Although it uses a 2U chassis, it can achieve high performance, high scalability, and high reliability.

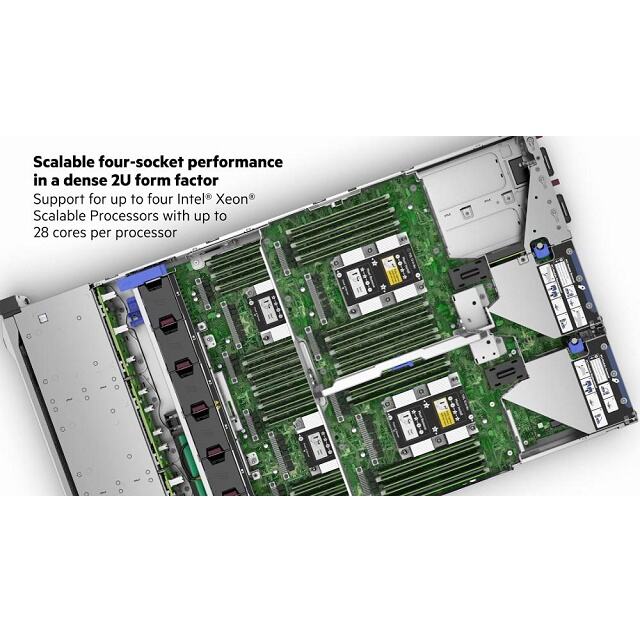

The HPE ProLiant DL560 Gen10 server is a high-density 4P server. Although it uses a 2U chassis, it can achieve high performance, high scalability, and high reliability. The HPE ProLiant DL560 Gen10 server supports the Intel® Xeon® Scalable processor, which has a performance increase of up to 61% and greater processing power. It is also equipped with up to 6 TB of fast memory and up to 8 PCIe 3.0 slots of I/O. HPE persistent memory has excellent performance and can easily run structured data management and analysis workloads. In addition, HPE OneView and HPE Integrated Lights Out 5(iLO 5)can be used to realize automated management, bringing convenient and intelligent management experience to enterprises. The HPE ProLiant DL560 Gen10 server is an ideal server for running mission-critical workloads, virtualization, server consolidation, databases, business processing, and general 4P data-intensive applications. For these applications, data center space and proper performance are very important.
|
Processor Name |
Intel Xeon Scalable 6148 (20 core, 2.4 GHz, 17.5 MB, 150W) |
|
Number of processors |
4 processors included |
|
Processor cache |
27.50 MB L3 |
|
Processor speed |
2.4 GHz |
|
Maximum memory |
3.0 TB |
|
Memory slots |
48 DIMM slots |
|
Memory type |
HPE DDR4 SmartMemory and HPE Persistent Memory |
|
Memory, standard |
128 GB (8 x 16 GB) RDIMM |
|
Included hard drives |
None ship standard, 8 SFF SAS/SATA drives supported |
|
Optical drive type |
Optional |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses) |
|
Power supply type |
2 HPE 1600W (200V AC to 240V AC) Flex Slot Platinum hot plug power supplies |
|
Expansion slots |
6 PCIe 3.0, Additional slots available via optional riser kit. Please reference QuickSpecs. |
|
Network controller |
1 HPE 10 Gb 533FLR-T FlexFabric adapter, 2-ports per controller |
|
Storage controller |
1 HPE Smart Array P408i-a SR Gen10 Controller |
|
System fan features |
6 (n+1) Hot plug redundant fan, standard |
|
Form factor |
Rack (2U) |
|
Warranty |
3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage |
|
Minimum dimensions ( H x W x D) |
8.75 x 44.55 x 75.47 cm |
|
Weight |
34.12 kg |
