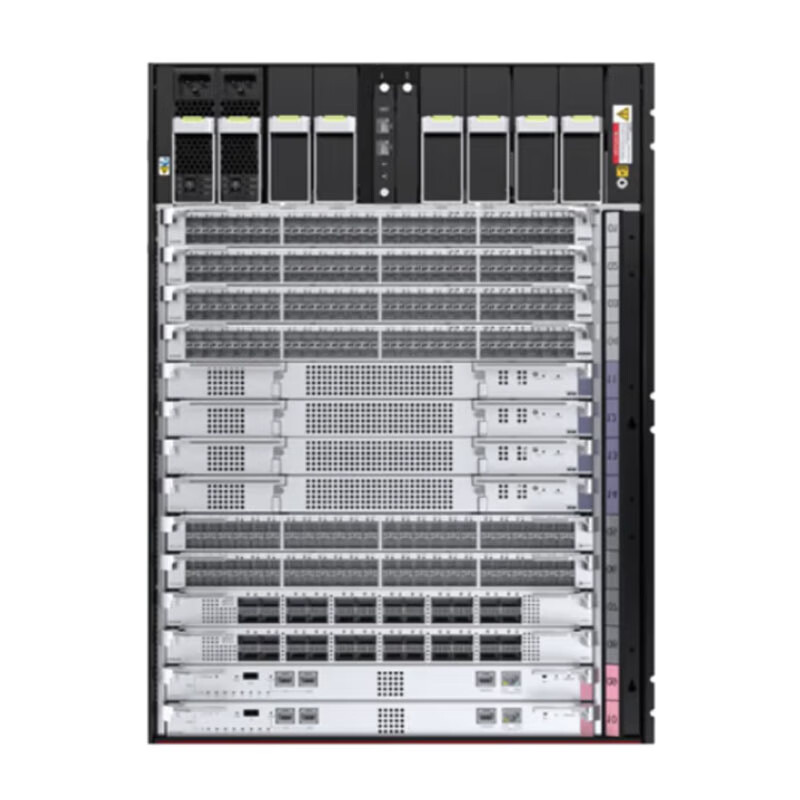

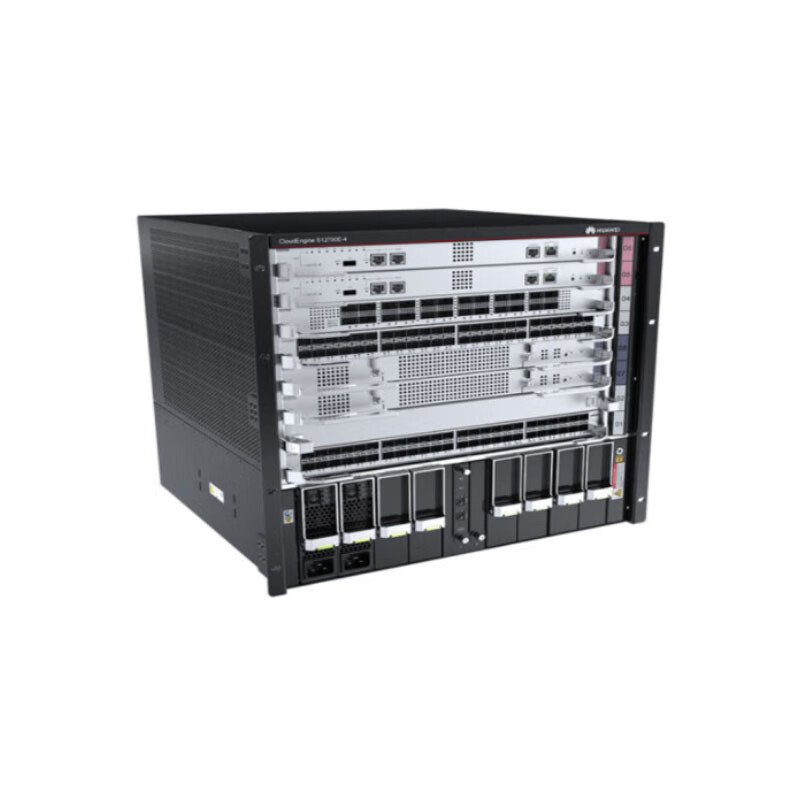

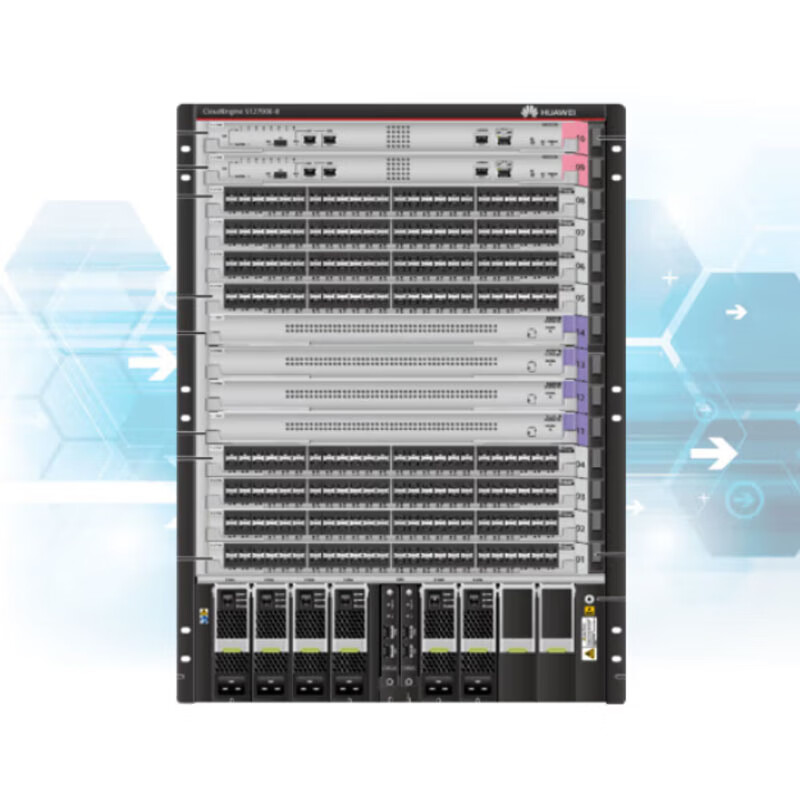

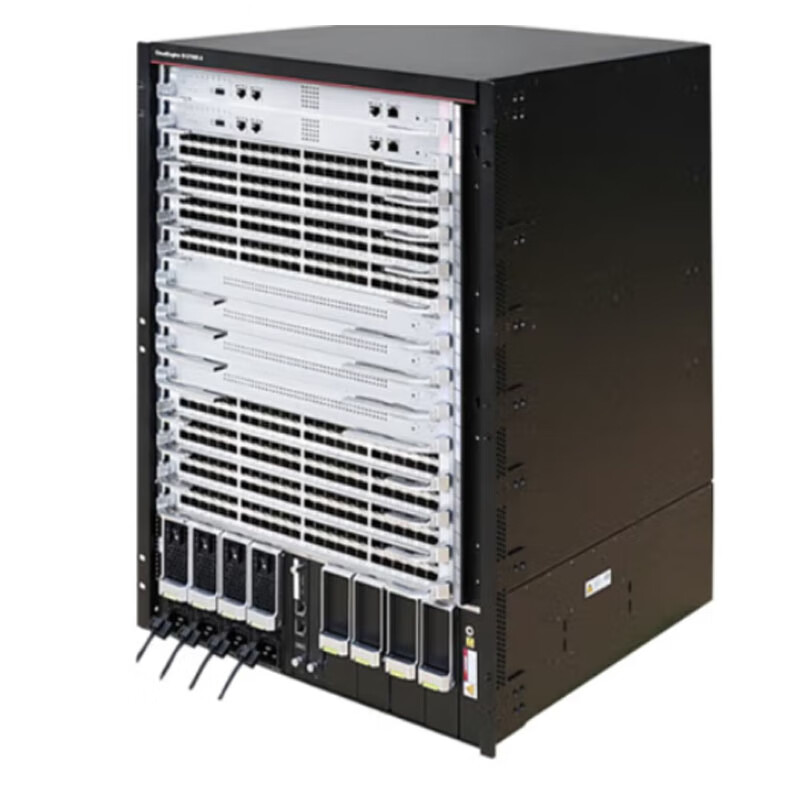

Huawei CloudEngine S12700E Series Switches

The industry-leading core switch ideal for campus networks.

Description
Product Parameters

huawei cloudengine s12700e series switches-2

+86-18600585382

[email protected]

Description

Product description
The CloudEngine S12700E series switches are Huawei's new-generation flagship core switches for high-end campus networks in the Wi-Fi 6 all-wireless era, with leading data switching capabilities and massive endpoint access capabilities, as well as innovative features such as on-board ACs, VxLANs, service on-the-go, intelligent HQoS, iPCA, and SVF, making them ideal choices for building high-quality campus network core switches in the Wi-Fi 6 era.It is the ideal choice for building high-quality campus network core switches in the Wi-Fi 6 era, helping customers around the world in digital transformation.Widely used in government, finance, energy and other industries large campus core.

Features

Highly Reliable CLOS Architecture:

With the separation of master control and switching, the current bandwidth of a single slot can reach 4.8Tbps, which can be upgraded in the future through the upgrade of the switching network boards to meet the demand for smooth network evolution.

Innovative meta-exchange mechanism:

For the first time, it applies the letter element switching to the campus network and achieves non-blocking and zero packet loss data forwarding based on dynamic load balancing to guarantee the business experience of users in the whole network.

Leading-edge on-board AC features:

The whole machine can manage up to 10K APs, realising the integrated management of wired and wireless networks, saving the comprehensive network construction cost and reducing the complexity of campus network operation and maintenance.

Leading business-on-the-go features:

Fine-grained policy management based on user + application allows users to get consistent business policies and experience at any location, at any time and with any access method.

Product Parameters

	CloudEngine s12700E-4	CloudEngine s12700E-8	CloudEngine s12700E-12
Dimensions (W x D x H)	442517.4441.7MM	442517.4663.95MM	442517.4841.75MM
Chassis height [U]	10	15	19
Exchange capacity	387/1161 Tbps	645/1935 Tbps	1290/3870 Tbps
Packet forwarding rate	115200 Mpps	230400Mpps	460800 Mpps
Slots of the main control board	2	2	2
Switched Network Slot	2	4	4
master interface	1 USB 2.0 interface: 1 ETH management port, 1 Console management enclosure	1 USB 2.0 interface: 1 ETH management port, 1 Console management enclosure	1 USB 2.0 interface: 1 ETH management port, 1 Console management enclosure
Business Board Slots	4	8	12
System power supply	4	6	6
fan frame	2	4	5
Cache capacity	Supports up to 200ms per port data buffering	Supports up to 200ms per port data buffering	Supports up to 200ms per port data buffering
redundancy design	Main Controls, Switchboards, Power Supplies, Fans	Main Controls, Switchboards, Power Supplies, Fans	Main Controls, Switchboards, Power Supplies, Fans
virtualization	Support for CSS service port clustering	Support for CSS service port clustering	Support for CSS service port clustering
Weight(empty)	24.5kg/66kg	42.5kg/114kg	71.8kg/184kg
operating voltage	DC:-48V~-60V AC: 90V~290V	DC:-48V~-60V AC: 90V~290V	DC:-48V~-60V AC: 90V~290V
Maximum power consumption [W]	3344W	6950W	8981W
operating temperature	-60m~+1800m: -5℃~45℃ 1800m~4000m: The maximum operating temperature decreases by 1°C for every 220m of elevation gain.
working environment relative humidity [RH]	5%~95%(non-condensation)
Heat dissipation mode	Left side and front air inlet, rear air outlet; extract air cooling, automatic fan speed control
